Yamaha RX-V6A - 7.2 Channel AV Receiver

Description

The Yamaha RX-V6A is a 7.2-channel network A/V receiver with built-in Bluetooth and Wi-Fi, delivering 100W per channel at 8 ohms with YPAO room sound optimization. It features 7 HDMI inputs and eARC output supporting 4K UHD and HDR10 pass-through, Dolby Atmos and DTS:X decoding, and control via MusicCast, Alexa, Google Assistant, or Siri.

Features

• Dolby Atmos with Dolby Atmos Height Virtualization (future firmware update)
• DTS:X and DTS Neural:X for immersive, lifelike surround audio
• CINEMA DSP 3D simulating acoustic spaces of concert halls and clubs
• Compressed Music Enhancer to restore detail lost to compression
• HDR10 support, with HDR10+ via future firmware update
• 4K/60Hz pass-through, with 8K/60Hz and 4K/120Hz via future firmware update
• AV Setup Guide app for simple initial setup
• MusicCast app for remote control and multi-room audio
• Voice control via Alexa, Google Assistant, and Siri (AirPlay 2)
• YPAO sound optimization with R.S.C. and multi-point calibration for up to 8 listening positions
• 4 SCENE buttons for up to 8 preset input/sound configurations
• Built-in streaming: Pandora, Spotify, Amazon Music, SiriusXM, TIDAL, Deezer, Napster, and more
• Multiroom audio with MusicCast, including hi-res ALAC, WAV, FLAC, and AIFF
• AirPlay 2 for streaming to multiple MusicCast devices
• eARC for full-resolution multichannel audio via HDMI
• Zone 2 output for A/V playback in a second room
• Dedicated phono input for turntable connection
• Enhanced gaming features via future firmware update: ALLM, VRR, QMS, QFT
• 17 DSP programs, Dialog Level Adjustment, Virtual Presence/Surround Back Speaker, Pure Direct, Adaptive DRC, Party Mode, ECO Mode

Specifications

• Channels: 7.2
• Power output: 100W per channel (2-channel driven, 8Ω, 20Hz–20kHz, 0.06% THD)
• DTS compatibility: DTS-HD Master Audio, DTS:X
• Dolby compatibility: Dolby Atmos, Dolby Digital Plus, Dolby TrueHD
• Auro 3D support: No
• Supported file formats: 11.2MHz DSD, AAC, AIFF, ALAC, FLAC, MP3, WMA
• DAC: 384kHz/32-bit (BB PCM5102A)
• HDR compatibility: HDR10
• Pass-through support: 4K60p
• Upscaling: 4K UHD

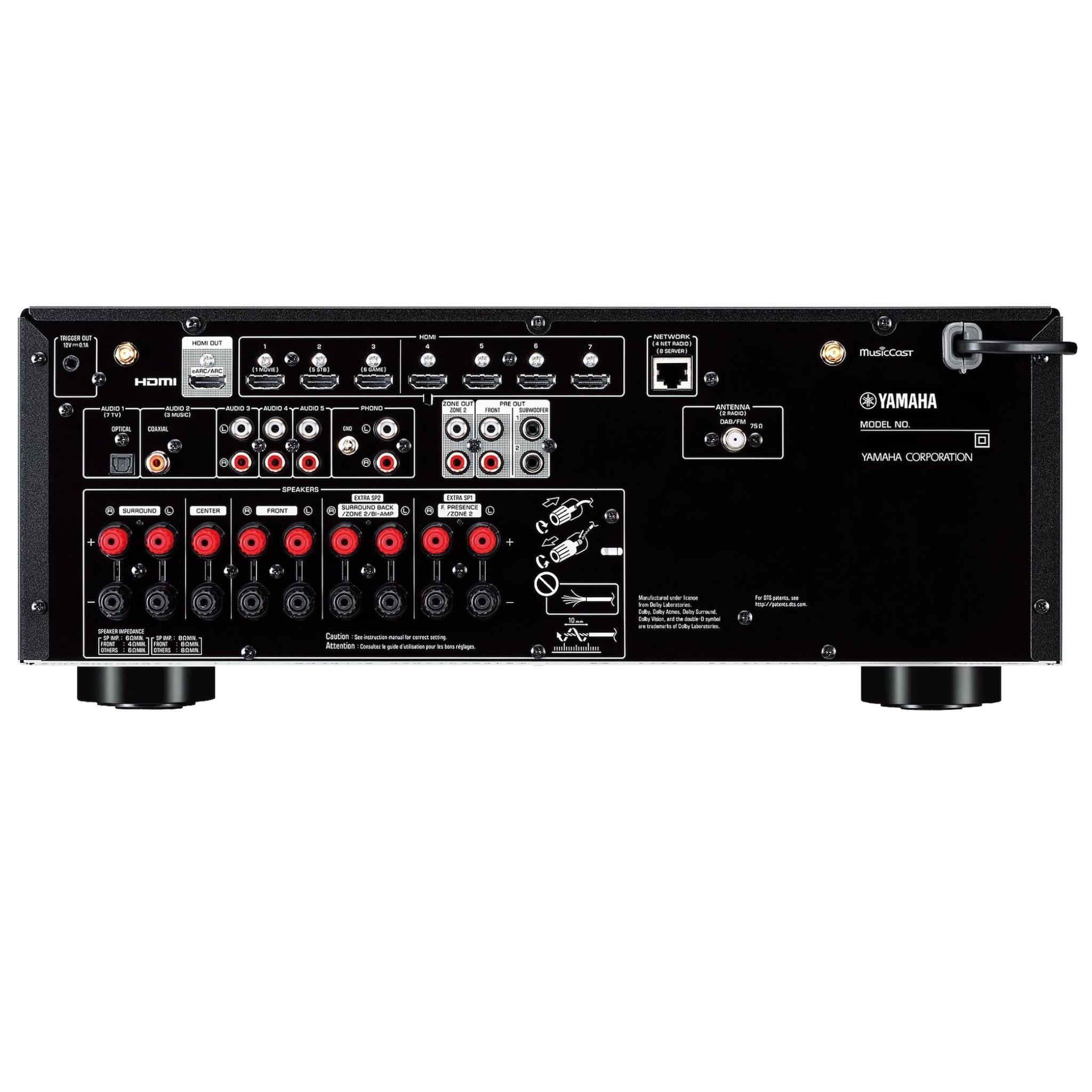

• Rear A/V inputs: 7x HDMI, 1x optical TOSLINK, 1x digital coaxial, 3x stereo RCA, 1x stereo RCA phono with ground screw
• Rear A/V outputs: 1x HDMI, 2x RCA subwoofer pre-out, 1x stereo RCA Zone 2 pre-out, 1x stereo RCA pre-out
• Front I/O: 1x 1/4in headphone output, 1x USB Type-A, 1x 1/8in setup mic input
• Other rear I/O: 1x RJ45 Ethernet, 2x Bluetooth/Wi-Fi antenna terminal input, 1x FM antenna terminal input, 1x 1/8in (12V trigger) output
• Speaker connectors: 9x binding post pairs
• HDCP support: Version 2.3
• ARC: Yes, eARC
• HDMI CEC: Yes
• Bi-amp capability: Yes
• Supported audio codecs: AAC, SBC
• Wireless audio protocols: AirPlay 2, MusicCast
• Virtual assistant support: Amazon Alexa, Google Assistant
• Tuner: AM, FM
• Power consumption: 0.1W standby
• Dimensions (W x H x D): 17.1 x 9.6 x 14.9in (43.4 x 24.4 x 37.8cm) antenna up; 17.1 x 6.8 x 14.9in (43.4 x 17.3 x 37.8cm) antenna down
• Weight: 21.6lb (9.8kg)
