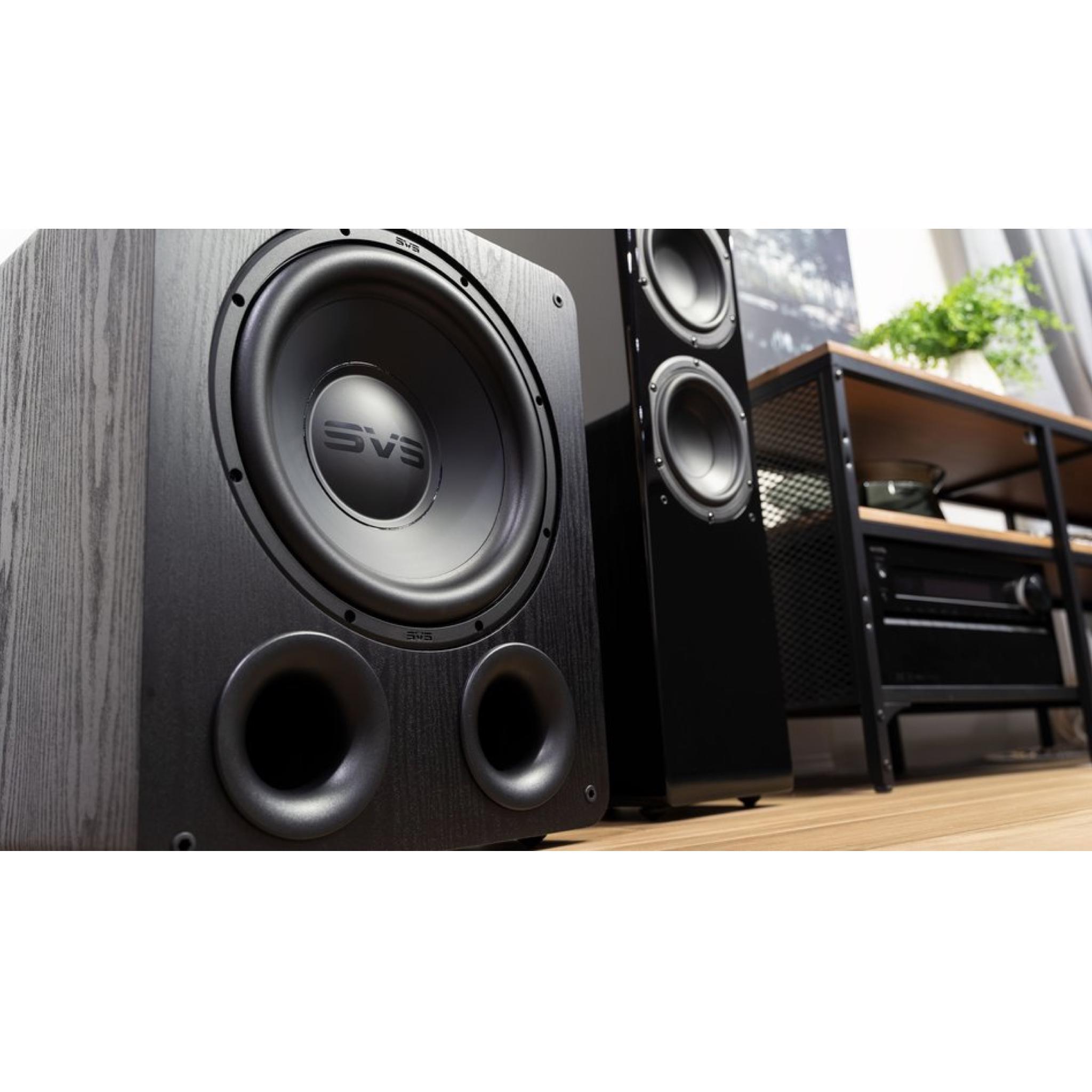

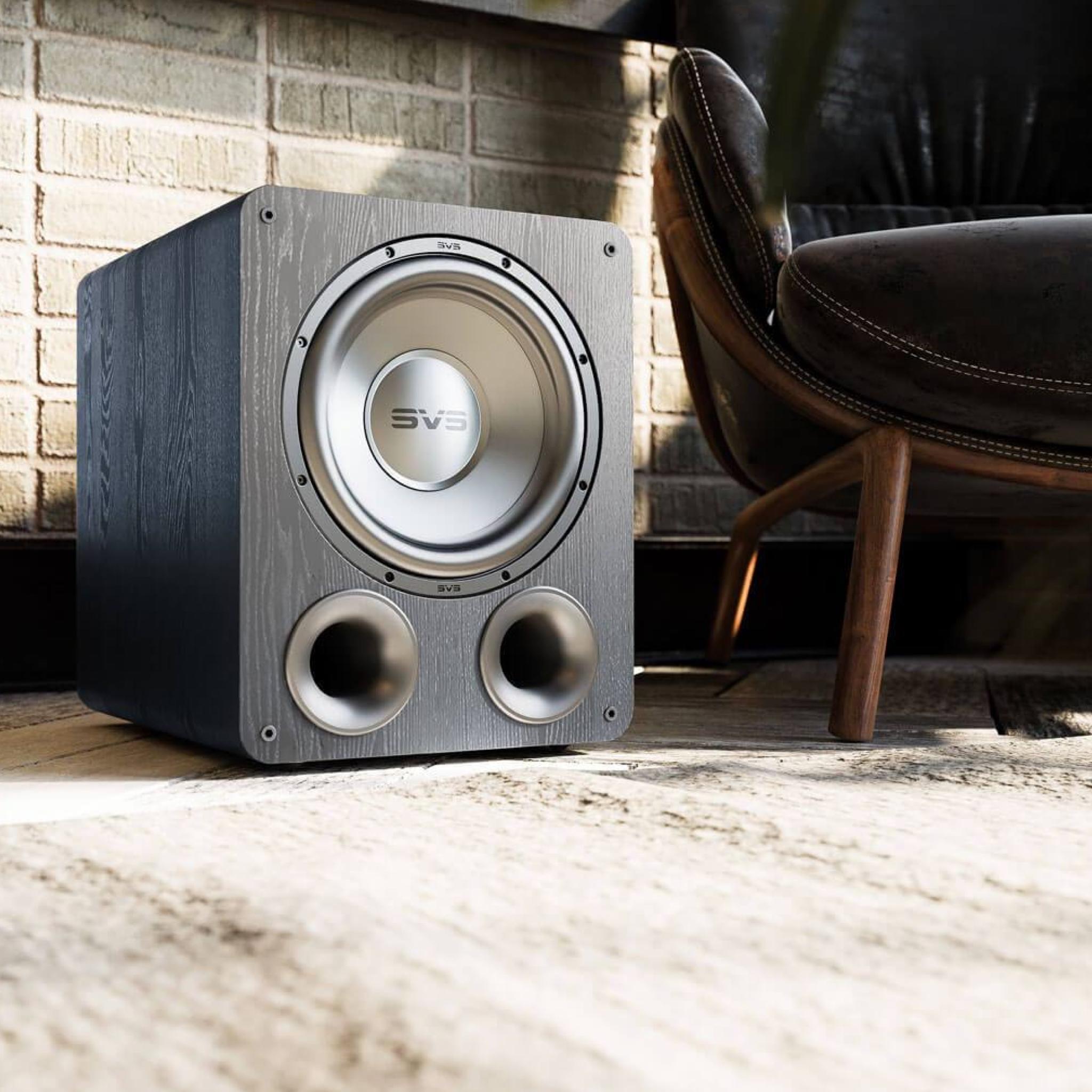

SVS PB-1000 Pro - Subwoofer

The SVS PB-1000 Pro is a ported subwoofer built around a reimagined 12-inch high-excursion driver and a 325W RMS / 820+W peak Sledge STA-325D amplifier, delivering room-shaking bass with pinpoint control. A dual-port cabinet design and the SVS Subwoofer DSP app provide effortless output with low distortion and convenient tuning. It's finished in Black Ash.

• Reimagined 12-inch high-excursion driver with dual ferrite magnet motor and extended aluminum pole piece
• Sledge STA-325D amplifier, 325W RMS continuous / 820+W peak, with fully discrete MOSFET output
• 50MHz Analog Devices DSP with custom presets and three-band parametric EQ

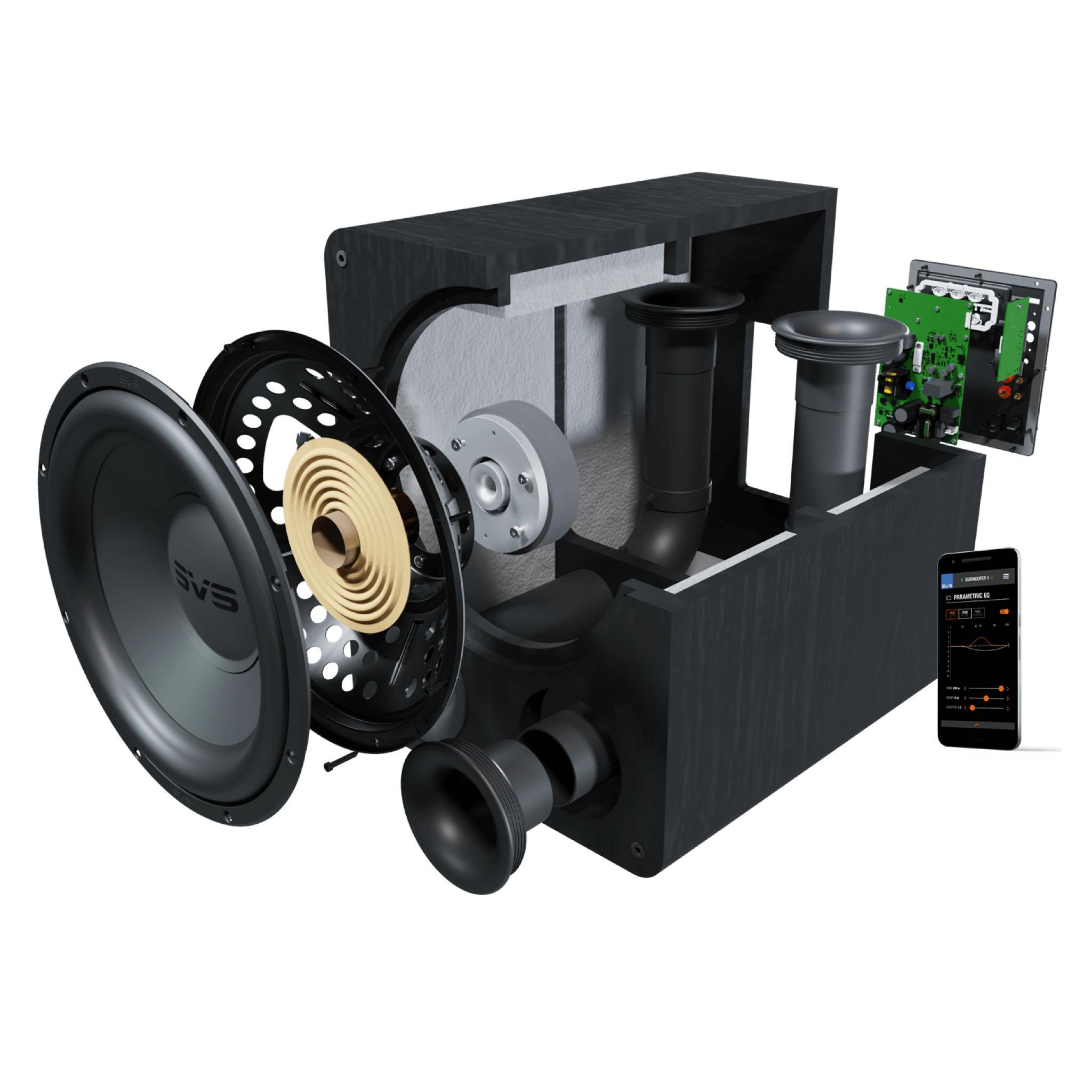

• Dual-port cabinet with switchable Standard and Sealed tuning modes
• Rear panel Intelligent Control Interface (ICI) for level, low-pass filter, and phase control
• Bluetooth-connected SVS app for convenient control even when the subwoofer is out of sight
• USB port for service and powering the optional SVS SoundPath Wireless Audio Adapter

• Subwoofer Type: Active, bass-reflex
• Amplifier Power: 325W RMS / 820W Peak, Class-D
• Driver: 1x 12" driver, 1.5" voice coil
• Ports: 2, front-firing
• Frequency Response: 17–260 Hz (ports open), 19–260 Hz (ports sealed), ±3dB
• Connectivity: Stereo RCA input/output (LFE), binding post input/output, 3.5mm 12V trigger, USB Type-A
• Input Impedance: RCA 16 kΩ, binding post 20 kΩ
• Phase Adjustment: 0°/45°/90°/135°/180°
• Bluetooth: Yes, for app control
• Power Consumption (Standby): 0.5W
• Cabinet Material: MDF, removable cloth mesh grille
• Dimensions (with grille): 15 x 18.9 x 20 in.
• Weight (with grille): 42.5 lbs (19.3 kg)
