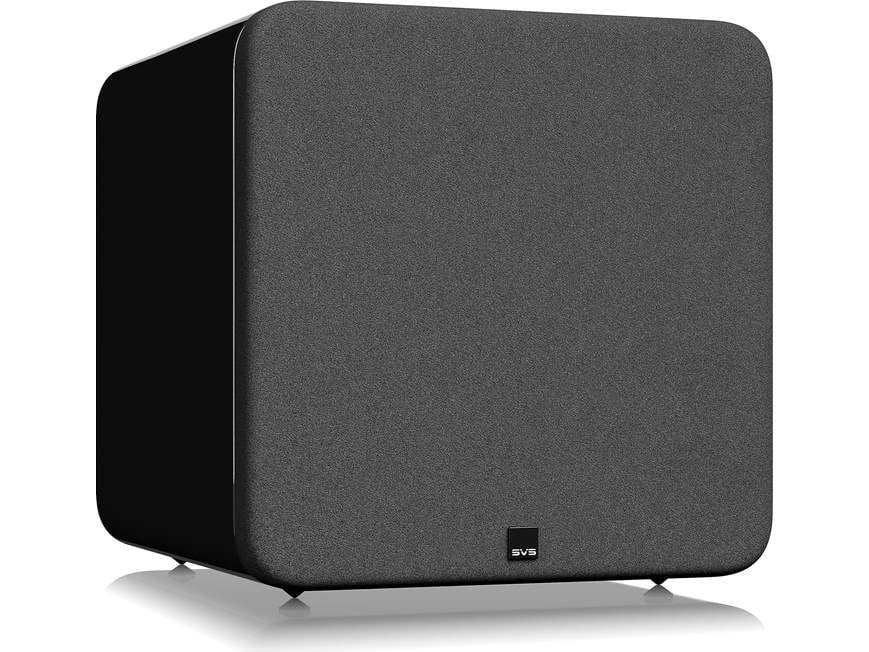

SVS SB 5000 R | Evolution - Subwoofer - Piano Gloss Black

Description

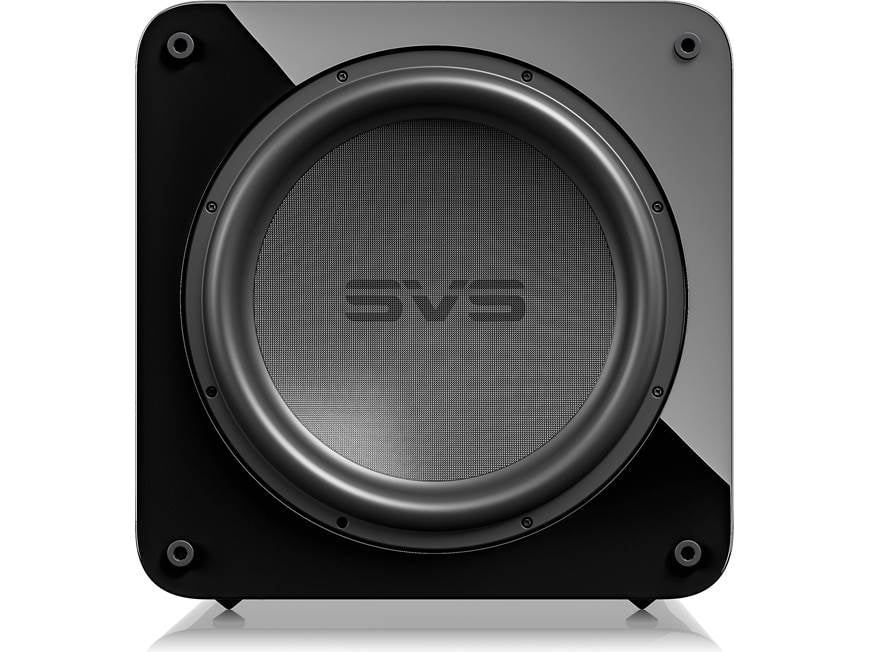

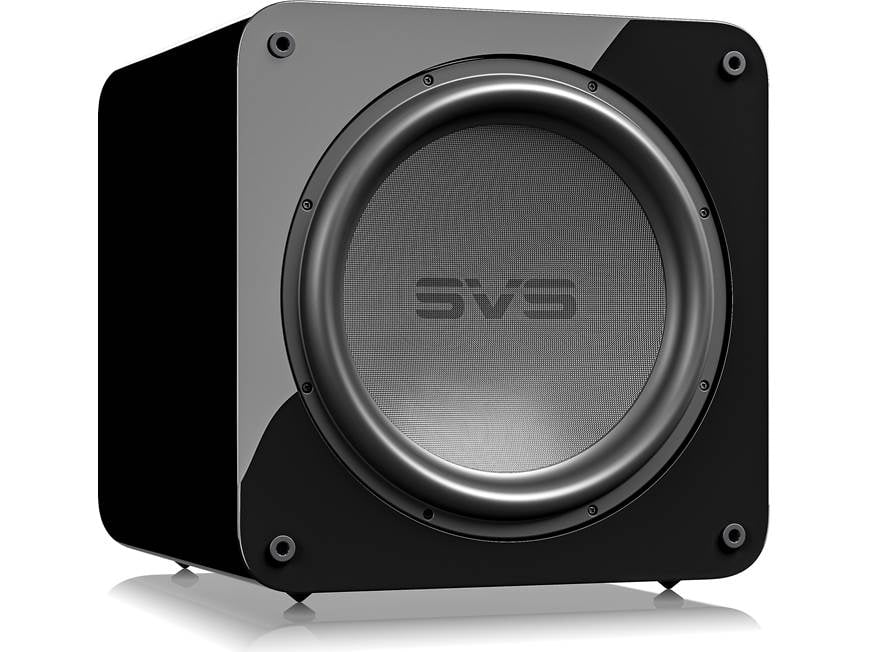

The SVS SB-5000 R|Evolution is a sealed-cabinet subwoofer built around the same 15-inch high-excursion dual voice coil driver and 2,000W continuous / 5,000+W peak dual-monoblock amplifier as the PB-5000, in a significantly more compact enclosure. Its sealed design delivers tighter, more musical bass down below 17Hz, with a 295MHz DSP and SVS Subwoofer Control app handling tuning and room correction. It's available in Piano Gloss Black or Black Ash finishes.

Features

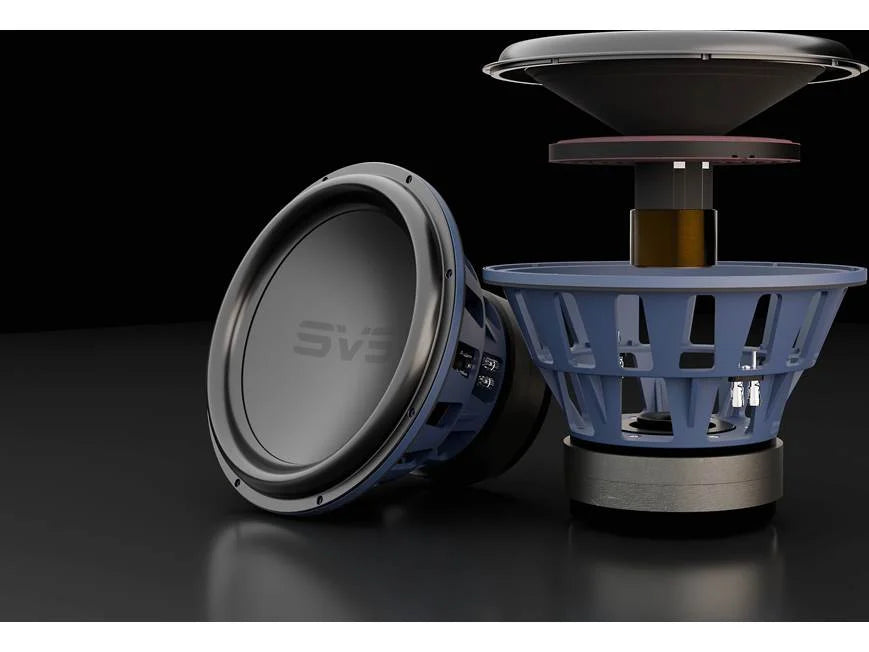

• 15-inch long-throw glass fiber composite driver with dual edge-wound voice coils

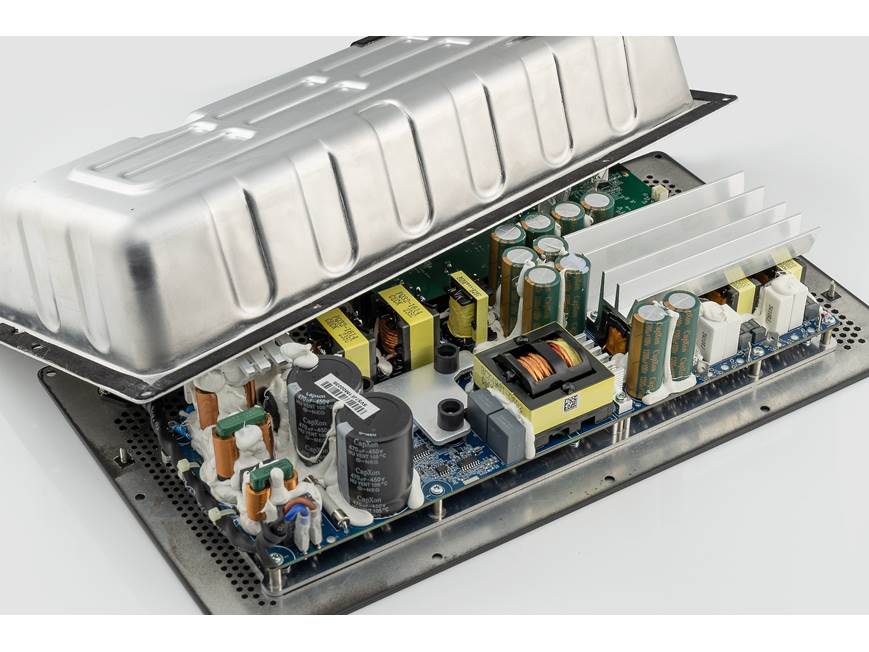

• Dual-mono STA-2000D amplifier design with discrete MOSFET output, rated 2,000W continuous / 5,000+W peak
• 295MHz Analog Devices DSP with 56-bit filtering for precise frequency response and system monitoring

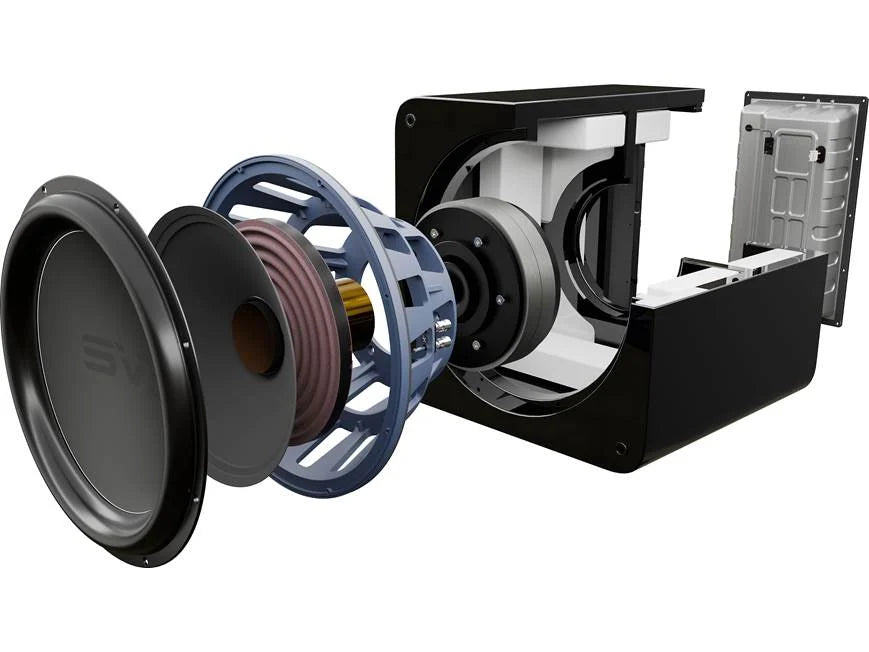

• Sealed, double-thick 2-inch MDF front baffle with rigid internal bracing for a more compact, acoustically inert cabinet
• Switch Mode Power Supply with active Power Factor Correction for consistent performance on any circuit
• SVS Auto EQ room correction via smartphone mic or optional external microphone

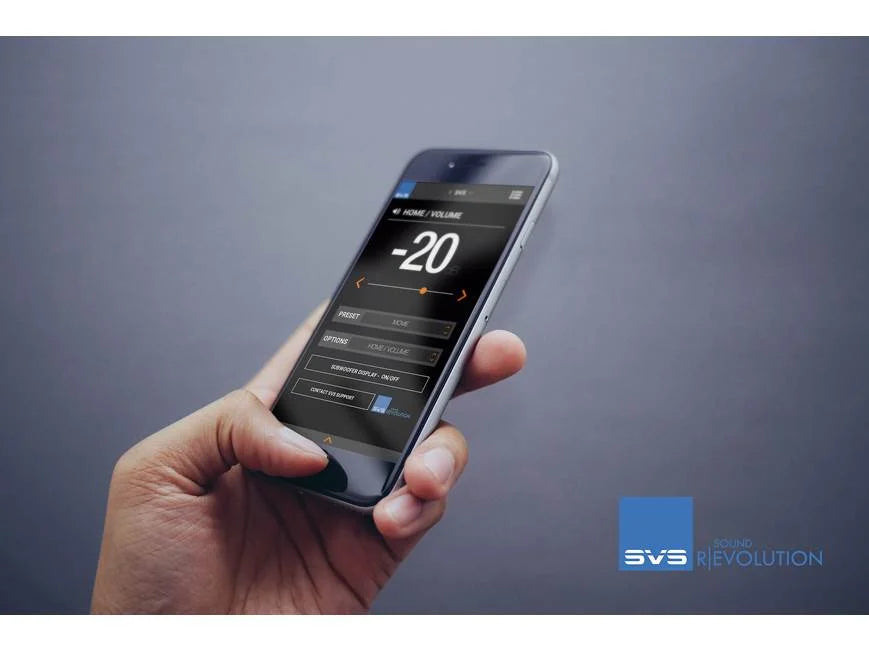

• SVS Subwoofer Control app with volume, low-pass filter, phase, six-band PEQ, and room gain controls
• Rear panel OLED display and control interface with Display Flip function

Specifications

• Driver: 15-inch long-throw, dual voice coil, glass fiber composite cone
• Amplifier: 2,000W Continuous / 5,000+W Peak, dual-mono Class D with discrete MOSFET output
• DSP: 295MHz Analog Devices, 56-bit filtering, 120dB signal-to-noise ratio DACs
• Cabinet: Sealed box, double-thick 2-inch MDF front baffle with internal bracing

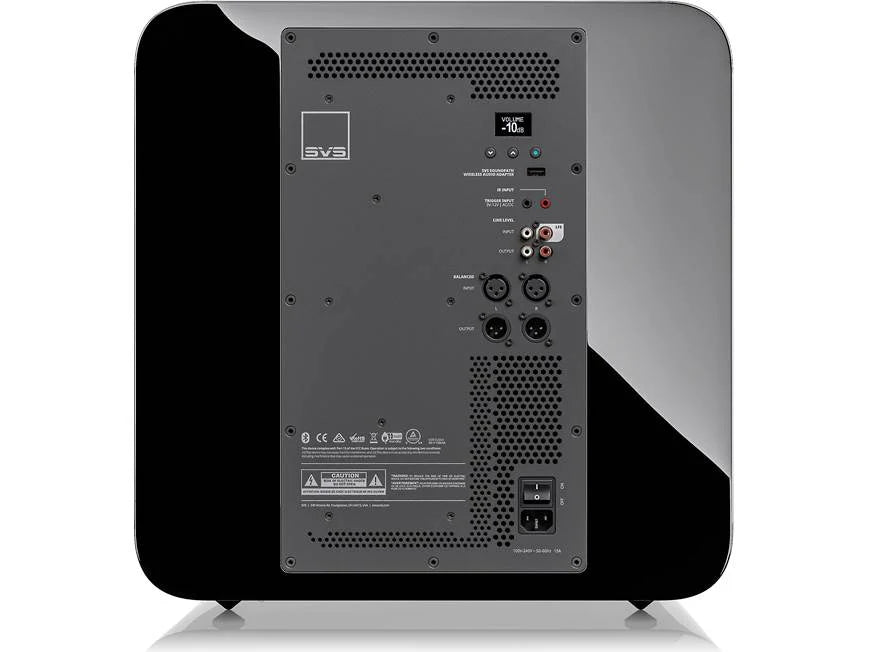

• Inputs: Unbalanced RCA (10kΩ), Balanced XLR (14kΩ), 3.5mm trigger, 3.5mm IR
• Standby Power: 0.5W low standby consumption
• Finishes: Piano Gloss Black, Black Ash
• Dimensions (with grille): 18.3" H x 17.8" W x 19.5" D
• Weight (unboxed): 102.1 lbs (46.3 kg)
• Shipped Weight: 120.7 lbs (54.8 kg)
• Included Accessories: Protective grille frame, iso-elastomer feet, heavy-duty 6' power cord, quick start guide
