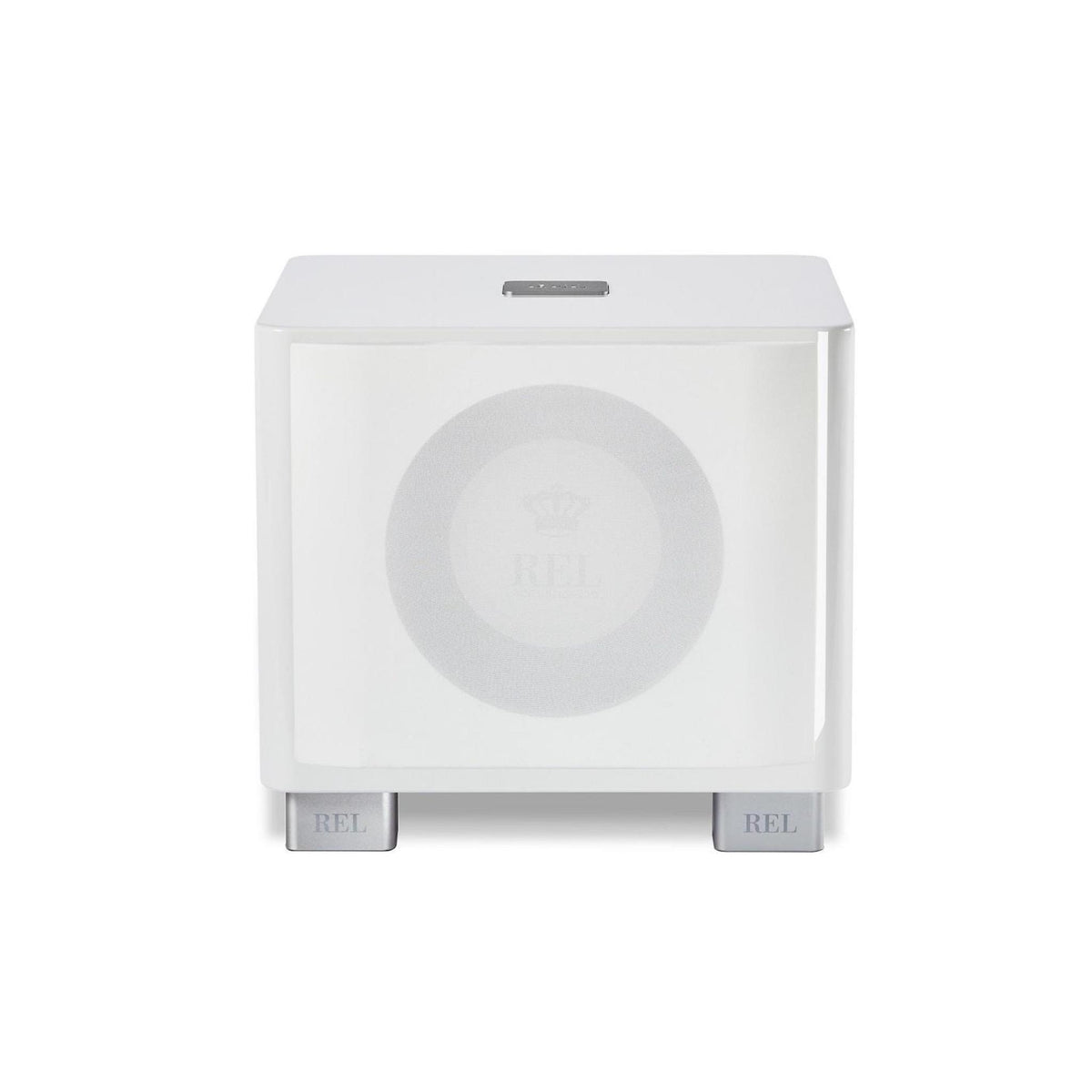

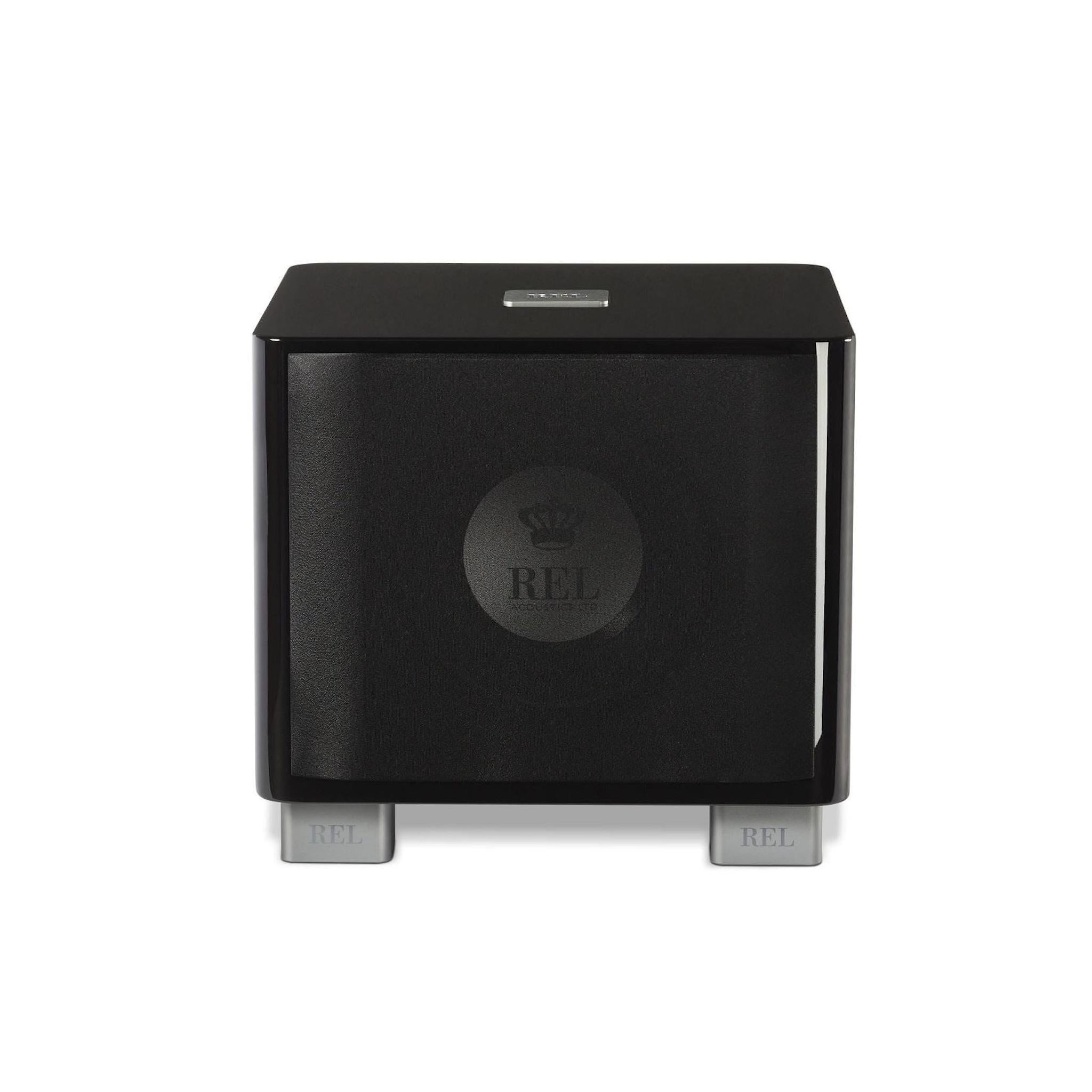

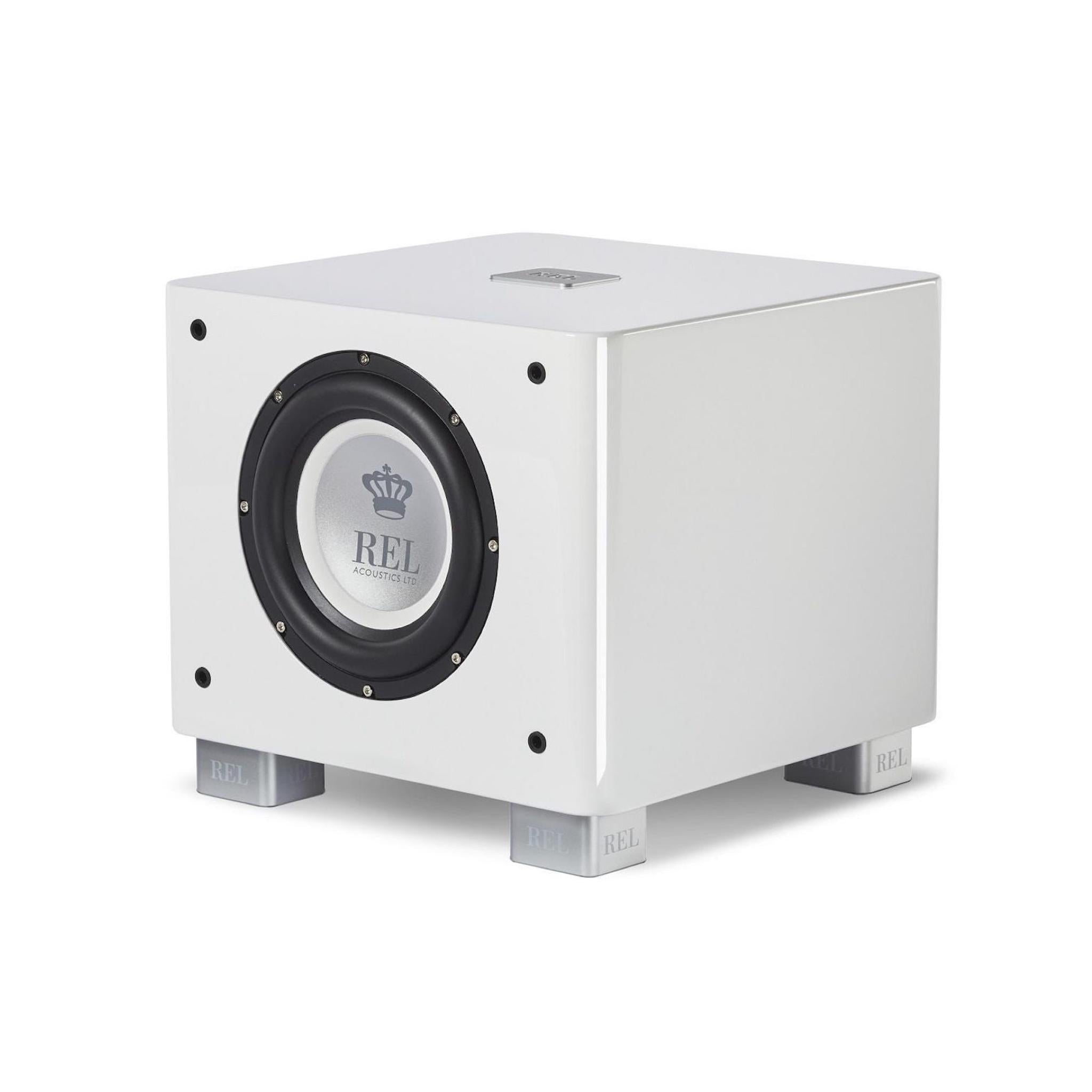

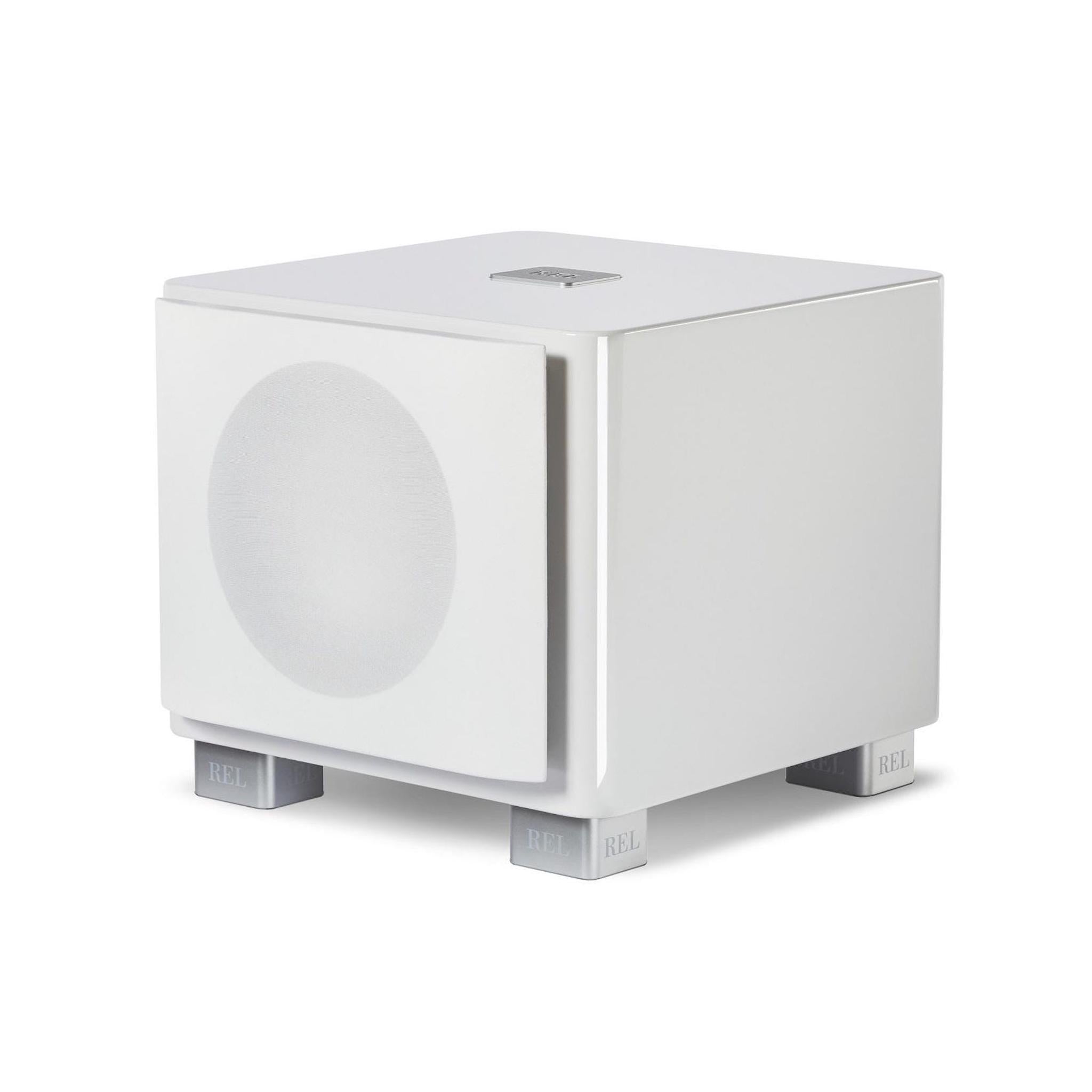

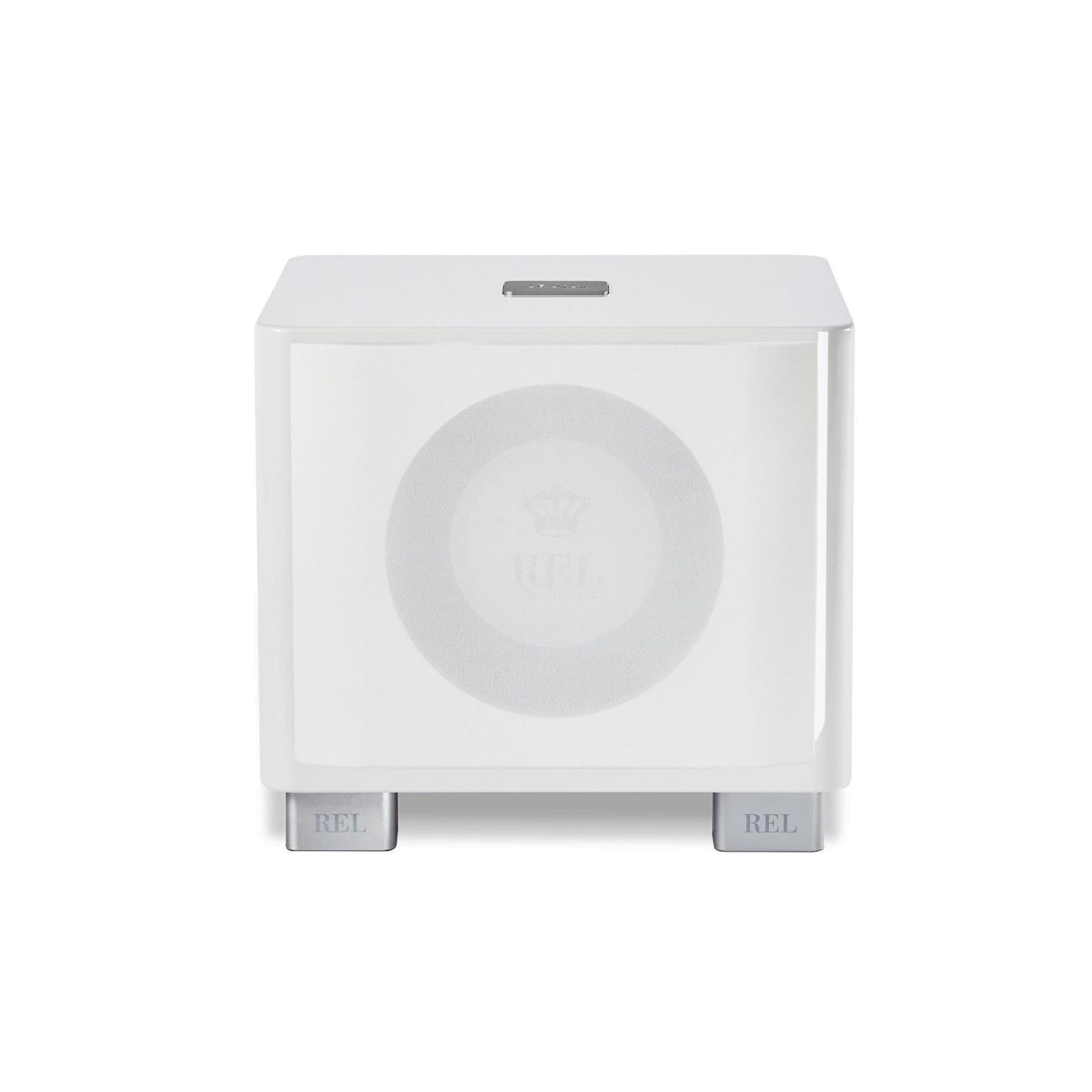

REL T/7x - Subwoofer

The T/7x pairs an 8in FibreAlloy long-throw driver with a 10in passive radiator and a reliable 200W Class A/B amplifier for a compact, balanced subwoofer that blends seamlessly with quality speakers. It delivers deep, tuneful bass and fast, transparent performance that belies its size, in a redesigned cabinet with increased volume for greater fluidity and power.

• 8in FibreAlloy long-throw active driver with 10in passive radiator for speed and clean bass
• Redesigned cabinet with increased volume and reduced back pressure for stiffer, better-controlled suspension
• Reliable 200W MOSFET Class A/B amplifier, refined with new driver MOSFETs and improved toroidal transformer mounting
• Signature High Level Input connection with fast filters and special limiters for natural, dynamic sound
• Optional Arrow zero-compression wireless connectivity
• Standby Mode switch included on 220V units

• Type: front-firing active driver, down-firing passive

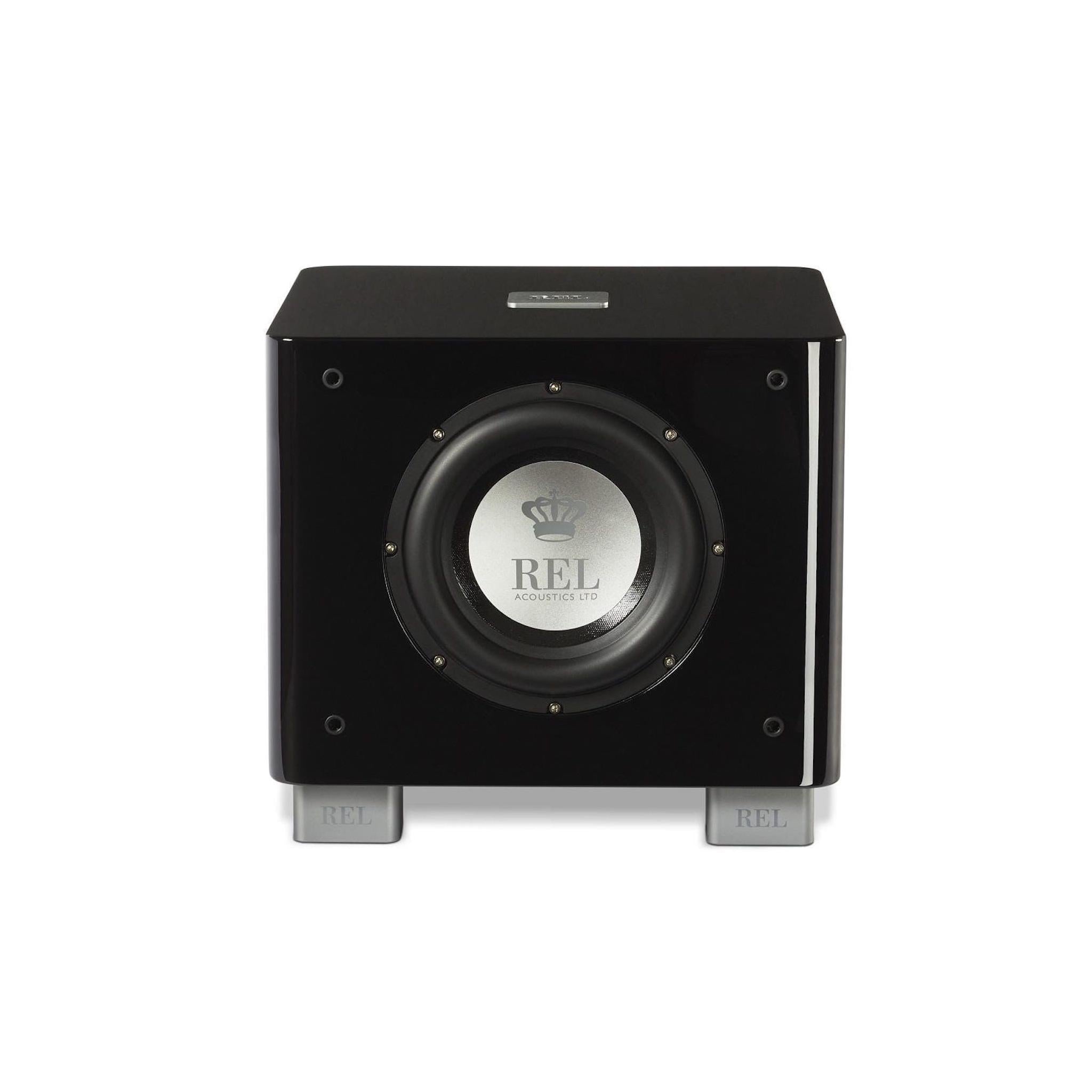

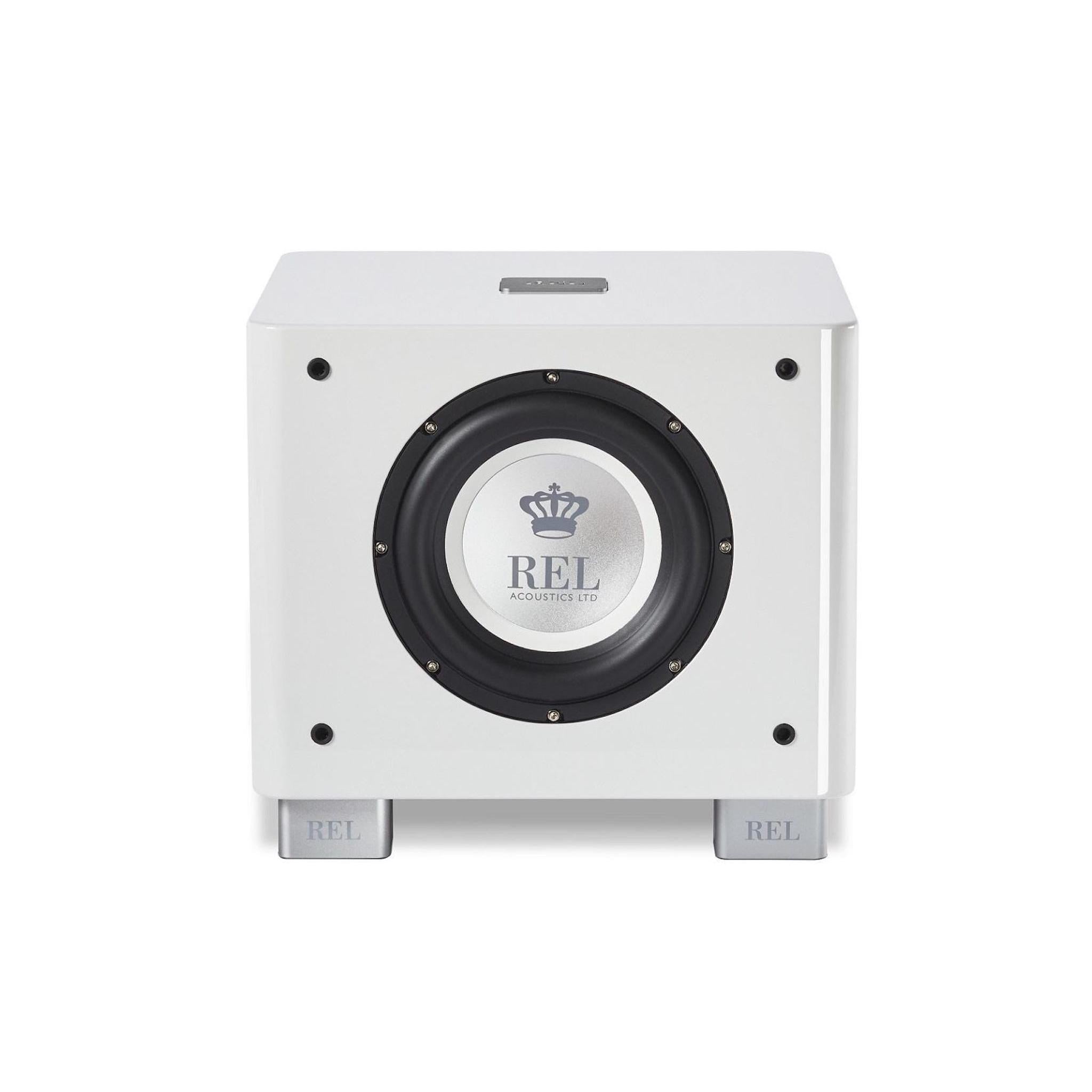

• Active driver: 8in FibreAlloy, 200mm long-throw, inverted aluminium dust cap, steel chassis

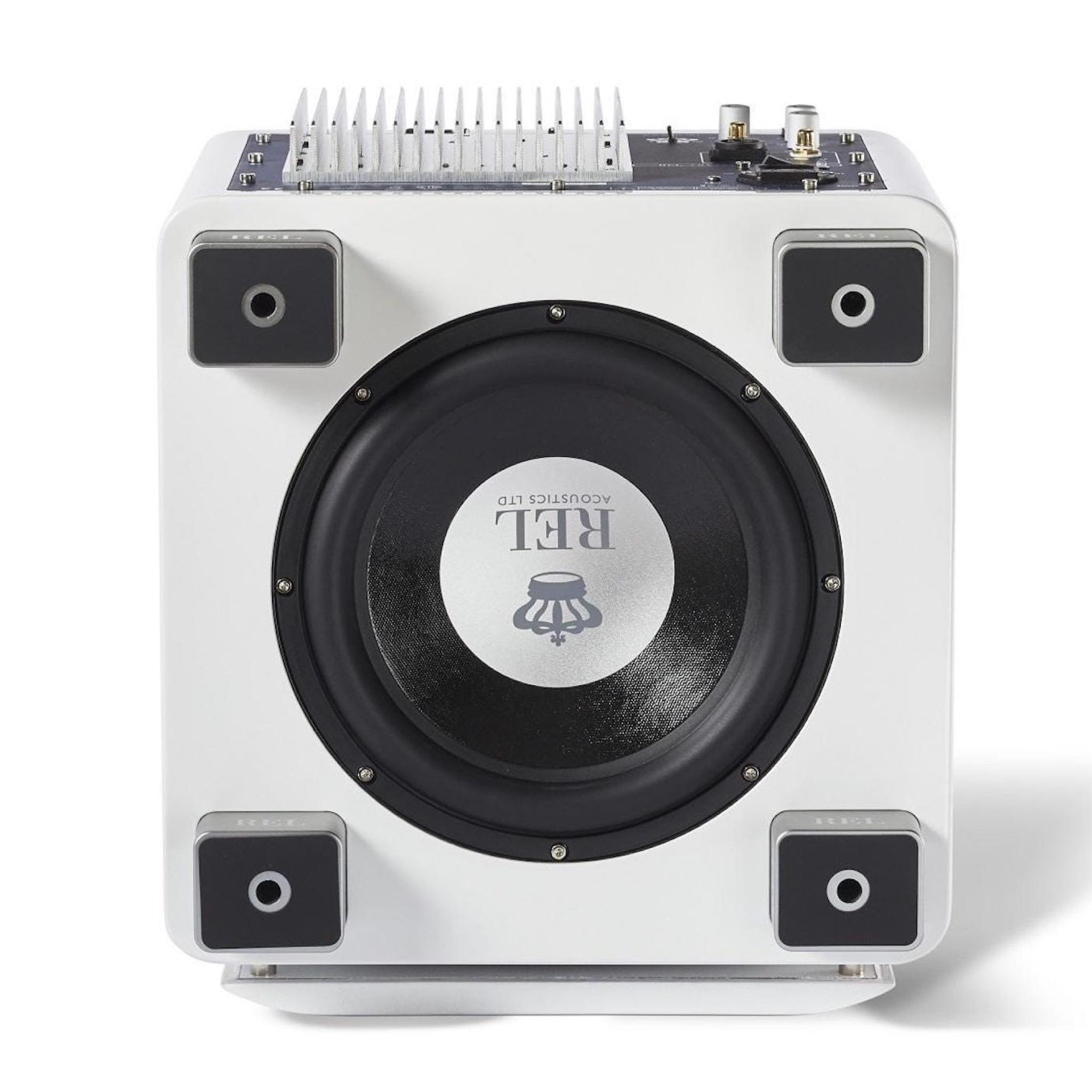

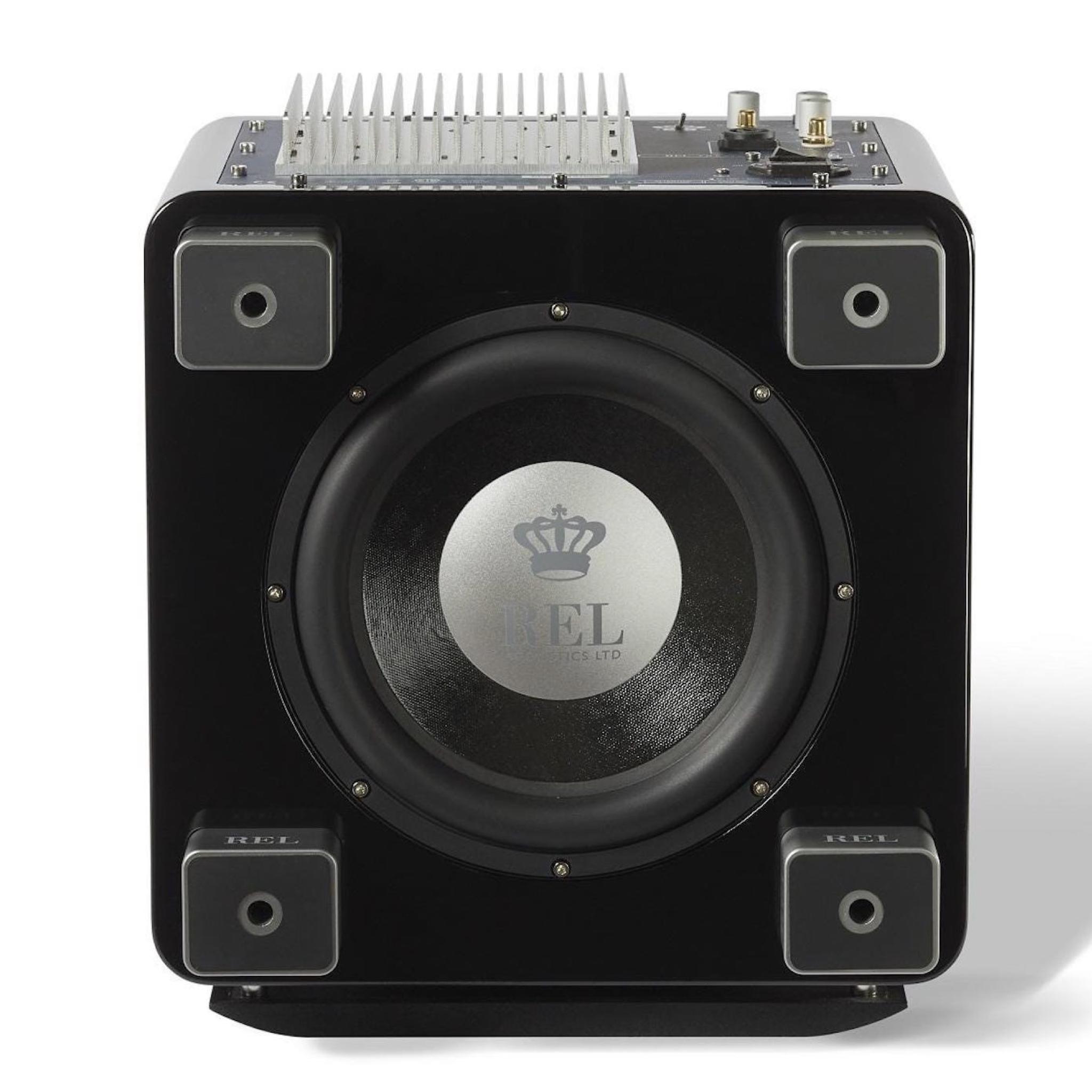

• Passive radiator: 10in, 254mm long-throw, inverted dust cap
• Low frequency extension: -6dB at 30Hz

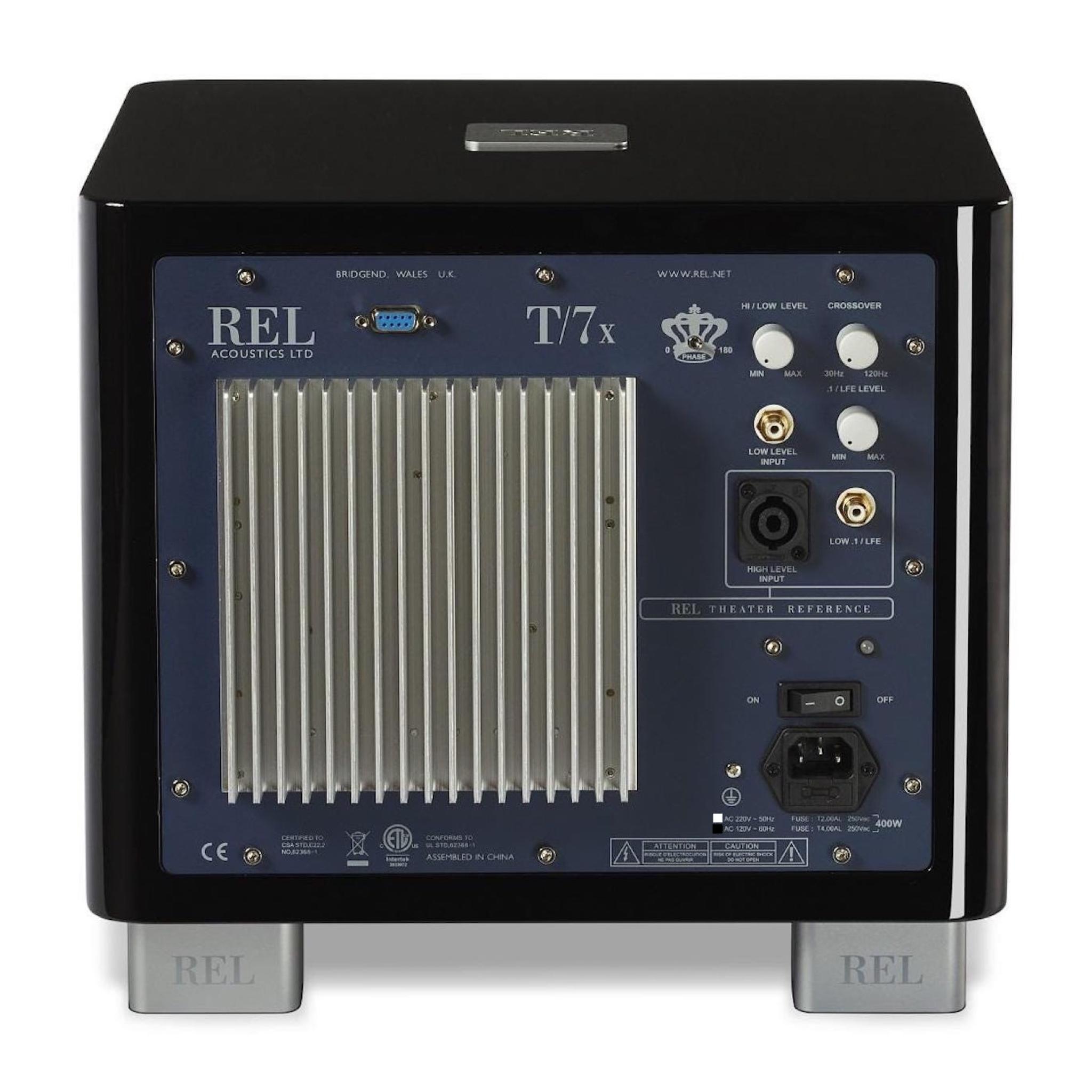

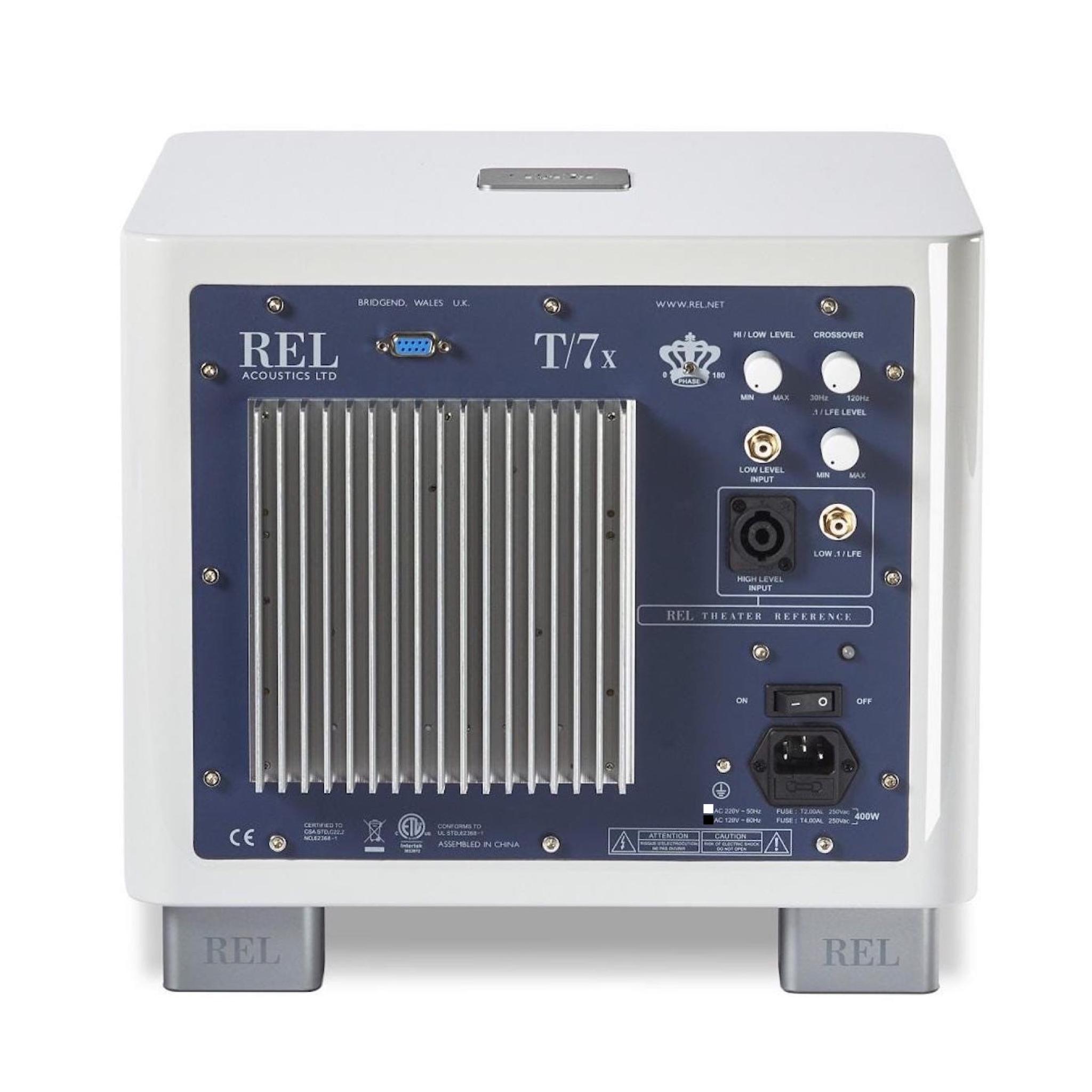

• Input connectors: High Level Neutrik Speakon, low-level single RCA, LFE RCA
• Power output: 200 watts RMS
• Amplifier type: Class A/B
• Wireless capability: Arrow (optional), zero-compression single large-scale integrated chip
• Protection: fully electronic set safe, DC fault, output short protection
• Mains input voltage: 220–240V
• Fuses: 2A semi-delay (230V), 4A semi-delay (115V)
• Dimensions (W x H x D): 14.0 x 12.6 x 14.3in (356 x 320 x 363mm)
• Net weight: 38.5lb (17.5kg)
• Finish: high-gloss black or white, 5 coats
• Included: mains lead, Neutrik Speakon cable (10m nominal), interconnect, user's manual
