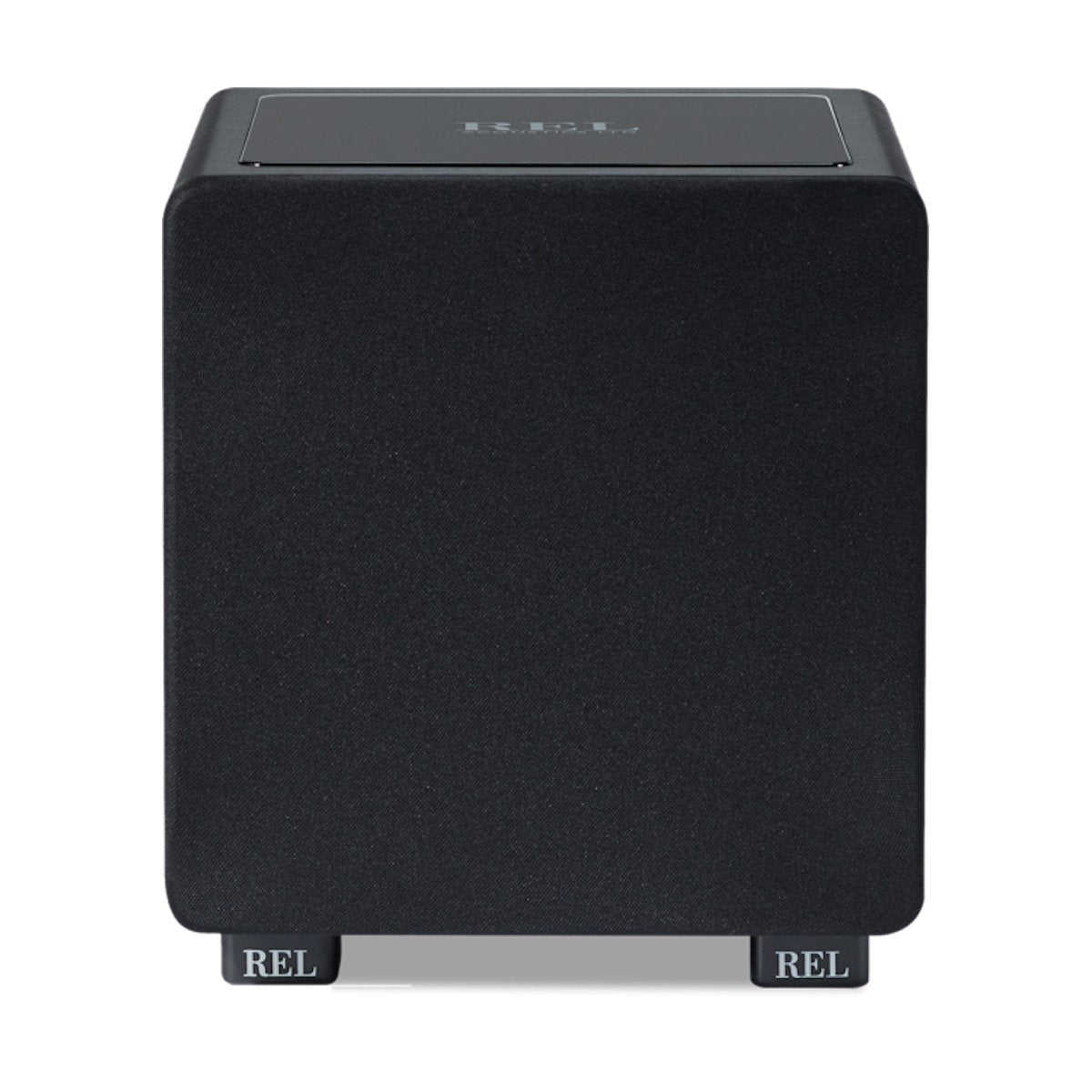

REL HT/1003 MKII - Subwoofer

The HT/1003 is a compact home theater subwoofer pairing a 10in CarbonGlas long-throw driver with a 300W NextGen5 Class D amplifier for high output in a smaller footprint. Built for high-powered home theater and immersive gaming setups, it delivers extremely flat bass down into the 20s Hz range with optional HT-Air zero-compression wireless.

• 10in CarbonGlas driver: lightweight, stiff carbon fibre construction with natural butyl surrounds
• 300W NextGen5 Class D amplifier running cool for reliable, sustained high output
• Specially adapted home theater input filters for extremely flat bass in the low frequencies
• Optional HT-Air zero-compression wireless connection with 16–20ms latency
• Line-grained composite cabinet wrap with a 12mm hand-lacquered top for vibration damping
• Designed to supplement .1/LFE output for added depth in home theater effects

• Type: closed box, front-firing driver

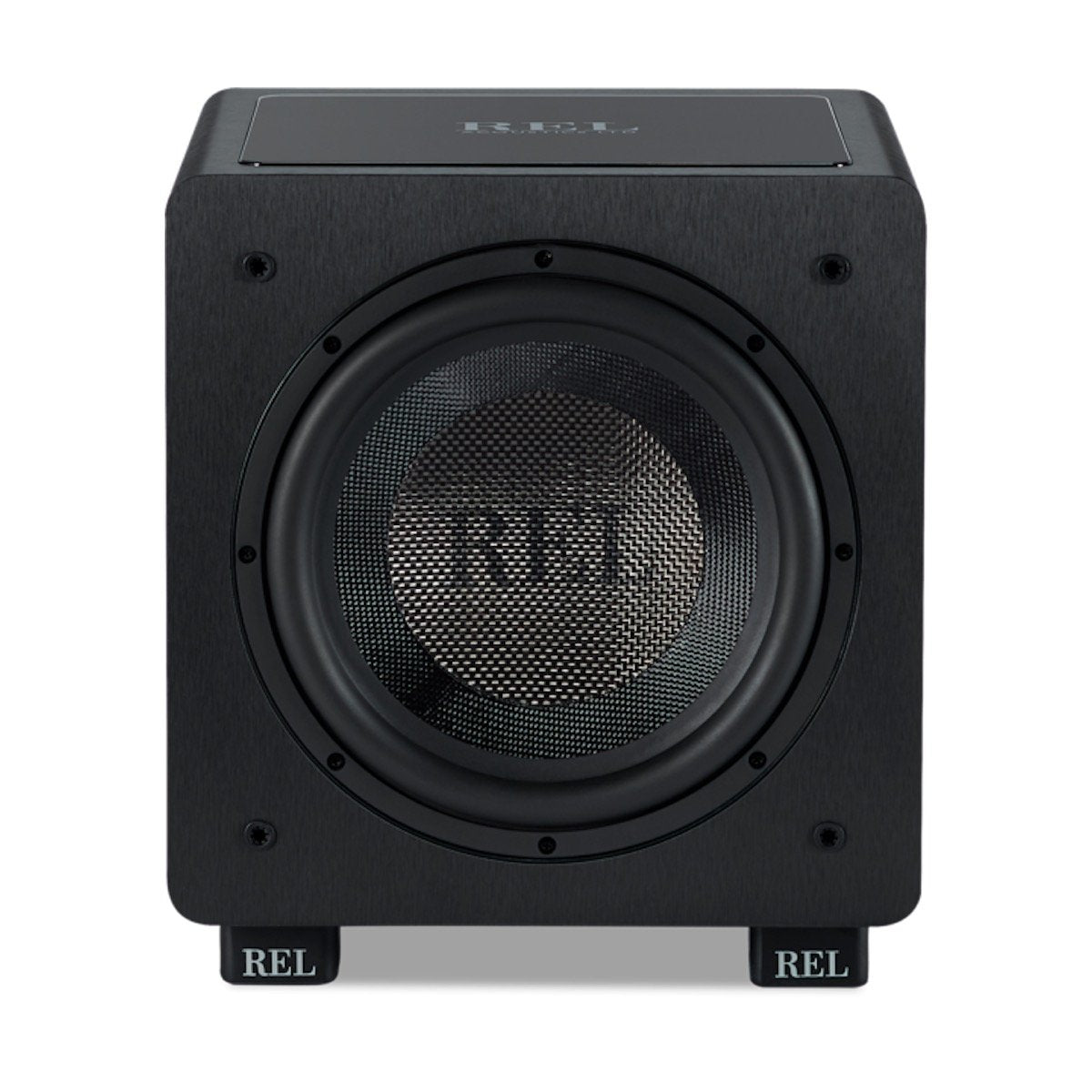

• Active driver: 10in (250mm) long-throw, CarbonGlas cone, inverted carbon fibre dust cap, steel chassis
• Low frequency extension: -6dB at 24Hz

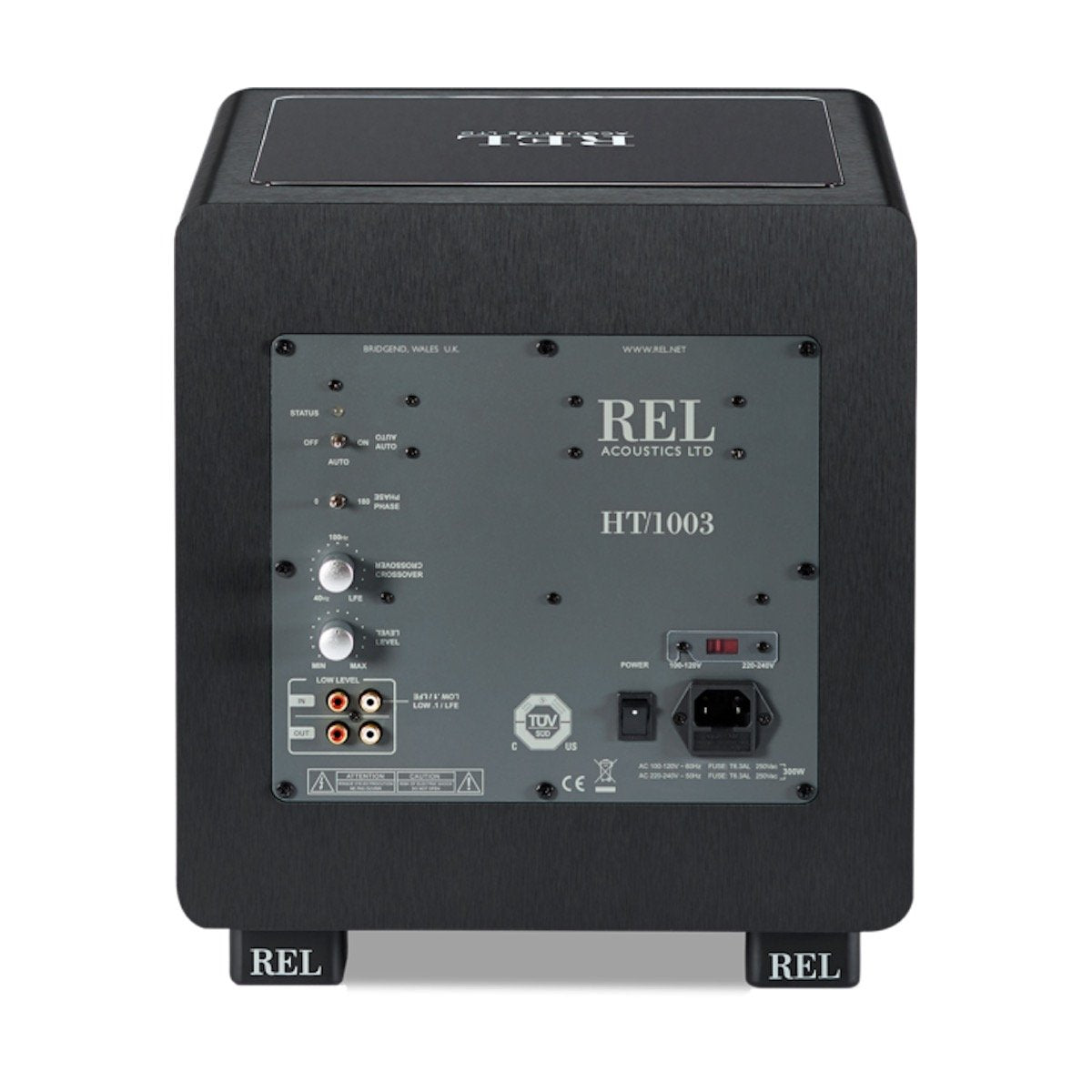

• Input connectors: dual-purpose low-level stereo RCA or LFE RCA
• Output connectors: daisy-chain low-level stereo RCA or LFE RCA
• Power output: 300 watts RMS
• Amplifier type: NextGen5 Class D
• Wireless capability: HT Air wireless (optional), zero-compression single large-scale integrated chip
• Protection: fully electronic set safe, DC fault, output short protection
• Mains input voltage: 220–240V, 110–120V for certain markets
• Fuses: 6.3A semi-delay, 230V or 115V operation
• Dimensions (W x H x D): 12.5 x 13.7 x 13.8in (318 x 347 x 351mm)
• Weight: 15.1kg
• Included: mains lead, user's manual
