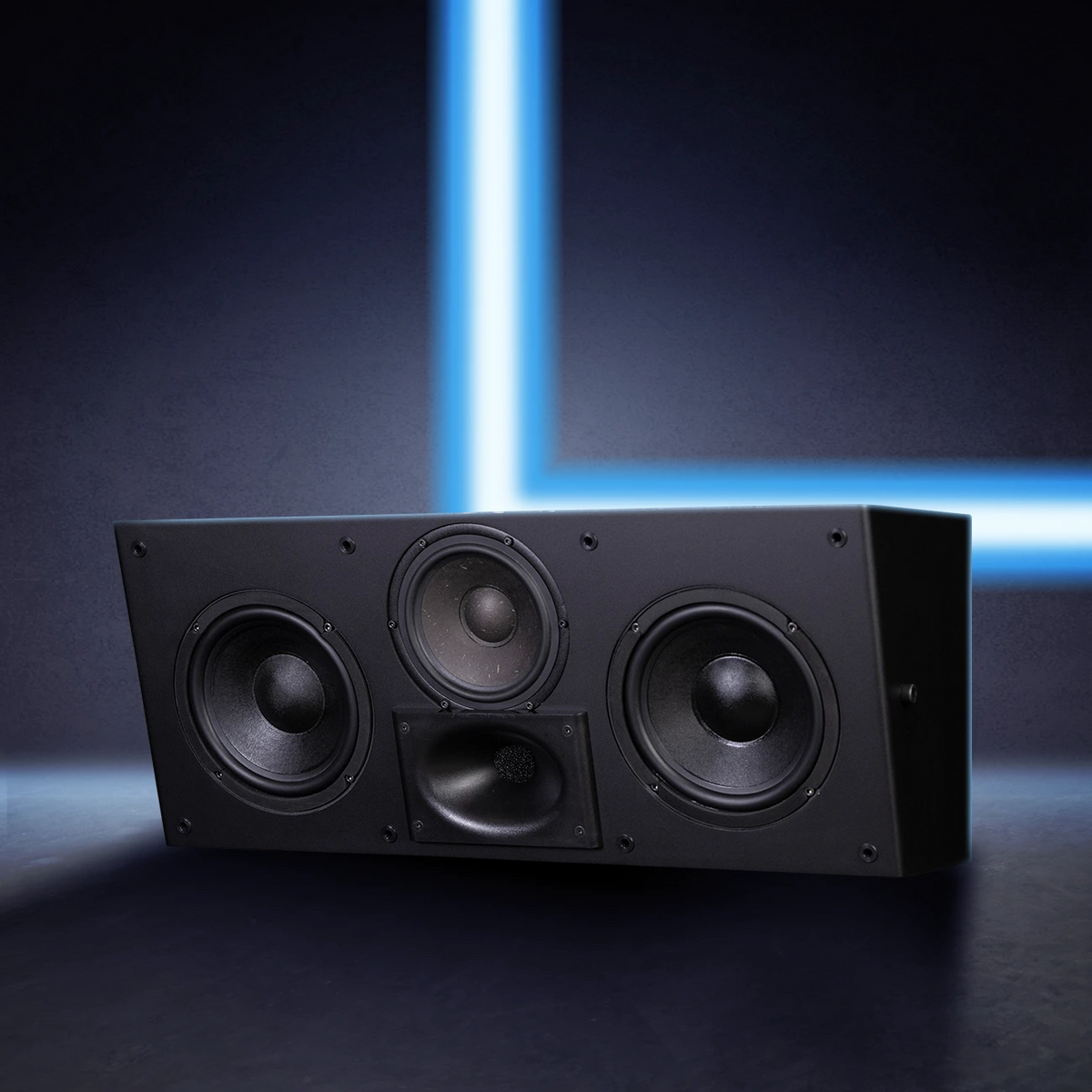

Procella P628 - On Wall Speaker - Piece

The Procella P628 is a three way passive main speaker, sold individually, built for cinemas where the speakers cannot sit behind an acoustically transparent screen. Designed for placement above the screen, it is the recommended left, centre and right speaker for home theatres and screening rooms using a micro LED video wall or a solid projection screen. Twin 8 inch long throw woofers take bass down to 40 Hz, matching the full range P610 without relying on an 80 Hz subwoofer crossover.

• Three way design with twin 8 inch long throw woofers, a 6.5 inch midrange and a 1 inch neodymium compression driver
• Bass extension to 40 Hz for true full range cinema performance
• Designed for above screen placement with micro LED walls and solid screens
• Helps keep sound aligned with the picture when speakers sit above the screen
• Same performance as the full range Procella P610
• Separate high and low frequency inputs with two pairs of binding posts
• M10 bolt points on the side panels for mounting
• Uses an external DSP for the 150 Hz low frequency crossover

• Type: Three way passive loudspeaker
• Impedance: 8 ohms nominal per input
• Power handling: High frequency 100 W continuous, 300 W peak; low frequency 400 W continuous, 1,200 W peak
• Sensitivity: 101 dB (1 W / 1 m)
• Maximum SPL: 116 dB continuous, 122 dB peak free standing
• Frequency response: 40 Hz to 20 kHz (−3 dB)
• Dispersion: 90° H x 60° V constant directivity from 2.0 kHz
• Crossover: Asymmetrical Linkwitz-Riley at 2.0 kHz with baffle step compensation (internal); 150 Hz via external DSP
• Drivers: 2 x 8 inch long throw woofers with 50 mm voice coils; 6.5 inch midrange with 40 mm voice coil; 1 inch neodymium compression driver with polyester diaphragm on elliptical constant directivity waveguide
• Connectivity: Two pairs of gold plated large diameter binding posts
• Mounting: M10 bolts on side panels
• Construction: Void free, internally braced MDF with painted black finish
• Dimensions (H x W x D): 730 x 300 x 250 mm (28.7 x 11.8 x 9.8 in)
• Weight: 25 kg (55.1 lb)
• Assembly: Belgium, 100% QC tested
