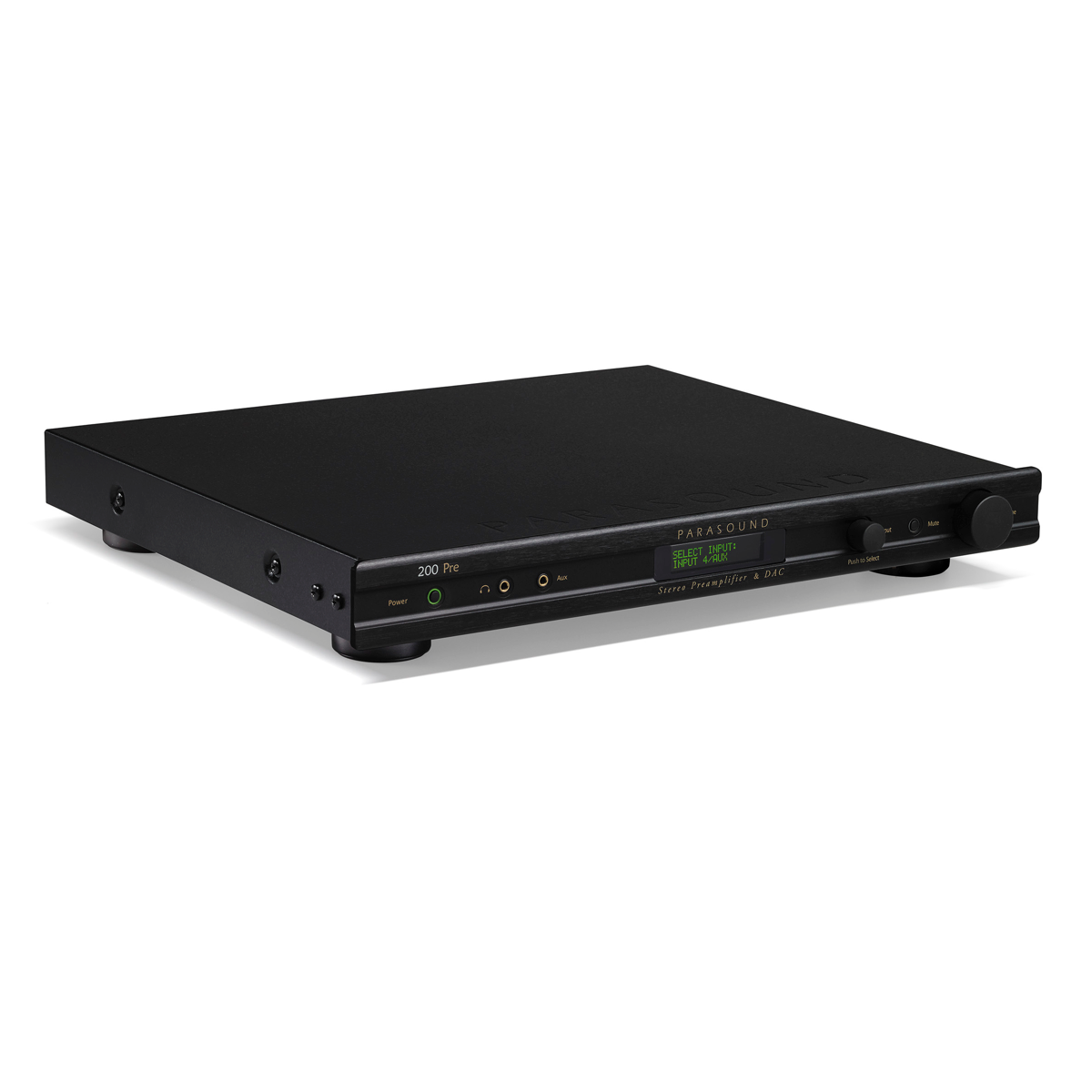

Parasound - NewClassic 200Pre - Pre Stereo Pre-amplifier

Description

A stereo preamplifier with a Burr-Brown 24-bit/192kHz DAC borrowed from Parasound's Halo P 5, a built-in phono stage, and a pure analog signal path from input to output. Combines digital convenience with analog purity, in a compact 1U chassis.

Features

• Burr-Brown 24-bit/192kHz DAC with USB, optical, and coaxial digital inputs
• 4 analog inputs plus a phono input for MM or MC cartridges
• Analog bass management with variable 20–140Hz high-pass crossover and remote-controlled subwoofer on/off and level
• Variable and fixed stereo outputs, plus a bypass input for surround sound or streamer integration
• Default turn-on volume memory and favorite volume recall via remote
• Input level matching to balance volume across different sources
• Dedicated headphone amplifier
• Front-panel dimmable LCD display with renameable inputs
• 2-way RS232 with exact volume control and feedback, plus 12V trigger output and rear IR input

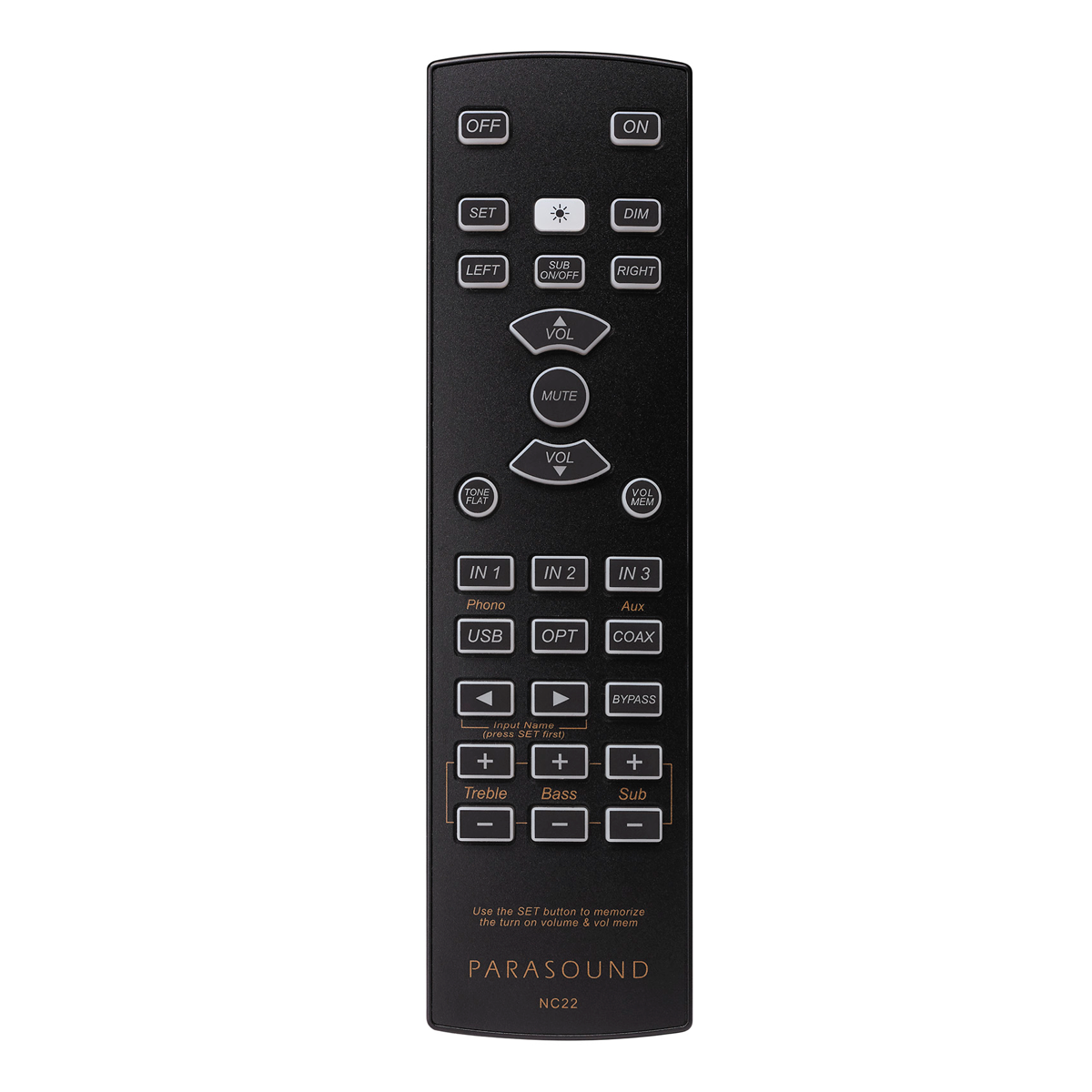

• Back-lit remote control with discrete buttons

Specifications

Frequency Response
20Hz–20kHz (+0/-0.05dB) · 10Hz–80kHz (+0/-3dB)

THD
<0.03% (20Hz–20kHz)

Interchannel Crosstalk
75dB at 20kHz

Input Sensitivity
250mV for 1V output, 12dB total gain at volume 100, unity gain at volume 76, 3.5V max output

Phono Stage
MM: 40dB / 47kΩ · MC: 50dB / 100Ω

Input/Output Impedance
Input: 24kΩ · Output: 470Ω

Signal-to-Noise Ratio
>100dB (line and digital), IHF A-weighted

DC Trigger Output
12VDC, 50mA

Power Requirement
10W max, <0.5W standby, 90–250VAC 50/60Hz auto-sensing

Dimensions
17.25" W × 14.25" D (16" with cables) × 1.75" H (1U)

Weight
11 lbs net (5 kg)
