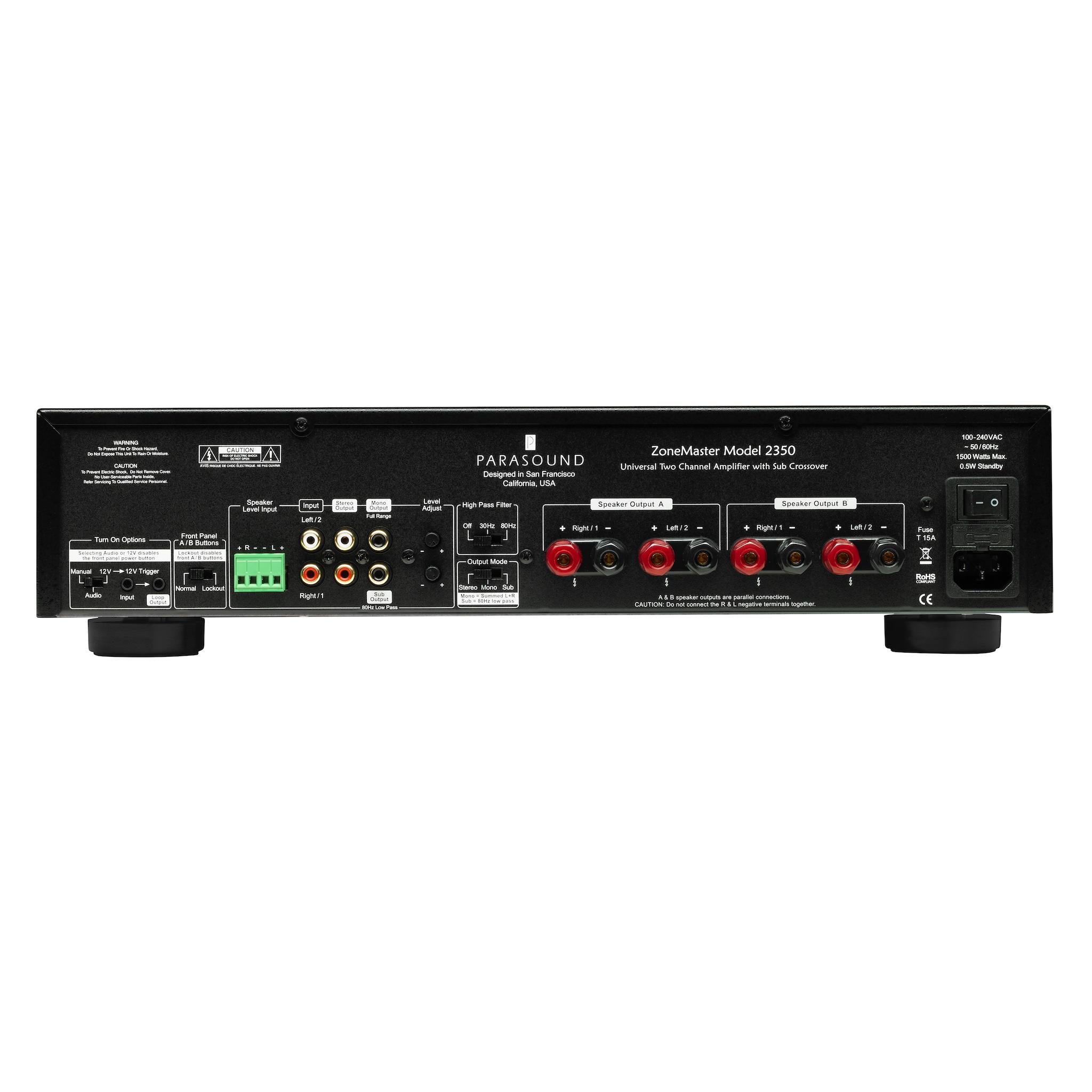

Parasound ZoneMaster ZM2350 - 2 Channel Amplifier with Sub Crossover

AED 6,399.00

ZM2350 350 watts x 2 @ 8 Ω 600 watts x 2 @ 4 Ω 2 Ω stable for driving multiple speaker pairs Two pairs of speaker outputs with A/B buttons...

Categories: Parasound, Shop
Description

ZM2350

  • 350 watts x 2 @ 8 Ω
  • 600 watts x 2 @ 4 Ω
  • 2 Ω stable for driving multiple speaker pairs
  • Two pairs of speaker outputs with A/B buttons
  • Lockout switch on rear panel to disable A/B buttons
  • High pass filter, switchable for 30Hz or 80Hz
  • Automatic on/off by 12V trigger w/ looping output
  • Automatic on/off by audio signal
  • Speaker level input enables integration with systems lacking preamp output jacks
  • Parasound designed class AB input stage w/ premium Class D power stage
  • Subwoofer mode for driving multiple in-wall subs without the need for an external crossover
  • Mono mode combines L and R for single speaker applications
  • Mono full range preamp output
  • Subwoofer 80Hz, 24dB/oct. low pass preamp output
  • Looping left and right output jacks
  • Left and right input level controls
  • Efficient, low heat design
  • Short circuit and overload protection
  • 0.5 watt standby power consumption meets EU and Energy Star requirements
  • 2U rack mounting hardware is included in box

SPECIFICATIONS

Power Output

RMS, Both Channels Driven (20 Hz – 20 kHz)
  • 350 watts x 2 @ 8 Ω
  • 600 watts x 2 @ 4 Ω or 2 Ω

Minimum Speaker Impedance (Output A+B)
  • Stereo or Mono Mode: 2 Ω
  • Subwoofer Mode: 4 Ω
  • Note: Operation at these minimum impedances might require additional ventilation.

Frequency Response
  • 10 Hz – 70 kHz, +0/-3 dB
  • 20 Hz – 20 kHz, +0/-0.8 dB

Total Harmonic Distortion

< 0.05 % at typical listening levels

< 0.9 % at full power

Inter-channel Crosstalk

70 dB at 20 kHz

Input Sensitivity
  • 2 Volts = Full output (350 Watts @ 8 Ω)
  • Total gain = 29 dB (Level controls set to Maximum)

S/N Ratio

> 100 dB, input shorted, unweighted

> 114 dB, input shorted, IHF A-weighted

High and Low Pass Crossovers
  • Sub Mode and Sub out jack: 80 Hz, 24 dB per octave
  • High Pass Filter: 30 Hz or 80 Hz, 12 dB per octave

DC Trigger Requirements

+9 Vdc to +12 Vdc, 5 mA

Audio Trigger Requirements

2 mV audio signal (8-15 minutes turn off delay)

AC Power Requirement
  • 1500 Watts maximum
  • 100 Watts typical (music playing, typical listening level)
  • 30 Watts idle (no music playing)
  • 0.5 Watts in standby
  • 110-240 VAC 50/60 Hz

Dimensions
  • Width: 17.25” (438 mm)
  • Depth: 14.5" (368 mm)
  • Depth: 16.25" (412 mm) with cables connected
  • Height, with feet: 4.25" (108 mm)
  • Height, without feet: 3.5" (89 mm), 2U

Weight
  • Net: 15 lbs. (6.8 kg)
  • Shipping: 22.25 lbs. (10.1 kg)
