Parasound NewClassic 200 - Integrated Amplifier & DAC

Description

The NewClassic 200 is an integrated amplifier and DAC delivering 110 watts per channel via Class D amplification from Pascal, paired with a Burr-Brown 192kHz/24-bit DAC borrowed from the Halo P 5. It combines a pure analog signal path with digital and analog inputs, a built-in phono stage, and flexible bass management for a compact, do-it-all system.

Features

• 110 watts @ 8 or 4 ohms
• Class D amplification by Pascal
• Burr-Brown 192kHz/24-bit DAC from the Halo P 5
• USB, optical, and coax digital audio inputs
• 4 analog audio inputs
• Phono input for MM or MC cartridges
• Pure analog signal path from input to output
• Analog bass management with variable 20–140Hz high-pass crossover
• Subwoofer on/off and level by remote control
• 80Hz low-pass subwoofer output
• Full-range mono output for subwoofer or mono listening area
• Variable and fixed stereo preamp outputs
• Bypass input for surround sound or music streamer integration
• Default turn-on volume memory and favorite volume memory
• Input level matching (source volume offset)
• Bass, treble, and balance adjustments by remote control

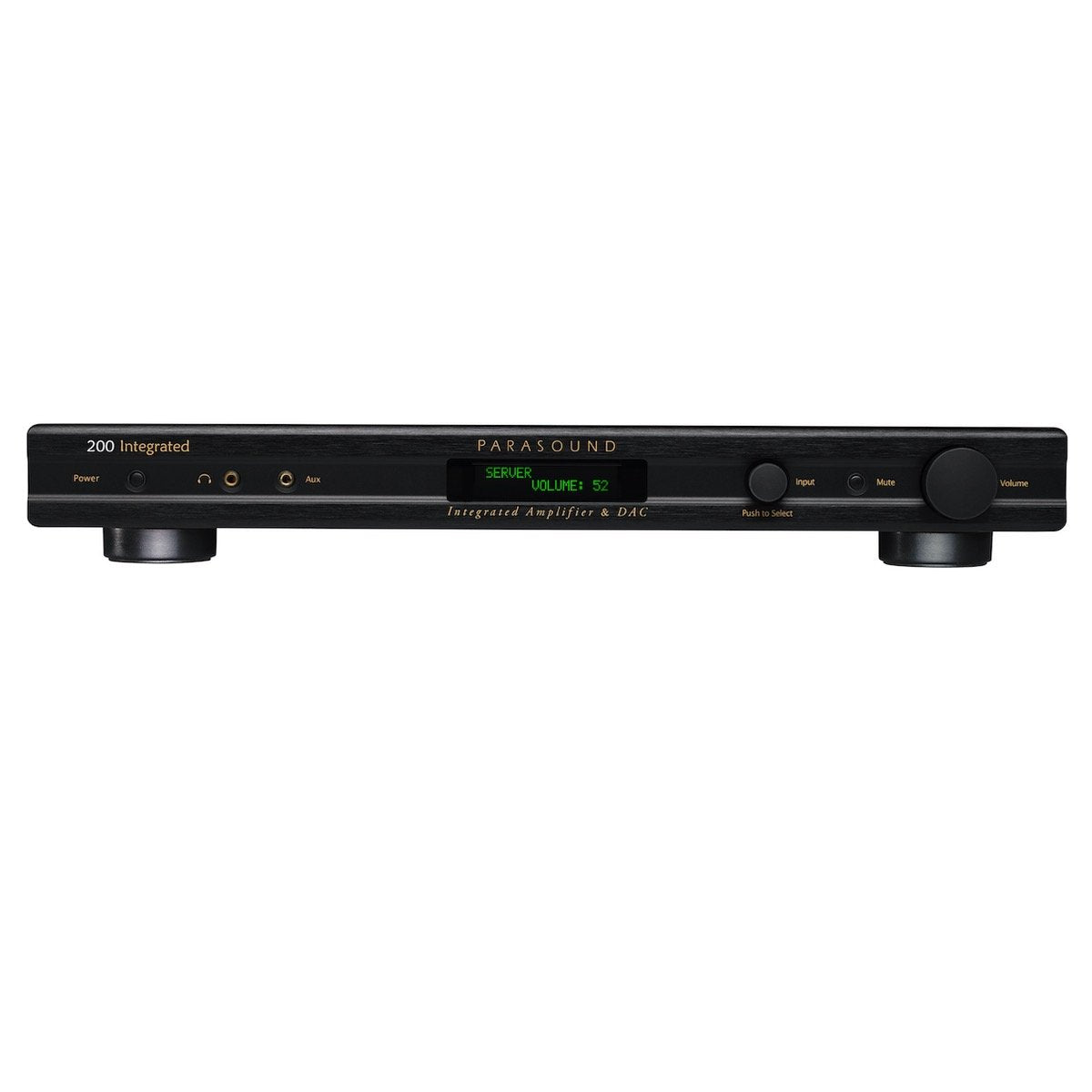

• Front panel LCD display with dimming
• 2-way RS232 with exact volume control and feedback
• Renameable inputs
• Front panel aux input with 12dB additional gain
• Dedicated headphone amplifier

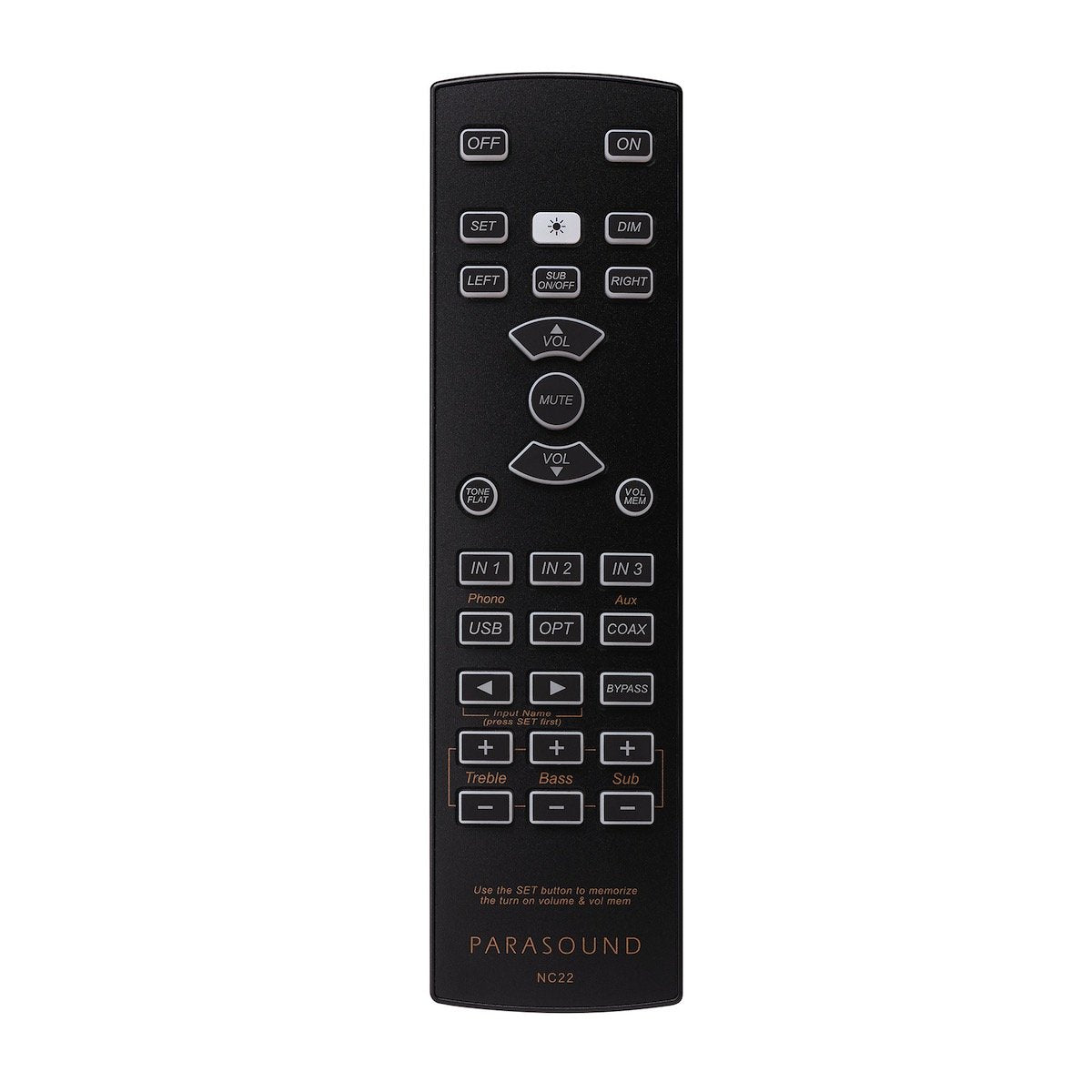

• Back-lit remote control with discrete buttons
• 12V trigger output and rear panel IR input
• 5W standby power consumption, meets Energy Star and EU specs

Specifications

• Power output: 110W x 2 @ 4Ω or 8Ω (RMS), 0.05% THD, 20Hz–20kHz
• Frequency response: 20Hz–20kHz +0/-0.05dB; 10Hz–80kHz +0/-3dB
• Total harmonic distortion: <0.05% (20Hz–20kHz, 110W, 8Ω)
• Interchannel crosstalk: 75dB at 20kHz, 85dB at 1kHz
• Preamp output: 250mV = 1V output; total gain 12dB (volume 100); unity gain at volume 76; max output 3.5V
• Phono stage gain/input impedance: MM 40dB/47kΩ, MC 50dB/100Ω
• Line level input impedance: 24kΩ
• Preamp output impedance: 470Ω
• S/N ratio – line inputs: 100dB, input shorted, IHF A-weighted
• DAC IC: Burr-Brown PCM1798
• DAC maximum sampling rates (PCM only): USB 96kHz/24-bit; Optical/Coax 192kHz/24-bit
• DC trigger output: 12Vdc, 50mA
• AC power: 0.5W standby, 15W idling, 50W typical, 300W maximum; 100-250VAC 50/60Hz automatic
• Dimensions: 17.25in (438mm) W x 14.75in (375mm) D, 16.75in (425mm) with cables x 2.5in (63.5mm) H with feet, 1.75in (44.5mm) without; 1U rack mounting requires RMK-11 (sold separately)
• Weight: 5.2kg
