HINT 6

Features

• Burr Brown analog resistor ladder volume control
• Dimmable front panel volume display
• Updated USB receiver is Plug and play with Windows 10 and MAC
• An additional optical input (2 total)
• Ball bearing supported solid aluminum volume knob
• Programable default turn on volume setting
• Favorite volume memory with remote control button
• Increased phono stage gain for lower output cartridges
• Improved Left/Right channel separation and balance tracking
• Updated cosmetics with subtle gold highlights

Preamp and DAC Features

• ESS Sabre32 Reference DAC (ES9018K2M)
• Asynchronous USB 2.0 supports PCM up to 384kHz/32-bit
• USB input decodes Native DSD64, DSD128, DSD256 and DoP DSD
• Coax and optical inputs accept PCM up to 192kHz/24-bit
• Analog bass management with high & low pass crossovers
• Home theater bypass input for surround sound integration
• Front panel subwoofer level control
• Dedicated high current headphone amplifier (TI TPA6120)
• Phono input for MM, MC and MI with 100 Ω or 47k Ω load
• Front panel Aux input with automatic +12 dB gain stage

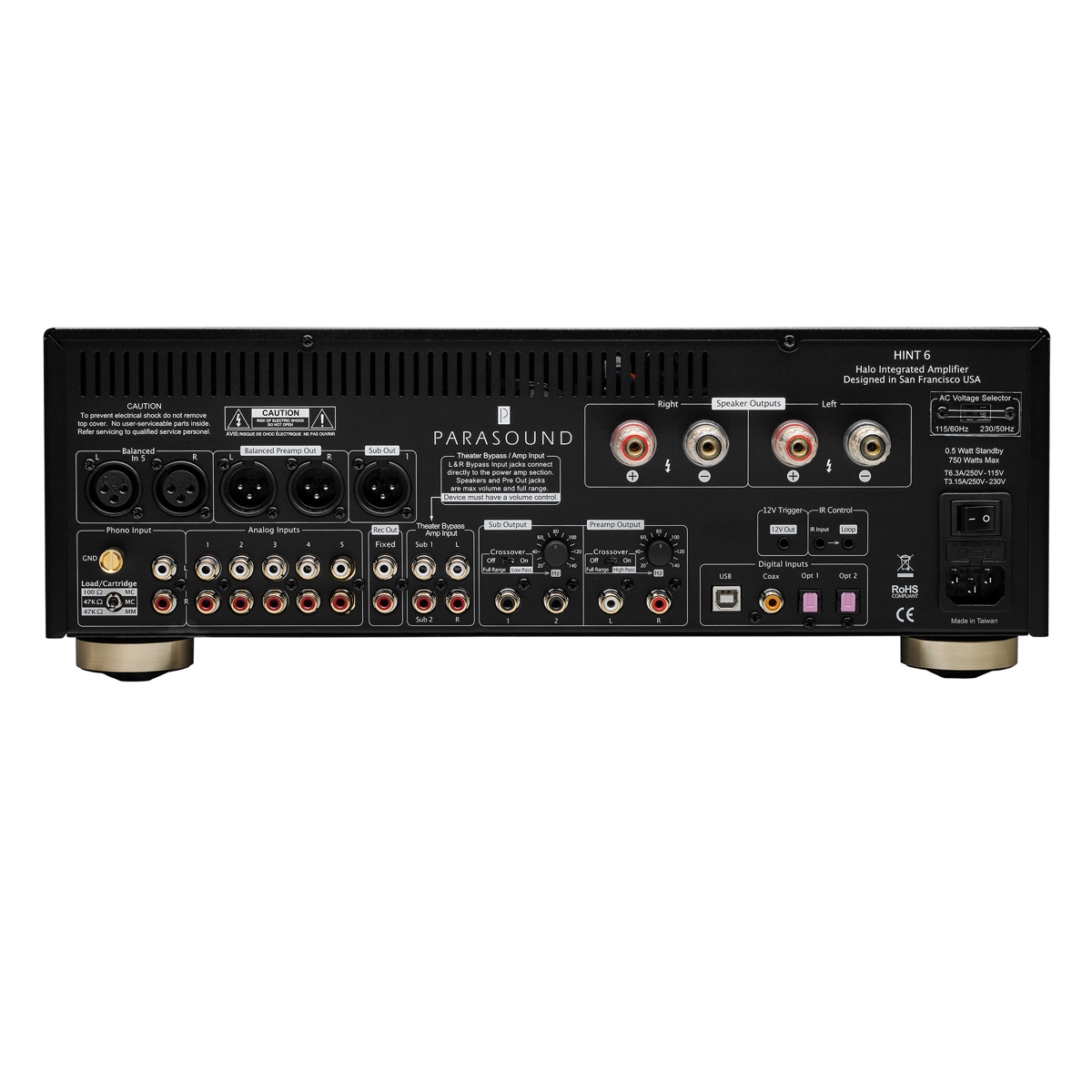

• 5 pairs RCA line level Analog inputs
• 1 pair XLR balanced Analog input
• Balanced XLR and RCA left and right preamp outputs
• 1 balanced XLR and 2 RCA subwoofer outputs
• Bass & treble controls with relay bypass from remote or front panel
• Rear panel IR input and IR loop output jacks
• 12 Volt trigger output

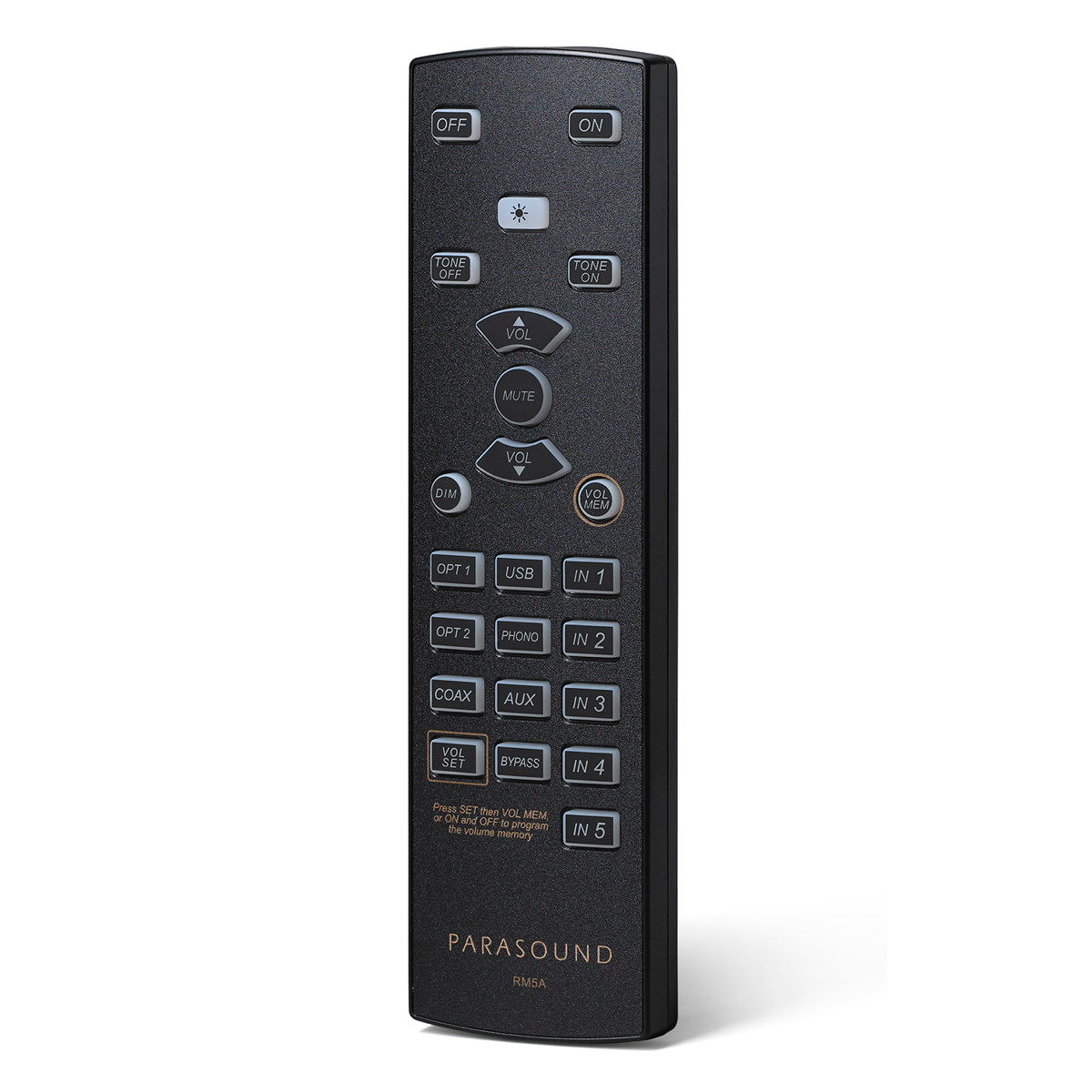

• Back-lit remote control with discrete buttons
• 5w standby power consumption meets Energy Star & EU specs

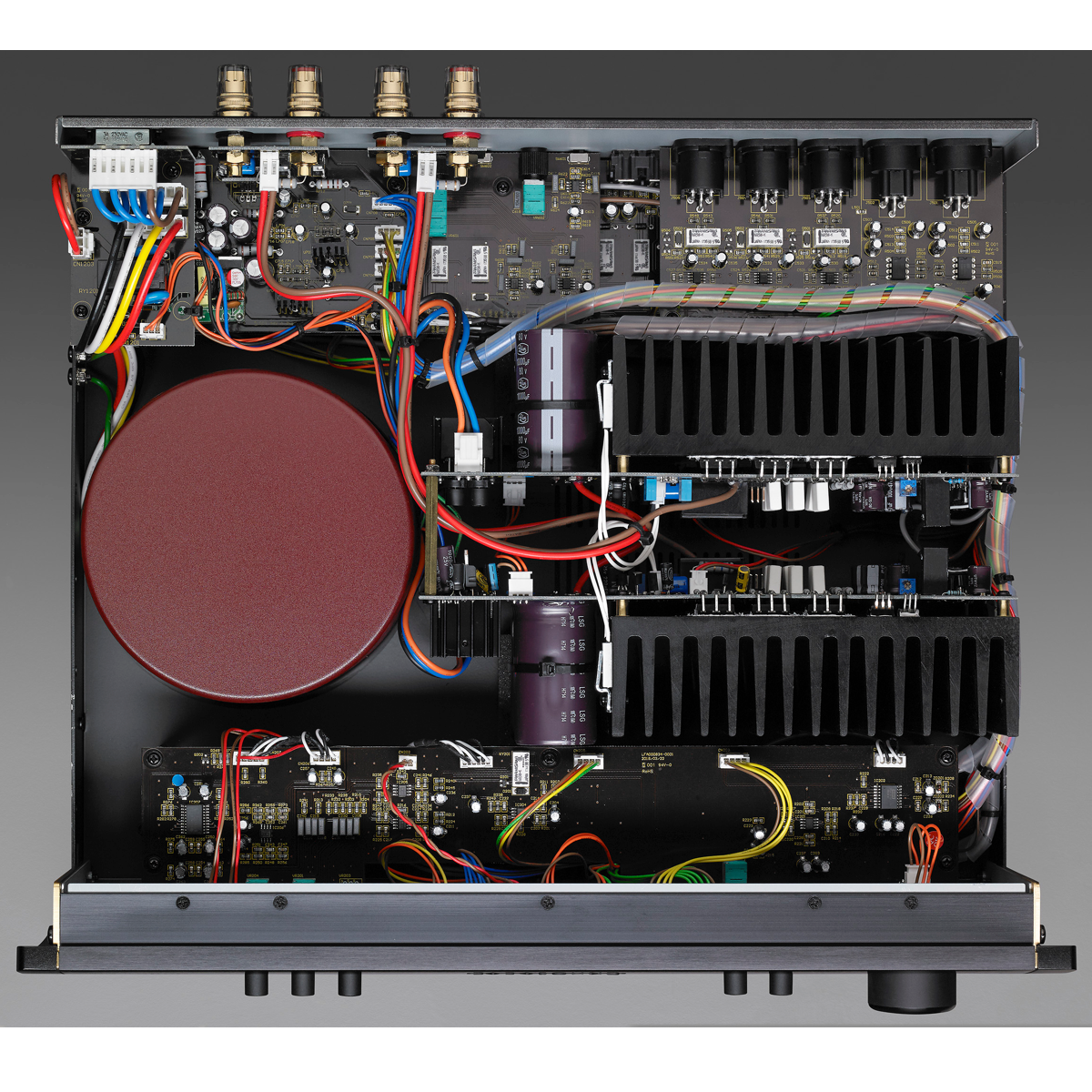

Power Amp Features

• 160 Watts x 2 @ 8 Ohms (RMS, both channels driven)
• 240 Watts x 2 @ 4 Ohms (RMS, both channels driven)
• Power amp circuit topology designed by legendary John Curl
• Direct amplifier input to bypass preamp section
• High bias class A/AB operation
• Oversized shielded toroid power transformer
• Dual-mono power supply and power amplifier
• 40,000uF power supply filter capacitance
• Matched JFET input stages and MOSFET driver stages
• 12 high voltage/high current bipolar output transistors
• Heavy-duty 24k gold-plated 5-way speaker binding posts
• Over temp and short circuit relay protection

SPECIFICATIONS
