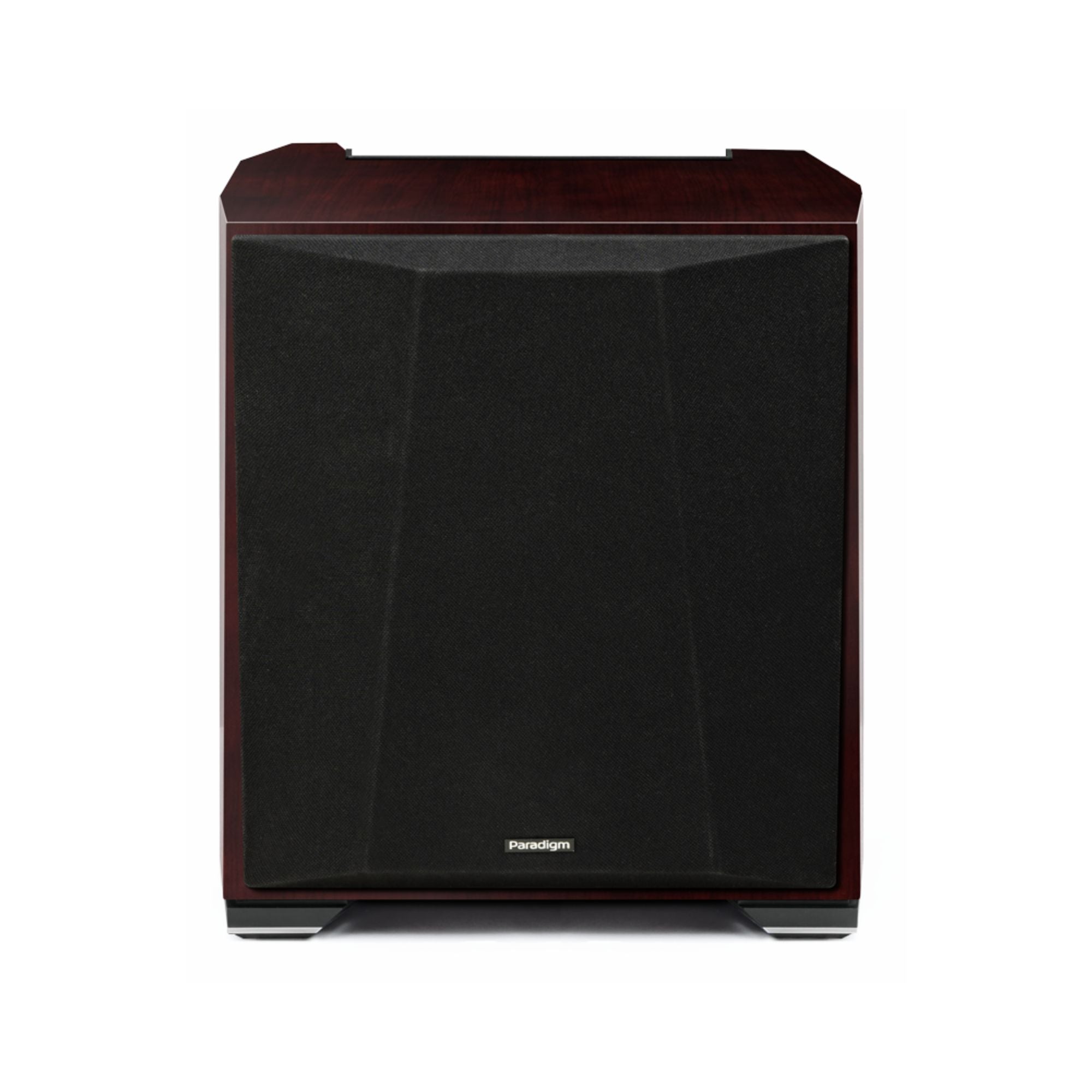

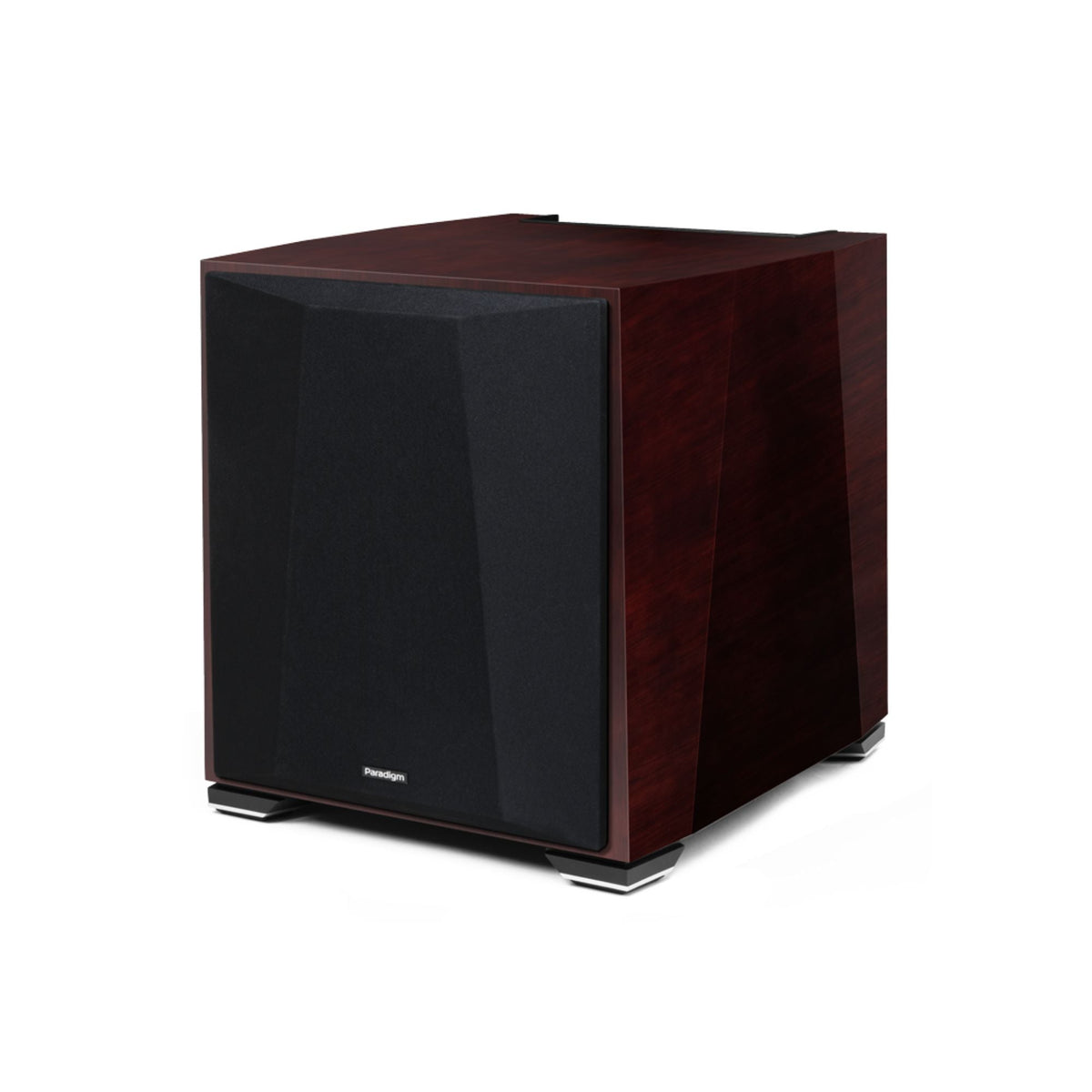

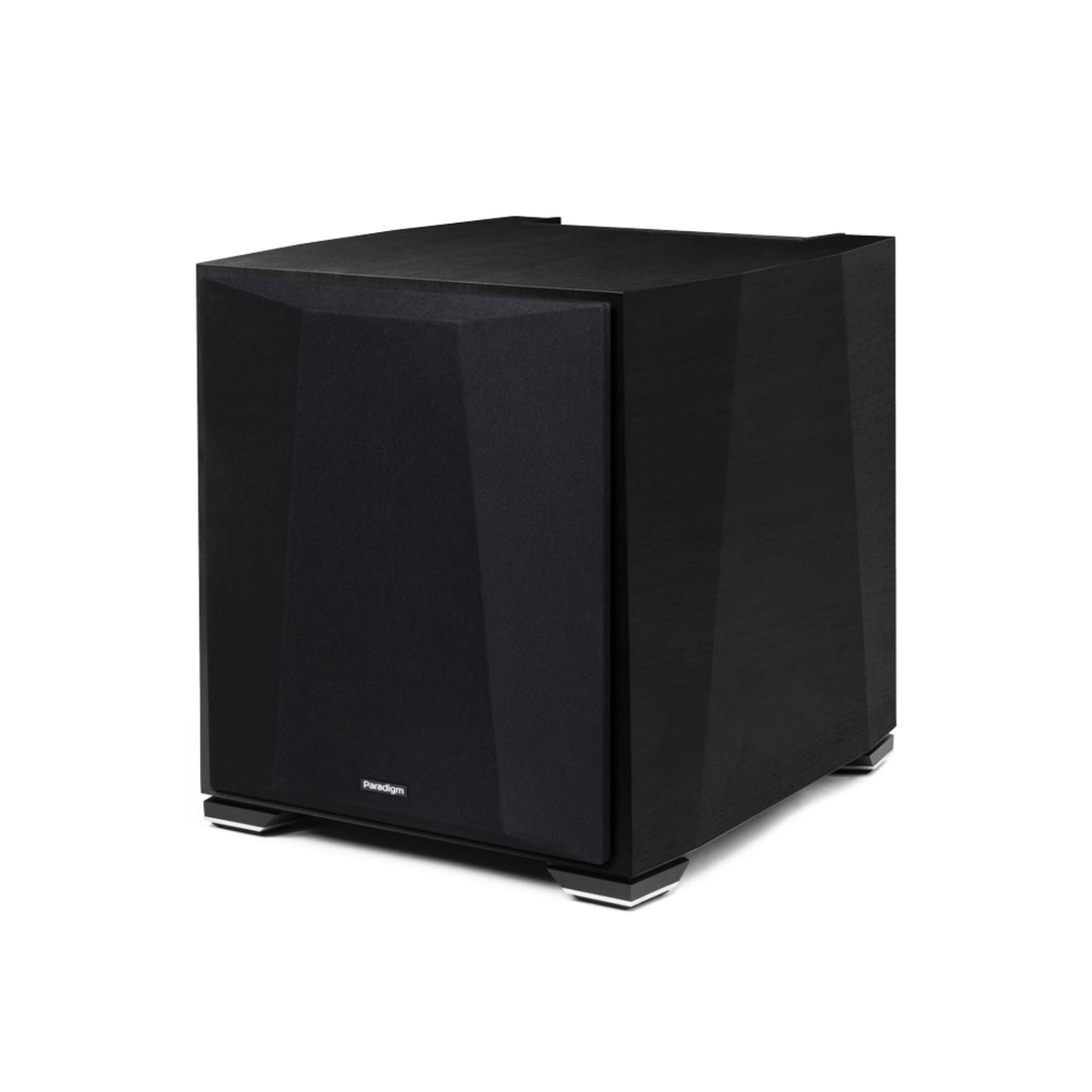

Paradigm XR 13 - High-Performance Subwoofer

Description

The Paradigm XR 13 is a high-performance sealed subwoofer with a 13" Ultra-High-Excursion CARBON-X driver and a built-in 2,200W RMS (4,400W dynamic peak) Class-D amplifier. Its faceted, Cascade-Fusion braced cabinet and Trilinear Suspension System deliver powerful, low-distortion bass with app control and Anthem Room Correction included.

Features

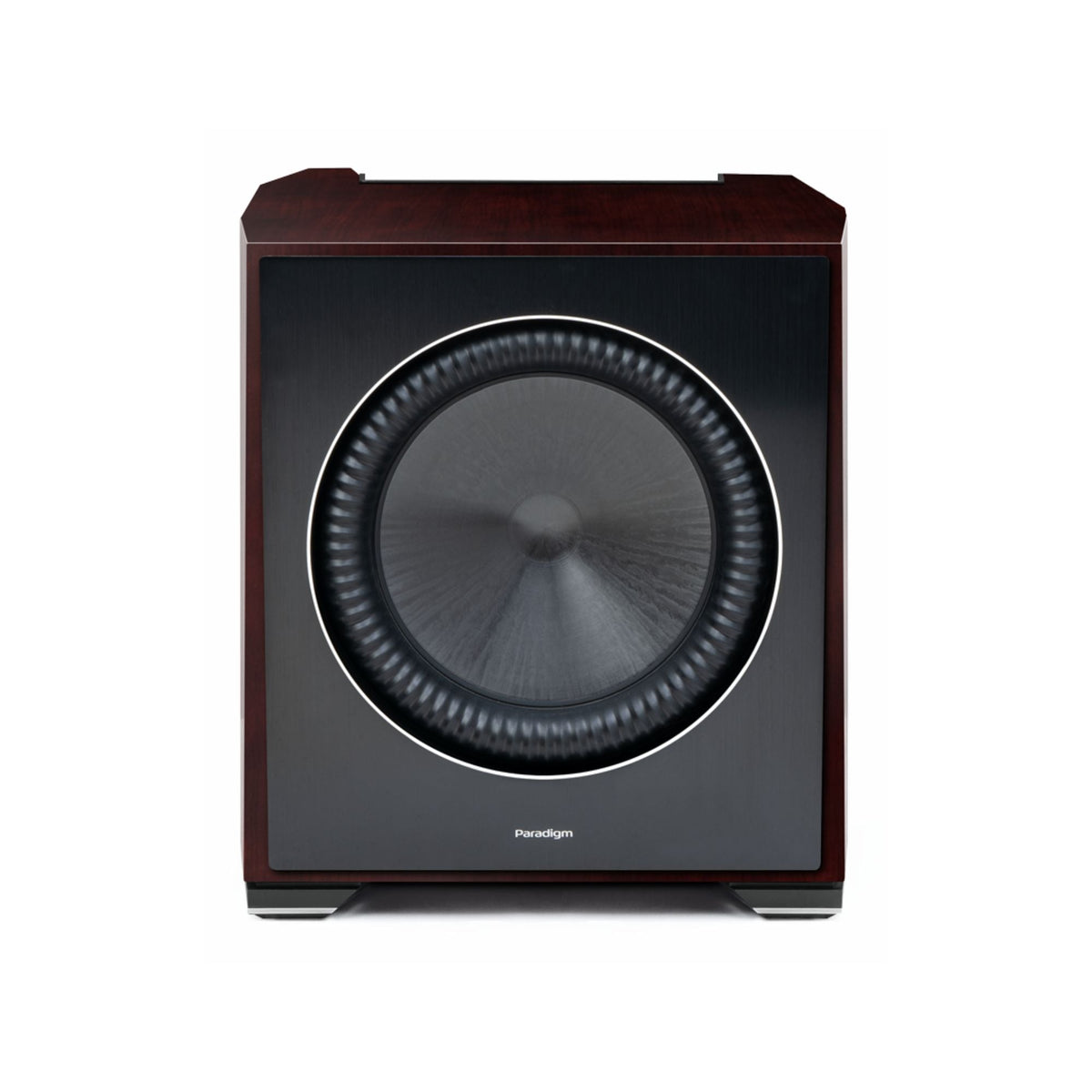

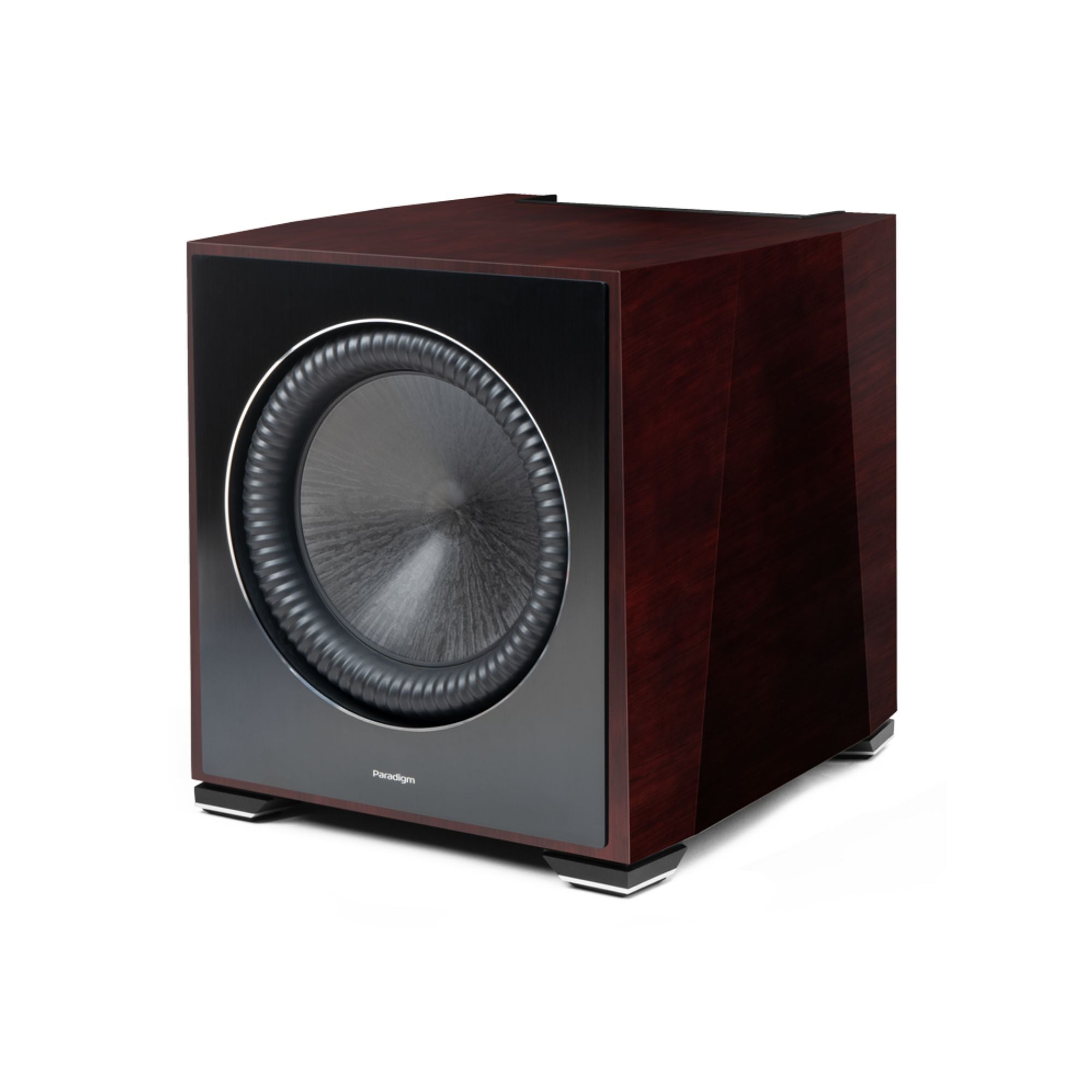

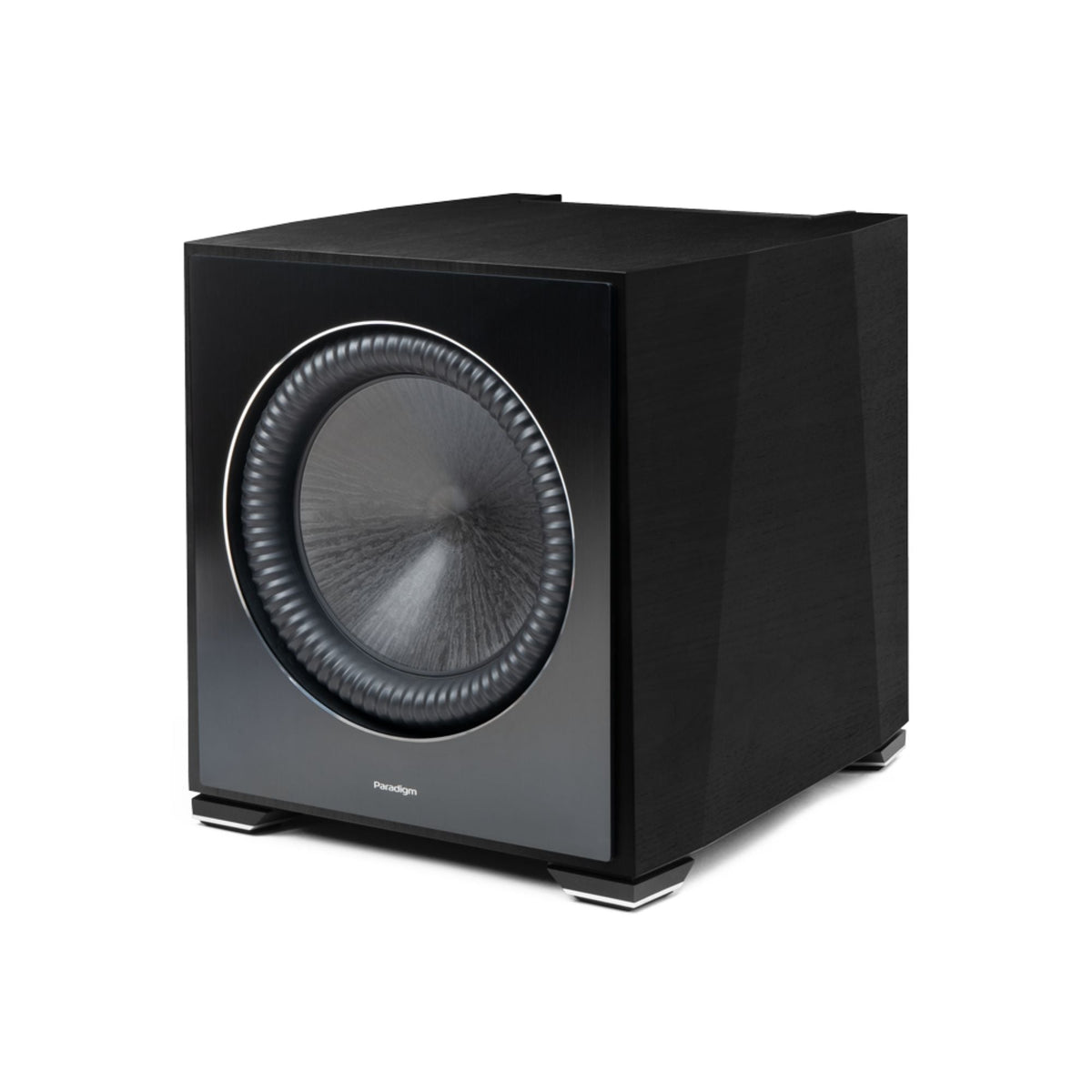

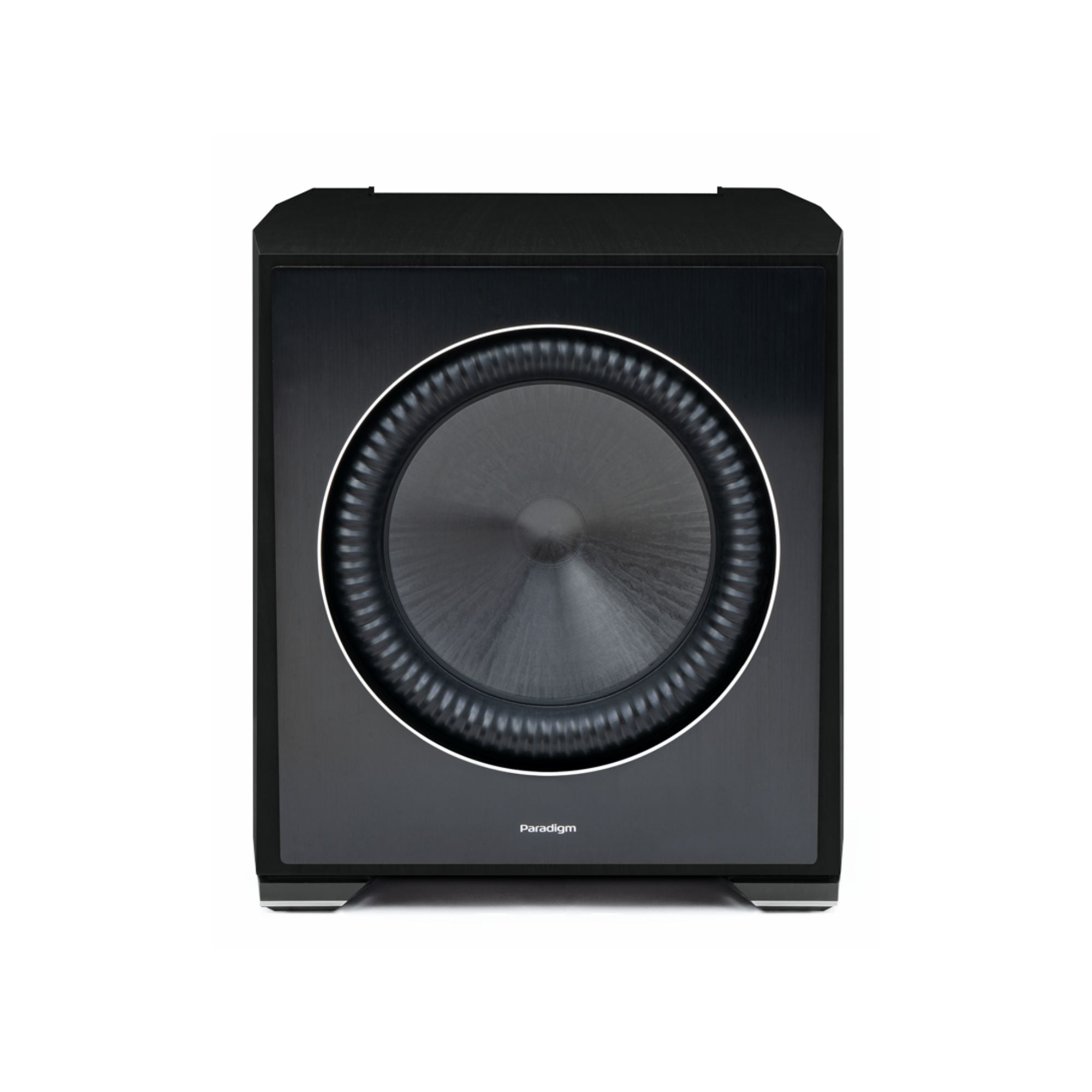

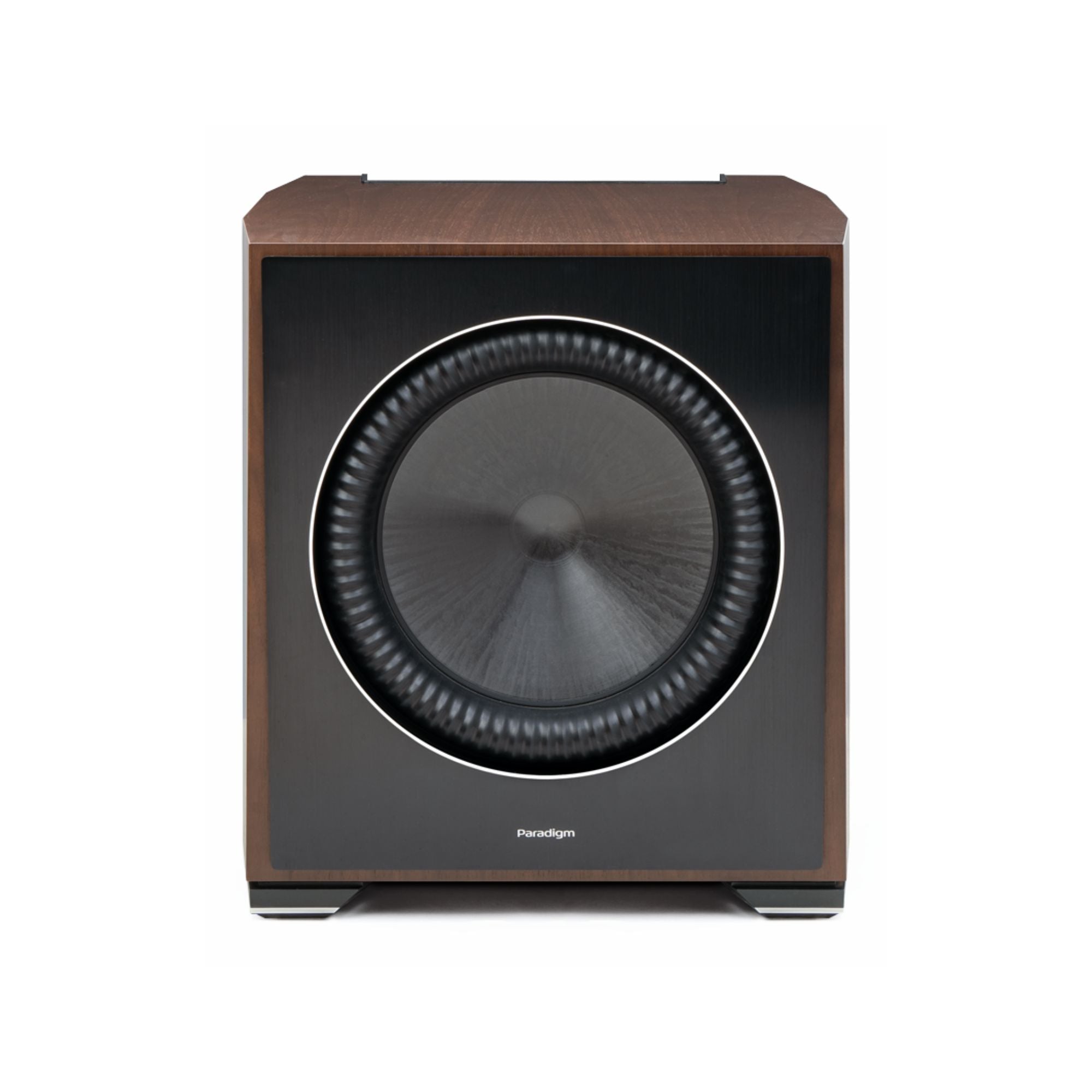

• 13" Ultra-High-Excursion CARBON-X unibody bass driver with Trilinear Suspension and Active Ridge Technology (ART) for 3dB more output and 50% less distortion
• Dual-motor split-coil construction with high-temperature wire and Apical formers for high power handling and reliability

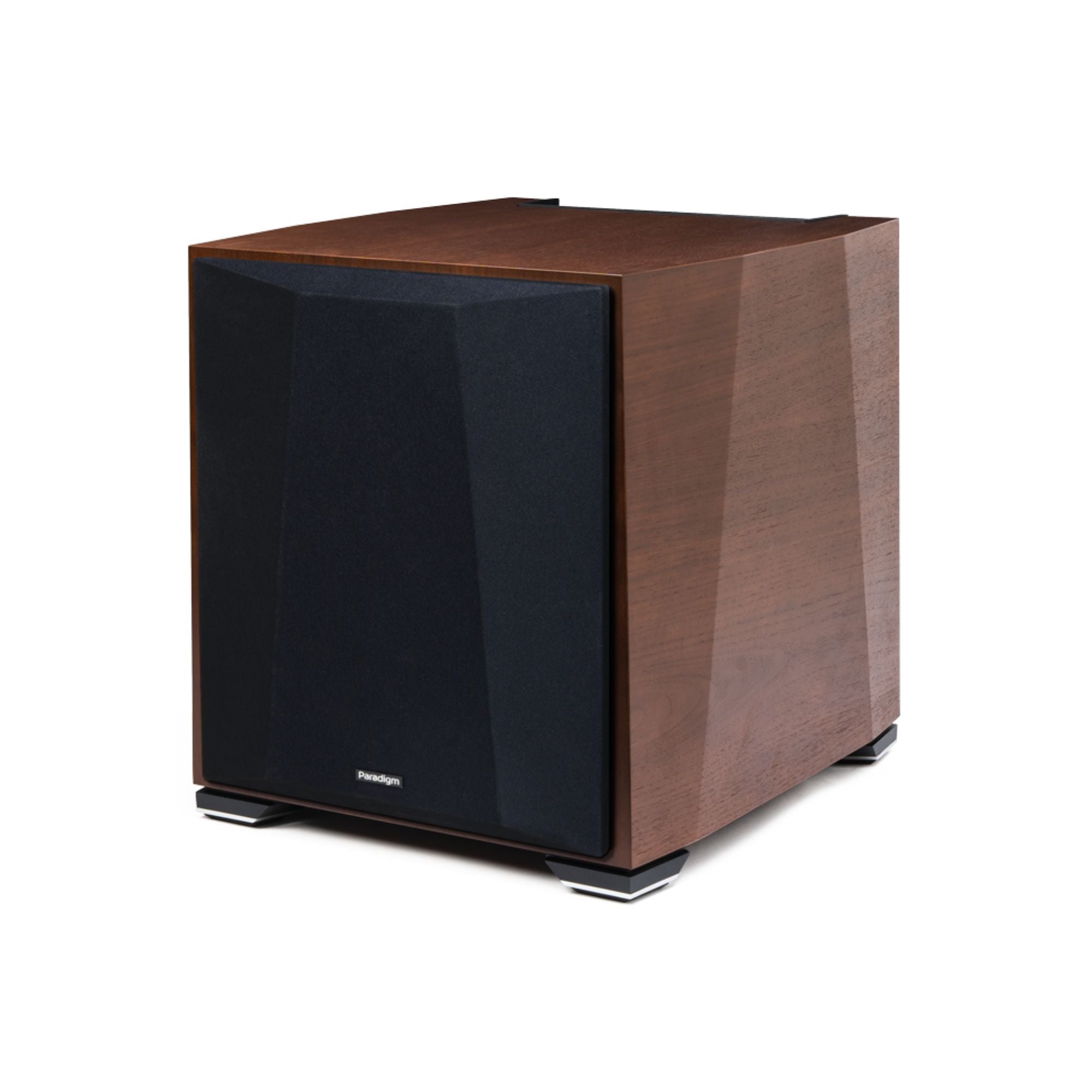

• Faceted, Cascade-Fusion braced cabinet for maximum rigidity and reduced standing waves
• Advanced Shock-Mount feet for effective vibration isolation
• Vertical Mounting System fits more woofer into a compact footprint
• Built-in 2,200W RMS (4,400W dynamic peak) Class-D amplifier
• Anthem Room Correction (ARC Genesis) included with premium microphone
• Mobile Control App for volume, phase, low-pass filter, and DSP mode adjustments

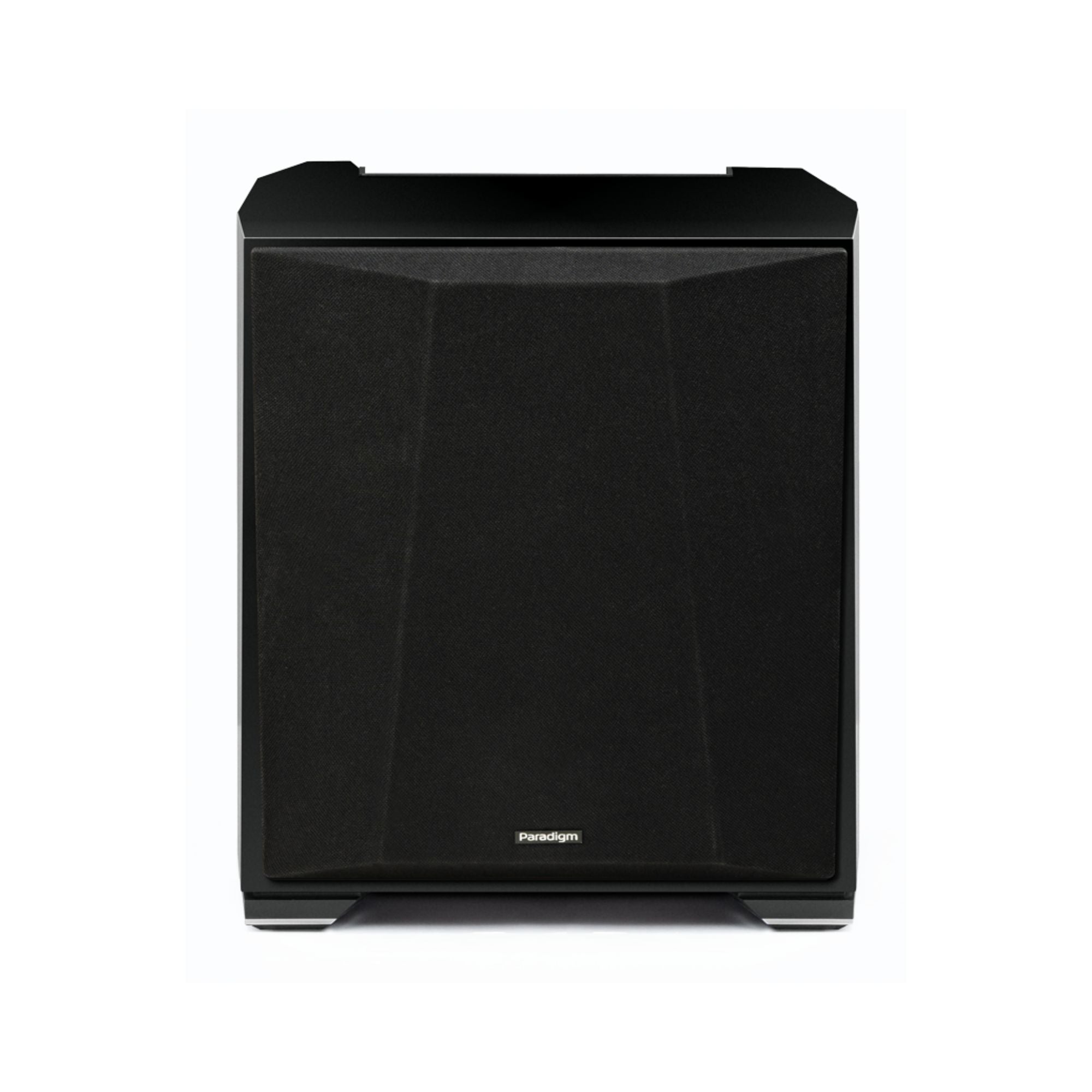

• Available in Gloss Piano Black, Midnight Cherry, Satin Walnut, and Black Walnut finishes

Specifications

• Design: 13" ultra-high excursion driver, sealed enclosure, Cascade-Fusion bracing, Advanced Shock-Mount, built-in 2,200W RMS (4,400W peak) Class-D amp, app-controlled, ARC included
• Amplifier features: Auto-on/off, trigger on/off
• Frequency response (on-axis): ±3dB from 17Hz–140Hz
• Room correction: ARC Genesis (microphone included)
• Low-frequency driver: 13" Ultra-High-Excursion CARBON-X unibody bass driver with Trilinear Suspension and ART, 2" high-temperature voice coil
• Effective piston area: 93.7 sq in (0.06 sq m)
• Effective displacement: 366.1 cu in (6L)
• Low-frequency response: 12Hz (DIN)
• Amplifier power: 2,200W RMS / 4,400W dynamic peak, Class-D

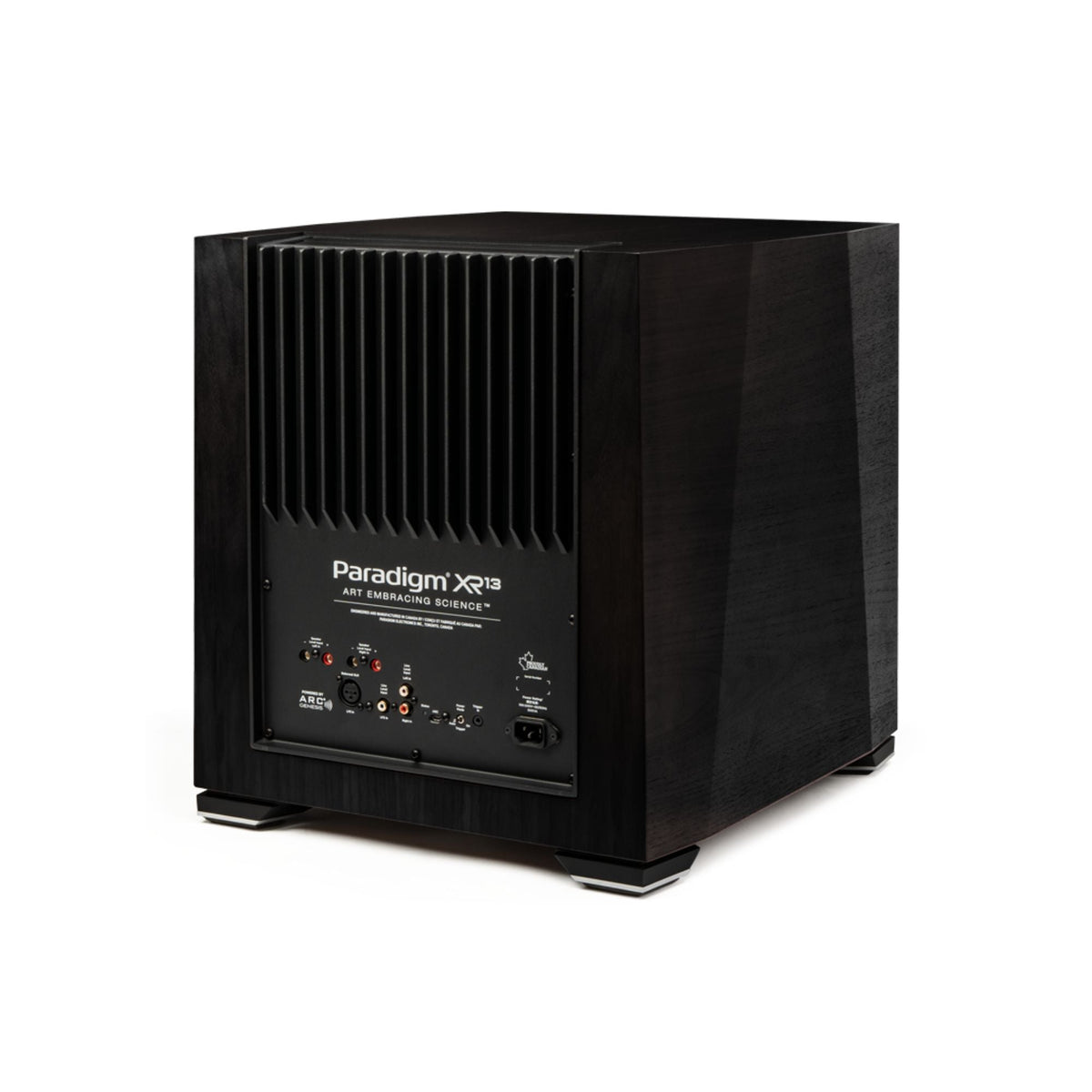

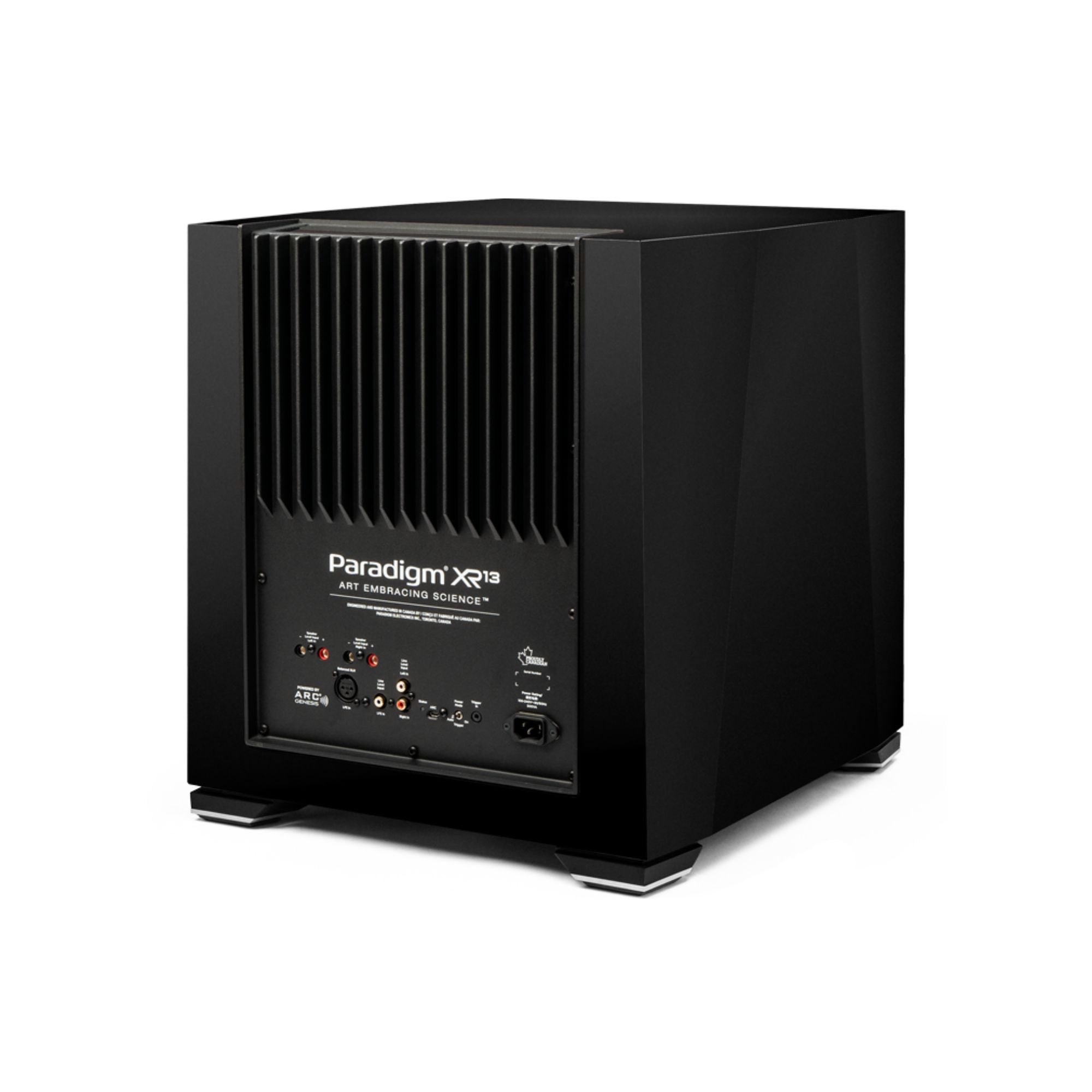

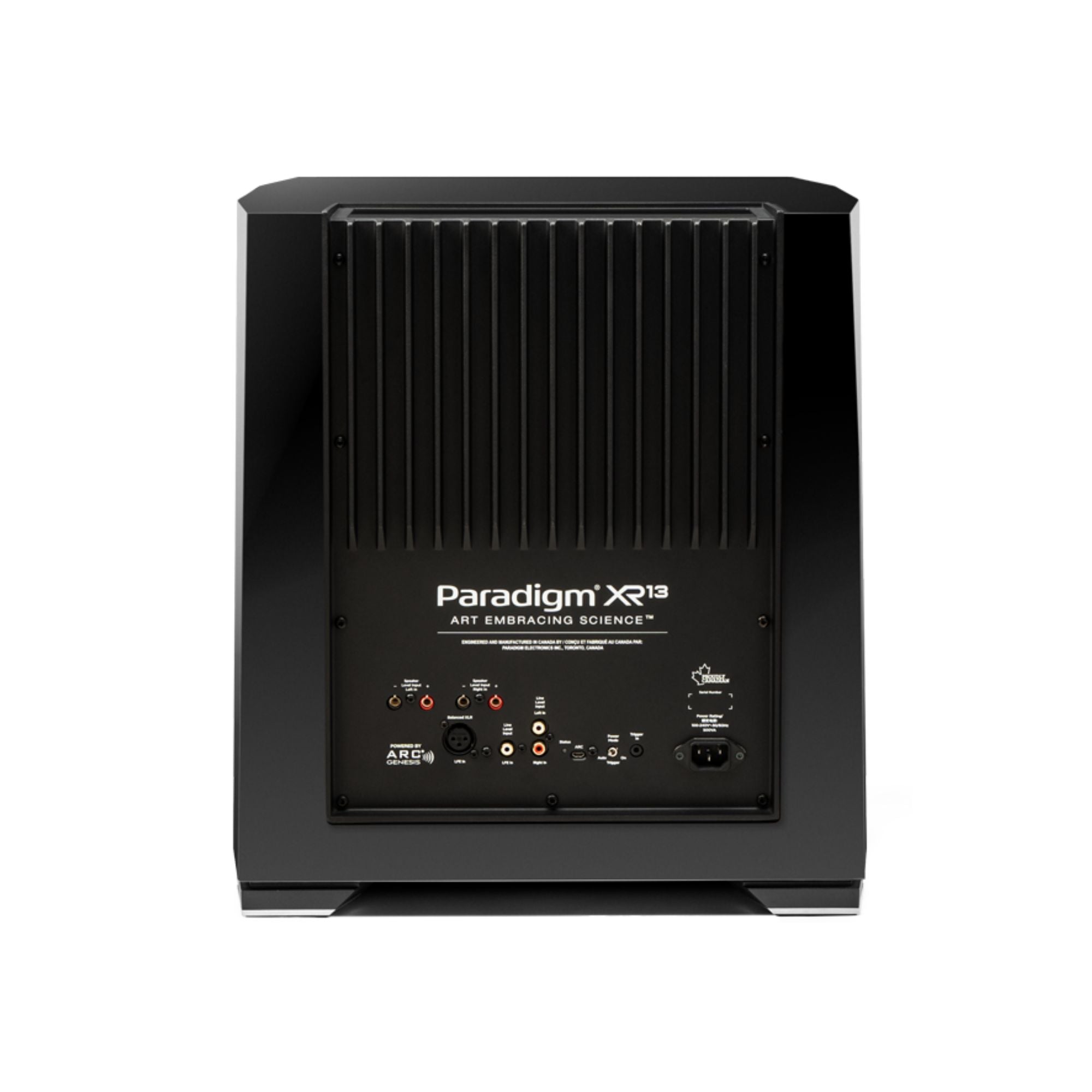

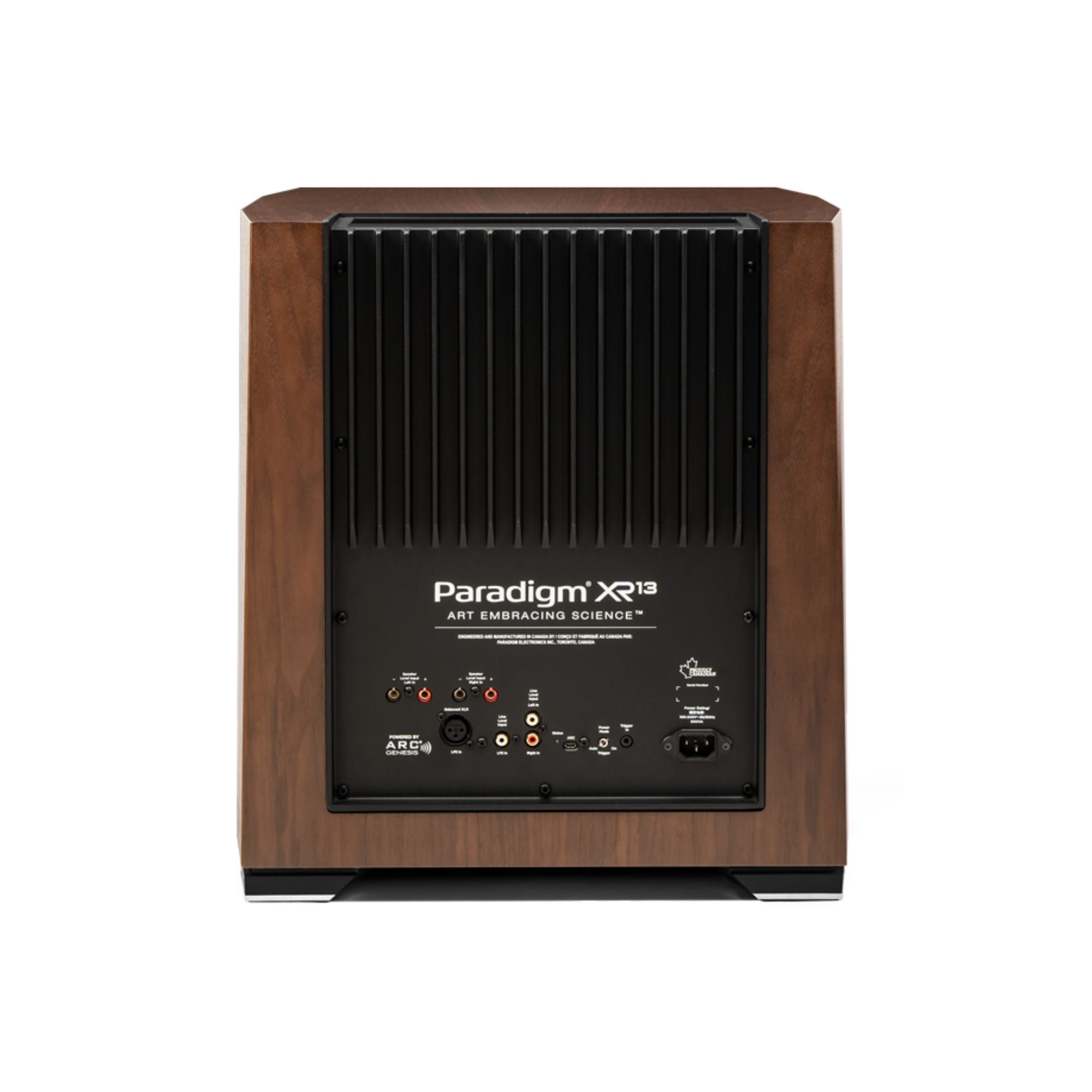

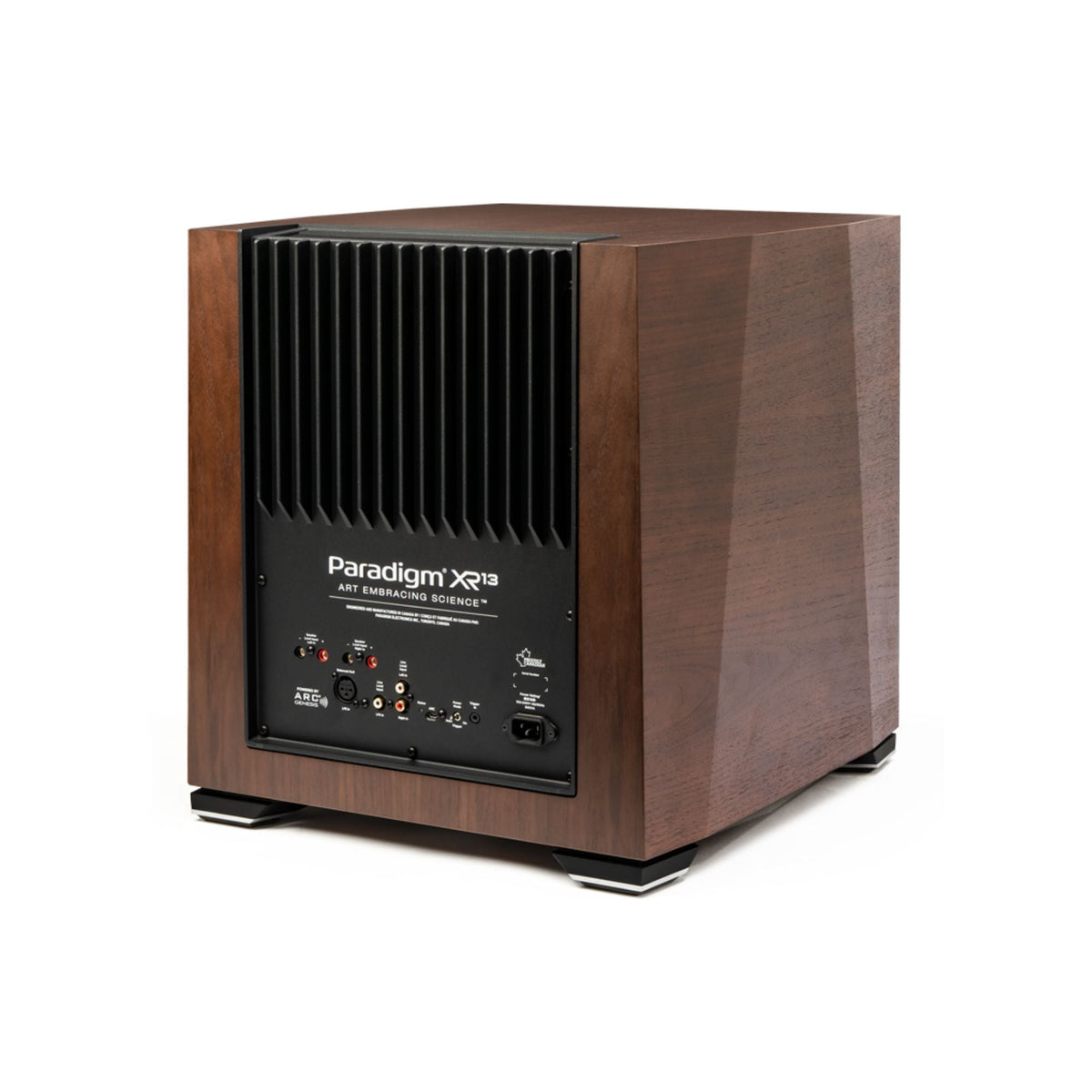

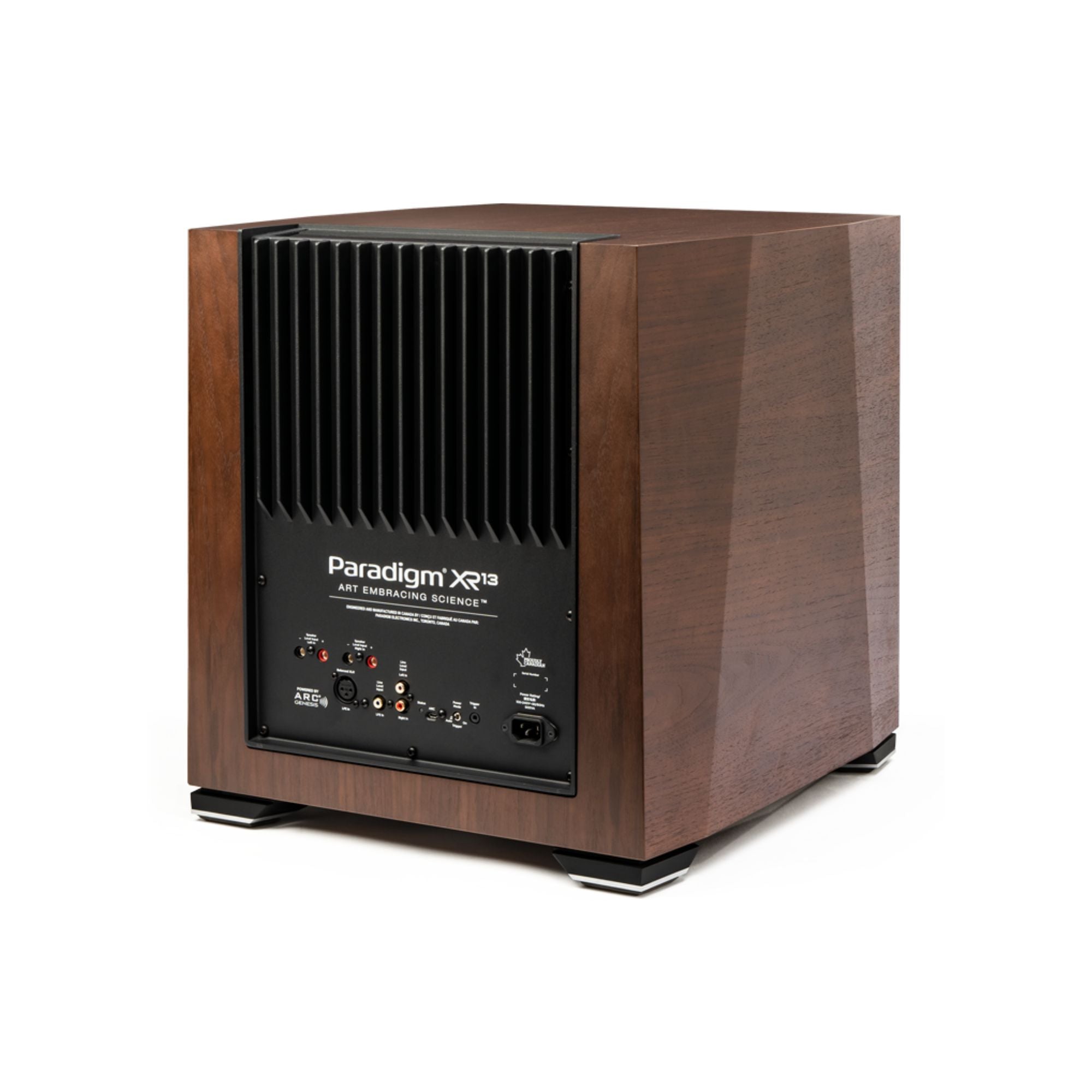

• Unbalanced inputs: Stereo/mono dual RCA, LFE RCA
• Balanced inputs: One XLR (LFE)
• Speaker/high-level inputs: Left and right
• Input grounding: Grounded
• Polarity: 0 or 180 degrees
• Phase: Variable 0°–180°
• Dimensions (HxWxD): 18.8 x 17.3 x 19.4"
• Weight: 47.1kg (103.8 lbs)
• Finishes: Gloss Piano Black, Midnight Cherry, Satin Walnut, Black Walnut
