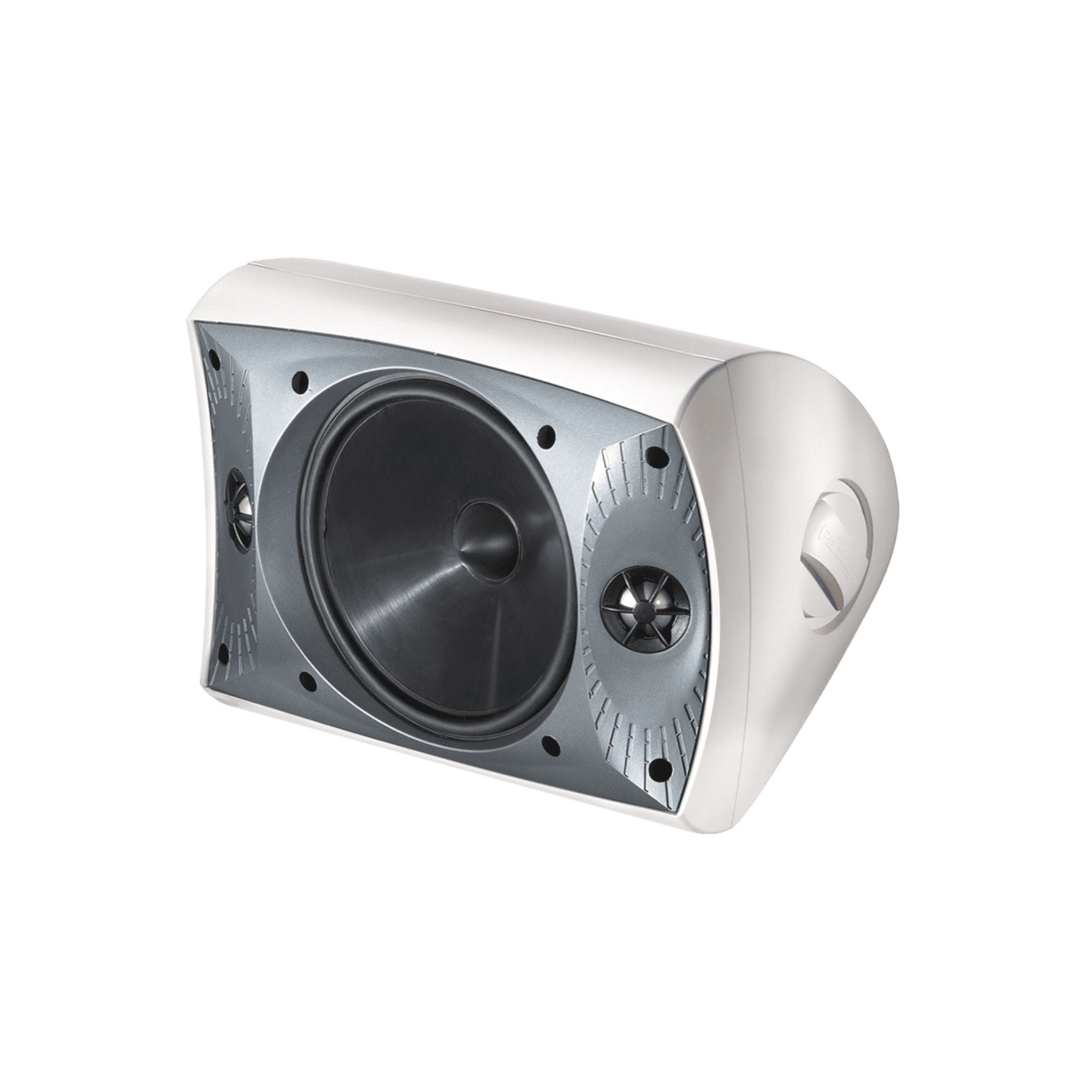

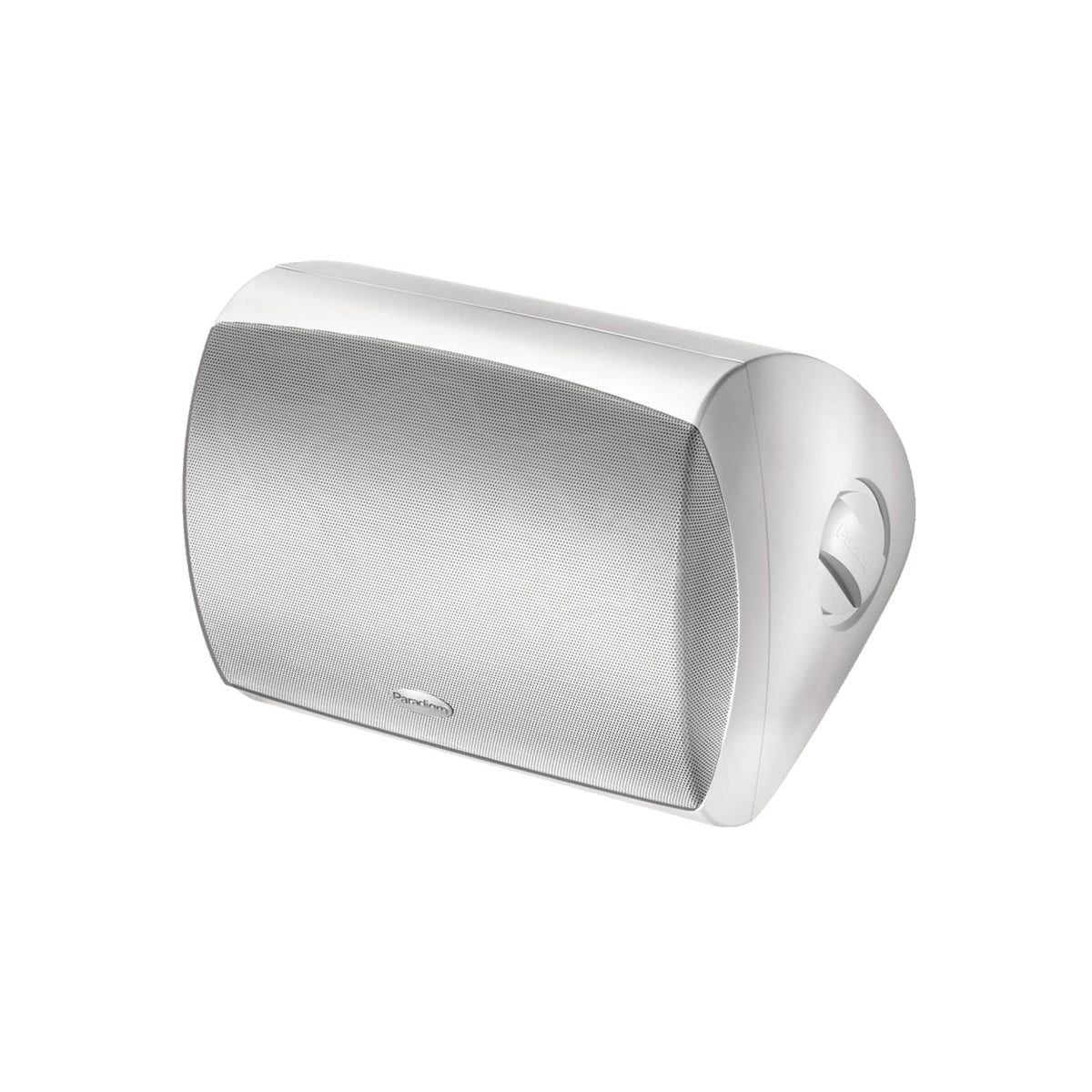

Paradigm Stylus 470-SM - Single Stereo Weatherproof Outdoor Speaker

Description

The Paradigm Stylus 470-SM is a single-cabinet stereo speaker with dual stereo L/R inputs, packing two 2-way arrays into one weather, water, and UV-resistant PolyGlass enclosure. It's ideal where a single outdoor speaker location needs to deliver full stereo sound.

Features

• Two Pure-Titanium Dome (PTD) tweeters with Controlled WaveGuide faceplates for smooth, extended response, ferrofluid cooled and damped
• Dual voice-coil injection-molded co-polymer polypropylene (ICP) mid/bass cone for detailed, authentic midrange from a single cabinet
• Mineral-filled PolyGlass enclosure, fully sealed with no ports, for protection against adverse weather
• Weather, water, and UV-resistant aluminum grille with stainless steel/brass hardware and gold-plated binding posts
• Stainless steel/polymer mounting brackets for outdoor installation
• Available in Black and White finishes

Specifications

• Design: Single speaker with stereo L/R inputs, 3-driver, 2x 2-way acoustic suspension, weather/water/UV-resistant PolyGlass enclosure
• Crossover: Two 3rd-order electro-acoustic at 2.3kHz
• Frequency response (on-axis): ±2dB from 75Hz–20kHz
• High-frequency drivers: Two 25mm (1") PTD domes
• Mid/bass frequency driver: Dual voice-coil 190mm (7.5") ICP cone, die-cast chassis
• Low-frequency extension: 50Hz (DIN)
• Sensitivity: 93dB (room)
• Frequency response (30° off-axis): ±2dB from 75Hz–15kHz
• Suitable amplifier power range: 15–110W mono; 15–55W/channel stereo
• Maximum input power: 80W mono; 40W/channel stereo
• Impedance: Compatible with 4Ω mono; 8Ω/channel stereo
• Dimensions (HxWxD): 12.625 x 8.875 x 8.75"
• Weight: 4.8kg (10.6 lbs)
• Finishes: Black, White
