C65-R
In Ceiling Speaker – Paradigm CI Contractor Series is an ideal choice where performance is a priority, but cost also plays a role in speaker selection. CI Contractor is the ideal solution for secondary listening rooms.
Features and specifications:
- Dual 3/4" PTD™ dome tweeters.
- 6.5" mineral-filled polypropylene bass/midrange driver with oversized computer-optimized ferrite magnets.
- Bezel-Free Micro-Perf Grille.
- Frequency Response 50 Hz-30 KHz
- Sensitivity 89dB
Dimensions:
- Overall Diameter:(including grille) 8.75"
- Cut Out Diameter 7.75"
- Mounting Depth 3.62”
High-Quality Components Make An Audible Difference
- Superior PTD™ Pure-Titanium Tweeter Domes are Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.

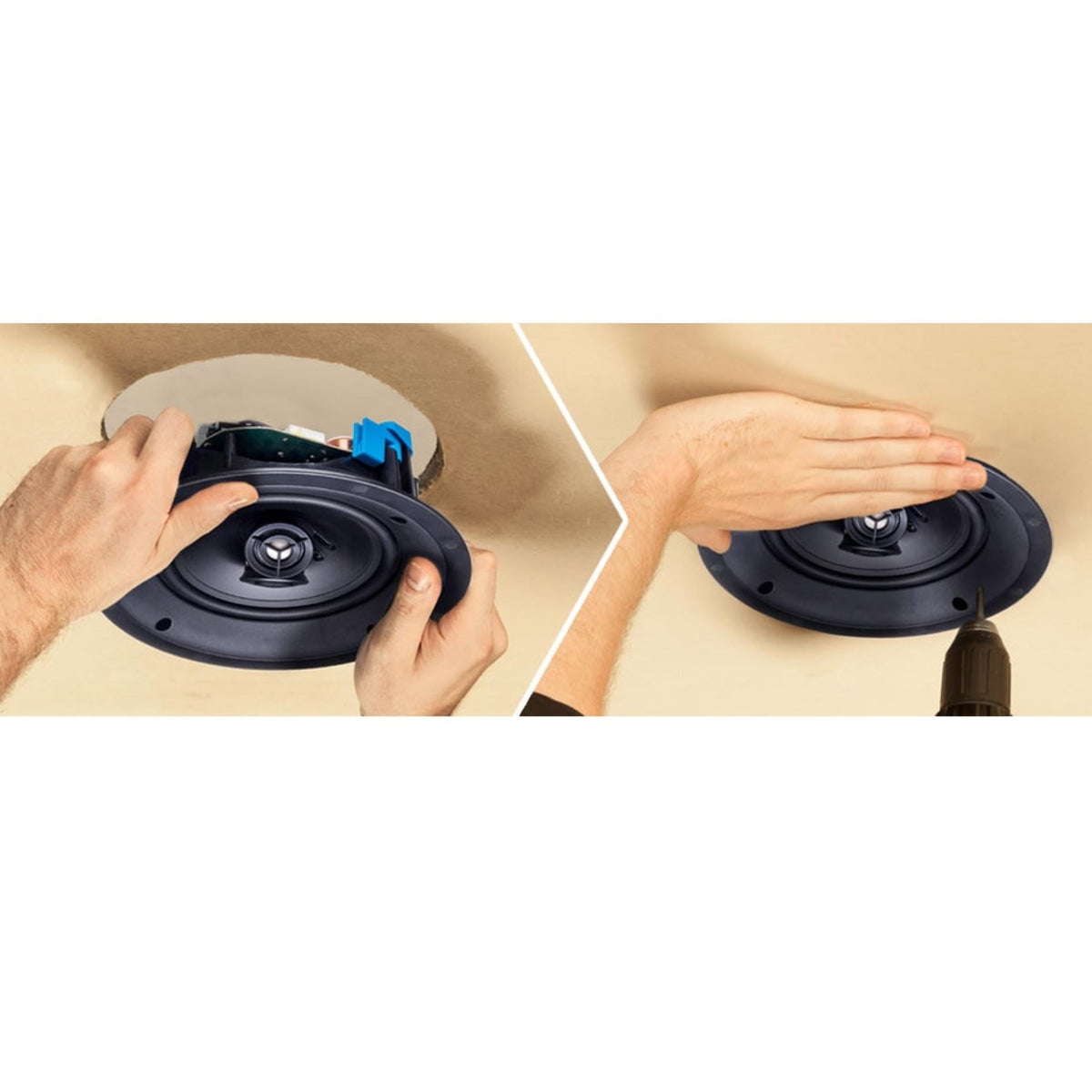

- Pocketed screw holes help to hold the drill steady, making installation a snap.
- Easy-access Binding Posts feature a larger wire access hole and connect via banana plug, pin or bare wire.
- Rigid ABS clamps cut down on installation time and simplifying installation.
- Superior Mineral-Filled Polypropylene Bass/Midrange Cones with oversized computer-optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass. Even movie dialog is incredibly clean and clear.
- NEW Bezel-Free Micro-Perf Grilles.
- Magnetically attached grilles: neodymium magnets hold grilles firmly in place.
- No masking required—this makes the grilles faster and easier to paint, if painting is desired

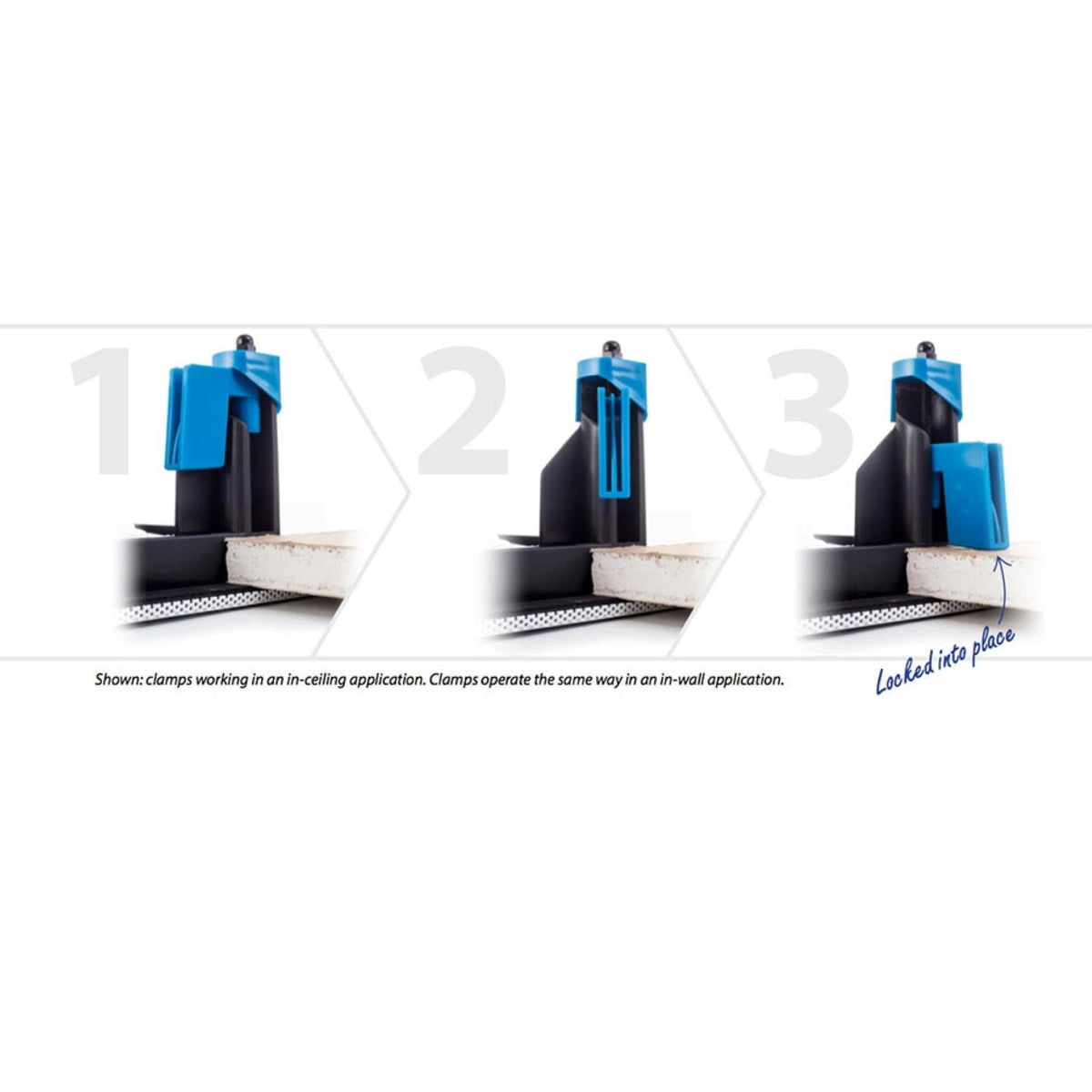

A Behind-The-Ceiling Look At The New ABS Clamps!
Without any unnecessary pressure or force, each turn of the screwdriver turns the clamp. You can see the starting point, the screwdriver working to turn the clamp, and finally, the speaker locked into place inside the wall or ceiling. It doesn't get simpler or easier!
A Solid Installation
Paradigm’s High-Strength ABS Chassis and Clamp System addresses the flexibility problem that plagues all walls and ceilings. ABS stiffness combats unwanted resonances and vibrations and equally important, the new clamp design makes the installer's job easier and faster!
SPECIFICATIONS
Design |
2-driver, 2-way in-ceiling, ABS chassis & mounting clamps |
Crossover |
2nd-order electro-acoustic at 3.0 kHz |
Frequency Response On-Axis |
±2 dB from 72 Hz - 20 kHz |
High Frequency Driver |
3/4" (1.9cm) PTD™ dome |
Mid/Bass Frequency Driver |
6.5" (16.5cm) mineral-filled polypropylene cone |
Sensitivity Room / Anechoic |
89 dB / 85 dB |
Impedance |
Compatible with 8 ohms |
Suitable Amplifier Power Range |
15-80 W |
Finishes |
White, paintable grille |
Weight |
3.51 lbs. (1.59 kg) each |
Overall Dimensions |
8.75" (22.23cm) Diameter |
Minimum Mounting Depth Depth required is the distance between 1/2" drywall, or similar material. |
2.99" (7.6cm) |
