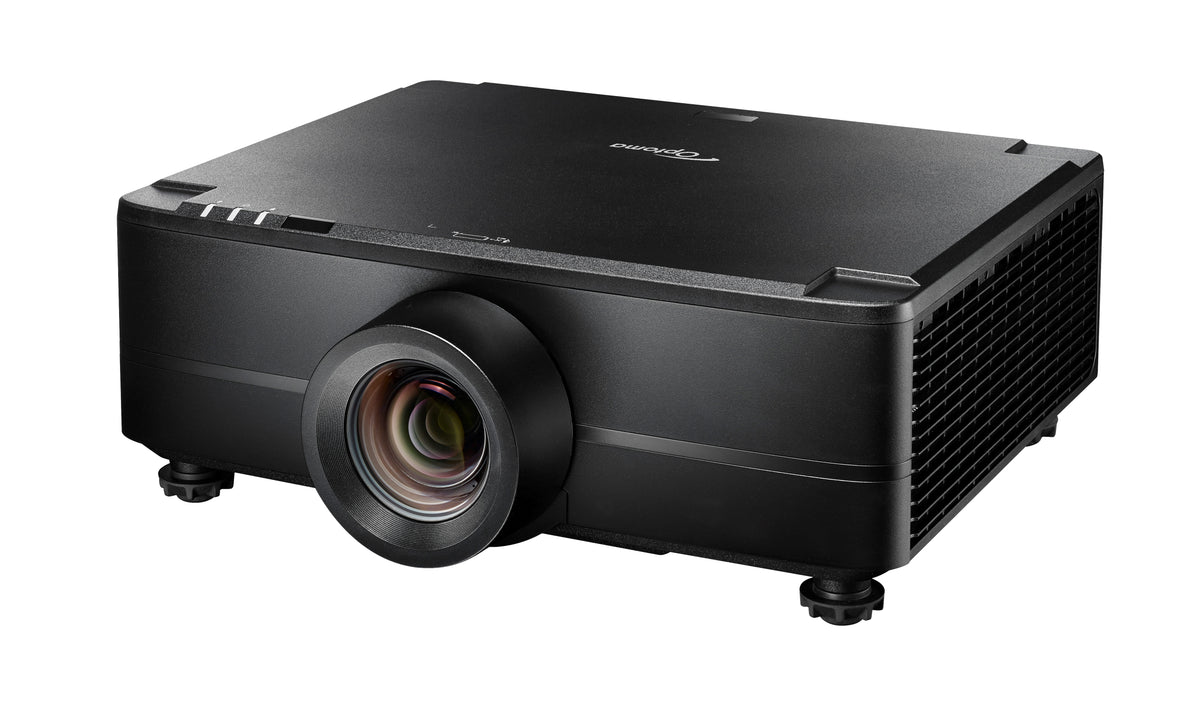

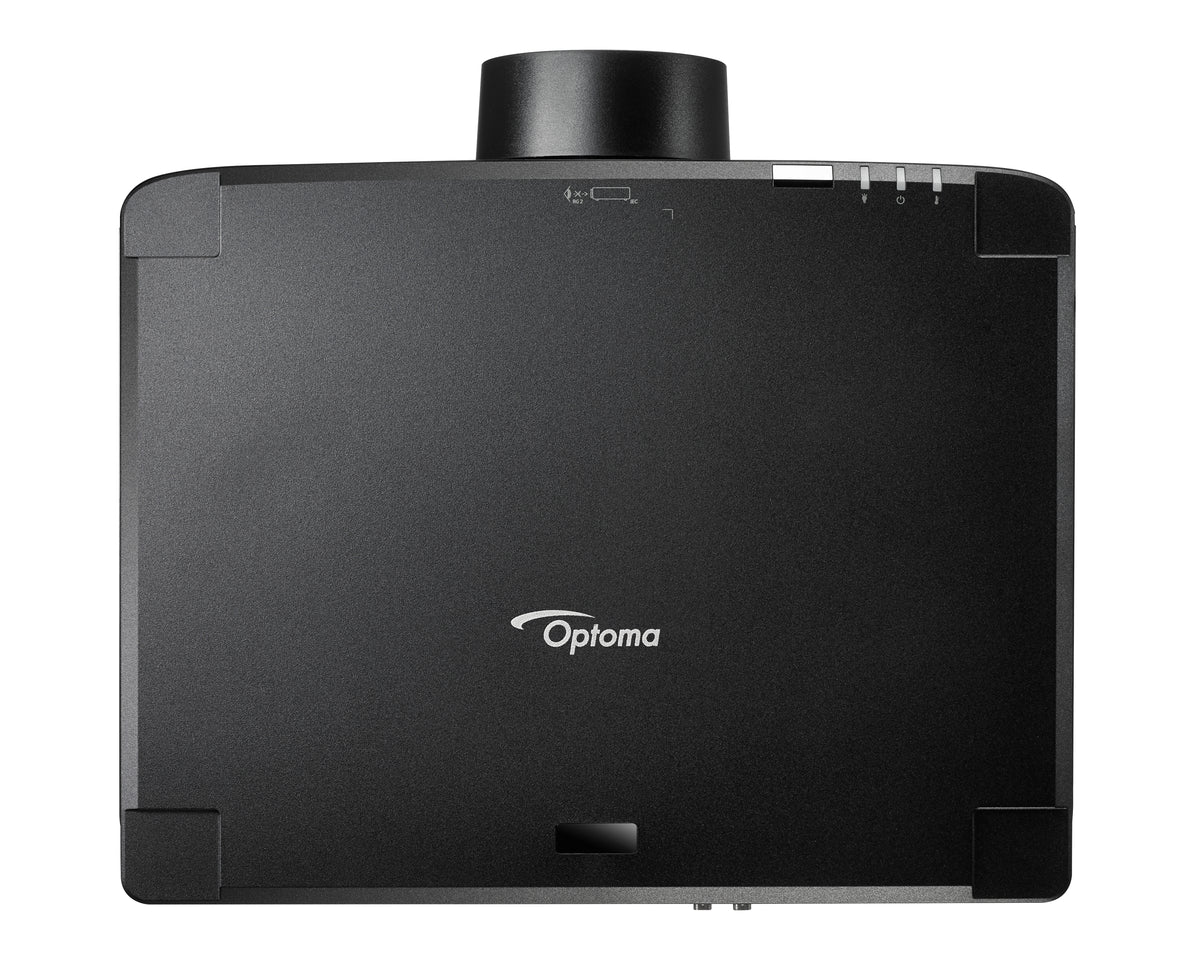

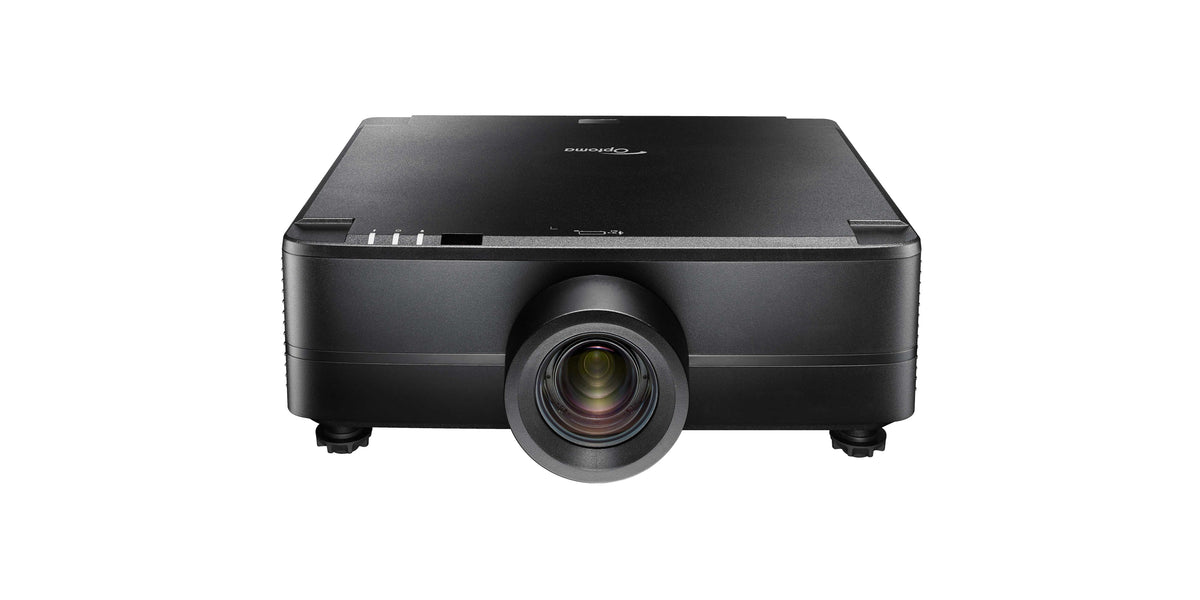

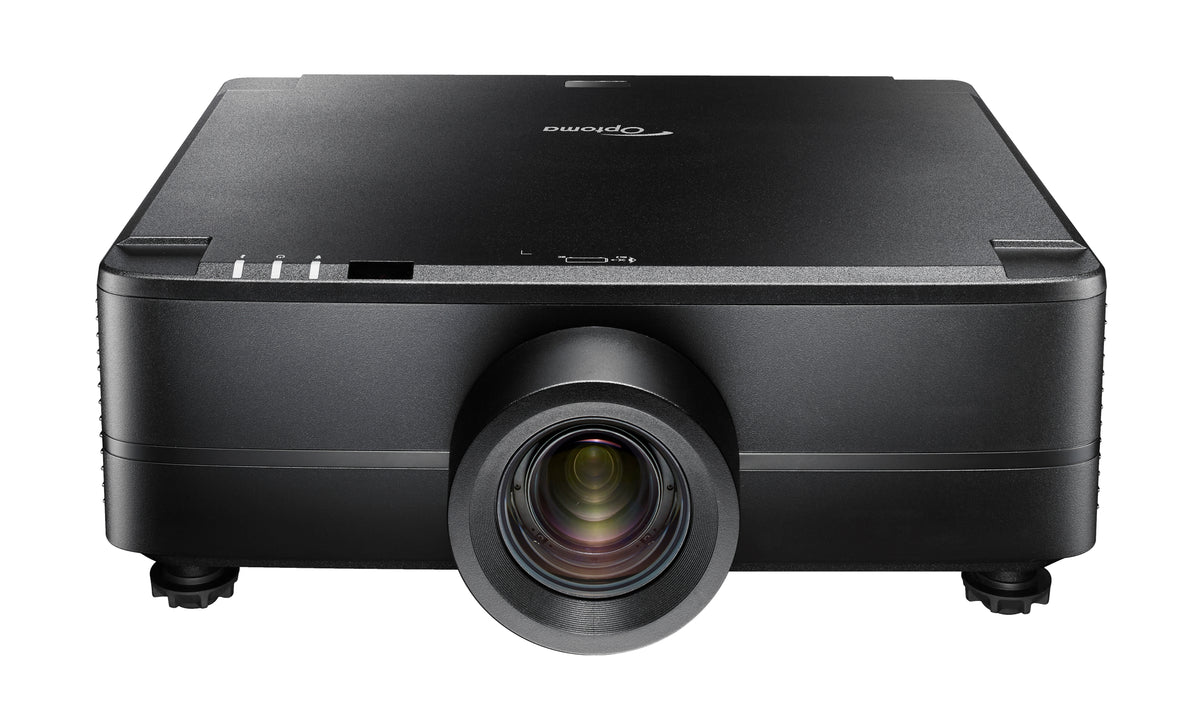

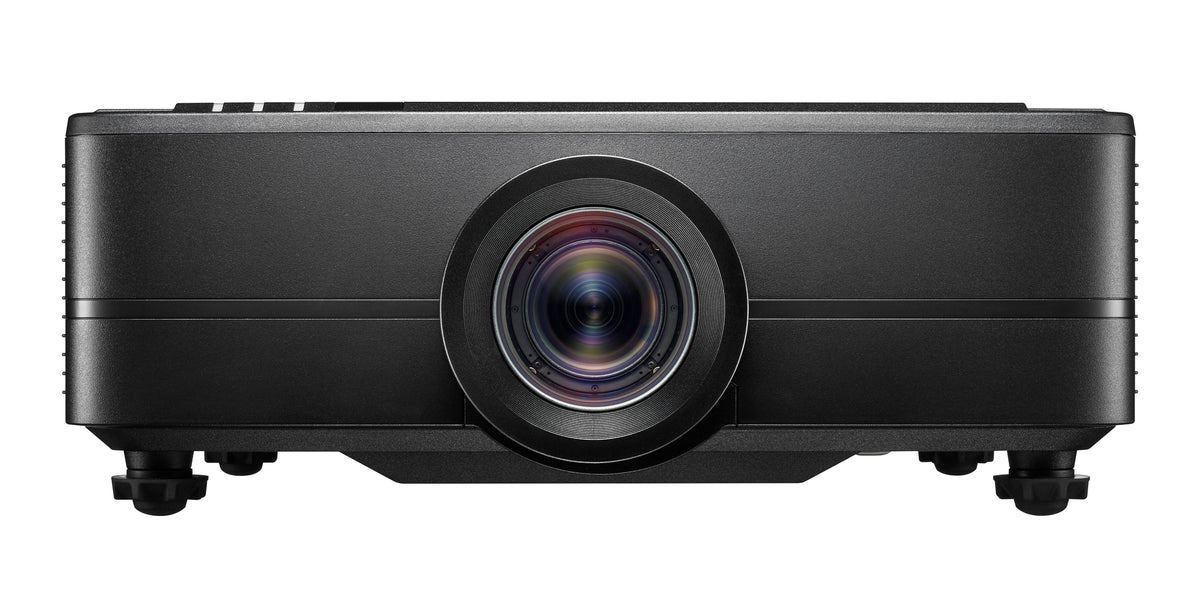

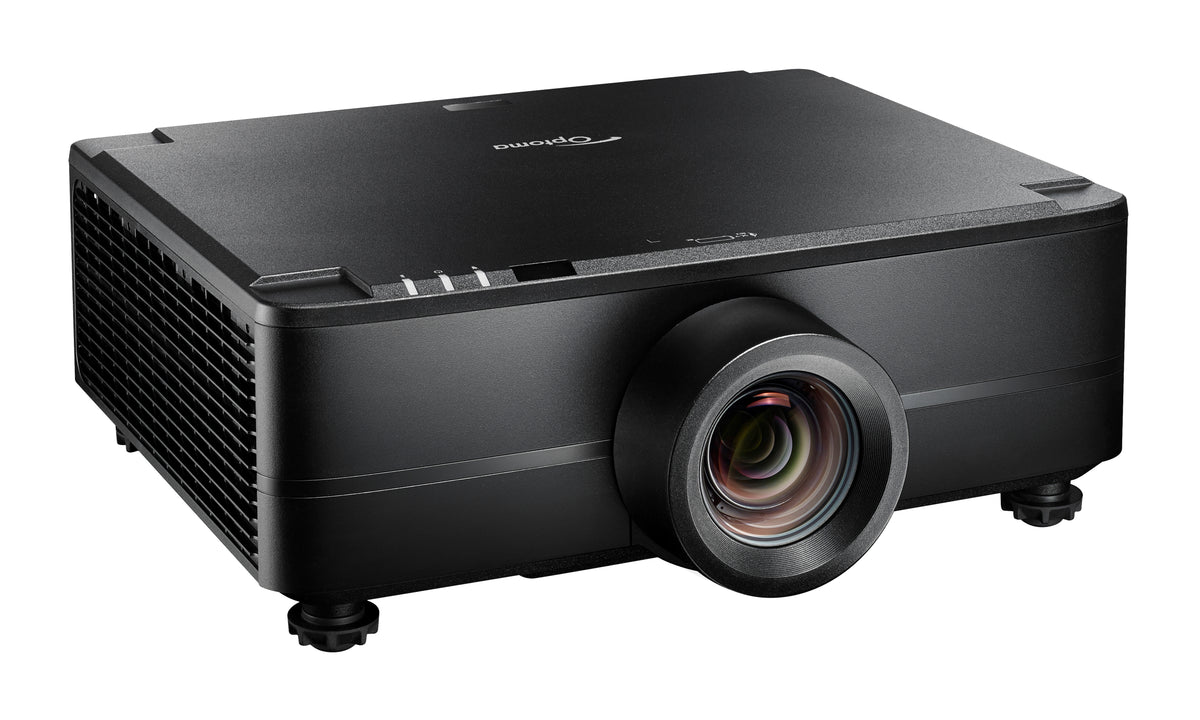

Optoma ZU920T - Projector

The Optoma ZU920T is a 9,800 lumen WUXGA laser projector for professional installations such as auditoriums, digital signage, simulation and projection mapping. Its DuraCore laser runs for up to 30,000 hours, and the IP5X sealed optical engine supports continuous 24/7 use. Motorised zoom and wide lens shift, HDBaseT input and built in warping and edge blending make it a dependable choice for integrators planning large or multi projector displays.

• 9,800 lumens with WUXGA (1920 x 1200) resolution and 4K input compatibility
• DuraCore laser rated up to 30,000 hours
• IP5X dust resistant optical engine for 24/7 operation
• 1.6x motorised zoom with motorised lens shift (vertical ±110%, horizontal ±50%)
• Integrated warping and edge blending, four corner correction
• 360° and portrait projection

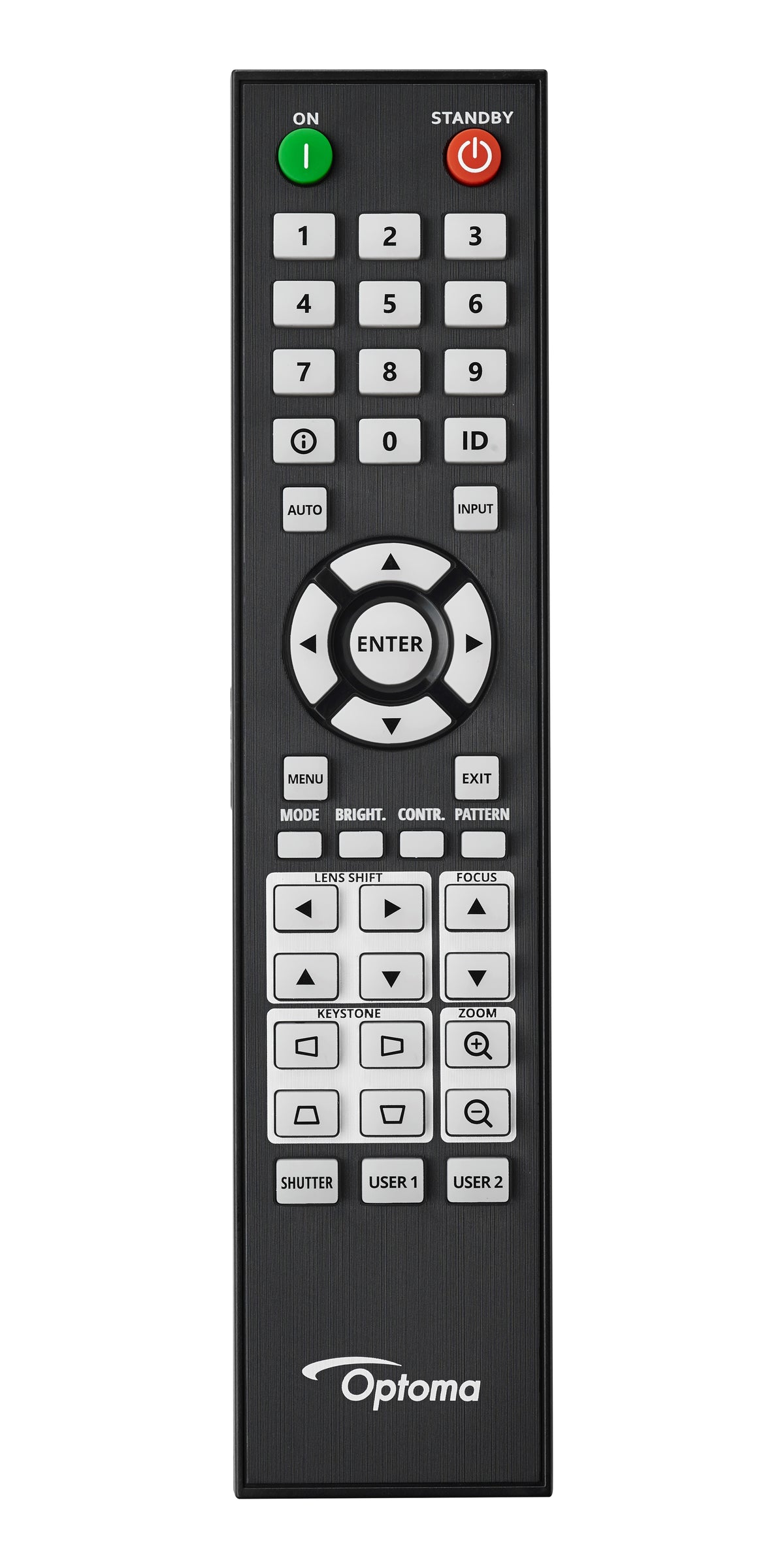

• HDBaseT, LAN, RS232 and wired remote control
• Compatible with Crestron, Extron, AMX and PJLink
• Built in 2 x 10 W speakers

• Display technology: DLP
• Native resolution: WUXGA (1920 x 1200), 16:10
• Brightness: 9,800 lumens
• Contrast ratio: 3,000,000:1
• Light source: DuraCore laser, up to 30,000 hours
• Throw type: Standard throw
• Throw ratio: 1.25:1 to 2:1
• Zoom: 1.6x motorised
• Lens shift: Vertical ±110%, horizontal ±50% (motorised)
• Projection distance: 1.33 m to 13.06 m
• Image size: 1.27 m to 7.62 m (50 in to 300 in) diagonal

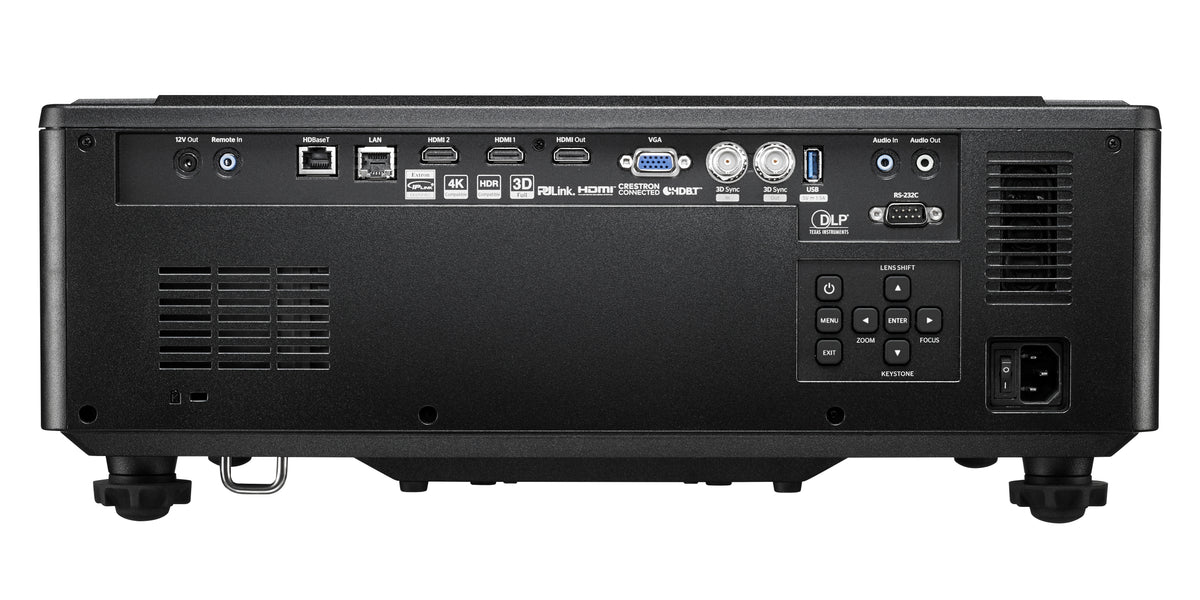

• Inputs: 1 x HDBaseT, 2 x HDMI 2.0, 1 x VGA, 1 x 3D sync, 1 x 3.5 mm audio
• Outputs: 1 x HDMI 2.0, 1 x 3D sync, 1 x USB-A power (1.5 A), 1 x 3.5 mm audio
• Control: RJ45, RS232, 12 V trigger, wired remote
• Speaker: 2 x 10 W
• Noise level: 36 to 38 dB
• IP rating: IP5X
• Power consumption: 265 W minimum, 520 W maximum, 0.5 W standby
• Dimensions (W x D x H): 486 x 432.5 x 176 mm
• Weight: 14 kg
