UHD60

True 4K UHD 3840×2160 resolution, bright 3,000 lumens with cinematic color
HDR10-compatibility produces the bright whites, deep blacks and life-like color
HDMI 2.0 with HDCP 2.2 ensures compatibility with the latest 4K UHD devices for stunning image quality
Vertical lens-shift and 1.6x zoom provide flexible installation
UltraDetail allows fine adjustments to image clarity and sharpness, resulting in a clear and highly detailed image

Bring the ultimate 4K experience home with the Optoma UHD60

The Optoma UHD60 is a 3,000 lumen 4K Ultra High Definition (UHD) home theatre projector that delivers breathtaking image quality. HDR10 compatibility with DCI-P3 wide colour gamut and 1,000,000:1 contrast ratio produce incredible cinematic colours with deeper blacks and brighter whites.

A Texas Instruments 4K UHD DLP chipset forms its heart and meets the CTA definition of 4K UHD. The high-performance DLP chipset displays 8.3-million distinct simultaneous pixels on screen and projects images up to 140-inches.

HDMI 2.0 with HDCP 2.2 connectivity provides compatibility with 4K UHD devices. A 15-percent vertical lens-shift and 1.6x optical zoom provide installation flexibility while up to 15,000 hours of lamp life ensure reliability.

Amazing Colour

Our projectors are capable of reproducing the Rec.709 color gamut, the international HDTV standard to guarantee accurate reproduction of cinematic color exactly as the director intended.

Dynamic Black Technology

This feature gives more depth to your image by smoothly adjusting the lamp output to create a stunning high contrast ratio. Bright scenes appear crisp and clear, while dark scenes remain detailed with deep blacks and exceptional light and shade detail.

UltraDetail

This technology ensures all the information contained in an image is accurately reproduced on the screen to give a stunning crystal clear, pin-sharp picture. Complex algorithms detect each frame and improve image sharpness before the frame is projected.

CMS

The Color Management System (CMS) displays accurate, life-like colors and gives you the flexibility to fine-tune the color settings to the Rec. 709 standard for optimal precision.

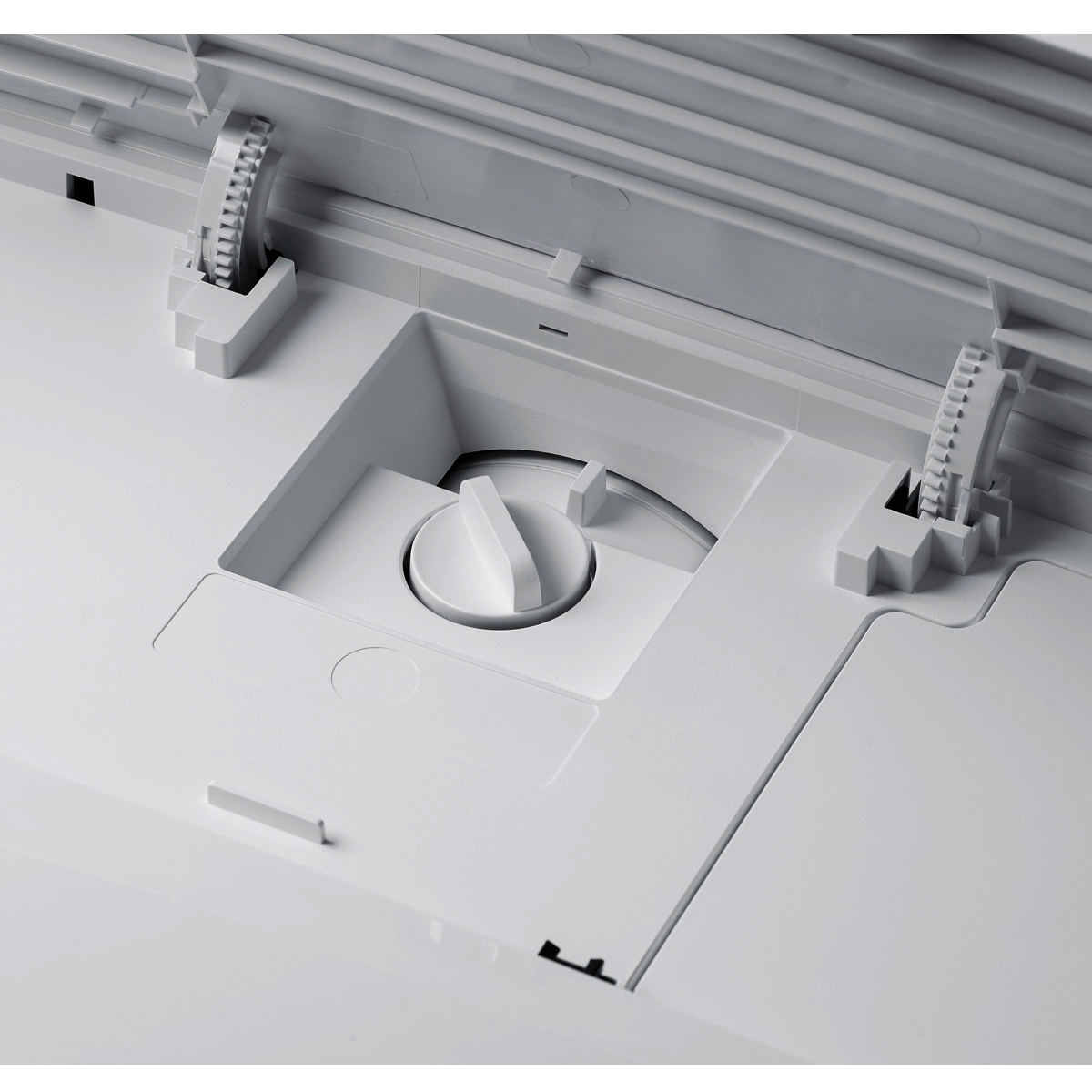

Vertical Lens Shift

Vertical lens shift simplifies installations by shifting the image up and down without image distortion to provide a wider range of projector placement possibilities, making it easier to position the projector in a room.

DCI-P3

Color the way it is meant to be seen – rich, colorful and cinematic pictures and games via DCI-P3 wide color gamut coverage.

BT.2020

HDR signals are mapped using REC.2020 tone mapping and provides coverage for REC.709, DCI-P3 and a wide coverage color gamut.

HDR

High dynamic range (HDR) technology delivers brighter whites and deeper black levels. Optoma HDR accepts HDR10 signals with four selectable picture modes: Normal, Bright, Detail, and Film.

ISF Modes

This feature allows you to save your calibrated day and night mode settings for the ideal viewing experience.

SPECIFICATIONS

Aspect Ratio	16:09
Brightness	3,000 lumens
Compatible Aspect Ratio	16:9 (native), 4:3, Auto, LBX (2160p and 1080p)

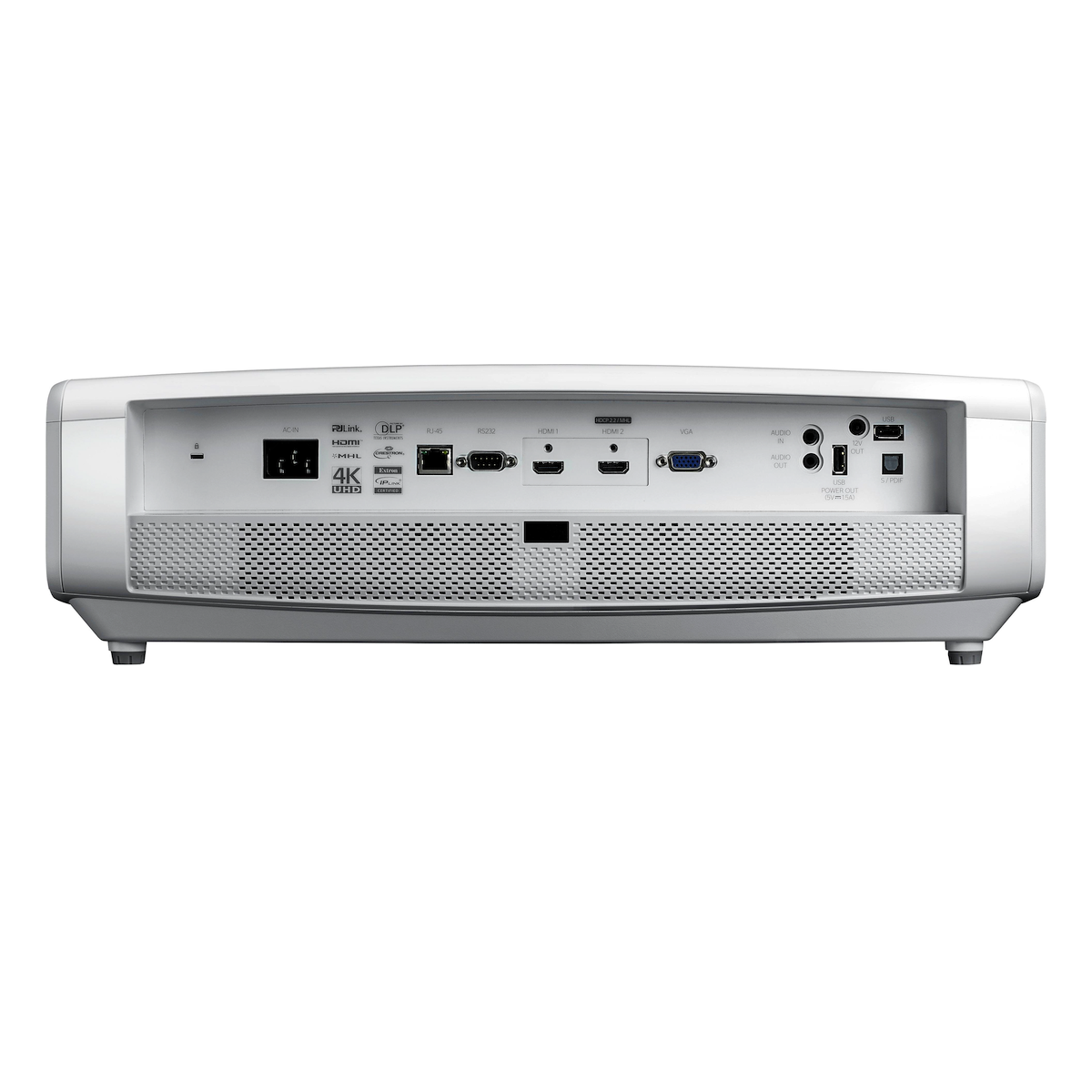

Connections	1xHDMI 1.4a, 1xHDMI 2.0 (w/ HDCP 2.2, MHL 2.1 and Full 18Gbps), VGA-In, Audio-In (3.5mm), Audio-Out, SPDIF Out (Optical), USB 2.0 Port (Service), USB-A Power, RJ45, RS232C, 12V Trigger
Contrast Ratio	Up to 1,000,000:1 with Dynamic Black
Control Unit	RS232 9 Pin, RJ45
Display Technology	Single 0.66″ TRP S610 4K UHD DMD DLP. Technology by Texas Instruments
Displayable Colors	1.07 billion
Inputs	1xHDMI 1.4a, 1xHDMI 2.0 (w/ HDCP 2.2, MHL 2.1 and Full 18Gbps), VGA-In, Audio-In (3.5mm), USB 2.0 Port (Service), USB-A Power, RJ45, RS232C
Light Source Type	240W
Light Source Life	4,000/10,000/15,000 (Bright/ECO/Dynamic)
Lens Shift	Vertical: +15%
Maximum Resolution	4K (4096 x 2160) @ 60Hz with XPR Technology
Native Resolution	UHD (3840 x 2160)
Noise Level	25dB
Offset	100% (see Lens Shift)
On-Screen Display	"Complete on-screen menu, adjustments in 10 languages"
Operating Temperature	Sea Level to 10,000 feet (@73°F); must manually switch to high-altitude mode at 5,000 feet & above
Outputs	Audio out (3.5mm), SPDIF out (optical), 12V trigger
Power Consumption	348W Max (Bright mode), 285W Max (Eco mode)
Power Supply	AC input 100-220V, 50-60Hz, auto-switching
Projection Distance	4.2’ – 30.5’
Projection Lens	F/2.5~3.26; f=20.91~32.62mm
Projection Method	Front, rear, ceiling count, tabletop
Projection Screen Size	26.45" – 302.2"
Remote Control	Full Function Home Remote Control
Throw Ratio	1.39 – 2.22:1 (distance/width) – 5% variance
Uniformity	85%
Zoom Type	1.6x optical (manual)
Computer Compatibility	4K UHD 2160p, WUXGA, HDTV 1080p, UXGA, SXGA, WXGA+, WXGA (1366×768), WXGA, HDTV (720p), XGA, SVGA, VGA, PC and Mac compatible
Horizontal Scan Rate	31K~135KHz
Optional Wireless	Yes
RoHS	Compliant
Vertical Scan Rate	24 – 85Hz (120Hz for 3D)
Video Compatiblity	480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(24/50/60Hz), 2160p(24/50/60Hz)
Dimensions (W x H x D)	19.6″ x 6″ x 13″
Security	Security bar, Kensington lock, password protection, keypad lock
Weight	16 lbs
What's in the Box?	UHD60, AC power cord, remote control, batteries for remote, quick start card
Accessories Part Numbers	Lamp (replacement): BL-FP240E, Mount: BM-5001U, OCM815B,OCM818B-RU, Remote (replacement): BL-3003B
Standard Accessories	Lens cap, AC power cord, HDMI cable, remote control,batteries for remote, multilingual CD-ROM, user’s manual, quick start card, and warranty card
