UHD50
- Bright 2400 lumens & 500,000:1 high contrast
- Brand new designed lens for 4K UHD resolution with 1.3x zoom and perfect throw for theater room or living room use
- 8.3 million pixels on screen, CTA certified 4K UHD product
- Exceptional colors, 100% Rec. 709, 80% DCI-P3 color gamut coverage
- Stunning HDR performance (HDR10 compatible), BT2020 compatible
- Supports vertical lens shift and vertical keystone
Movie fans can now enjoy impressive 4K UHD cinema quality images in their own home with the launch of a new home projector from Optoma UHD50. Packed with the latest technology and features, the stylish UHD50 boasts High Dynamic Range (HDR) compatibility,single HDMI with HDCP 2.2 support and includes a stereo speaker that provides powerful audio. Set-up is simple with vertical lens shift for fuss free positioning and a host of connection options. In addition, the compact UHD50 is lightweight and easy to move around and at 2400 lumens produces bright images for life-like big-screen entertainment even in ambient light conditions.
DLP Technology
DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments™ that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.
Amazing Color
Our projectors are capable of reproducing the Rec.709 color gamut, the international HDTV standard to guarantee accurate reproduction of cinematic color exactly as the director intended.
Dynamic Black Technology
This feature gives more depth to your image by smoothly adjusting the lamp output to create a stunning high contrast ratio. Bright scenes appear crisp and clear, while dark scenes remain detailed with deep blacks and exceptional light and shade detail.
UltraDetail
This technology ensures all the information contained in an image is accurately reproduced on the screen to give a stunning crystal clear, pin-sharp picture. Complex algorithms detect each frame and improve image sharpness before the frame is projected.
ISF Modes
This feature allows you to save your calibrated day and night mode settings for the ideal viewing experience.
Long Lamp Life
Reduce the number of lamp changes with long lamp life.
Vertical Lens Shift
Vertical lens shift simplifies installations by shifting the image up and down without image distortion to provide a wider range of projector placement possibilities, making it easier to position the projector in a room.
Enhanced Color Wheel
An RGBRGB color wheel increases the color ratio for richer, vivid and cinematic image.
HDR
High dynamic range (HDR) technology delivers brighter whites and deeper black levels. Optoma HDR accepts HDR10 signals with four selectable picture modes: Normal, Bright, Detail, and Film.
DCI-P3
Color the way it is meant to be seen – rich, colorful and cinematic pictures and games via DCI-P3 wide color gamut coverage.
BT.2020
HDR signals are mapped using REC.2020 tone mapping and provides coverage for REC.709, DCI-P3 and a wide coverage color gamut.
3D Ready
Optoma 3D Ready projectors can output video and images at an astonishing rate of 120Hz, allowing you to show full-screen, full-color, stereoscopic 3D. Optoma 3D glasses required.
SPECIFICATIONS
Aspect Ratio |
16:09 |
Brightness |
2,400 ANSI lumens |
Color Wheel |
RGBRGB 6 segment color wheel |
Compatible Aspect Ratio |
16:9 (native), 4:3 and LBX compatible |

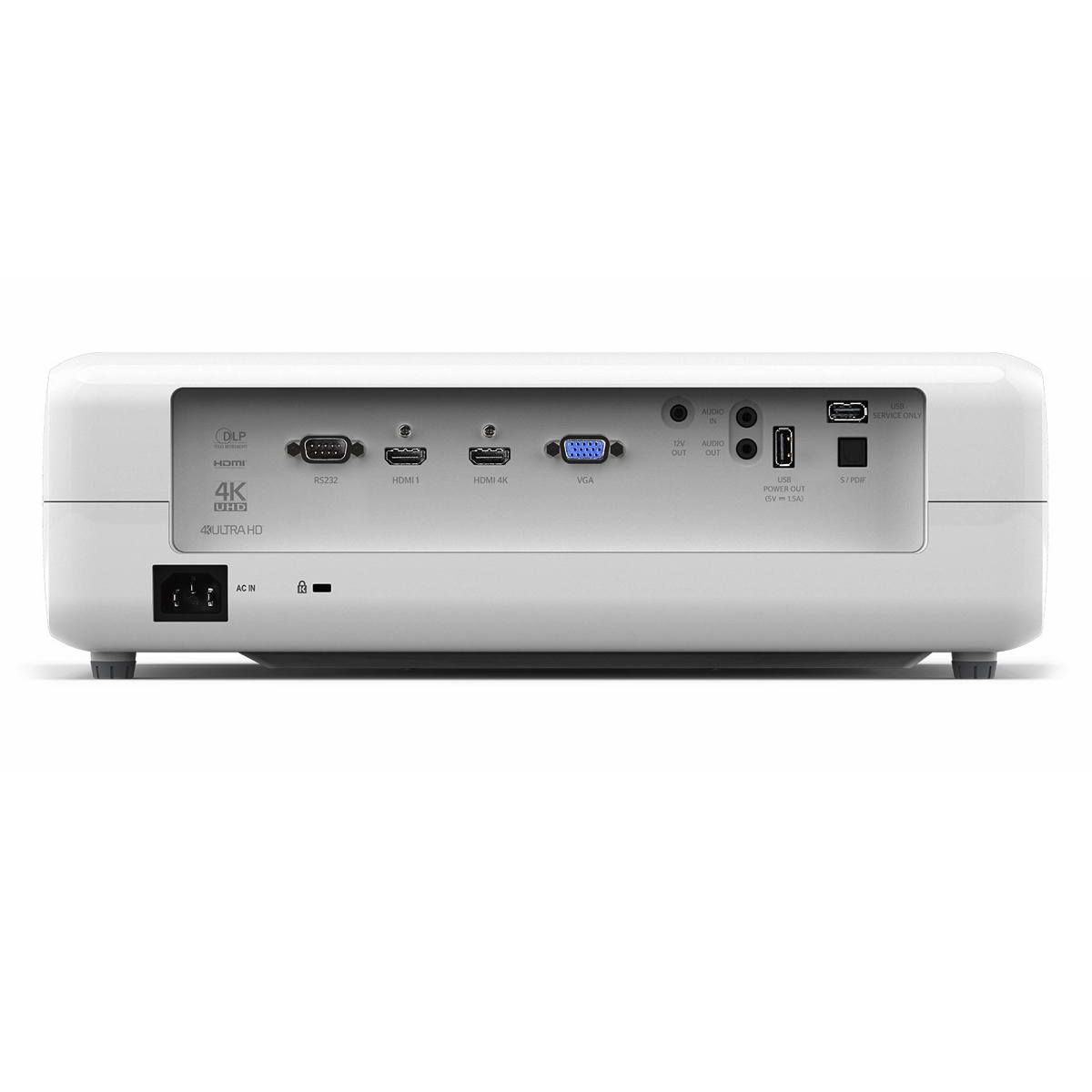

Connections |
HDMI 2.0 (w/ HDCP 2.2, MHL 2.1), HDMI 1.4a, VGA-in, audio-in (3.5mm), audio-out, S/PDIF out (optical), USB 2.0 (service port), USB power, RJ-45, RS-232C, 12V Trigger |
Contrast Ratio |
Up to 500,000:1 with Dynamic Black |
Display Technology |
Single 0.47” TRP S450 4K UHD DMD DLP® Technology by |
|
Texas Instruments™ |
Displayable Colors |
1.07 billion |
Image Size |
34.1” – 302.4 (34.1” to 140” optimal image size) |
Keystone Correction |
± 40° Vertical |
Light Source Type |
240W |
Light Source Life |
4,000/10,000/15,000 (Bright/ECO/Dynamic) |
Lens Shift |
Vertical: +15% |
Maximum Resolution |
4K (4096 x 2160) @ 30Hz |
Native Resolution |
UHD (3840 x 2160) |
Noise Level |
25/28dB (Eco/Bright) |
Offset |
100% (see Vertical Lens Shift) |
Operating Temperature |
41–104°F (5–40°C), 85% max humidity |
Power Consumption |
|
Power Supply |
AC Input 100-240V, 50-60Hz, auto-switching |
Projection Distance |
2.9’ – 34.89’ |
Projection Lens |
F=2.5 – 3.26, F=20.91 – 32.62 mm manual focus |
Projection Method |
Front, rear, ceiling count, tabletop |
Projection Screen Size |
34.1” – 302.4 (34.1” to 140” optimal image size) |
Remote Control |
Full Function Home Remote Control |
Throw Ratio |
1.21 – 1.59 ( with tolerance ±5%) |
Uniformity |
80% |
Zoom Type |
1.3x optical (manual); 0.8 – 2.0 digital |
3D Compatibility |
Frame-pack: 1080p24, 720p50 / 60, Side-by-side: 1080i50 / 60, 720p50 / 60, Over-under: WUXGA24, 720p50 / 60 |
Computer Compatibility |
4K UHD 2160p, WUXGA, HDTV 1080p, UXGA, SXGA, WXGA+, WXGA (1366×768), WXGA, HDTV (720p), XGA, SVGA, VGA, PC and Mac compatible |
Horizontal Scan Rate |
31.000 to 135.000KHz |
Optional Wireless |
No |
RoHS |
Compatible |
Vertical Scan Rate |
24Hz to 120Hz |
Video Compatiblity |
4K UHD 2160p (24/50/60Hz), 1080p (24/50/60Hz), 1080i (50/60Hz), 720p (50/60Hz), 480i/p, 576i/p |
Dimensions (W x H x D) |
15.4” x 5.1” x 11.1” |
Security |
Kensington® lock port, password (OSD) |
Weight |
11.75 lbs |
Standard Accessories |
Lens cap, AC power cord, HDMI cable, remote control, batteries for remote, multilingual CD-ROM, user’s manual, quick start guide and warranty card |
