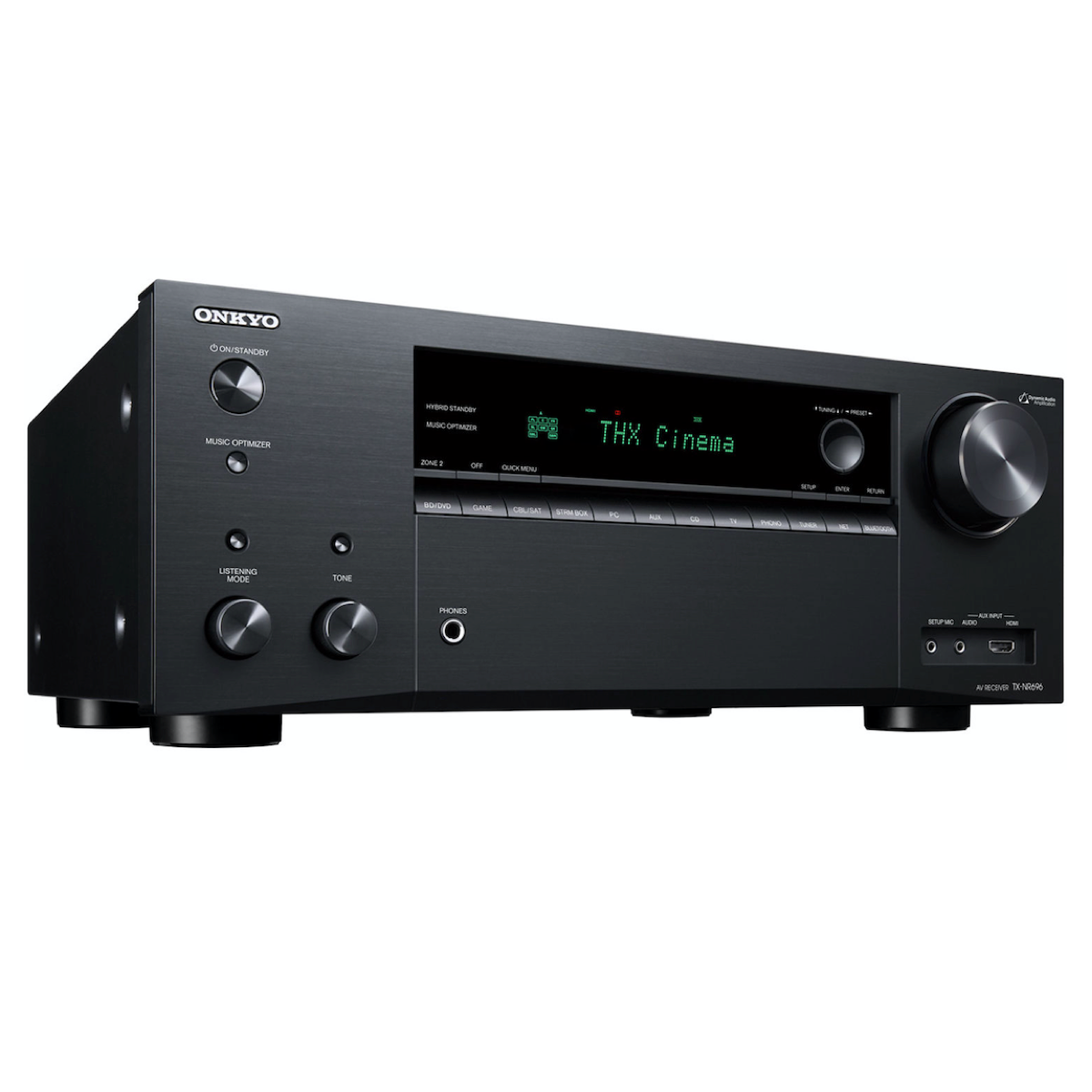

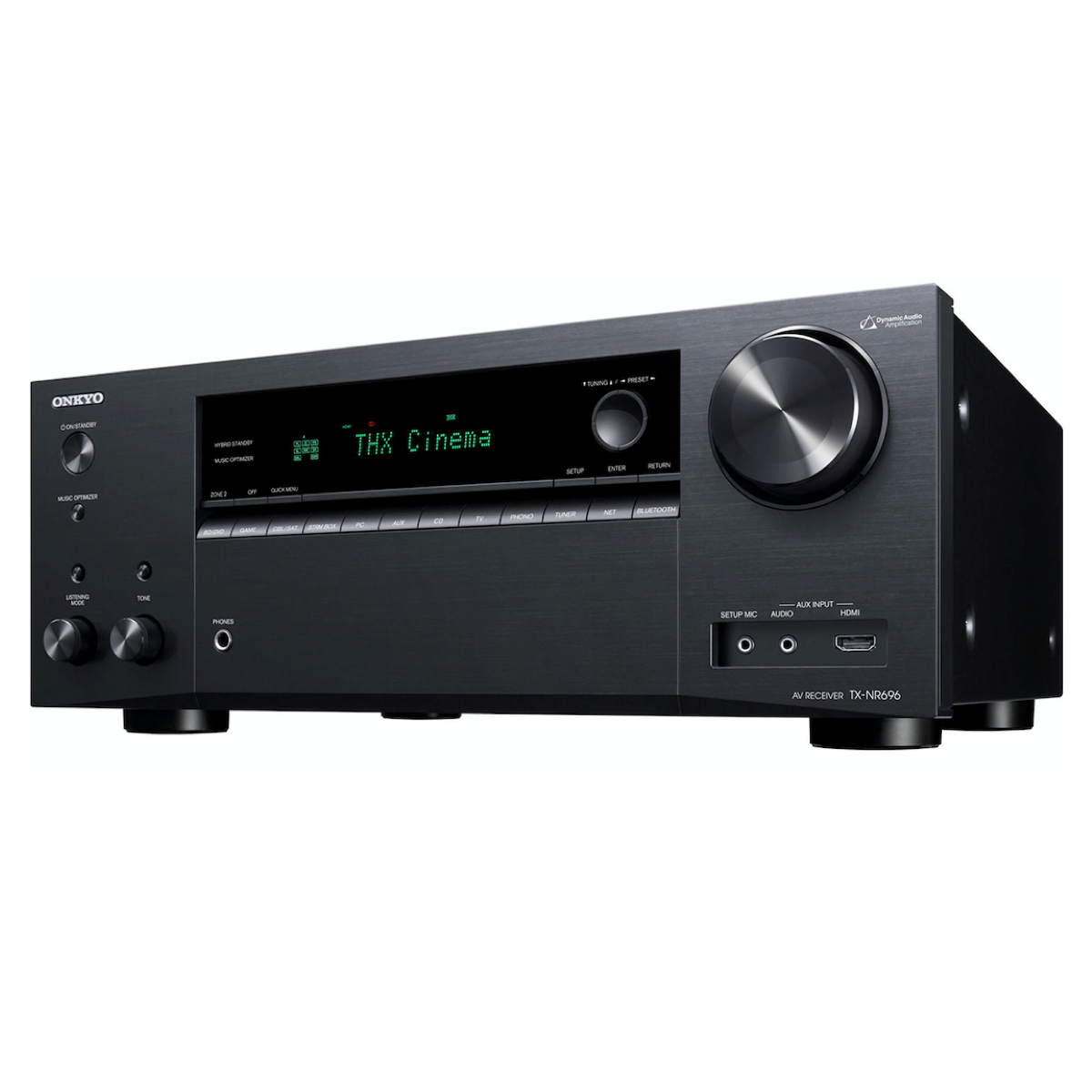

Onkyo TX-NR696 - 7.2 Channel Network AV Receiver

Description

The Onkyo TX-NR696 is a 7.2-channel network AV receiver with THX Certified Select cinema-reference sound and 175W-per-channel Dynamic Audio Amplification. Its Next-Generation Network Audio adds Chromecast built-in, Works with Sonos, AirPlay 2, and DTS Play-Fi for flexible multi-room streaming alongside 5.2.2-channel Dolby Atmos and DTS:X playback.

Features

• THX Certified Select amplification, benchmark-tested for cinema-reference sound in rooms up to ~2000 cubic feet
• Dynamic Audio Amplification (DAA) with high-current, low-noise transformer and discrete amps for detail and control at 4Ω loads
• 5.2.2-channel Dolby Atmos and DTS:X playback, with Dolby Atmos Height Virtualizer and DTS Virtual:X for 3D sound from horizontal layouts
• Chromecast built-in, Works with Sonos, AirPlay 2, DTS Play-Fi, FlareConnect, and direct access to Spotify, Amazon Music, TIDAL, Deezer, and TuneIn
• Quad-core SoC with Wi-Fi 5 (802.11ac, 2x2 MIMO) support
• Zone 2 outputs and a flexible Zone 2/Zone B line-out/Front L/R pre-out for distributing audio to multiple rooms
• HDMI Sub/Zone 2 output for sharing video to a second display or projector
• DSP-controlled Vocal Enhancer for clearer dialogue
• AccuEQ room calibration with Subwoofer EQ and AccuReflex
• 4K/60p, 4K HDR, 4:4:4/24-bit, BT.2020, and HDCP 2.2 HDMI support

Specifications

• Channels: 7.2 (5.2.2 object-based configuration)
• Power output: 100W at 8Ω (20Hz–20kHz, 0.08% THD, 2 channels driven); 210W at 6Ω (1kHz, 10% THD, 1 channel driven)
• Dynamic power (front): 120W at 8Ω, 210W at 4Ω, 240W at 3Ω
• Frequency response: 10Hz–100kHz +1/-3dB (Direct Mode)
• THD+N: 0.08% (20Hz–20kHz, half power)
• Speaker impedance: 4–16Ω
• Tone control: Bass/treble ±10dB
• Rear A/V inputs: 6x HDMI, 1x digital coaxial, 1x optical TOSLINK, 4x stereo RCA, 1x phono RCA with ground screw
• Rear A/V outputs: 2x HDMI, 2x RCA subwoofer pre-out, 1x stereo RCA Zone B
• Front I/O: 1x 6.35mm headphone output, 1x 3.5mm aux input, 1x 3.5mm setup mic input
• Other rear I/O: RJ45 Ethernet, AM/FM antenna terminals, 1x USB Type-A power output
• Speaker connectors: 9x binding post pairs
• Signal-to-noise ratio: 106dB (line), 80dB (phono)
• Bluetooth: Yes
• Wireless audio: AirPlay
• Tuner: AM/FM
• Dimensions: 435 x 173.5 x 379.5mm
• Weight: 10kg (22 lbs)
