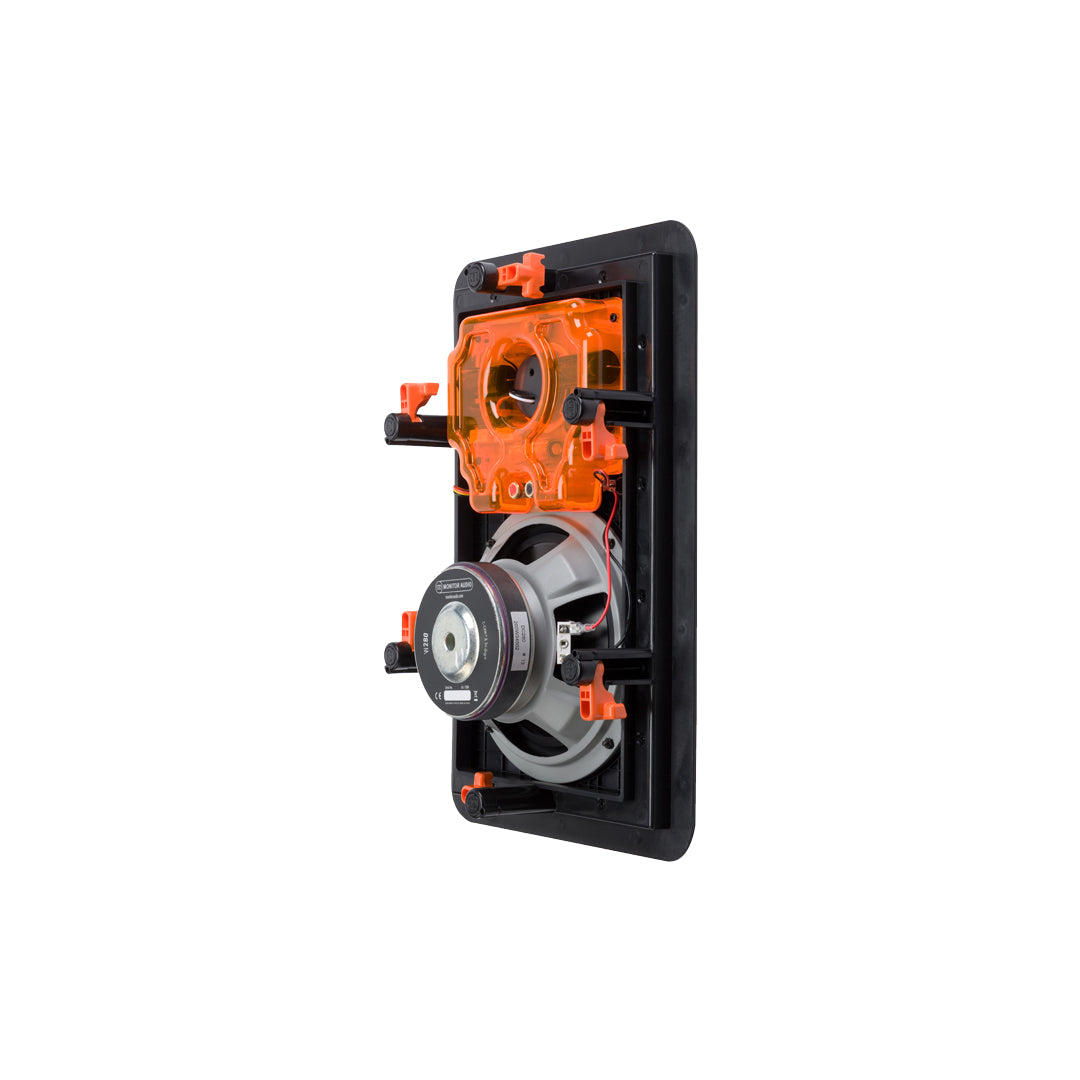

Monitor Audio W280 - In Wall Speaker - Piece

An 8" C-CAM in-wall speaker with a highly specified C-CAM Gold Dome tweeter, extending high-frequency response to 30kHz with greater output and power handling. A pivoting tweeter plus HF level and boundary compensation controls let you fine-tune imaging for the room.

• Pivoting C-CAM Gold Dome tweeter for optimum imaging
• HF level adjustment (+3dB / 0dB / -3dB) for room-matched tuning
• Boundary compensation switch (on/off) to correct for wall placement
• 6-position Tri-Grip dogleg fixings for secure, easy installation

Frequency Response
45Hz–30kHz

Impedance
6 ohms

Sensitivity
90 dB (1W@1m)

Maximum SPL
111.6 dBA

Power Handling
120W RMS

Recommended Amplifier
30–120W

Drive Units
1× 8" C-CAM cone bass driver, 1× 1" C-CAM pivoting Gold Dome tweeter

Adjustment Controls
HF level switch, boundary compensation switch

Overall Dimensions (incl. grille)
441 × 288 mm

Overall Depth (incl. grille)
104mm (4.125")

Mounting Depth
100mm (3.9375")

Cut-Out Dimensions
387 × 234 mm

Fixing Type
6-position Tri-Grip dogleg fixings

Construction
Mineral-filled ABS, RoHS compliant

Weight
3.1 kg (6.8 lb)

Pre-Construction Bracket
WB8 (Green) with WCBOX-L back box, sold separately
