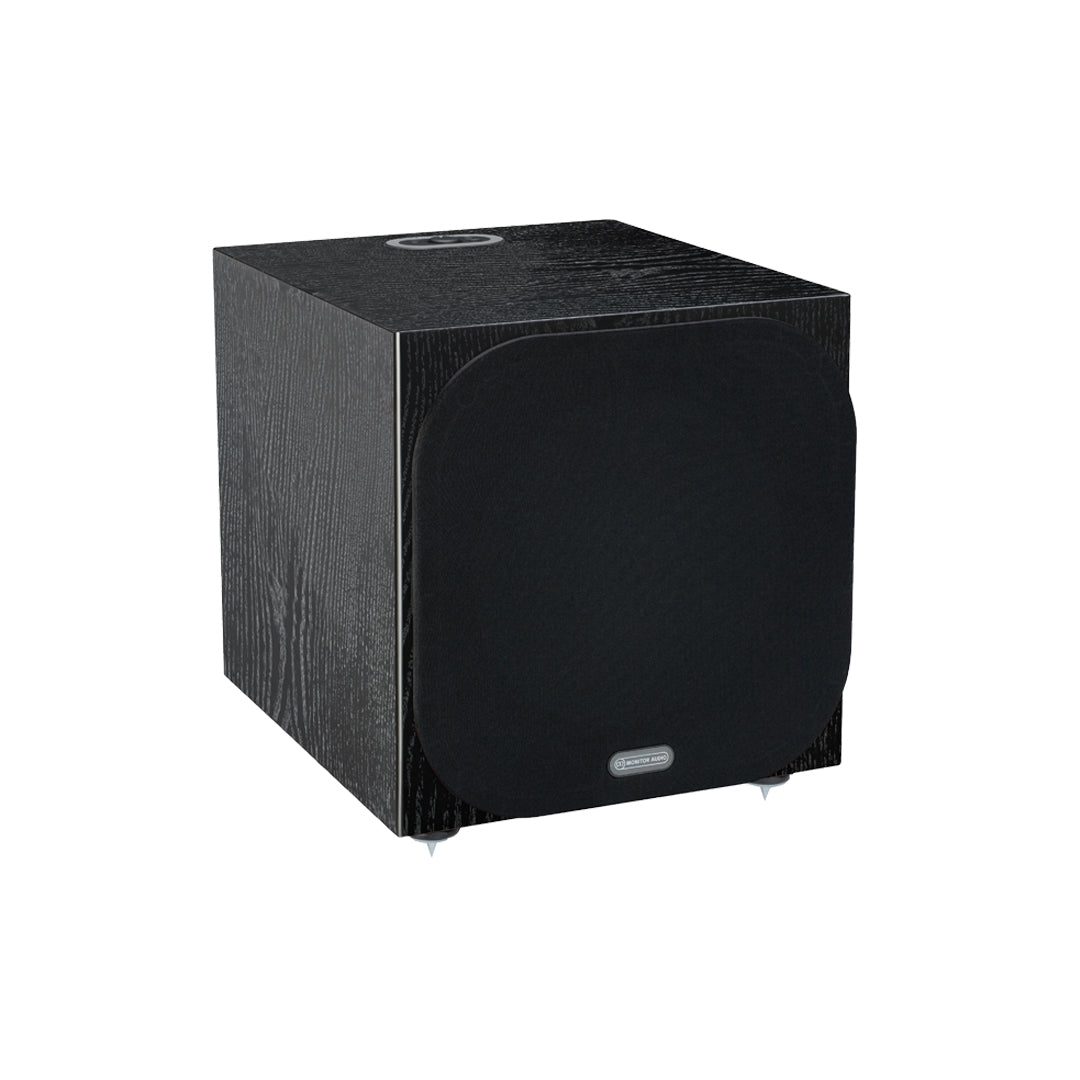

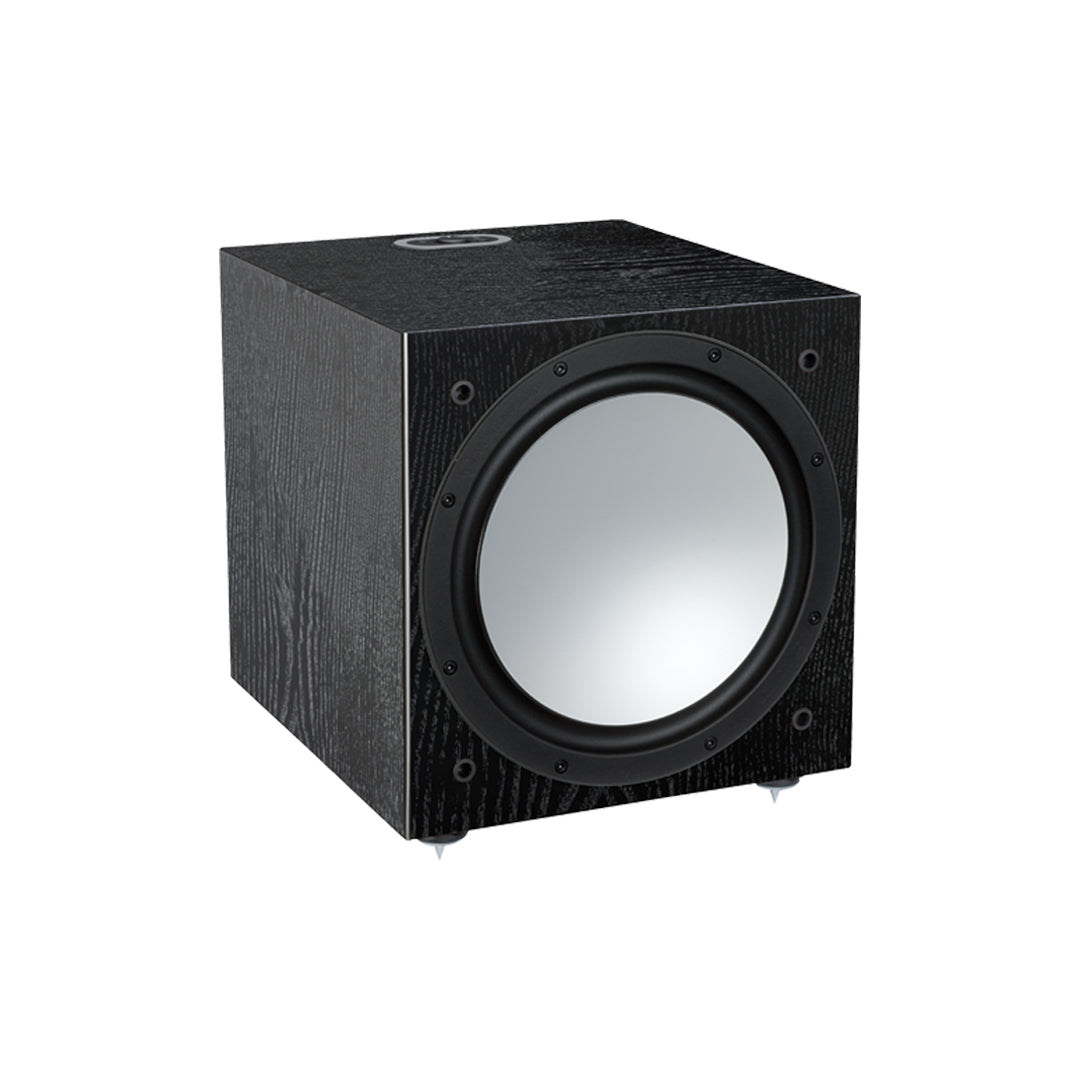

Monitor Audio - Silver W-12 Subwoofer

Description

A Silver Series subwoofer delivering seismic bass down to 22Hz from a powerful, long-throw 12" driver. Powered by a 500W Hypex Class-D amplifier with Automatic Position Correction (APC) that uses a microphone and test tones to correct for room modes automatically — no positioning restrictions, no manual EQ guesswork.

Features

• Ultra long-throw 12" driver with "dished" C-CAM cone and triple suspension for linearity at high excursion
• Oversized 3" black anodized voice coil for high power handling and low distortion
• 500W RMS Class-D amplifier with switch-mode power supply from Hypex
• Automatic Position Correction (APC) — in-house system that self-corrects for room modes using a microphone
• 32-bit micro-controller monitors performance thousands of times per second to prevent overdrive or distortion
• Three preset EQ modes: Music, Movie, Impact
• USB port for firmware updates

Specifications

Frequency Range
20Hz lower limit (typical IEC room), 40–120Hz variable upper limit

Low-Pass Filter
Active 4th order, 24dB/octave

Amplifier
500W continuous, Class-D with switch-mode PSU (SMPSU)

Phase Control
0° and 180°

Auto Sensing
Line level >2mV; standby after 20 min with no signal

Drive Unit
1× 12" C-CAM subwoofer driver, triple suspension, 3" long-throw voice coil

Trigger Input
5–12V via 3.5mm mono mini-jack

Cabinet Dimensions (excl. grille/terminals)
340 × 340 × 380 mm

Dimensions (incl. grille/amp/feet)
370 × 340 × 410 mm

Mains Voltage
110–120VAC or 220–240VAC, 50/60Hz, auto-select

Power Consumption
400W / 0.5W standby (ErP approved)

Weight
20.1 kg (44 lb 5 oz)
