Description

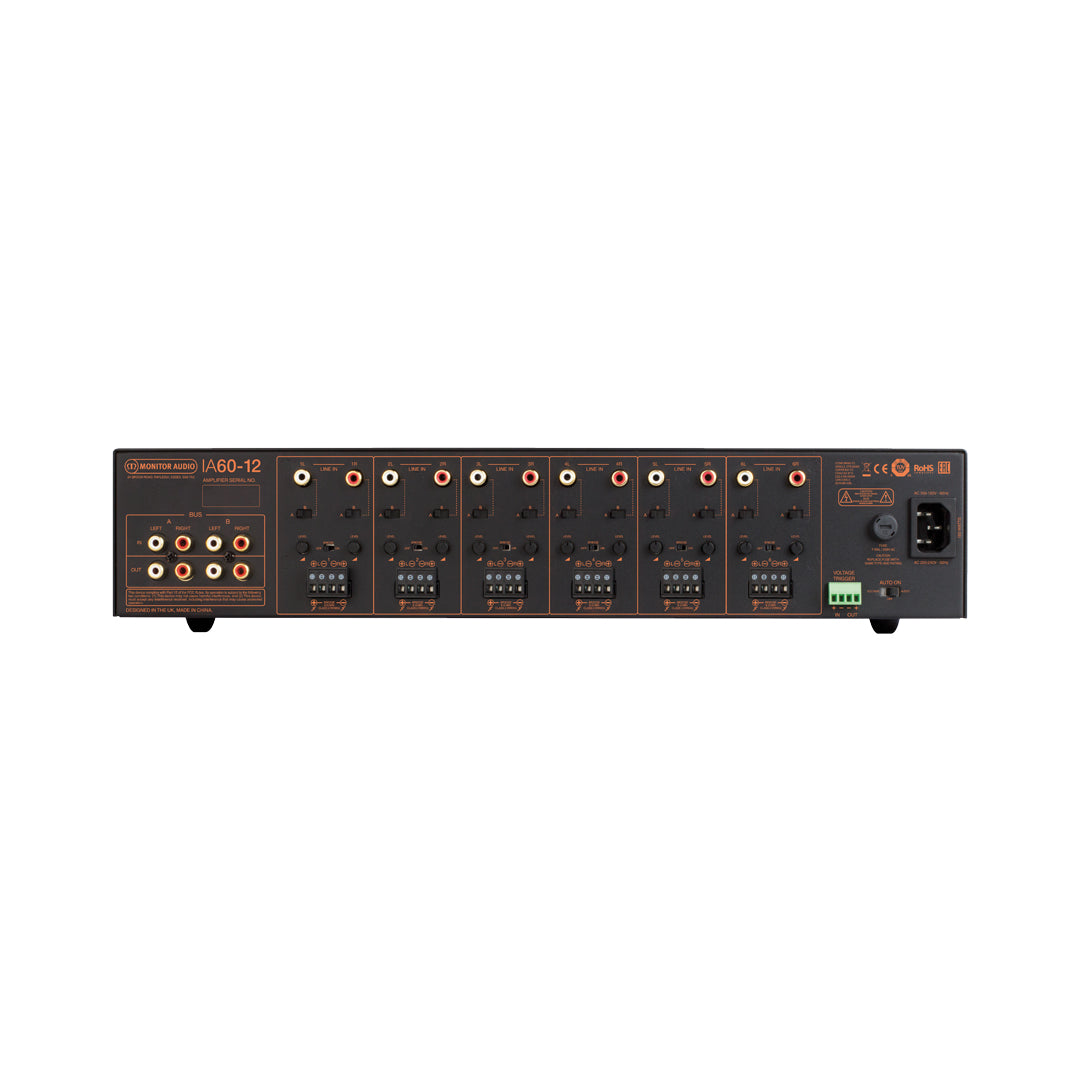

IA60-12
The IA60-12 powers up to 12 channels (6 stereo pairs) and is configurable to 1, 2, 3, 4, 5, 6, or 12 channels. Employing Hypex amplifier technology, this model takes Monitor Audio's unrivalled experience of the custom installation sector, and delivers an audio engine ready to excel.
From Monitor Audio's line of distribution amplifiers, meticulously designed to satisfy the customer and the installer, the IA60-12 powers up to 12 channels (six stereo pairs) and is configurable to 1, 2, 3, 4, 5, 6, or 12 channels. Employing Hypex amplifier technology housed in a 2U case, we front-mount the power switch and the trigger input (– 3 – 30 V AC or DC) provides signal for additional amplifiers or other equipment.
This model offers Buss Inputs and A/B Loop Outputs – the Loop outputs are non-buffered, meaning that the maximum number of amplifiers that can be looped together will depend on the output capability of your source component. Smoothly delivering 60 watts per channel at 4 ohms, the IA60-12 lets you trust in Monitor Audio to successfully your project.
SPECIFICATIONS
|
Connect' IP Control |
N/A |
|
Channel Number |
12 (6 Stereo Pairs) |
|
Power (W / Channel) | 4 ohms |
60 W |
|
Power (W / Channel) | 8 ohms |
45 W |
|
Power (W / Channel) | Bridge (8 ohms) |
100 W (6CH) |
|
Power (W / Channel) | 70V |
N/A |
|
Input Impedance |
20 K ohms |
|
Output Impedance (Loop RCA) |
600 ohms |
|
Input Sensitivity |
100 mV / 1 W, 700 mV – Full power |
|
Maximum Input Voltage |
2.9 V |
|
Signal to Noise (SN:R) |
-100 dB (20 Hz – 20 kHz) |
|
Frequency Response |
5 Hz – 50 kHz |
|
Total Harmonic Distortion THD + N@1 KHz |
0.03% |
|
Rack Height |
2U |
|
Dimensions (Excluding Feet (H x W x D)) |
86.8 x 438 x 427 mm (37/16 x 171/4 x 1613/16") |
|
Dimensions (Including Feet (H x W x D)) |
97.2 x 438 x 427 mm (313/16 x 171/4 x 1613/16") |
|
Width (including rack brackets) |
482 mm (19") |
|
IP Communication |
N/A |
|
Mains Operating Voltage |
|
|
Fuse Rating |
10 A (T10AL ~ 250VAC) |
|
Standby Power Consumption |
<0.5 W (green mode) |
|
Networked Standby Power Consumption |
N/A |
|
Weight |
7.34 kg (16 lb 2 oz) |
