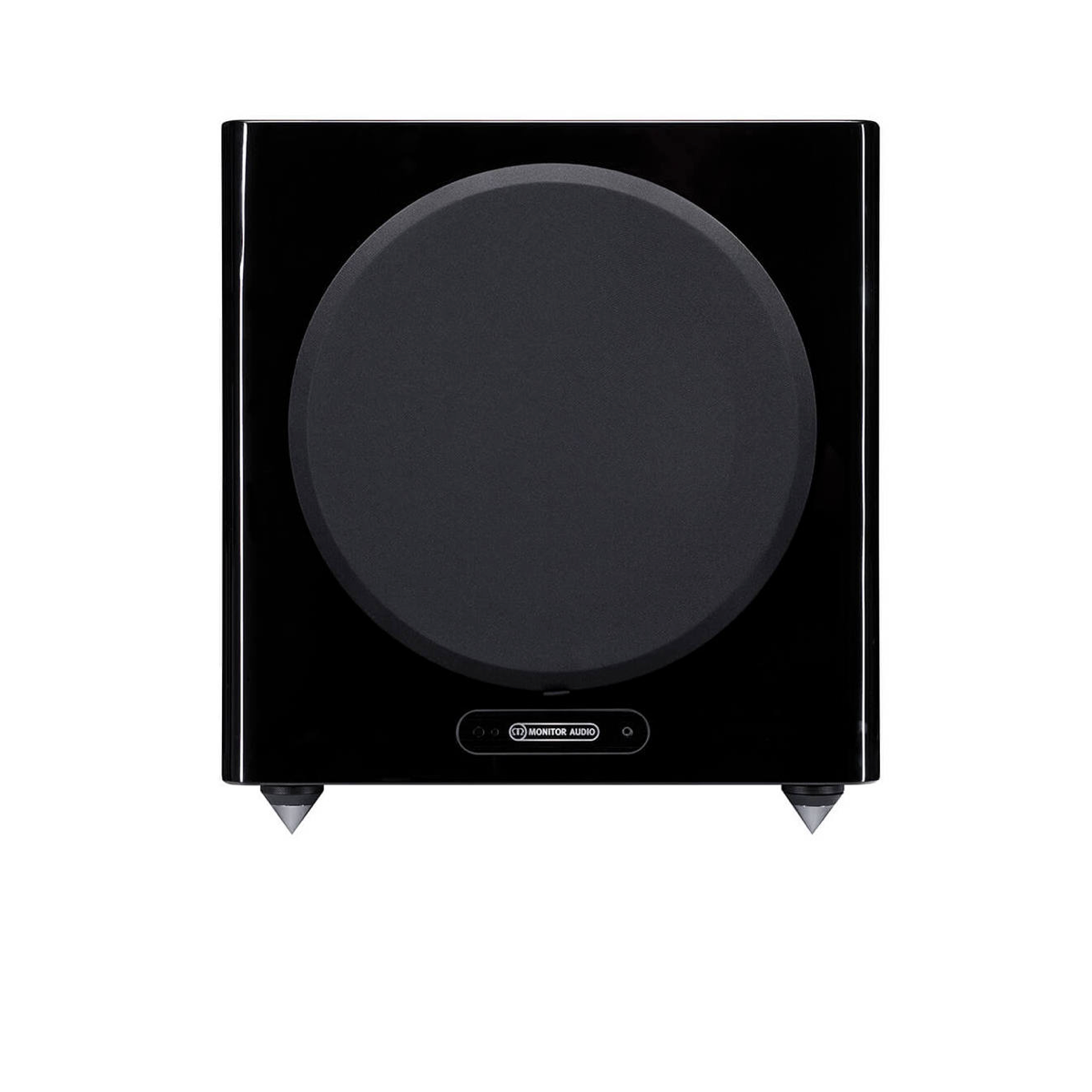

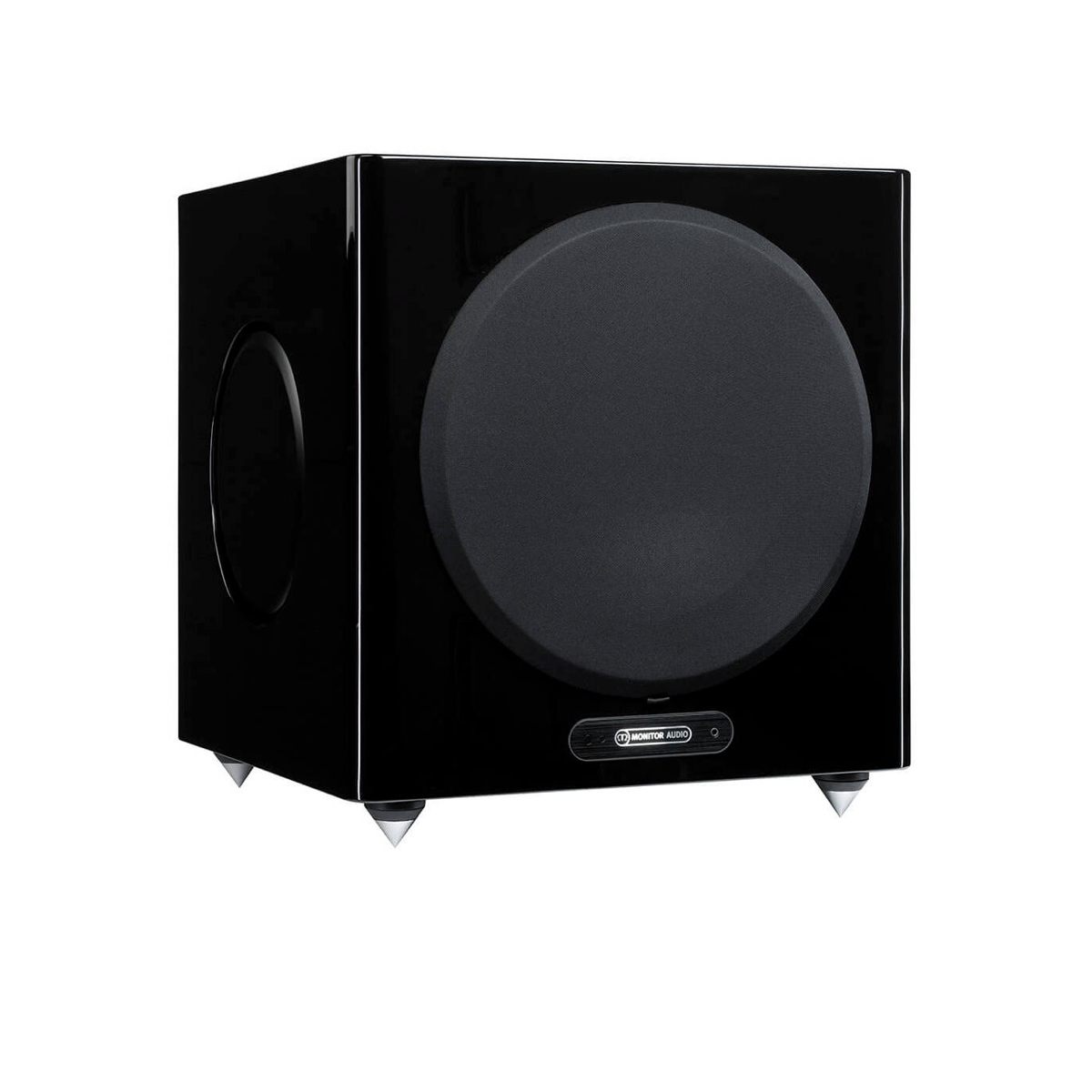

Monitor Audio Gold W12 - Subwoofer

A flagship subwoofer built for deep, refined bass — a 12" long-throw driver reinforced by dual Auxiliary Bass Radiators and driven by 600W of Class D amplification, reaching down to 20Hz. Automatic Position Correction (APC) optimizes performance for wherever it's placed, delivering everything from the harmonic detail of a kettle drum to the full weight of a blockbuster explosion.

• Ultra long-throw 12" driver with dished C-CAM cone, triple suspension, and a black anodized 75mm voice coil for effective heat dissipation
• Dual 200mm Auxiliary Bass Radiators (ABR) for extended low-end output
• 600W Hypex Class-D amplifier module with switch-mode power supply for instantaneous high-current delivery
• Automatic Position Correction (APC) — in-house room setup system using a microphone for simple optimization
• Four fully configurable user presets (Flat, Music, Movie, Impact) with adjustable frequency, slope, trim, and EQ
• Night Mode reduces dynamic range on loud passages for late-night listening
• Top-mounted LED control panel plus Monitor Audio's SubConnect PC software for advanced setup
• USB port for firmware updates and service

Driver Configuration
1× 12" long-throw C-CAM driver + 2× 200mm ABRs; 36mm front baffle, 25mm MDF cabinet with internal bracing

Frequency Range
-3dB @ 25Hz / -10dB @ 20Hz (free field); -3dB @ 150Hz upper limit

Linear Driver Excursion
19mm peak-to-peak, 1.6L total displacement

Amplifier
600W, Class D with high-current SMPSU

DSP
50 MIPS core, 138dB dynamic range, 56-bit double precision processing

Digital Conversion
24-bit / up to 48kHz

Phase Control
0–360° in 15° increments, pure invert at 180°

Low-Pass Filter
2nd or 4th order (12 or 24dB/octave), 35–135Hz in 5Hz steps

Inputs/Outputs
LFE balanced (XLR) and unbalanced (RCA), stereo unbalanced (RCA), with matching link outputs

Connections
12V trigger in, 3.5mm mic input (mic included), RJ45 (RS232), IR repeater output, USB Type B

Mains Voltage
100–120VAC ~60Hz or 220–240VAC ~50/60Hz (manual select)

Power Consumption
600W max, <0.5W standby (ErP compliant)

Dimensions (incl. amp/drivers/feet)
445 × 410 × 433.5 mm

Weight
26.98 kg (59 lb 8 oz)
