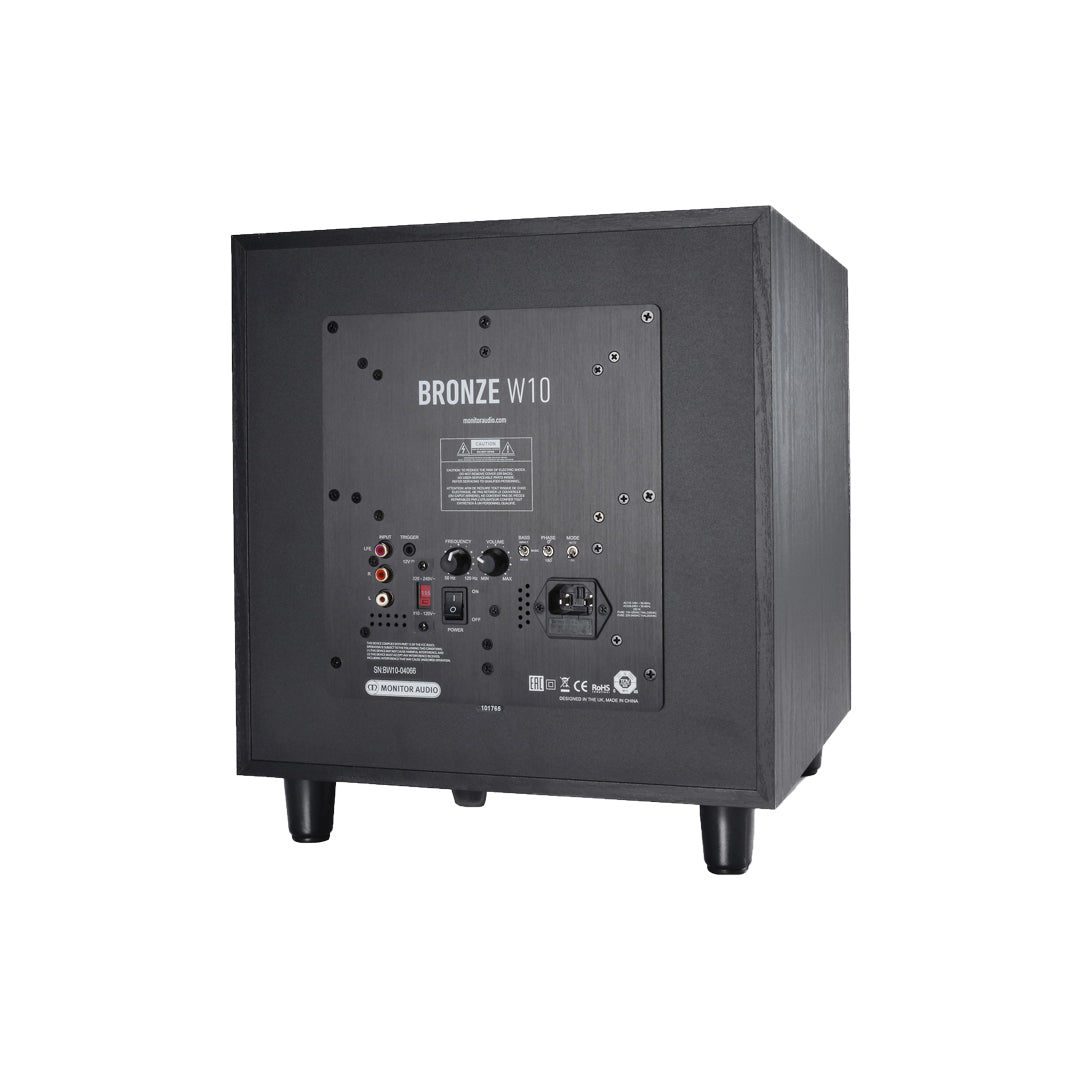

Monitor Audio Bronze W10 - Subwoofer

A powered subwoofer bringing Bronze's low-distortion design philosophy to the bass domain. A 10" long-throw driver paired with a down-firing Auxiliary Bass Radiator delivers deep, punchy bass from a compact footprint — 6dB greater SPL at 40Hz than its predecessor.

• Ultra long-throw 10" driver with concave "dished" C-CAM cone
• 10" flat panel ABR (Auxiliary Bass Radiator) for extended low-frequency extension
• Powerful Class D amplifier delivering over 200W with low distortion
• Switch-mode power supply for high continuous output and instant current delivery
• DSP processing handles all control features and crossover in the digital domain
• Three pre-set EQ modes: Music, Movie, Impact
• 12V trigger for switching control from an AV amp, processor, or home automation system
• 18mm MDF construction with heavy bracing for a stiff, low-resonance cabinet

Frequency Range
30Hz lower limit, 40–120Hz variable low-pass filter

Low-Pass Filter
12dB/octave variable + 12dB/octave fixed @ 150Hz

Amplifier Output
220W, Class D with switch-mode PSU

Drive Units
1× 10" C-CAM long-throw subwoofer driver + 1× 10" flat panel ABR

Dimensions (excl. amp/feet)
320 × 320 × 330 mm

Dimensions (incl. amp/drivers/feet)
364 × 320 × 364 mm

Input Impedance
20 ohms

Standby Power
0.5W (ErP approved)

Mains Voltage
110–120VAC or 220–240VAC, 50–60Hz, auto-select

Weight
12.8 kg (28 lb 2 oz)
