Martin Logan Motion SLM XL - On-Wall Speaker (Piece)

Description

The Motion SLM XL is an ultra-slim on-wall speaker built for 65in and larger TVs, using an advanced-resolution Folded Motion tweeter, two 4in high-excursion fibre cone woofers, and four passive bass radiators for greater low-end extension than the standard SLM. At just 1.45in thin, it restores the sound quality that modern ultra-thin TVs sacrifice for their slim profiles.

Features

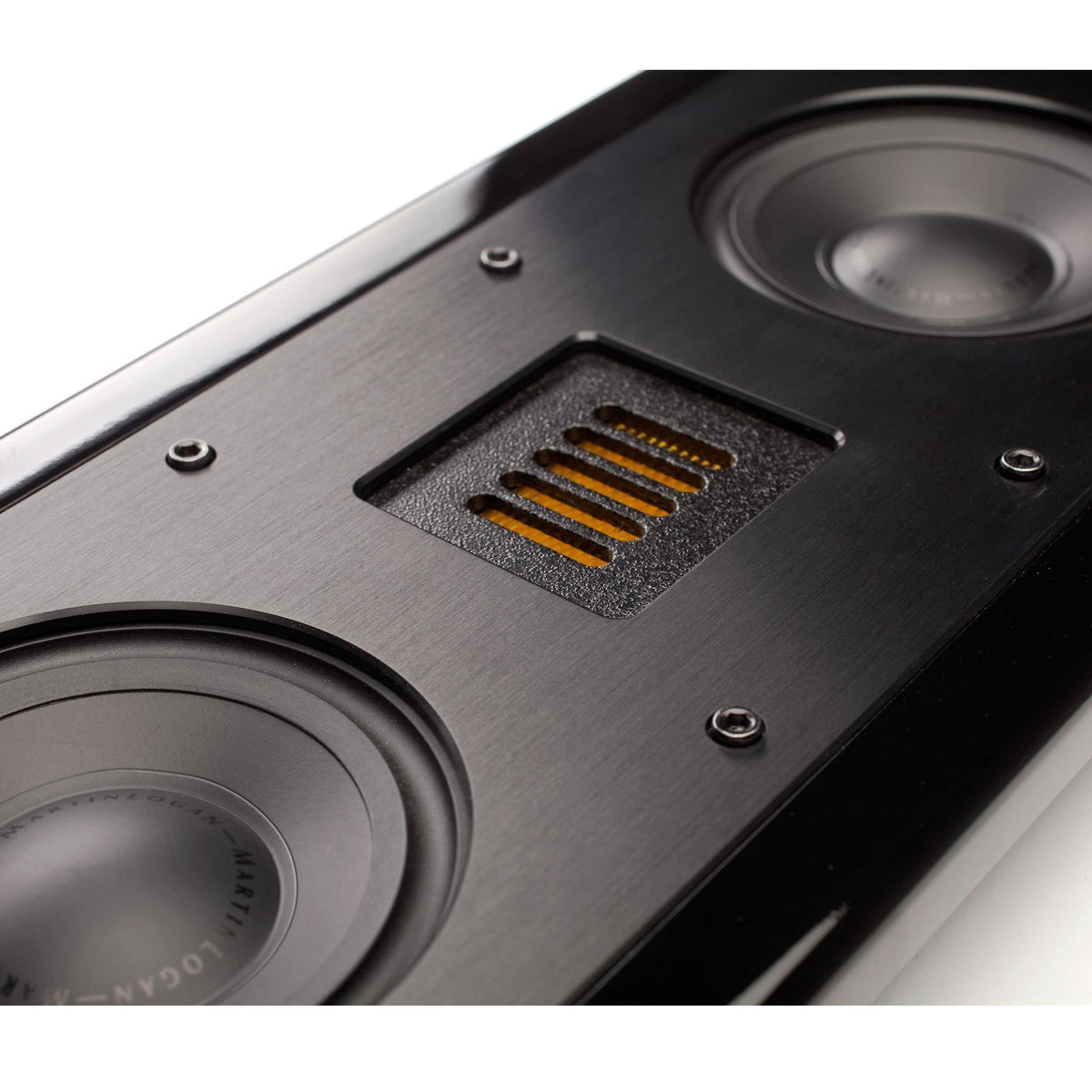

• Folded Motion tweeter with 80° x 80° dispersion, sounding the same in horizontal or vertical orientation
• Two 4in high-excursion fibre cone woofers plus four 4in passive bass radiators for extended low-end
• Solid black-anodized brushed aluminum baffle hidden beneath the grille

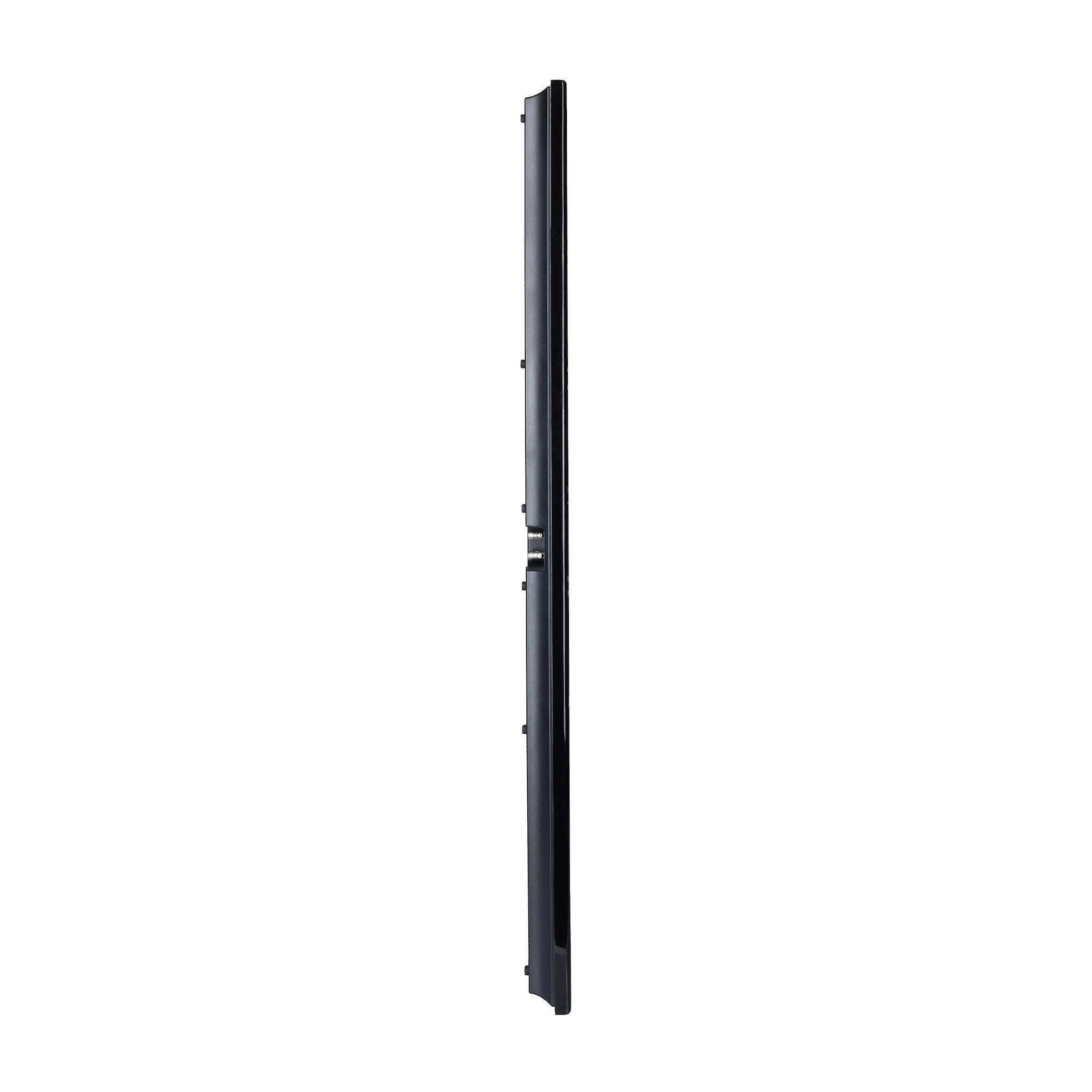

• High-gloss black cabinet only 1.45in thin (1.83in total wall protrusion with grille and mount)

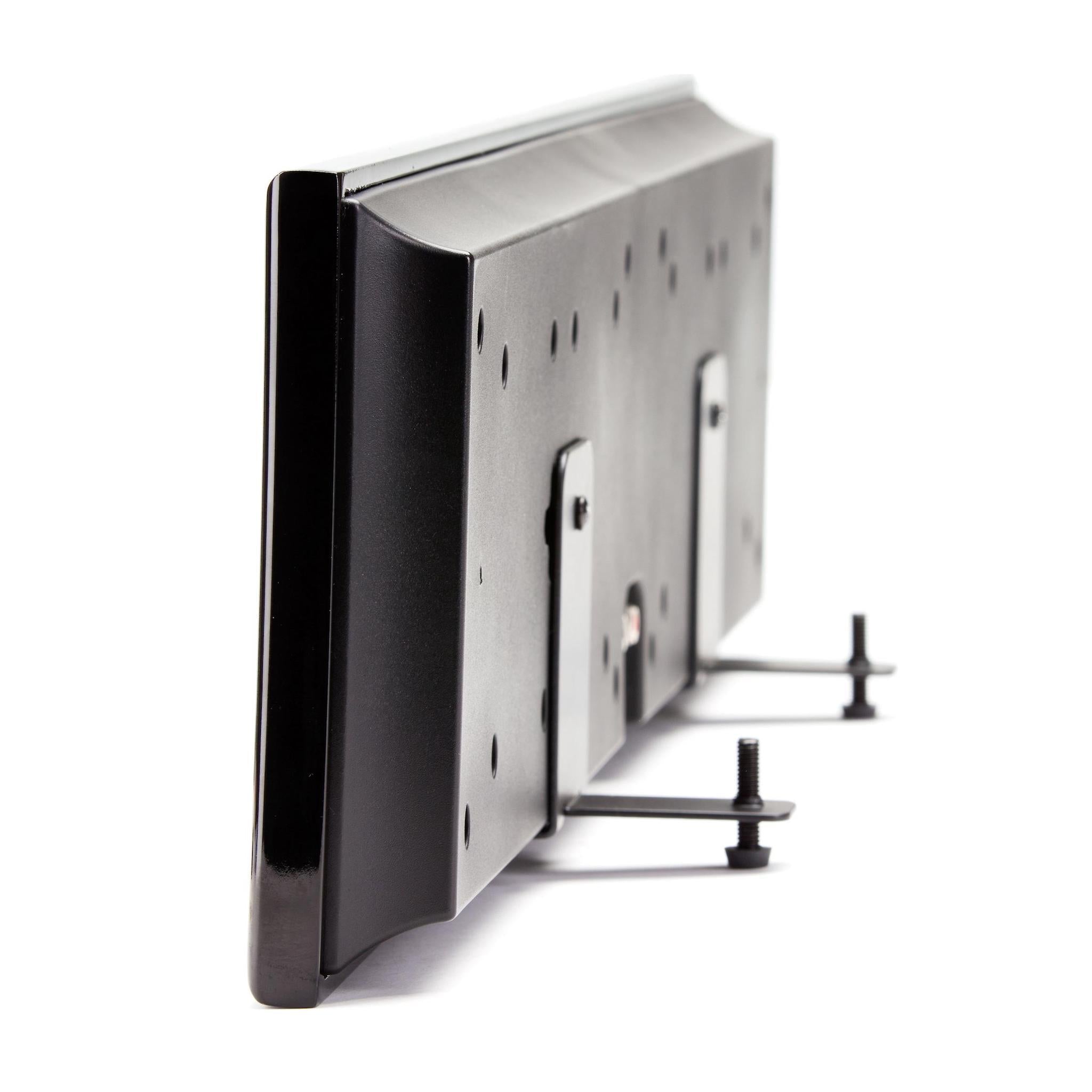

• Wall-mountable via keyhole slots and included bracket, or shelf-mountable with included curved base
• Magnetic, rotatable logo for correct orientation in any placement
• Ideal for Left-Center-Right (LCR) system applications

Specifications

• Frequency response: 100–25,000Hz ±3dB
• Recommended amplifier power: 20–140 watts per channel
• Horizontal dispersion: 80°
• Vertical dispersion: 80°
• Sensitivity: 94dB/2.83V/meter
• Impedance: 4Ω, compatible with 4, 6, or 8Ω rated amplifiers
• Crossover frequency: 3,100Hz
• High frequency transducer: 1in x 1.4in (2.6cm x 3.6cm) Folded Motion transducer with 5.25in x 1.75in (13.3cm x 4.4cm) diaphragm
• Low frequency transducer: two 4in (10.2cm) paper cone woofers, four 4in (10.2cm) paper cone passive radiators
• Components: custom air core coil inductors, polyester film capacitors in series, low DF electrolytic capacitors in parallel, system thermal/current protection
• Inputs: low-profile push style
• Weight: 9lb (4.1kg)
• Dimensions: 34.1in x 6.4in x 1.89in (86.7cm x 16.2cm x 4.8cm)
