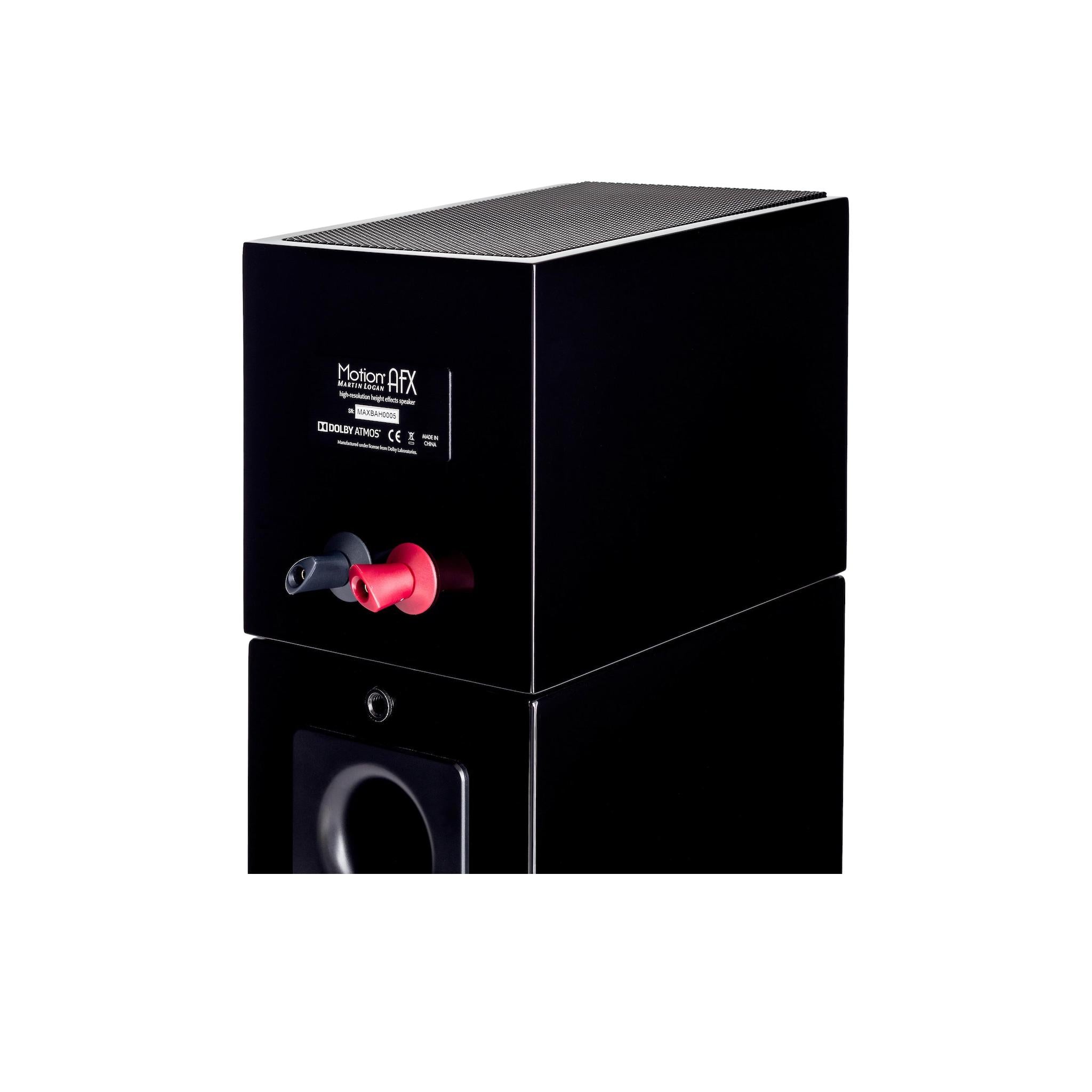

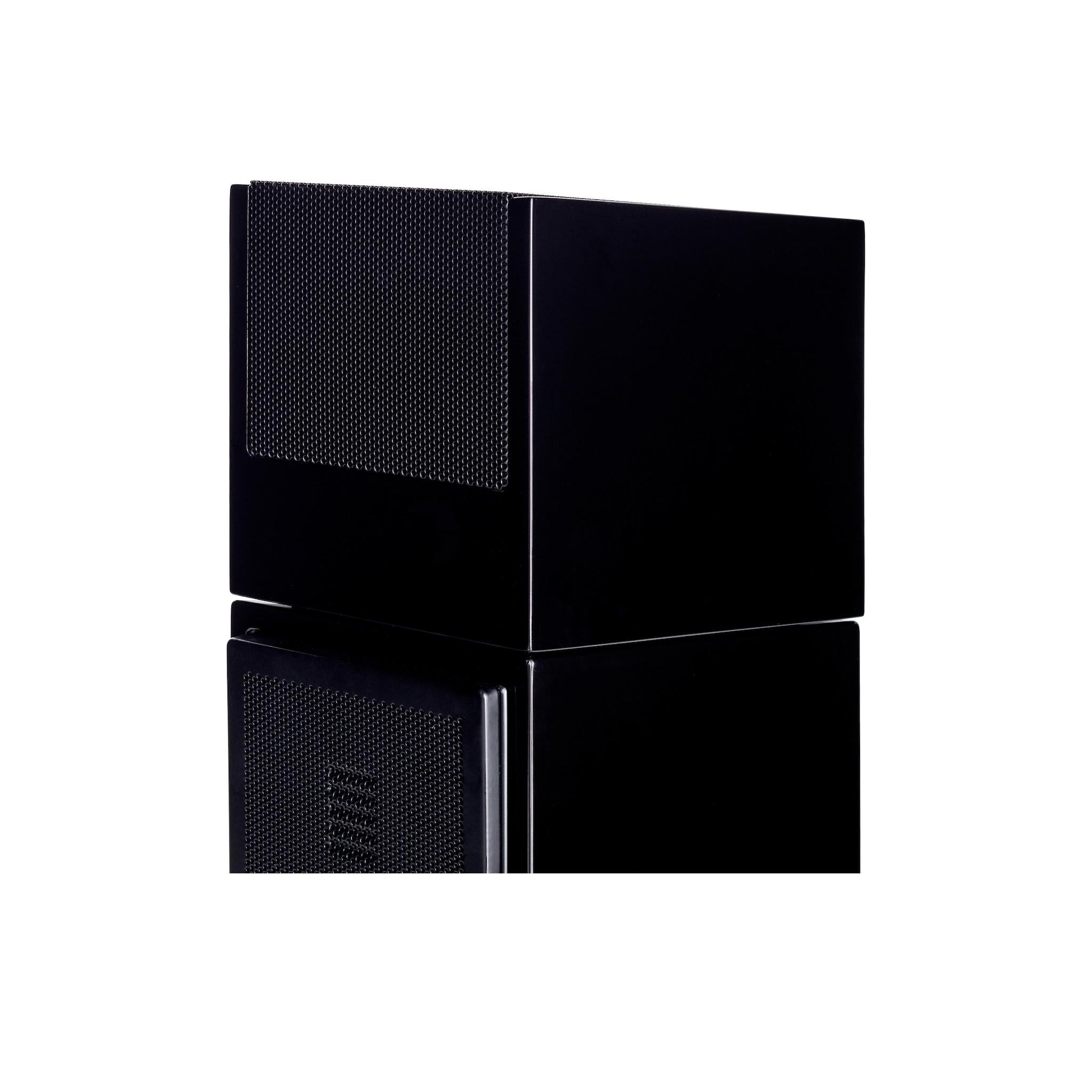

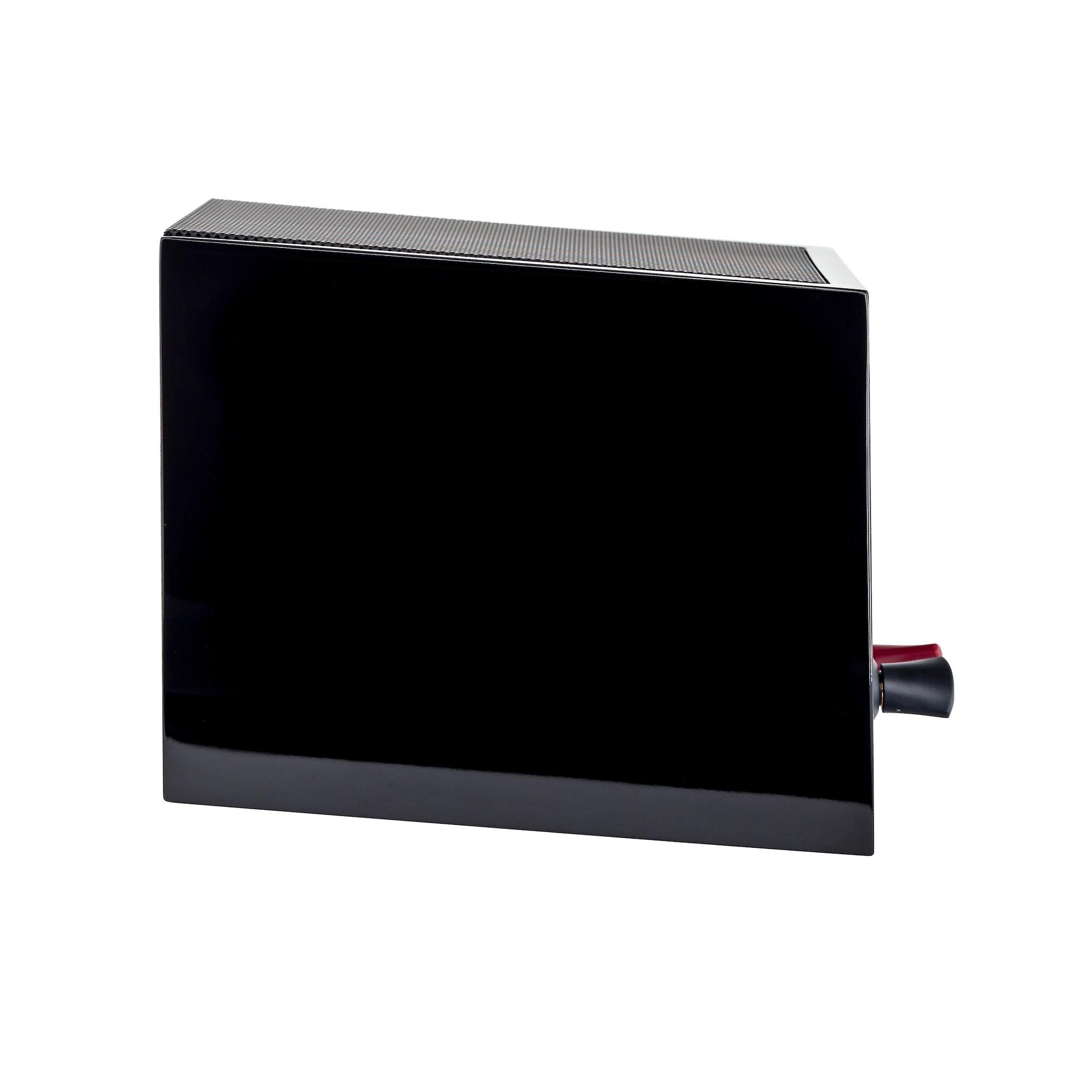

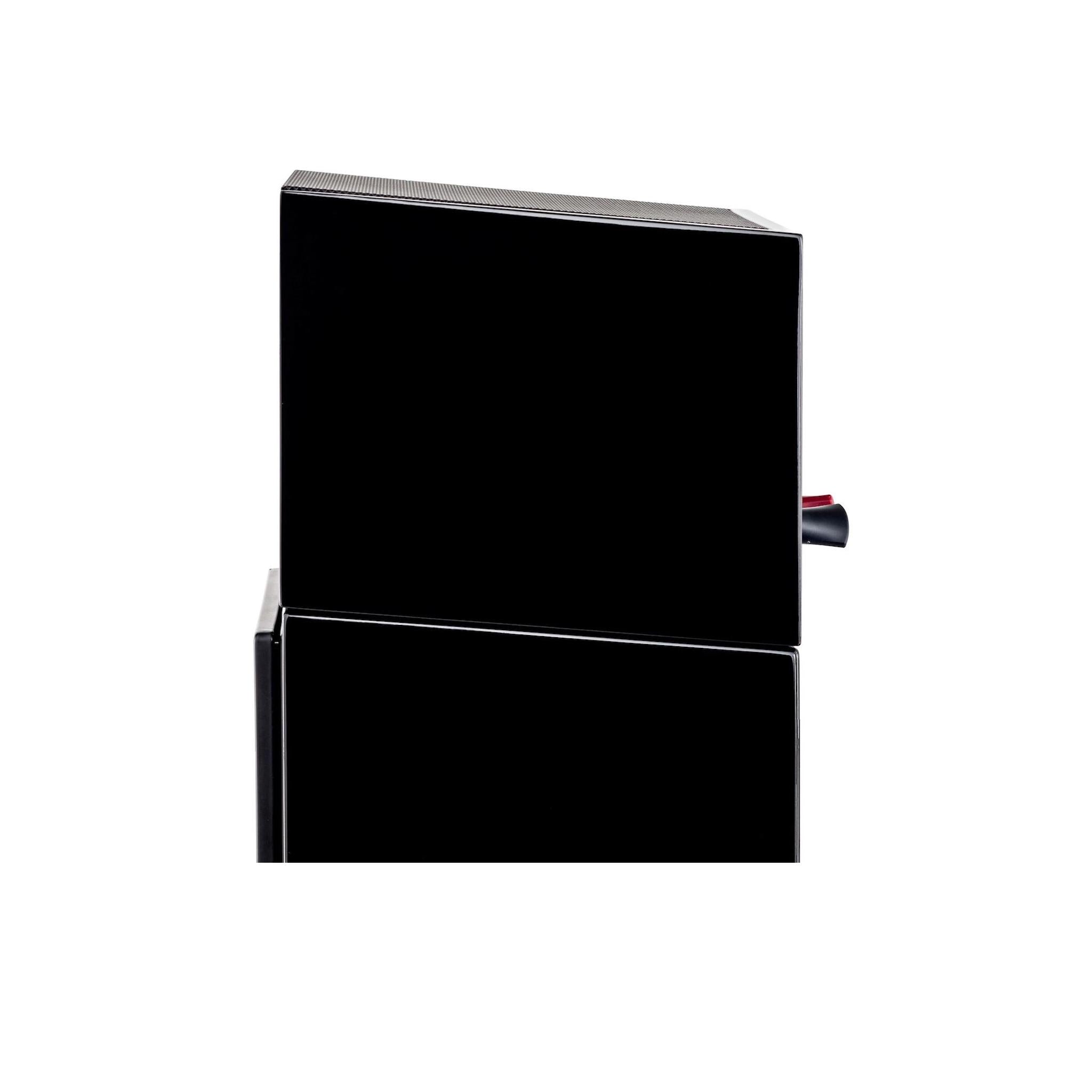

Martin Logan Motion AFX Dolby Atmos Speaker

Description

The Motion AFX is a Dolby Atmos-enabled height effects speaker, designed to sit atop MartinLogan's Motion series floorstanding and bookshelf speakers and reflect sound off the ceiling for an immersive overhead audio layer. Its angled High Gloss Black cabinet houses a 0.75in aluminium dome tweeter and 5.25in polypropylene cone bass/midrange driver, voice-matched to the Motion series.

Features

• Dolby Atmos enabled height effects speaker
• Designed to top-mount on Motion 15, 20, 35XT, 40, and 60XT, or any speaker with a flat top
• Angled cabinet designed to reflect sound off the ceiling for overhead Dolby Atmos effects
• Voice-matched with MartinLogan Motion series speakers
• High Gloss Black cabinet finish

Specifications

• Frequency response: 90–20,000Hz ±3dB
• Recommended amplifier power: 20–200 watts per channel
• Sensitivity: 87dB/2.83V/meter
• Impedance: 4Ω, compatible with 4, 6, or 8Ω rated amplifiers
• Crossover frequency: 2,000Hz
• High frequency transducer: 0.75in (1.9cm) aluminum dome
• Low frequency transducer: 5.25in (13.3cm) polypropylene cone with stamped steel basket
• Cabinet: sealed
• Components: custom air core and low DCR steel laminate inductors, polyester film capacitors in series, low DF electrolytic capacitors in parallel

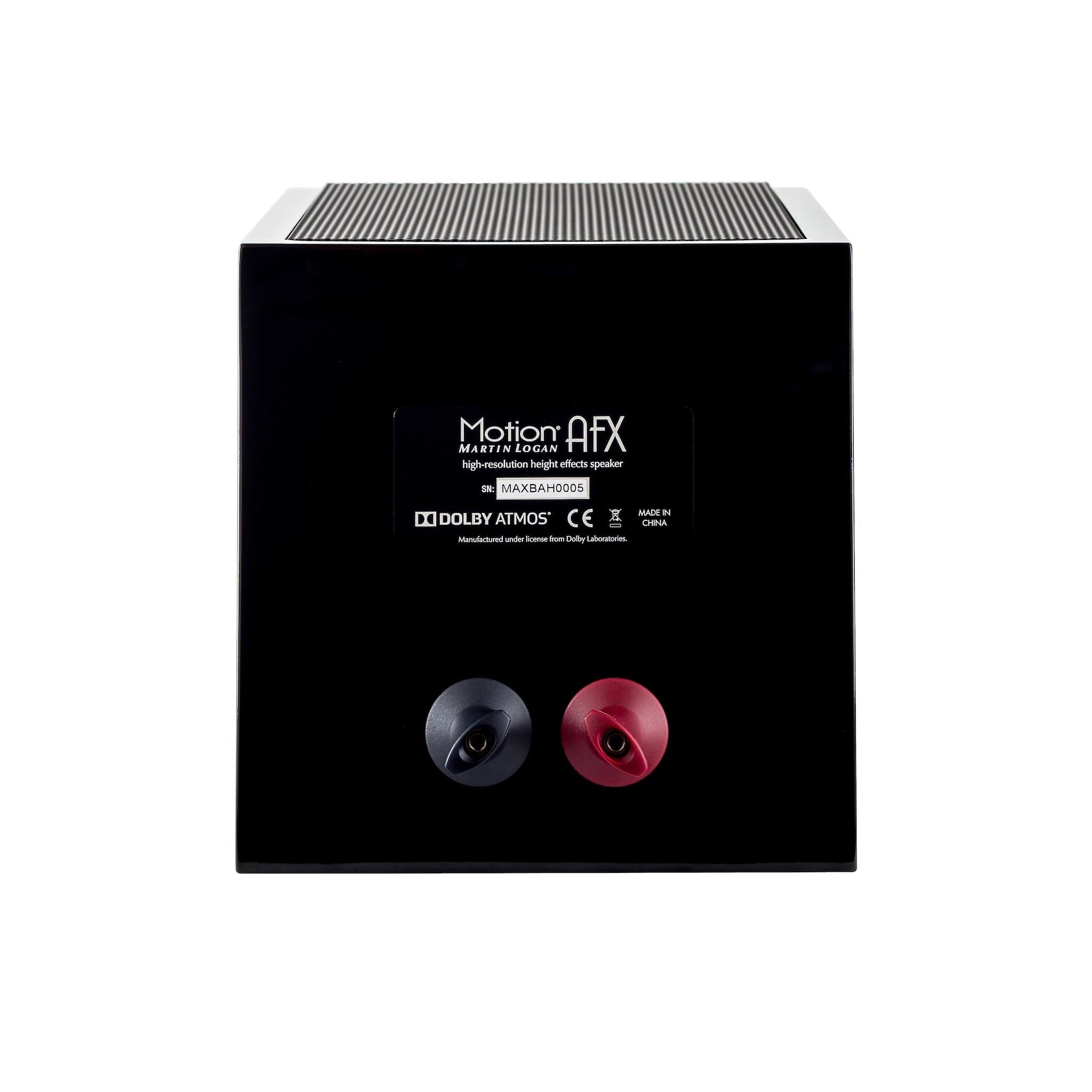

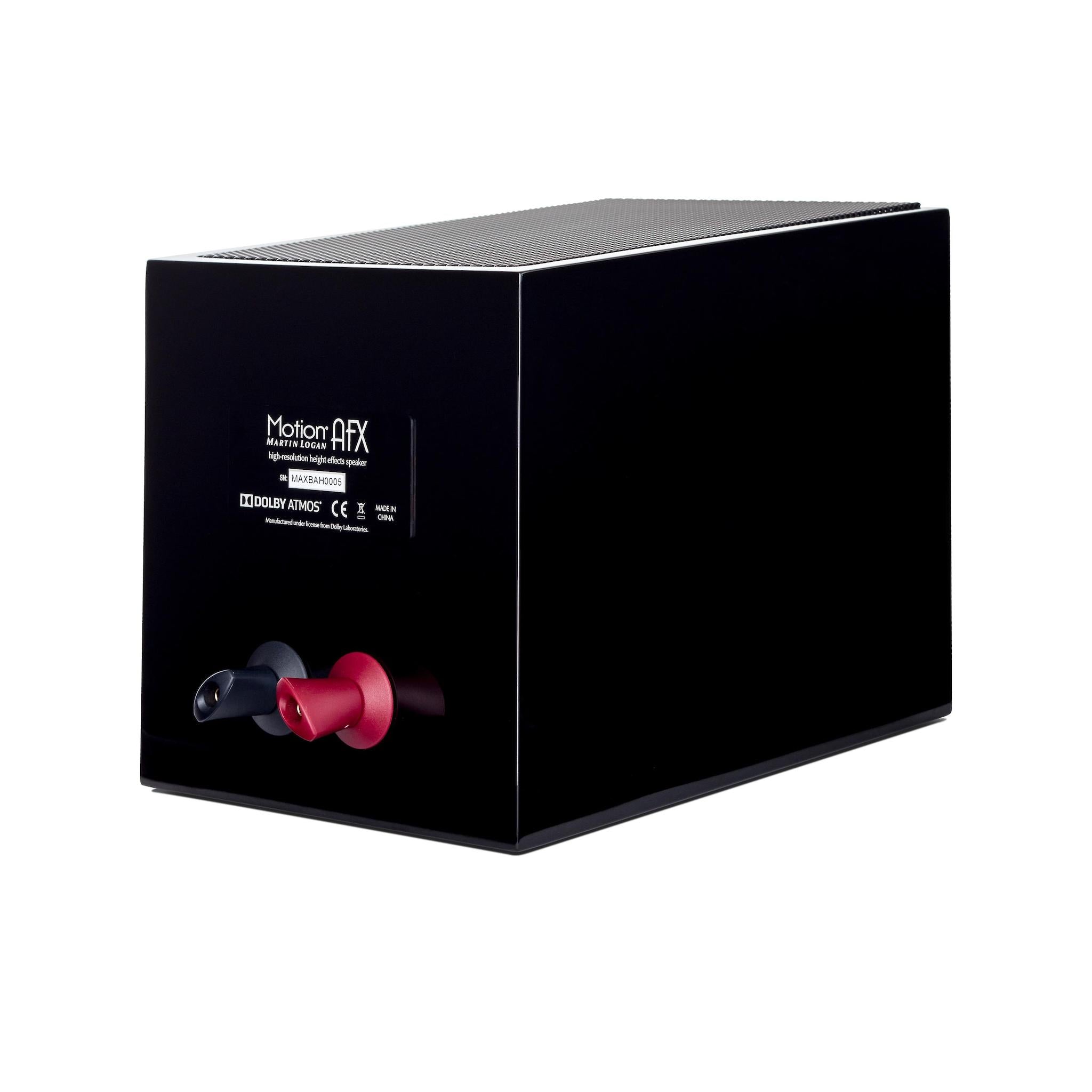

• Inputs: custom 5-way tool-less binding posts
• Weight: 8lb (3.6kg)
• Dimensions: 7.7in x 6.8in x 10in (19.5cm x 17.3cm x 25.4cm)
