Marantz MM8077 - 7 Channel Power Amplifier

Description

The Marantz MM8077 is a 7-channel power amplifier delivering 150W per channel at 8 ohms, built with a current feedback discrete design and a massive toroidal transformer for handling demanding low-impedance speaker loads. It offers balanced and unbalanced inputs on every channel, suitable for 5.1, 7.1, or larger 11-channel systems.

Features

• Current feedback discrete amplifier with Wilson current mirror circuit

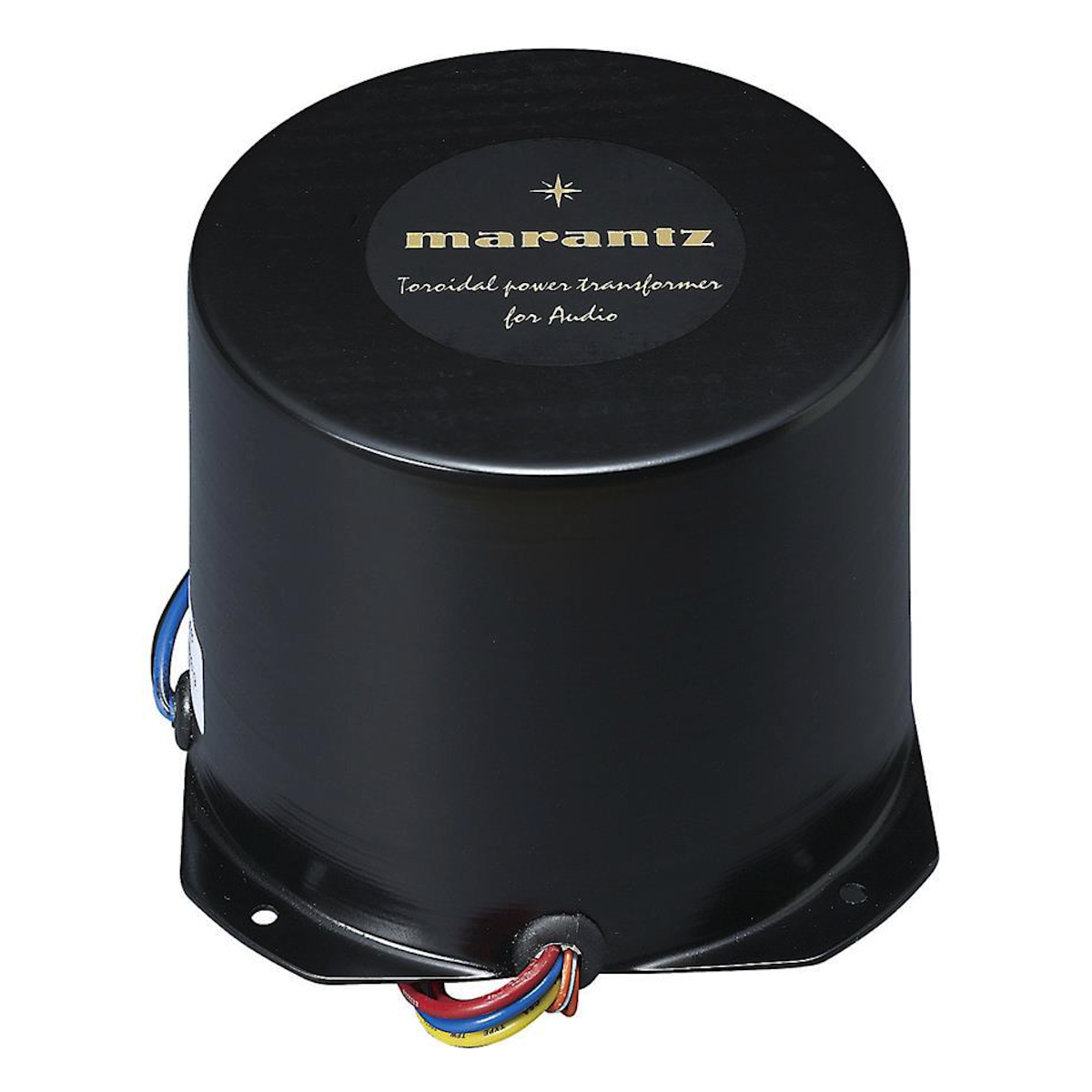

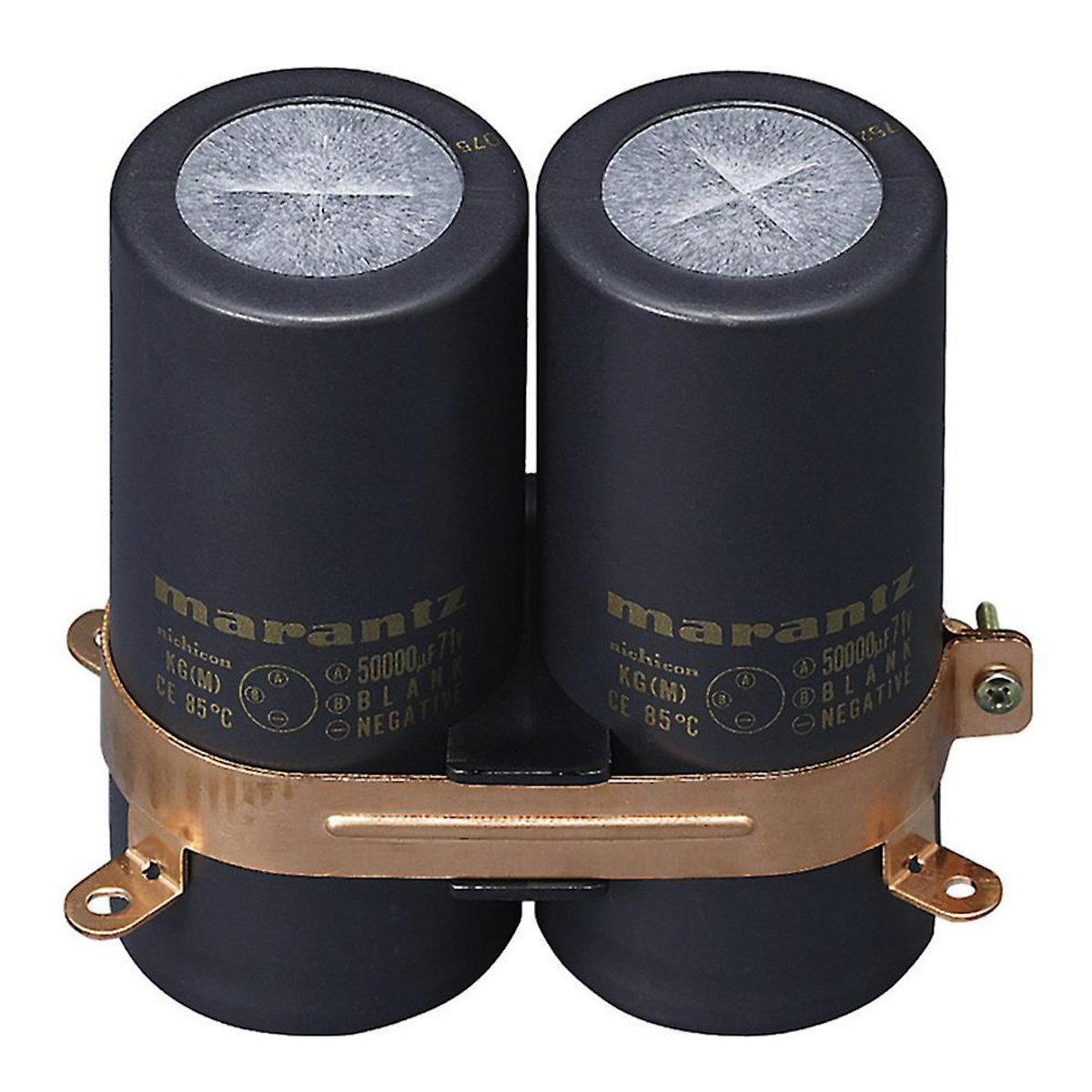

• Large toroidal power transformer with 100,000µF total capacitance
• Chimney-shaped heat sinks with temperature-controlled cooling fans

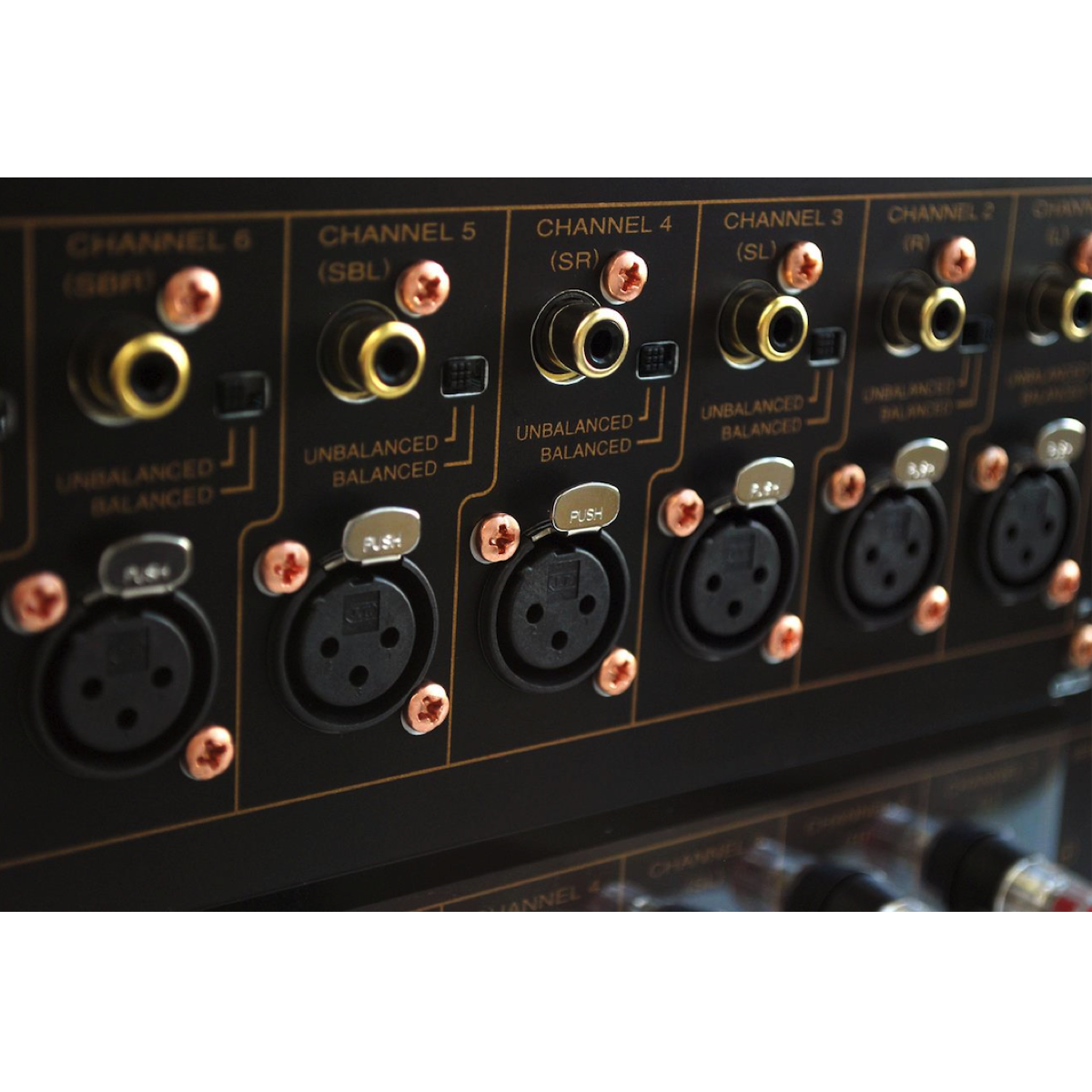

• Balanced and unbalanced inputs on every channel
• IR flash input and DC trigger input/output for custom installations
• Remote power on/off sync with compatible Marantz pre-amplifiers
• Auto-standby after 30 minutes of no signal; standby power under 0.4W

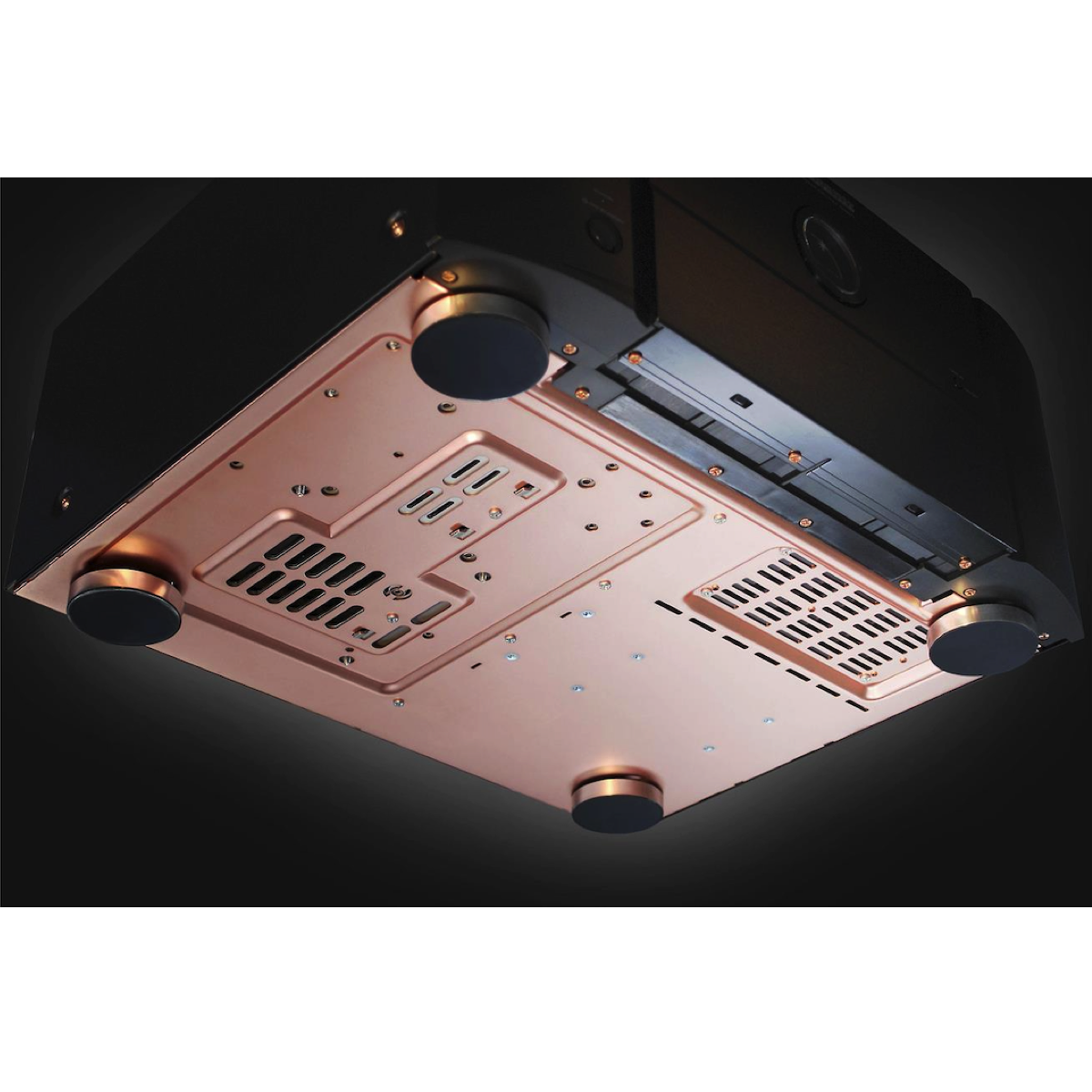

• Gold-plated speaker terminals, copper-plated chassis

Specifications

• Channels: 7
• Power output: 150W per channel at 8 ohms (20 Hz–20 kHz, THD 0.08%, 2ch driven); 180W at 6 ohms
• Frequency response: 8 Hz to 100 kHz (±3dB, 1W, 8 ohms)
• Damping factor: 100
• Input sensitivity: 1.2V/22kΩ (unbalanced); 2.4V/30kΩ (balanced)
• Signal to noise ratio: 105 dB (IHF-A)
• Voltage amplification: 29 dB
• Power consumption: 800W operational / 0.4W standby
• Dimensions (W x H x D): 17.3 x 7.3 x 15.1" / 440 x 185 x 383.5 mm
• Weight: 39.7 lb / 18.0 kg
