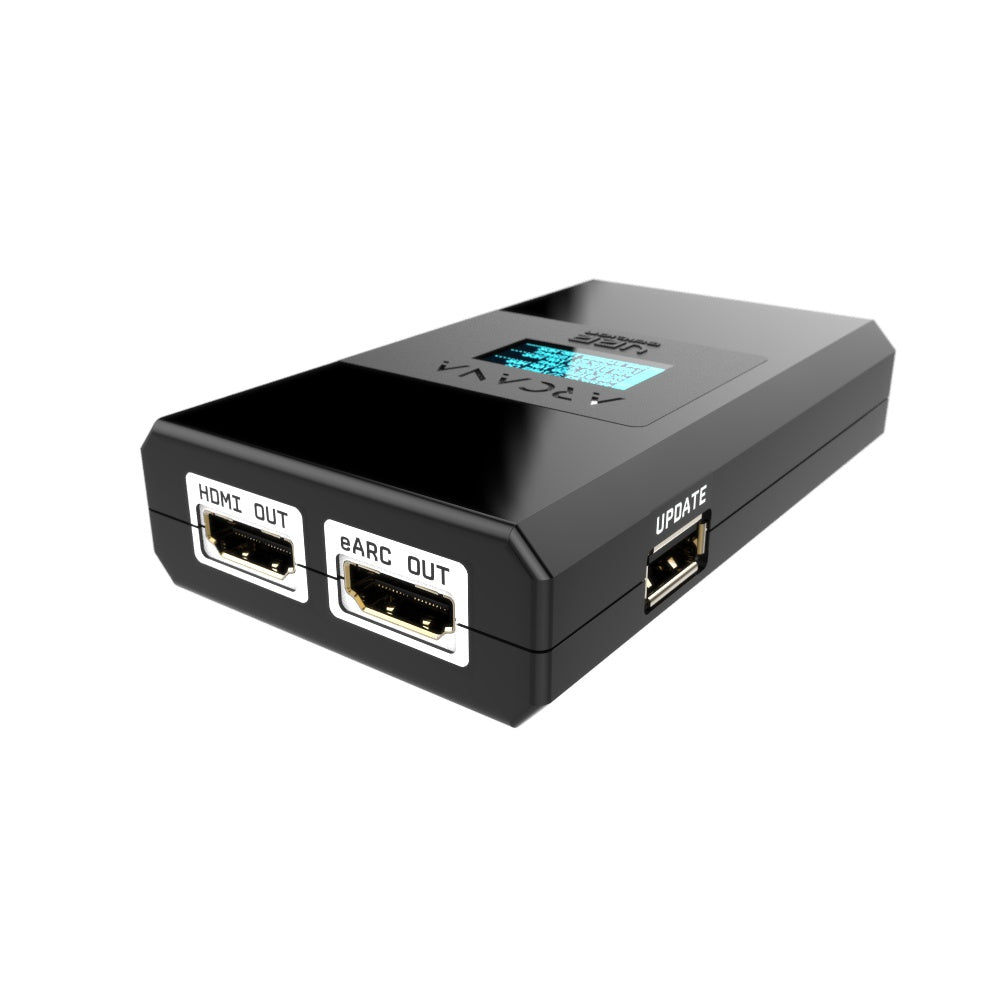

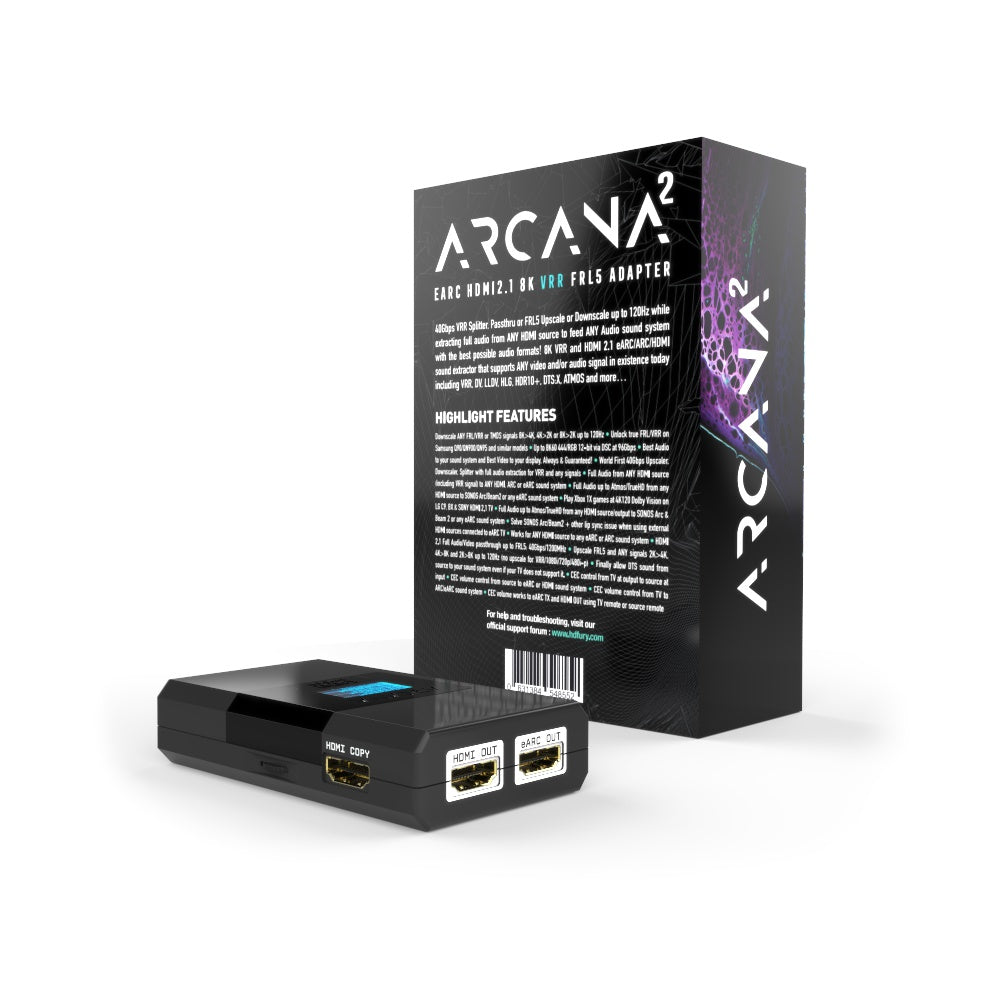

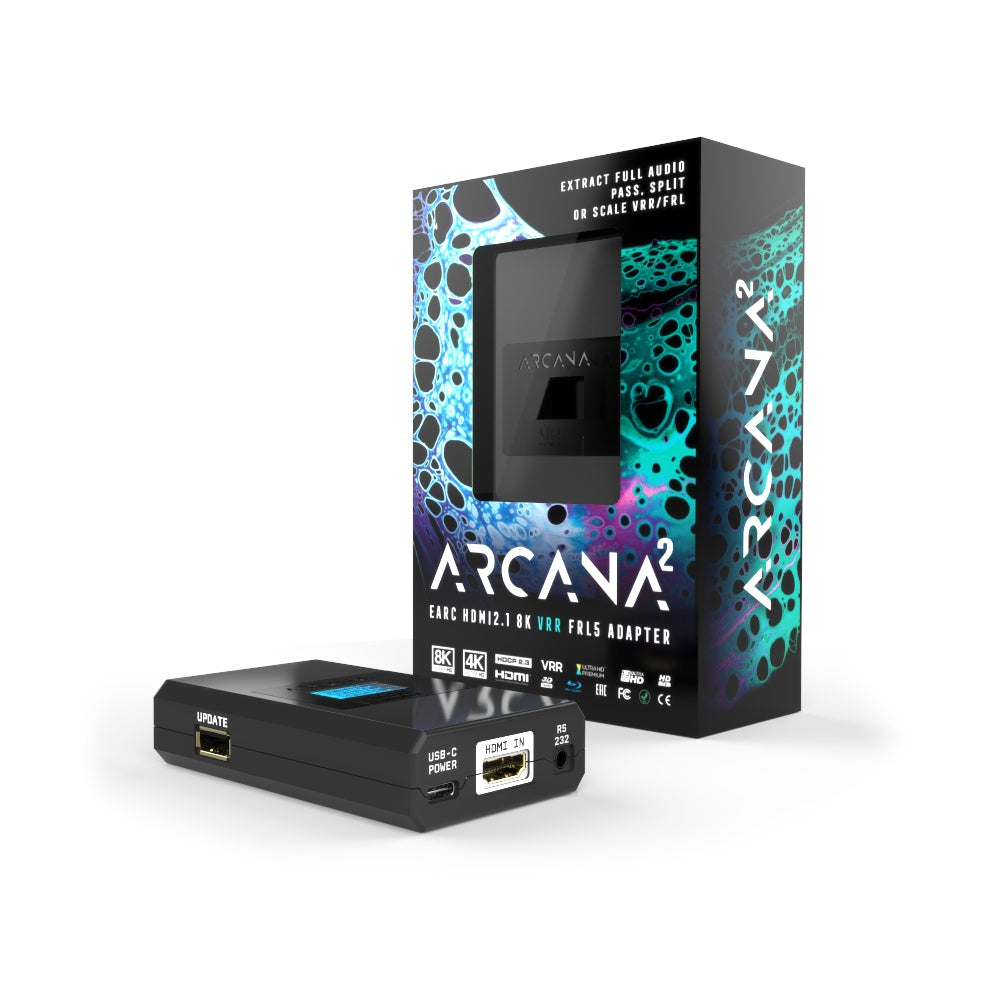

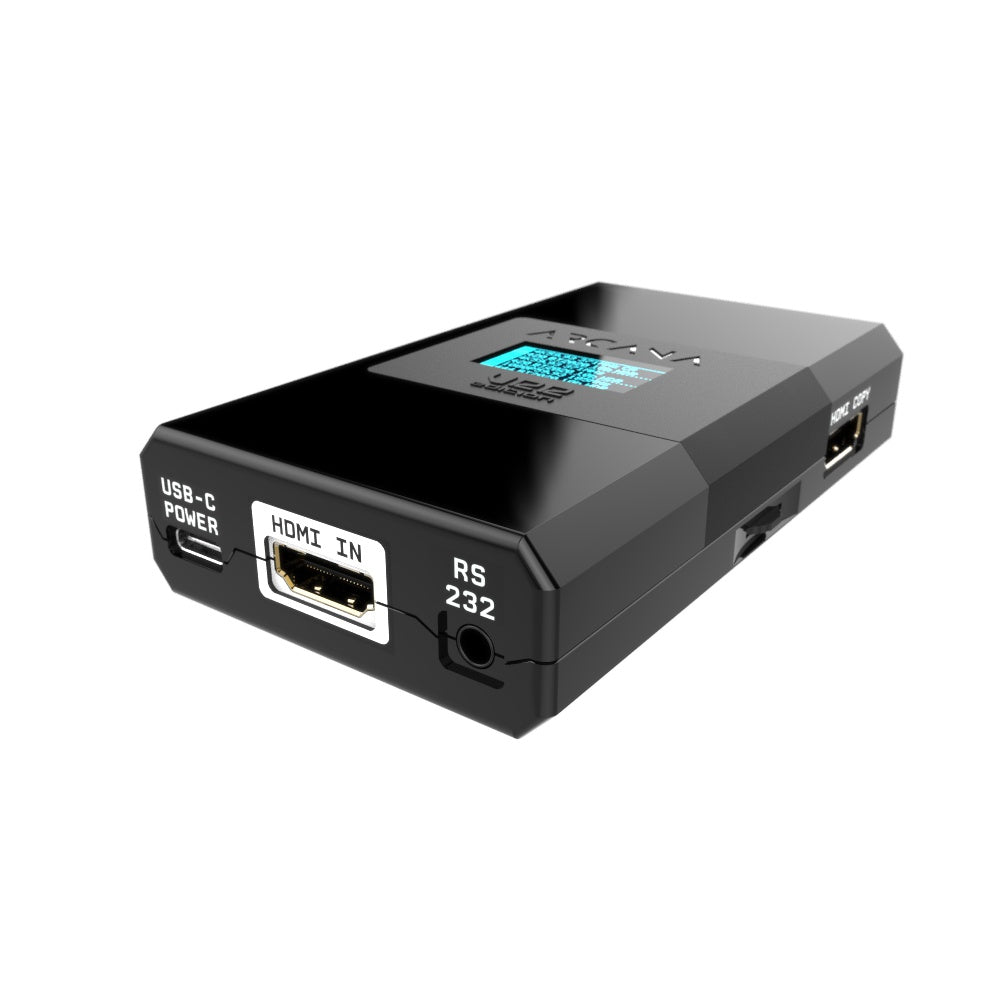

HDFury - 8K Arcana 2 VRR 40Gbps Video Processor

Description

The HDFury 8K Arcana 2 VRR is a 40Gbps HDMI 2.1 video processor and audio extractor that lets any HDMI source feed any display while extracting full audio to any sound system, including Dolby Atmos and DTS-X. It handles 8K VRR passthrough, upscaling, and downscaling up to 120Hz, along with HDCP conversion, EDID management, and CEC control for a fully interoperable home theater signal chain.

Features

• 40Gbps HDMI 2.1 FRL5 splitter, scaler, and full audio extractor
• Upscale or downscale 8K/4K/2K signals up to 120Hz
• Full audio extraction from any HDMI source, including VRR signals, to any ARC/eARC sound system
• Supports Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio
• HDCP 2.3 to 1.4 conversion
• Real-time HDR metadata (nits) adjustment and DV/LLDV-to-HDR10 conversion
• CEC control and volume pass-through between TV, source, and sound system
• OLED display with rotary switch navigation and RS232 control

Specifications

• HDMI Revision: 2.1 FRL5 (1200MHz, 40Gbps)
• Max Resolution: 8K60 4:4:4 12-bit (DSC), 4K120 4:2:2 12-bit, 4K120 4:4:4/RGB 10-bit VRR/HDR
• I/O: 1 HDMI In, 2 HDMI Out, 1 HDMI eARC Out, RS232, USB-A, USB-C
• HDR Support: HDR10+, HLG, Dolby Vision, LLDV
• Input Lag: <1ms
• OLED: 1" diagonal, 128x64, 2 colors
• Dimensions: 10 x 6 x 2.2cm
• Weight: 120g
