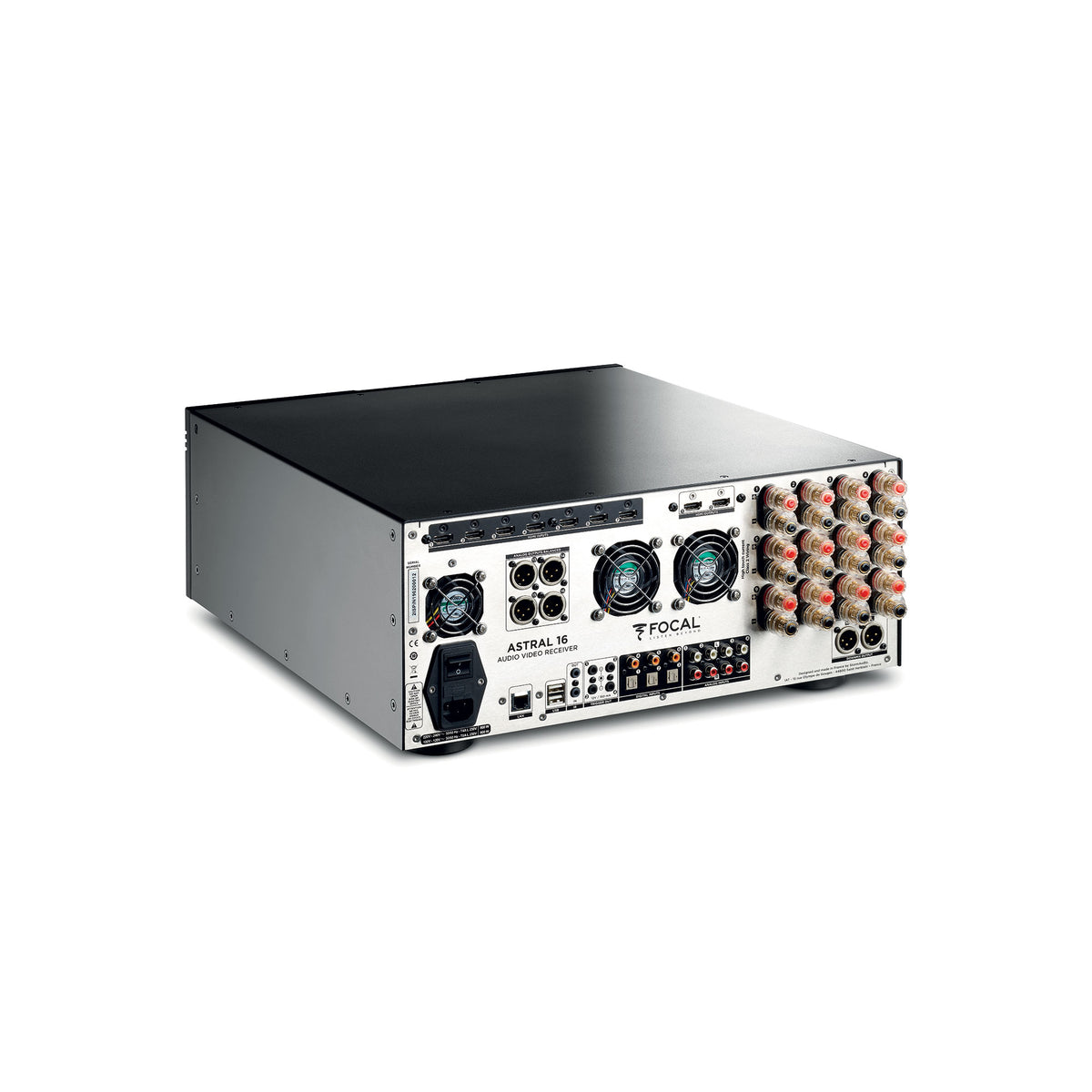

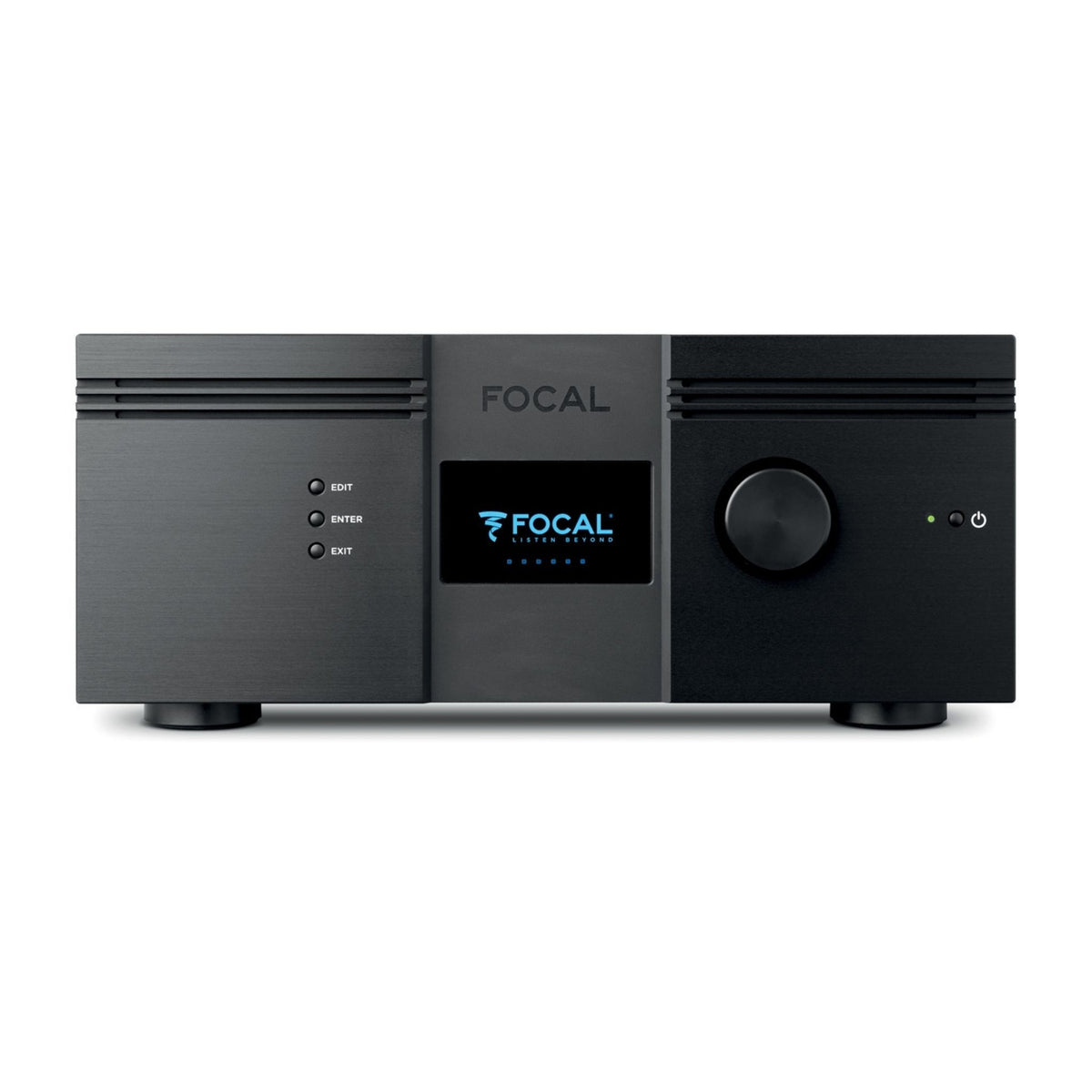

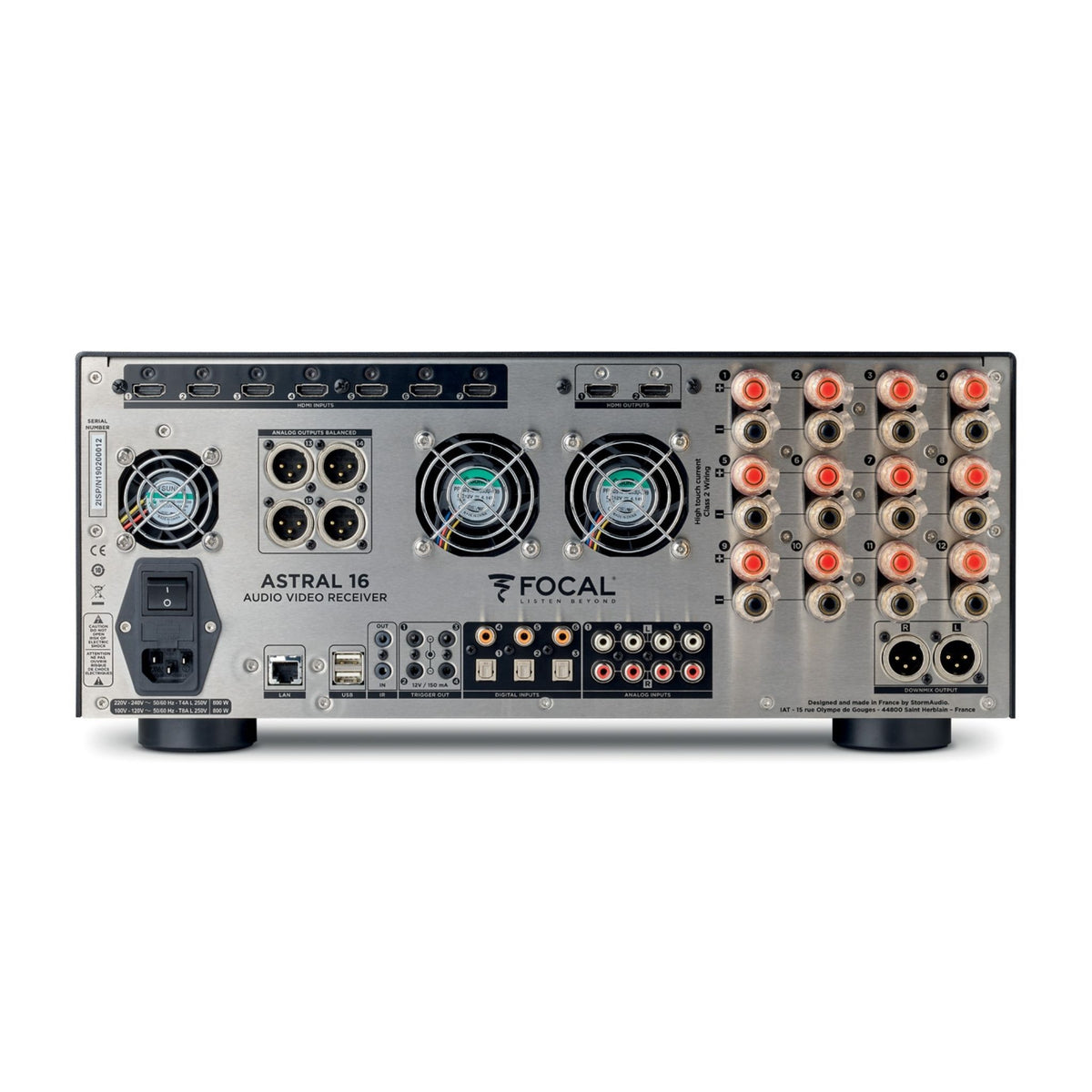

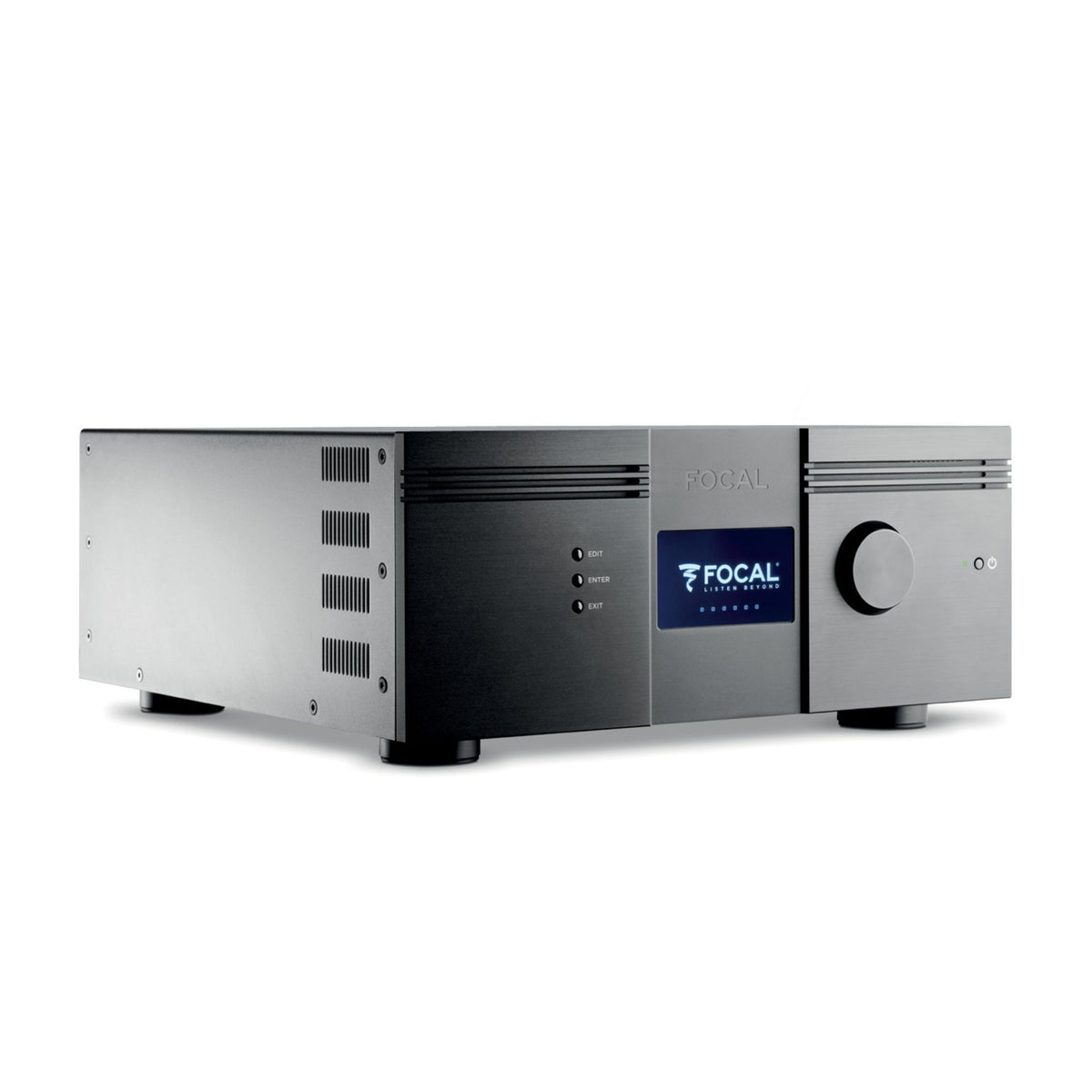

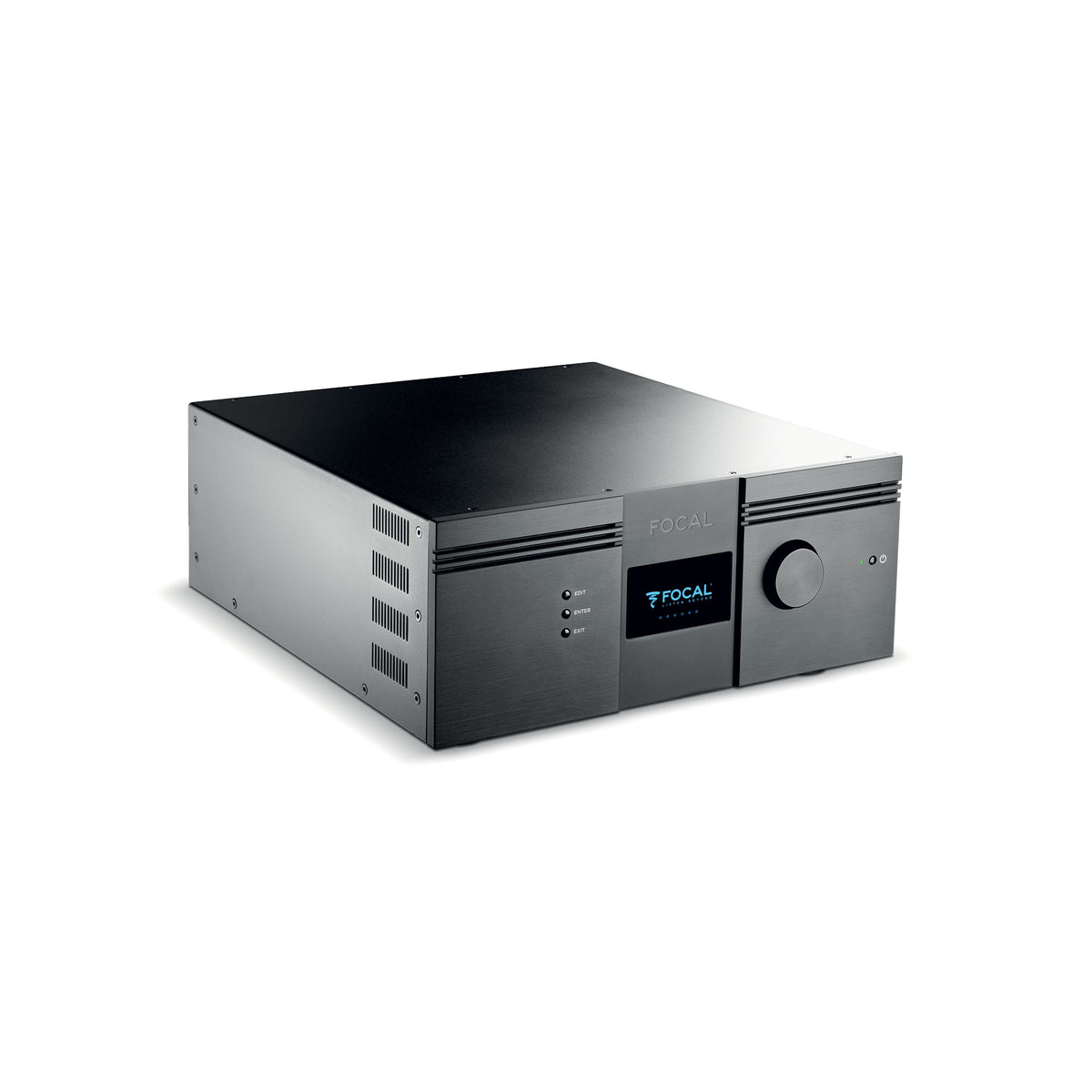

Focal Astral 16 - AV Processor

The Focal Astral 16 is a 16-channel audio-video processor and amplifier built for large, multi-room home cinema installations, with 12 amplified channels via a Class D Pascal Audio amp and 4 pre-amplified (balanced XLR) channels. It decodes all major immersive audio formats and includes Dirac Live room calibration with a calibrated measurement microphone for acoustic tuning tailored to the room.

• 16 total channels: 12 amplified, 4 pre-amplified via balanced XLR outputs
• Class D Pascal Audio amplification with sampling rates supported up to 192kHz
• Decodes Dolby Atmos, DTS:X, Auro-3D, and other major immersive audio formats

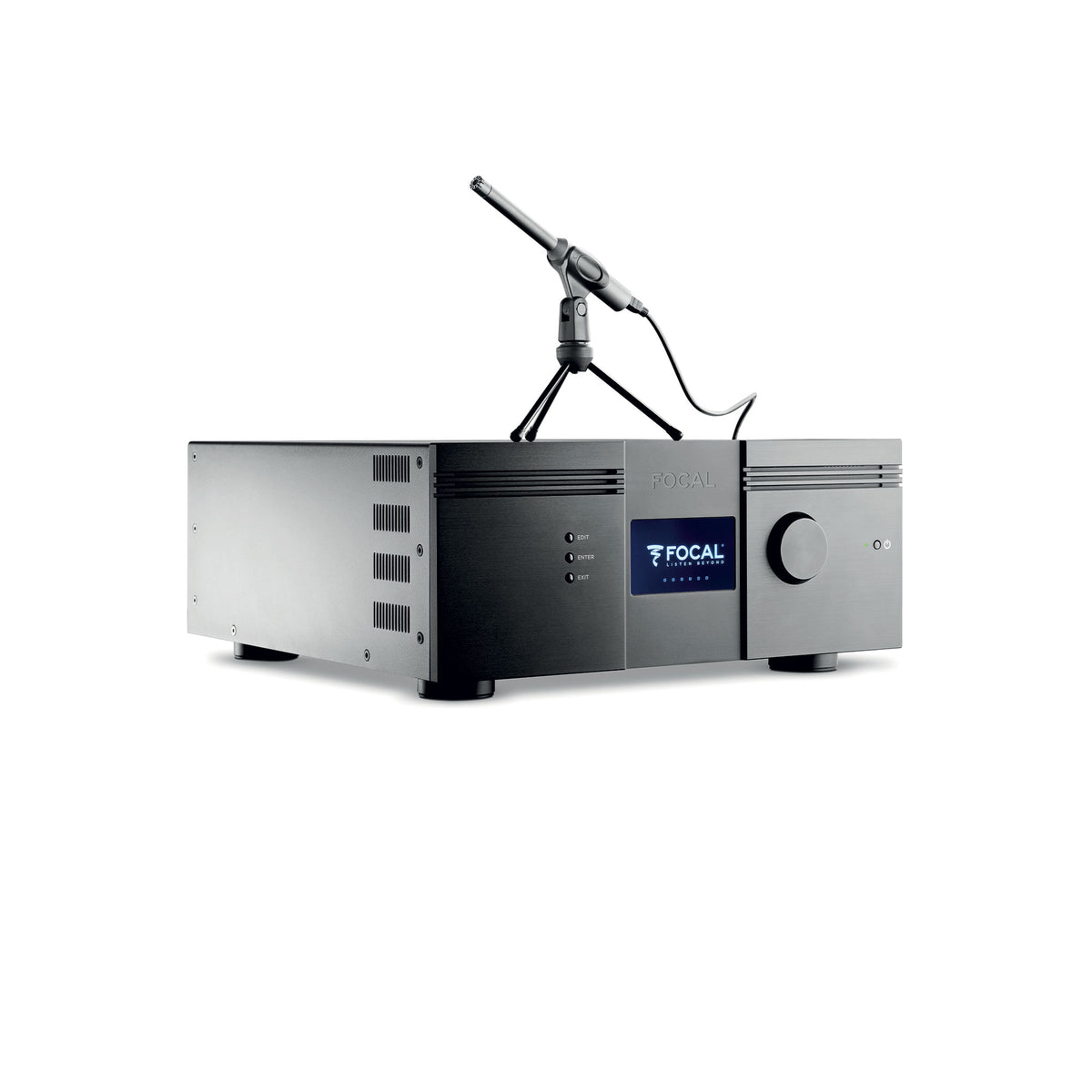

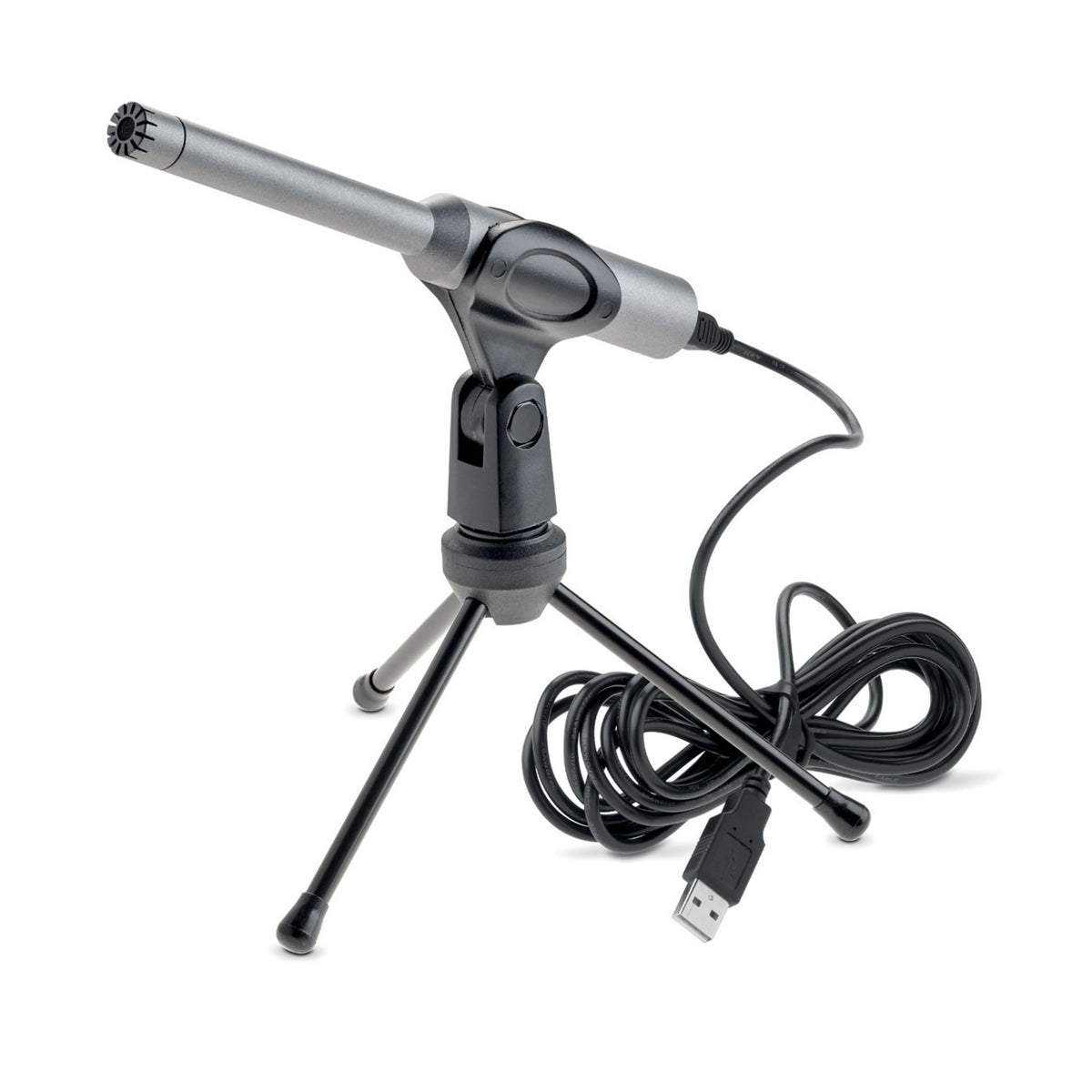

• Dirac Live room calibration with included calibrated measurement microphone
• Fully flexible bass management with multi-subwoofer channels and multi-way crossover (6–48dB/oct. filter slopes)
• 20-band parametric EQ per channel
• iPad app for room-by-room control, plus remote monitoring for diagnostics
• Compatible with Control4, Crestron, Elan, Savant, and RTI control systems

• Type: 16-channel audio-video processor and amplifier
• Channels: Up to 16, decoding/upmixing up to 16 channels
• Input Sampling Rate: Up to 192kHz
• Digital Inputs: 3x coaxial, 3x optical
• Analog Stereo Inputs: 4x RCA
• USB: 2x Type-A
• Ethernet: 4 ports
• Output Trigger Control: 1 (out)
• IR Remote Ports: 1 in / 1 out
• Power: 100V–240V universal SMPS
• Dimensions (H x W x D): 19.10 x 47.90 x 49 cm (7.52 x 18.86 x 19.29 in)
• Weight: 23 kg
