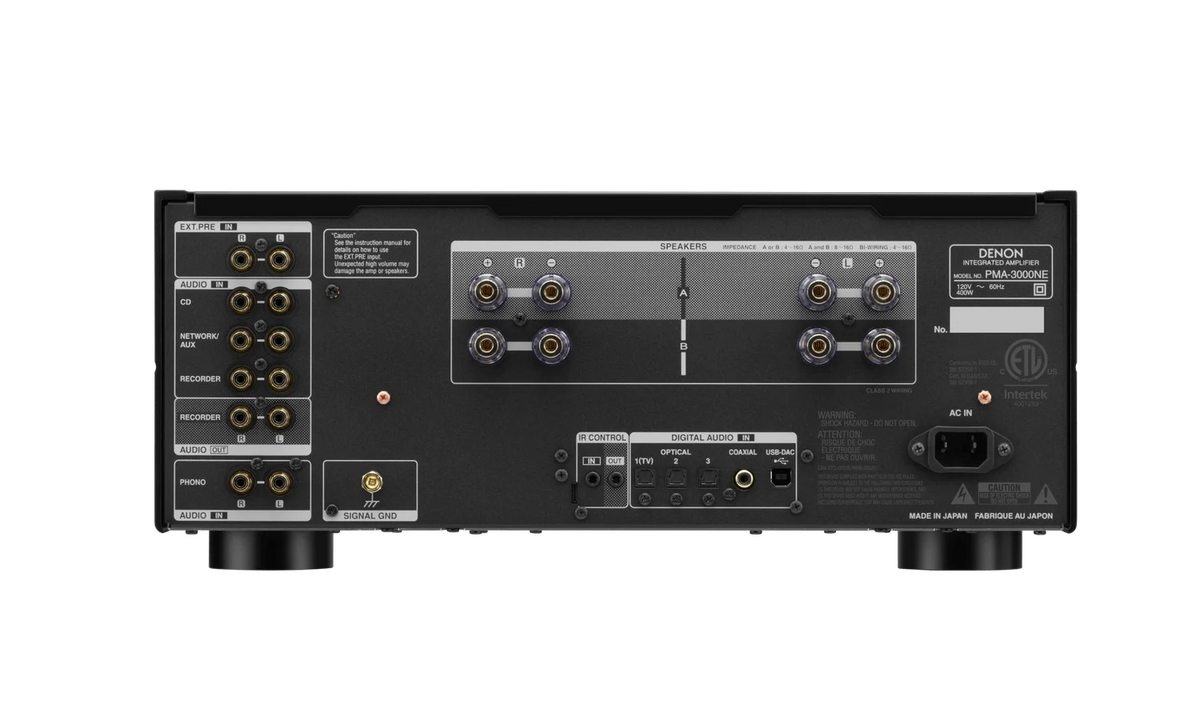

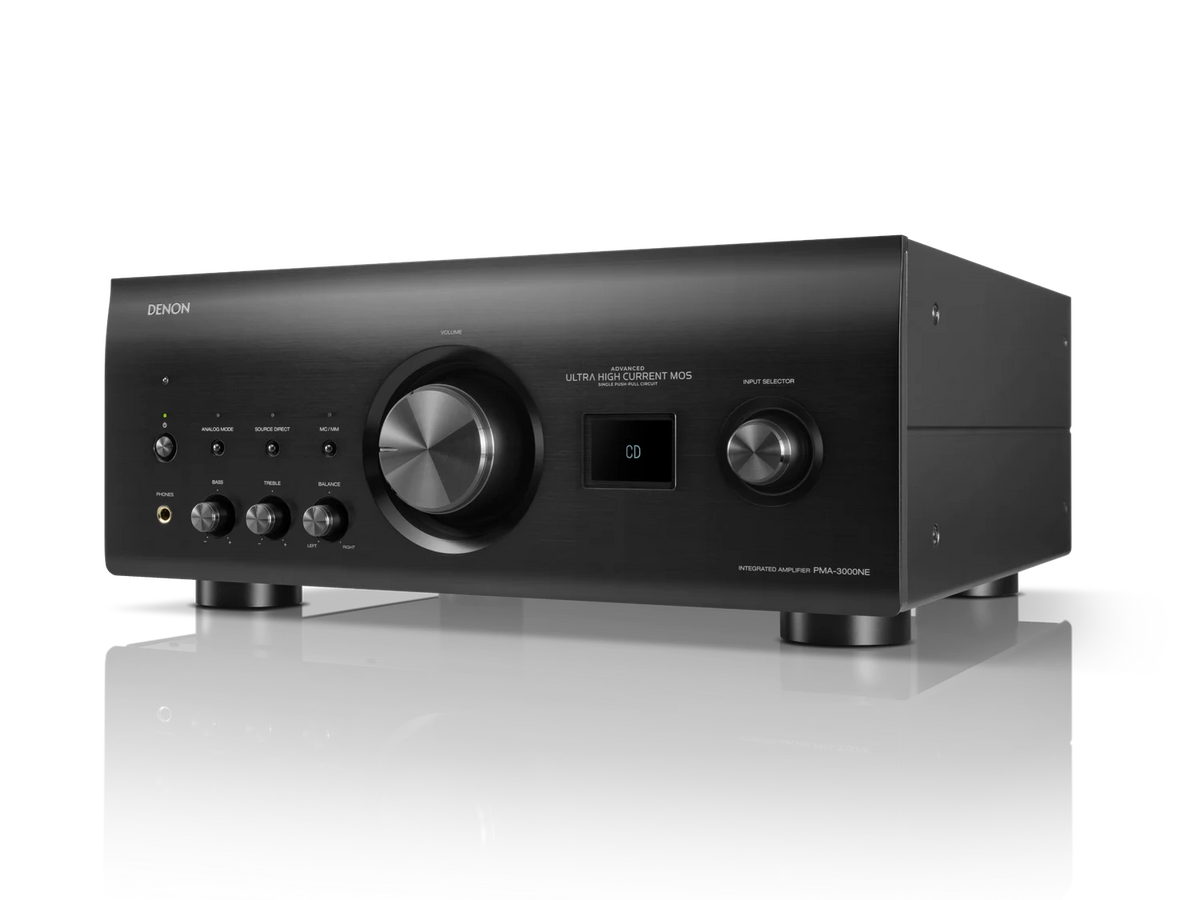

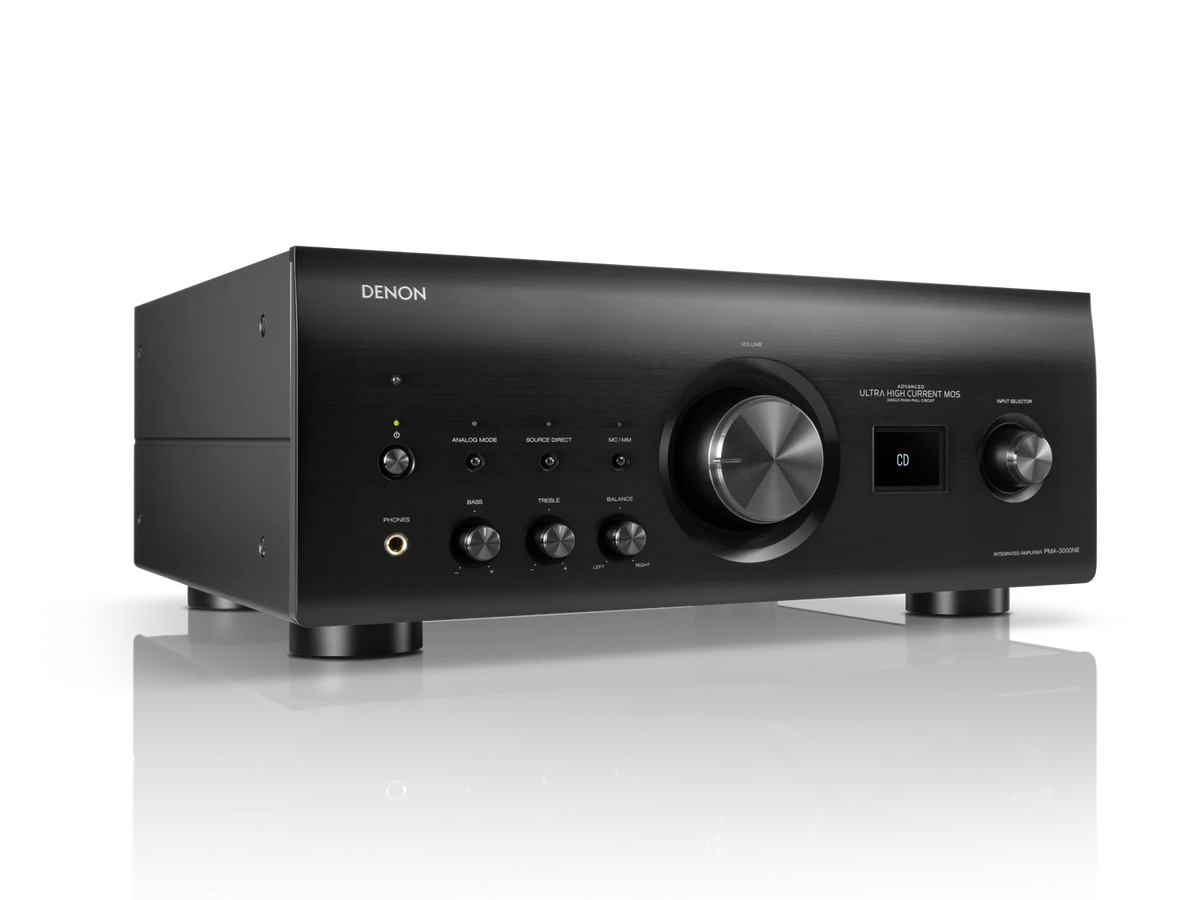

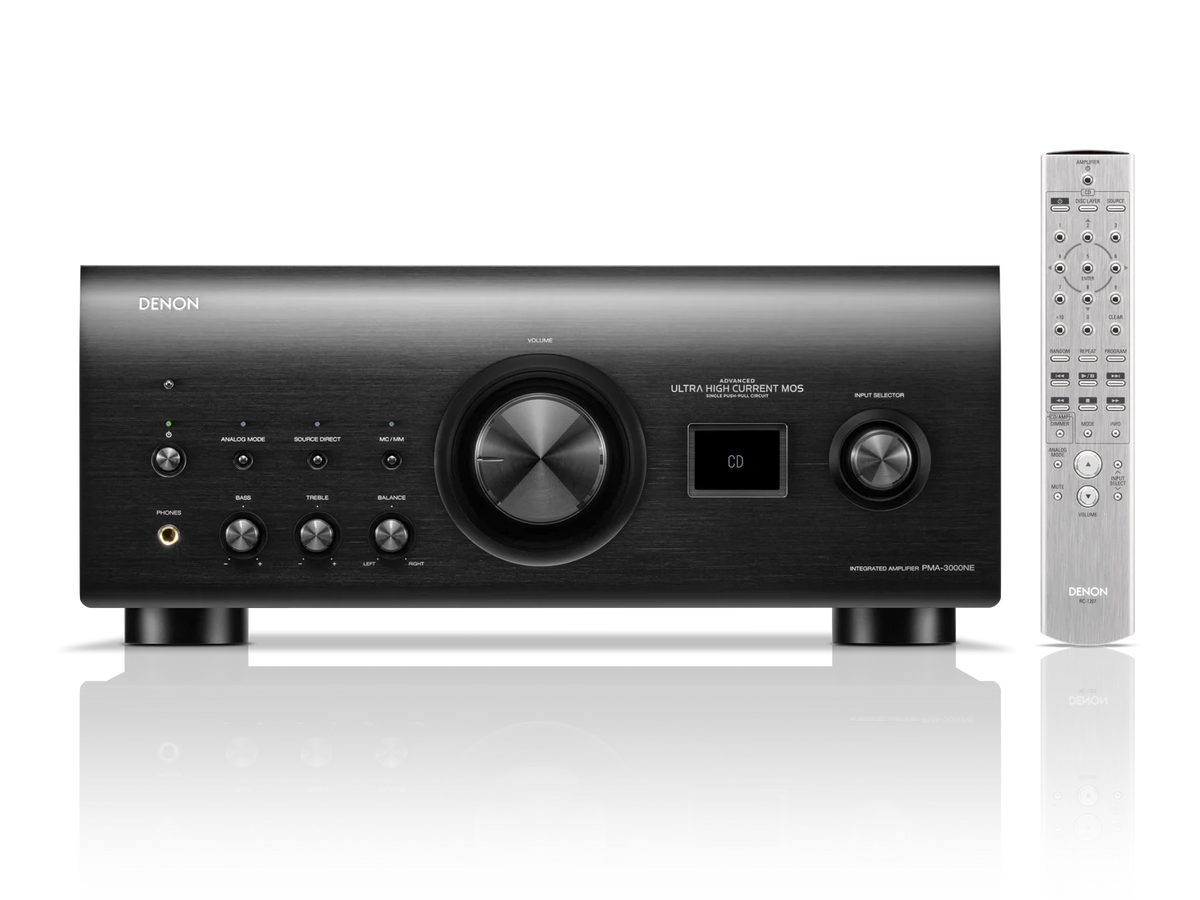

Denon PMA-3000NE - Integrated Amplifier

The Denon PMA-3000NE is a Reference Series stereo integrated amplifier delivering 80 W per channel into 8 ohms and 160 W into 4 ohms. It combines a UHC-MOS push pull output stage, an MM/MC phono stage and a built in quad DAC with USB input for computer audio. Designed and built in Shirakawa, Japan, it suits listeners driving demanding speakers in a high end two channel system.

• 80 W + 80 W into 8 ohms, 160 W + 160 W into 4 ohms
• New UHC-MOS single push pull power amplifier
• MM and MC phono stage for turntables
• Quad ES9018K2M DAC with Ultra AL32 Processing
• Asynchronous USB-B input for PCM up to 384 kHz/32 bit and DSD up to 11.2 MHz
• Three optical and one coaxial digital inputs
• Analogue mode and Source Direct to bypass digital and tone circuits
• Power amp input for use with an external preamplifier
• High grade speaker terminals with gold plating

• Channels: 2
• Power output: 80 W + 80 W (8 ohms, 20 Hz to 20 kHz, 0.07% THD); 160 W + 160 W (4 ohms, 1 kHz, 0.7% THD)
• Phono input: MM 2.5 mV / 47 kOhm; MC 200 µV / 100 Ohm
• Signal to noise ratio: Phono MM 89 dB; Phono MC 74 dB; CD 107 dB
• DAC: ES9018K2M x 4
• Digital inputs: 1 USB-B (PCM 384 kHz/32 bit, DSD 11.2 MHz), 3 optical, 1 coaxial (192 kHz/24 bit)
• Analogue inputs: 4 including phono, plus power amp input
• Outputs: 1 record out, 1 headphone
• Power consumption: 400 W; 0.2 W standby
• Dimensions (W x H x D): 434 x 182 x 443 mm (17.1 x 7.2 x 17.4 in)
• Weight: 24.6 kg (54.2 lb)
