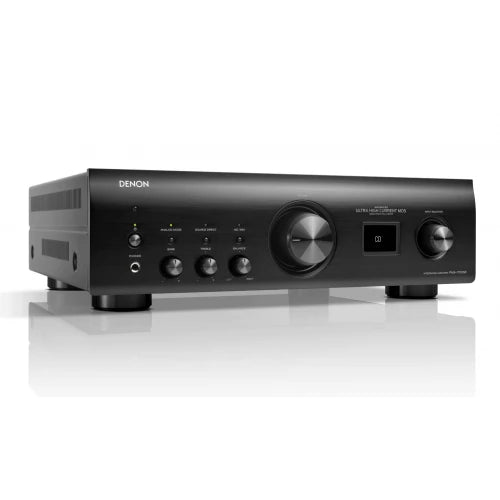

Denon PMA-1700NE - Integrated Amplifier with DAC

Description

The Denon PMA-1700NE is a stereo integrated amplifier with Advanced UHC-MOS single push-pull circuitry, delivering 70W per channel into 8 ohms. It features a built-in USB-DAC supporting up to 384kHz/32-bit PCM and 11.2MHz DSD, plus an MM/MC phono equalizer for turntables.

Features

• Advanced UHC-MOS single push-pull amplifier circuit
• Advanced AL32 Processing Plus for 384kHz/32-bit PCM sources
• USB-DAC supporting up to 11.2MHz DSD and 384kHz/32-bit PCM
• MM/MC phono equalizer

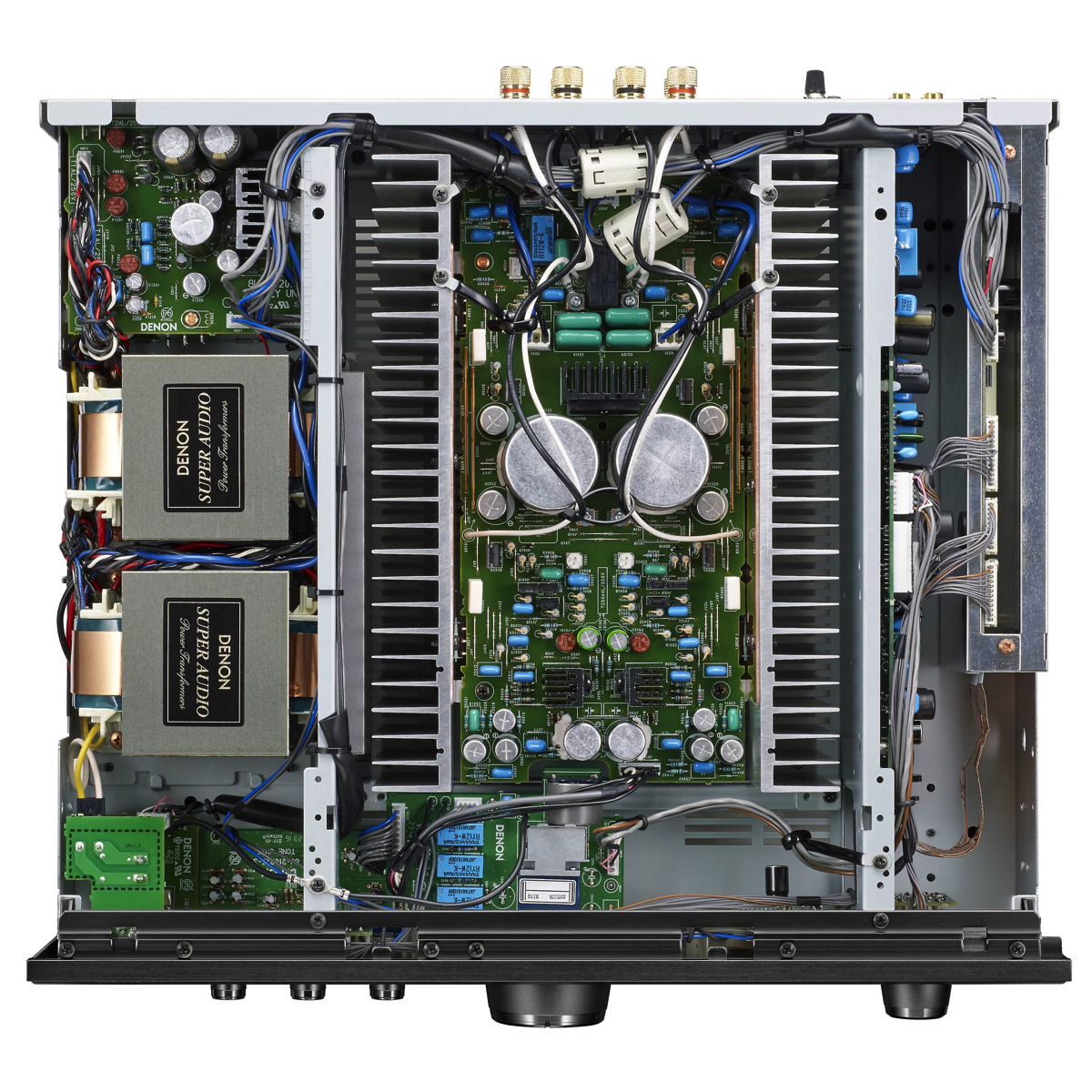

• 6-block chassis with Direct Mechanical Ground Construction

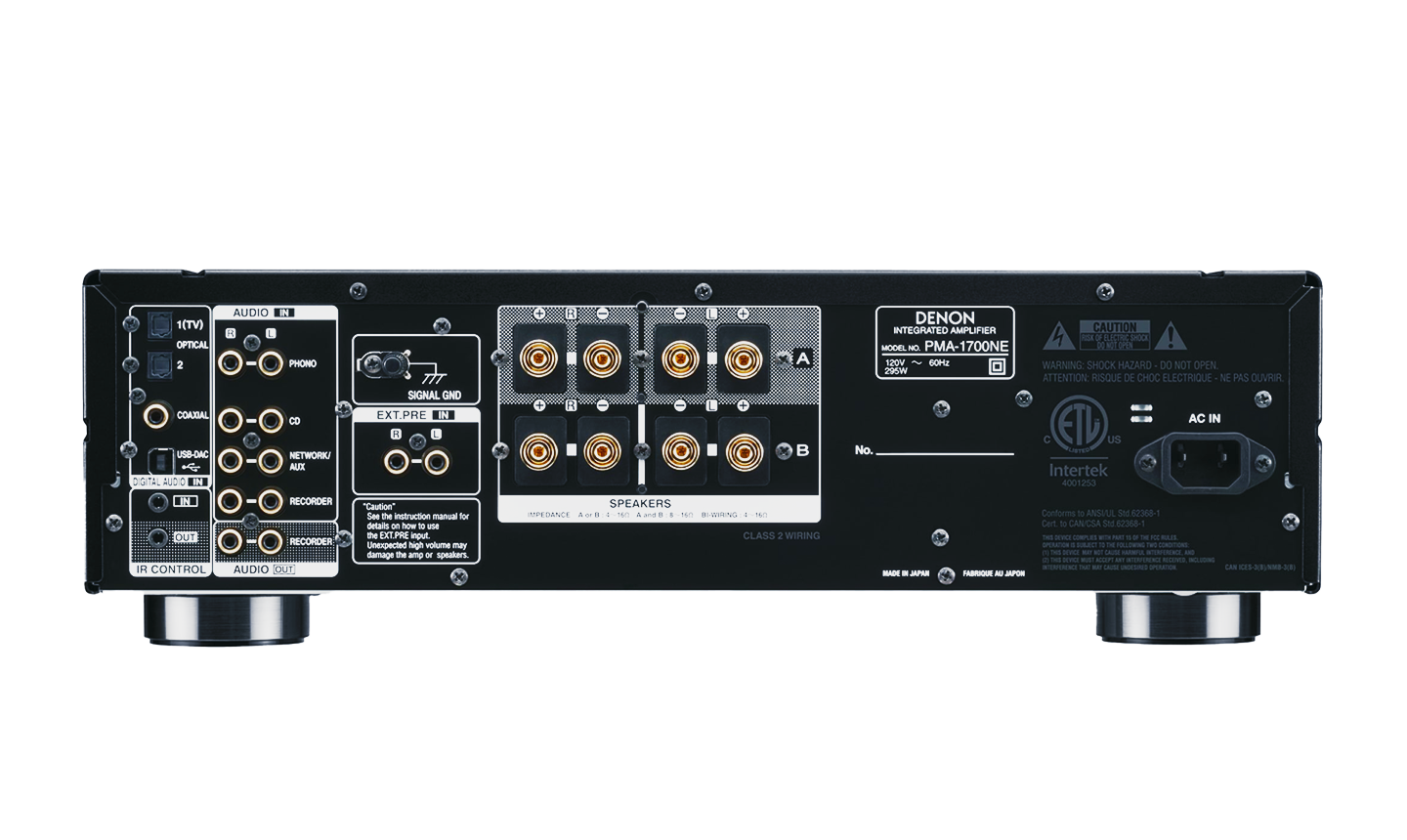

• Optical and coaxial digital inputs (up to 192kHz/24-bit)
• Digital isolator and dedicated Analog Mode to eliminate digital noise
• Main transformer with individually wired audio/control circuits
• Microprocessor Stop Mode to reduce playback noise

Specifications

• Channels: 2
• Power output: 70W at 8 ohms (20 Hz–20 kHz, THD 0.07%); 140W at 4 ohms (1kHz, THD 0.7%)
• THD: 0.01%
• Input sensitivity: MM 2.5mV/47kΩ; MC 200µV/100Ω; High level 125mV/47kΩ
• Signal to noise ratio: MM 89dB / MC 74dB / High level 108dB
• Tone control: Treble ±8dB @ 10kHz, Bass ±8dB @ 100Hz
• DAC: PCM1795, 192kHz/24-bit (digital in), 384kHz/32-bit (USB-B)
• Dimensions (W x D x H): 434 x 414 x 135 mm
• Weight: 17.6 kg
