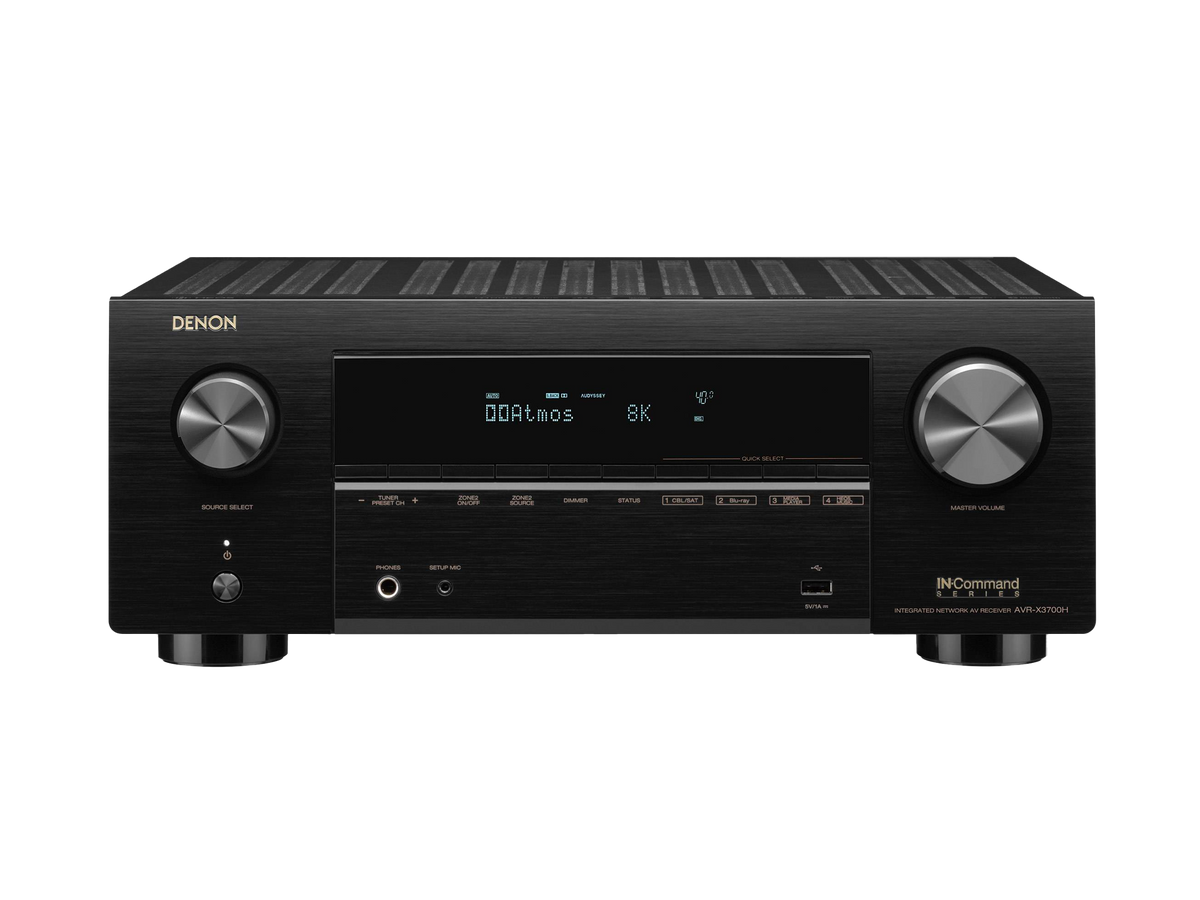

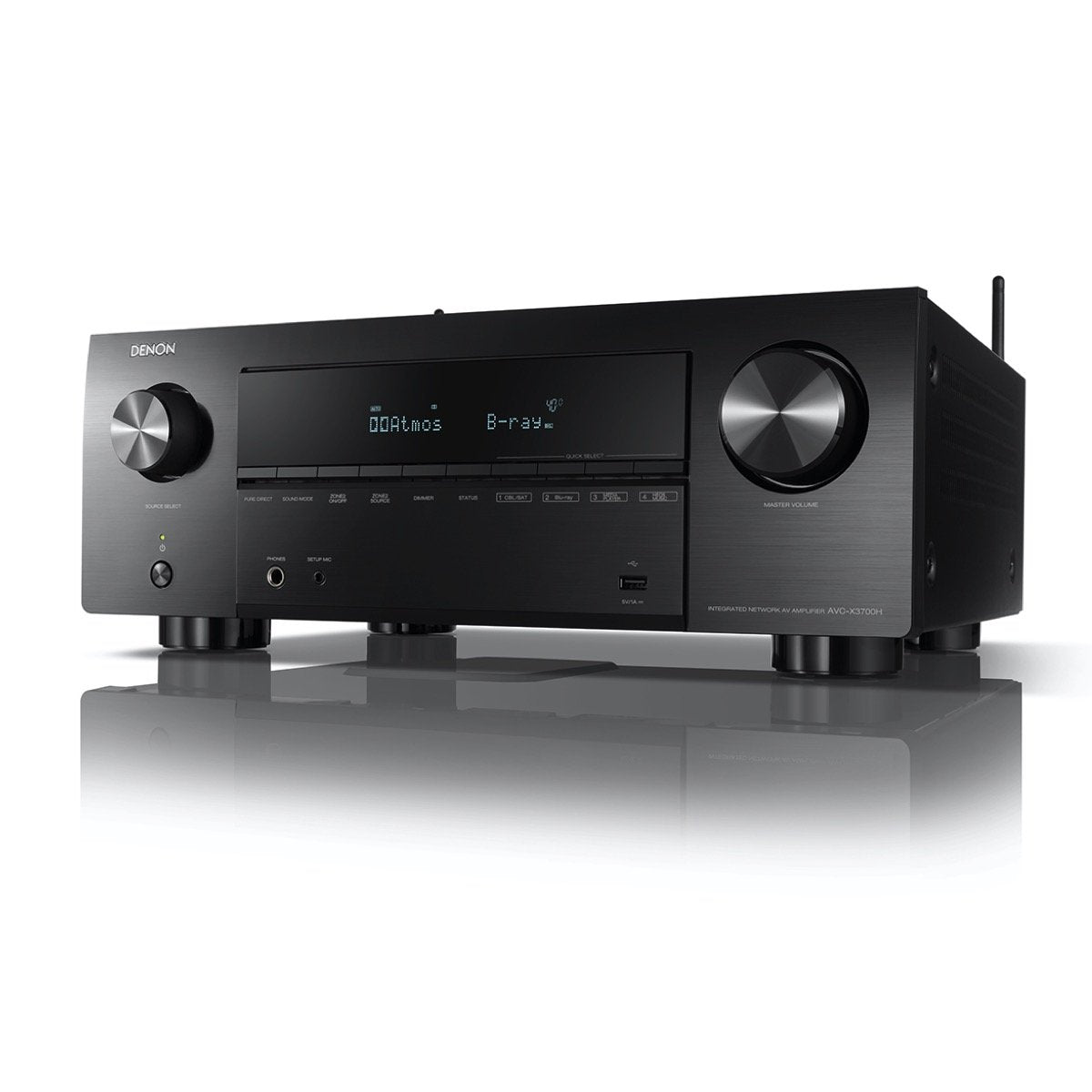

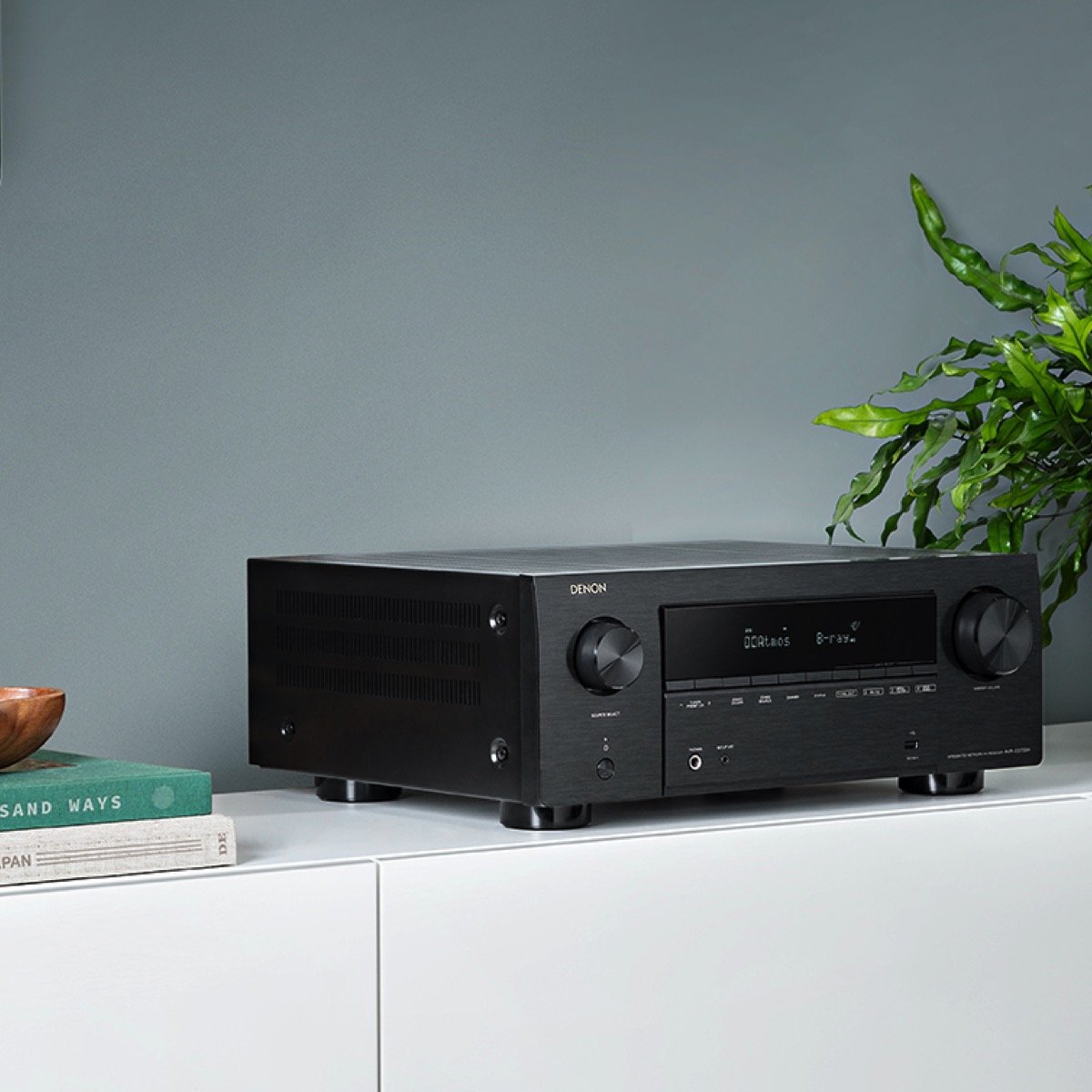

Denon AVC-X3700H - 9.2 Channel AV Receiver

AED 4,570.00

DENON AVC-X3700H This 9.2 channel 8K AV Amplifier with 180W per channel fully supports Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X, DTS Virtual:X and IMAX Enhanced, as well as the...

SKU: AVC-X3700HCategories: AV Receivers, Denon Tags: Denon AV Receivers, Denon AVC-X Series
Description

DENON AVC-X3700H

This 9.2 channel 8K AV Amplifier with 180W per channel fully supports Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X, DTS Virtual:X and IMAX Enhanced, as well as the latest HDMI specifications such as 8K/60Hz, 4K/120Hz pass-through, VRR, ALLM, Dynamic HDR, HDR10+ and eARC support.

FEATURES

  • High-performance discrete 9-channel amplifier: Delivers a powerful 180W per channel to provide a trusted, precise and dynamic Denon sound experience.
  • Full 8K/60Hz and 4K/120Hz support and upscaling: With the latest HDMI support, enjoy 8K quality video from your 8K source devices. One 8K input and two outputs allow for 8K/60Hz and 4K/120Hz pass-through. 8K upscaling is available on all 7 HDMI inputs.
  • The latest in HDMI support: With 7 advanced HDMI inputs and 3 HDMI outputs with full HDCP 2.3 support, connect to all your favourite media devices and output up to three displays.
  • Enjoy your favourite 3D audio formats: Enjoy immersive, 3D audio from sources like Dolby Atmos, Dolby Atmos Height Virtualization, DTS:X, and DTS Virtual:X.
  • IMAX Enhanced Technology: Deliver a true IMAX theatre experience at home.
  • Enhanced Audio Return Channel (eARC) HDMI support: Through the main HDMI output, connect your TV with eARC HDMI support to allow uncompressed and object-based audio formats like Dolby Atmos and DTS:X directly from your smart TV app to your AV amplifier.
  • The latest in video compatibility: The latest HDR format support including HDR10, HDR10+ (New in 2020), HLG, Dolby Vision, as well as Dynamic HDR (New in 2020) to provide the greatest picture quality for brightness, clarity and contrast.
  • The next generation in movie immersion: With 8K/60Hz pass-through and upscaling, Dynamic HDR and Quick Media Switching (QMS), enjoy crystal clear and smoothest picture in the highest quality available.
  • The latest in gaming experiences: With 4K/120Hz pass-through, Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) and Quick Frame Transport (QFT), enjoy your gaming experience with amazing imaging, as well as reduced lag and latency.
  • Works with your favourite voice services: Use your voice to control the AVC-X3700H and wireless music services hands-free with Amazon Alexa, Google Assistant and Apple Siri.
  • New DSP for more processing power: With 11.2ch max audio processing, connect an external power amplifier to the AVC-X3700H to power two extra channels to enjoy a 11.2ch home theatre setup.
  • Wireless streaming from the most popular music services: Enjoy all of your favourite music services like Spotify, TuneIn Internet Radio, Amazon Music HD, TIDAL, Deezer and more. The AVC-X3700H also lets you enjoy your music via AirPlay 2, letting you stream your favourite tracks from Apple Music.
  • “Roon Tested” Certified: Get more out of your digital music library with searchable, surfable information about your favourite artists and songs. Find lyrics, concert dates, photos, bios, reviews and more. Subscription required.
  • Phono input: With the included phono input, the AVC-X3700H lets you connect your turntable and play vinyl records. Enjoy your collection with exceptional quality and sound.
  • Dual subwoofer outputs: Smooths out low frequencies for better bass dispersion.
  • HEOS Built-in wireless multi-room music streaming technology: Listen from any room for a connected, whole-home audio experience. The AVC-X3700H also works with the newly introduced Denon Home speakers to let you enjoy a whole-home audio experience.
  • High-resolution audio streaming for Hi-Fi enthusiasts: Enjoy your favourite Hi-Res quality file playback with FLAC, ALAC, and WAV support, as well as DSD 2.8/5.6MHz.
  • All Zone TV audio: Play the audio from your TV to another zone, without losing fully discrete surround sound in the main zone.
  • Built-in Bluetooth and Wi-Fi with 2.4GHz/5GHz dual band support: Solid wireless network connectivity even in congested environments.
  • Bluetooth audio transmitter: Enjoy your favourite audio through your Bluetooth headphones late at night or with your family member who is hearing impaired. This feature supports Bluetooth-only playback as well as simultaneous playback with connected speakers.
  • Award-winning Denon Setup Assistant and graphical user interface: Easy and intuitive out-of-box setup experience.
  • Audyssey MultEQ XT32, Dynamic Volume, Dynamic EQ, LFC and Sub EQ HT: Delivers the ultimate equalization for your individual room including subwoofer EQ.
  • Smart TV connectivity: Control the Denon AVC-X3700H with your TV remote via HDMI CEC.
  • Custom install ready: The Denon AVC-X3700H features external control and IP control capabilities for easy customization and compatibility with third-party integration solutions.
  • 12V Trigger output: Connect a device such as a projector and operate on standby power.
  • Amazing audio built on 110-years of innovation: Denon is the defining audio company of Japan. Founded in 1910, we enable the moments that matter through the relentless pursuit of quality, innovation and audio performance.

ADVANCED 8K HDMI VIDEO SECTION WITH EARC

Enjoy your favourite movies, shows and games with the best picture quality available. The AVC-X3700H features an advanced HDMI section (7 in/3 out) with a dedicated 8K input that will support 8K/60Hz and 4K/120Hz video pass-through. All HDMI inputs feature 4:4:4 Pure Color sub sampling, HDR10, HDR10+, Dolby Vision, Hybrid Log-Gamma (HLG), Dynamic HDR, and BT.2020 pass-through support for exceptional color, clarity and contrast. Enjoy full-rate 8K upscaling as well as HDCP 2.3 processing to play copy-protected content uninhibited. The AVC-X3700H also adopts eARC (enhanced Audio Return Channel) to support 3D audio formats directly from your smart TV apps to your AV amplifier.

ADVANCED VIDEO CONTROLS

HDCP 2.3 processing is available on all HDMI ports, letting you enjoy copy-protected content totally uninhibited. Certified by the Imaging Science Foundation, the AVC-X3700H features a full suite of video calibration controls (for use by an ISF technician), along with ISF Day and ISF Night video modes. Enjoy seamless compatibility with the latest HD and Ultra HD TVs, Blu-ray players and game consoles.

BRILLIANT COLOUR – UNIVERSAL COMPATIBILITY, HDR10+ AND DYNAMIC HDR

The AVC-X3700H supports High Dynamic Range video format, HDR10, Dolby Vision and HLG (Hybrid Log Gamma). Dolby Vision transforms the viewing experiences with astonishing brightness, contrast, and colour. HLG offers HDR technology over broadcast content for a crisper, cleaner image. The AVC-X3700H also supports HDR10+, which sends dynamic meta data to TV for more realistic images, as well as Dynamic HDR.

(Some technologies are not available on all televisions)

THE NEXT GENERATION IN GAMING

With the latest in HDMI support, the new AVC-X3700H will take your gaming to the next level. Enjoy gaming with 4K/120Hz pass-through and upscaling, as well as Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM), which reduces or eliminates lag and frame tearing to offer a smoother, lag-free gaming experience.

SPECIFICATIONS

Channels

  • 9.2
  • Object-Based Configuration: 5.2.4
  • Object-Based Configuration: 7.2.2
  • With External Amplifier: 11.2

Power Output per Channel

2-Channel Driven:  105 W at 8 Ohms / 20 Hz to 20 kHz / 0.008% THD, 135 W at 6 Ohms / 1 kHz / 0.7% THD

Frequency Response

10 Hz to 100 kHz +1/-3 dB (Direct Mode)

Speaker Impedance

4 to 16 Ohms

DTS Compatibility

DTS-HD Master Audio, DTS:X

Dolby Compatibility

Dolby Atmos, Dolby Pro Logic IIz, Dolby TrueHD

Auro 3D Support

No

Upmixing Technology

Dolby Surround, DTS Neural:X, DTS Virtual:X, Dolby Atmos Height Virtualization Technology

Supported File Formats

AAC, ALAC, DSD, FLAC, MP3, WAV, WMA

HDR Compatibility

HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma

Pass-Through Support

8K60p 4:4:4 (3D, BT.2020)

Upscaling

8K

GUI

Yes

Rear A/V Inputs

  • 7 x HDMI
  • 2 x 3RCA Component
  • 3 x RCA Composite
  • 2 x Optical TOSLINK
  • 2 x Digital Coaxial
  • 5 x Stereo RCA
  • 1 x Stereo RCA (Phono) with Ground Screw

Rear A/V Outputs

  • 3 x HDMI
  • 1 x 3RCA Component
  • 1 x RCA Composite
  • 2 x RCA Subwoofer
  • 1 x 11-Channel RCA Pre-Out
  • 1 x Stereo RCA Zone 2 Pre-Out

Front I/O

  • 1 x USB Type-A Input
  • 1 x 1/4" / 6.35 mm Headphone Output
  • 1 x 1/8" / 3.5 mm Setup Mic Input

Other Rear I/O

  • 2 x Bluetooth/Wi-Fi Antenna Terminal Input
  • 1 x AM Antenna Terminal Input
  • 1 x FM Antenna Terminal Input
  • 1 x RJ45 (Ethernet)
  • 1 x DE-9 (RS-232C)
  • 1 x 1/8" / 3.5 mm (12 V Trigger) Output
  • 1 x 1/8" / 3.5 mm (IR) Input
  • 1 x 1/8" / 3.5 mm (IR) Output

Speaker Connectors

11 x Binding Post Pairs

HDCP Support

Version 2.3

Audio Return Channel (ARC)

Yes, eARC

HDMI CEC

Yes

Input Impedance

47 Kilohms

Input Sensitivity

200 mV

Signal to Noise Ratio

100 dB (Direct Mode / IHF-A)

Wireless Audio Protocols

AirPlay 2, HEOS

Virtual Assistant Support

Amazon Alexa, Apple Siri, Google Assistant, Josh.ai

Tuner Type

AM, FM

Radio Frequencies

  • AM: 520 to 1710 kHz
  • FM: 87.5 to 107.9 MHz

AC Input Power

120 VAC, 60 Hz

Power Consumption

  • Active: 660 W
  • No Sound (ECO Off): 100 W
  • No Sound (ECO On): 60 W
  • CEC Standby: 0.5 W
  • Standby: 0.1 W

Dimensions (W x H x D)

  • 17.1 x 9.3 x 15.3" / 43.4 x 23.6 x 38.9 cm (Antenna Up)
  • 17.1 x 6.6 x 15.3" / 43.4 x 16.8 x 38.9 cm (Antenna Down)
  • 17.1 x 6.6 x 14.9" / 43.4 x 16.8 x 37.8 cm (Antenna Removed)

Weight

27.6 lb / 12.52 kg
