Dali Sub E-12 F - 12" Active Subwoofer

Description

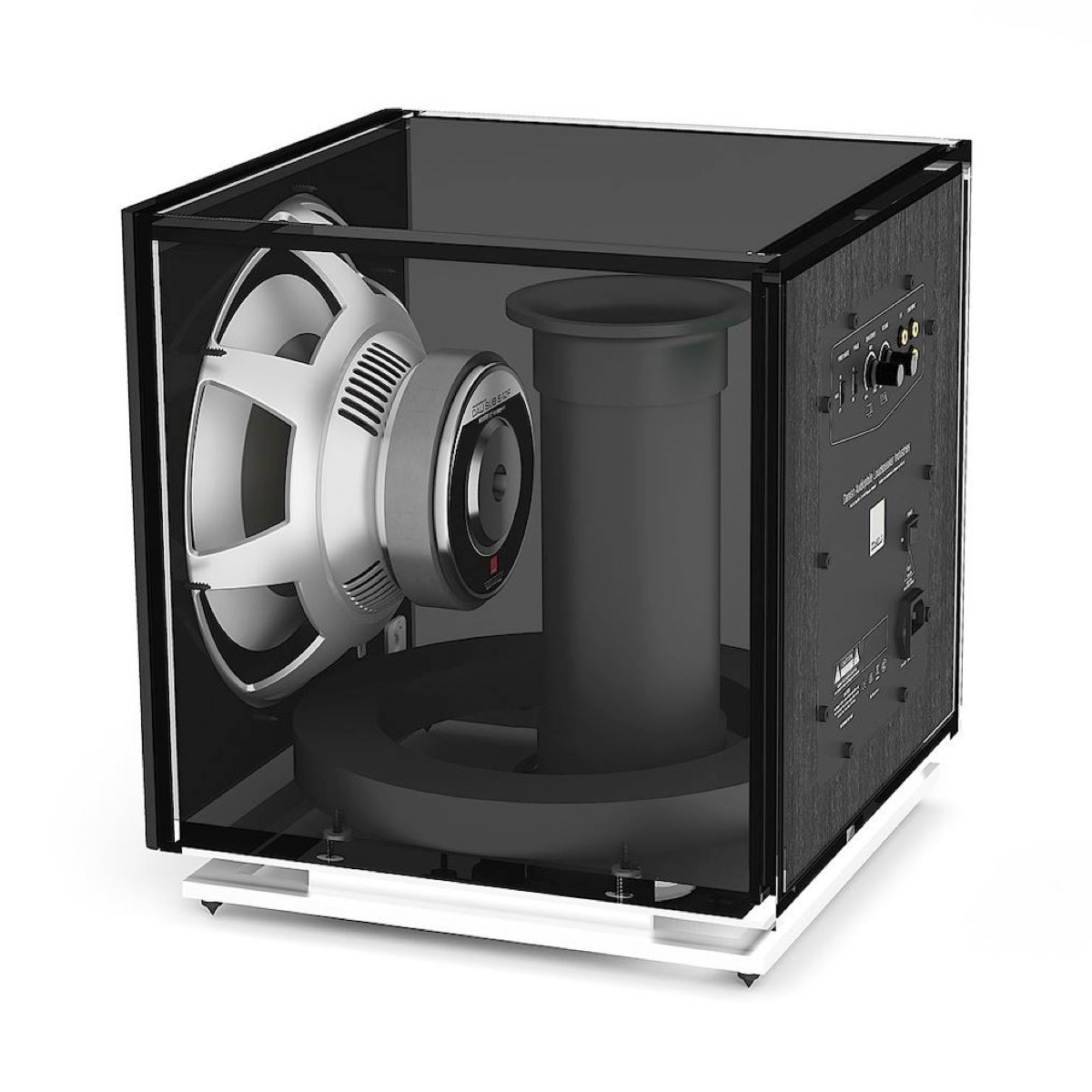

The DALI Sub E-12 F is an active subwoofer with a 12" pure aluminum cone woofer and a 170W RMS (220W peak) Class D amplifier, delivering powerful bass suited for both movies and music. Its sleek aluminum base decouples the cabinet from the floor, and a magnetically-mounted front grille reveals the aluminum cone when removed.

Features

• 12" long-stroke aluminum cone woofer for stiff, low-distortion bass
• 170W RMS / 220W peak Class D amplifier with integrated signal limiter

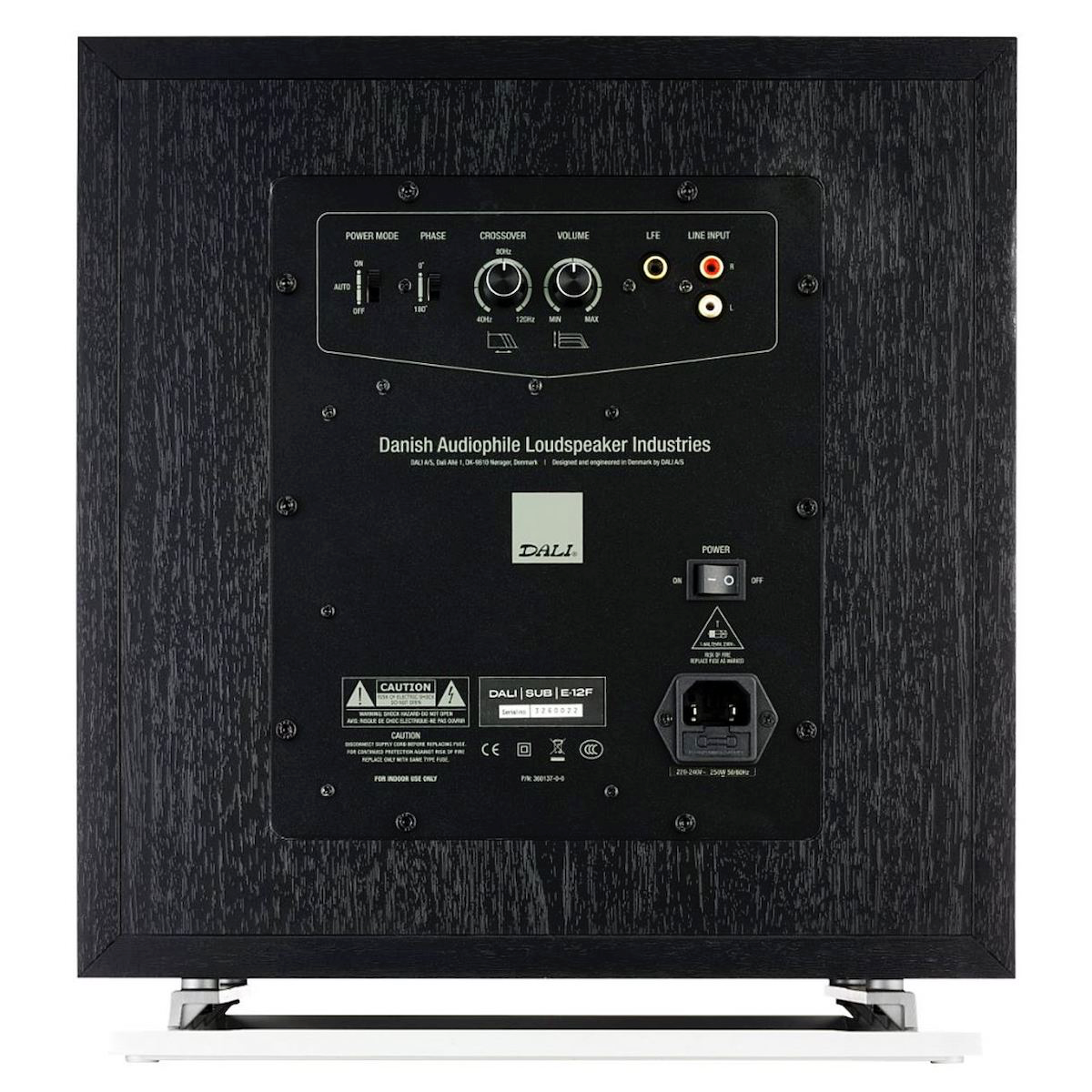

• LFE and LINE inputs for compatibility with almost any AV system
• Adjustable gain, crossover frequency, and phase controls
• Automatic power on/off via signal detection
• Aluminum base decouples cabinet from the floor
• Down-firing bass port allows placement close to a wall
• Magnetic front grille reveals aluminum cone when removed

Specifications

• Frequency range: 28Hz–190Hz (±3dB)
• Maximum SPL: 112dB
• Crossover frequency: 40–120Hz (adjustable)
• Driver: 1x 12" long-stroke aluminum cone
• Enclosure: Bass reflex, tuned to 36Hz
• Amplifier power: 220W peak / 170W continuous RMS
• Input impedance: 25kΩ
• Inputs: Mono line level (LFE), RCA, stereo line level (low-pass filtered)
• Magnetic shielding: No
• Recommended distance from wall: >5cm
• Max power consumption: 250W
• Standby power consumption: 0.4W
• Dimensions: 370 x 340 x 380mm (H x W x D)
• Weight: 14.7kg
• Finishes: Black Ash, White

In the Box

• Manual
• Rubber bumpers
• M6 spikes
