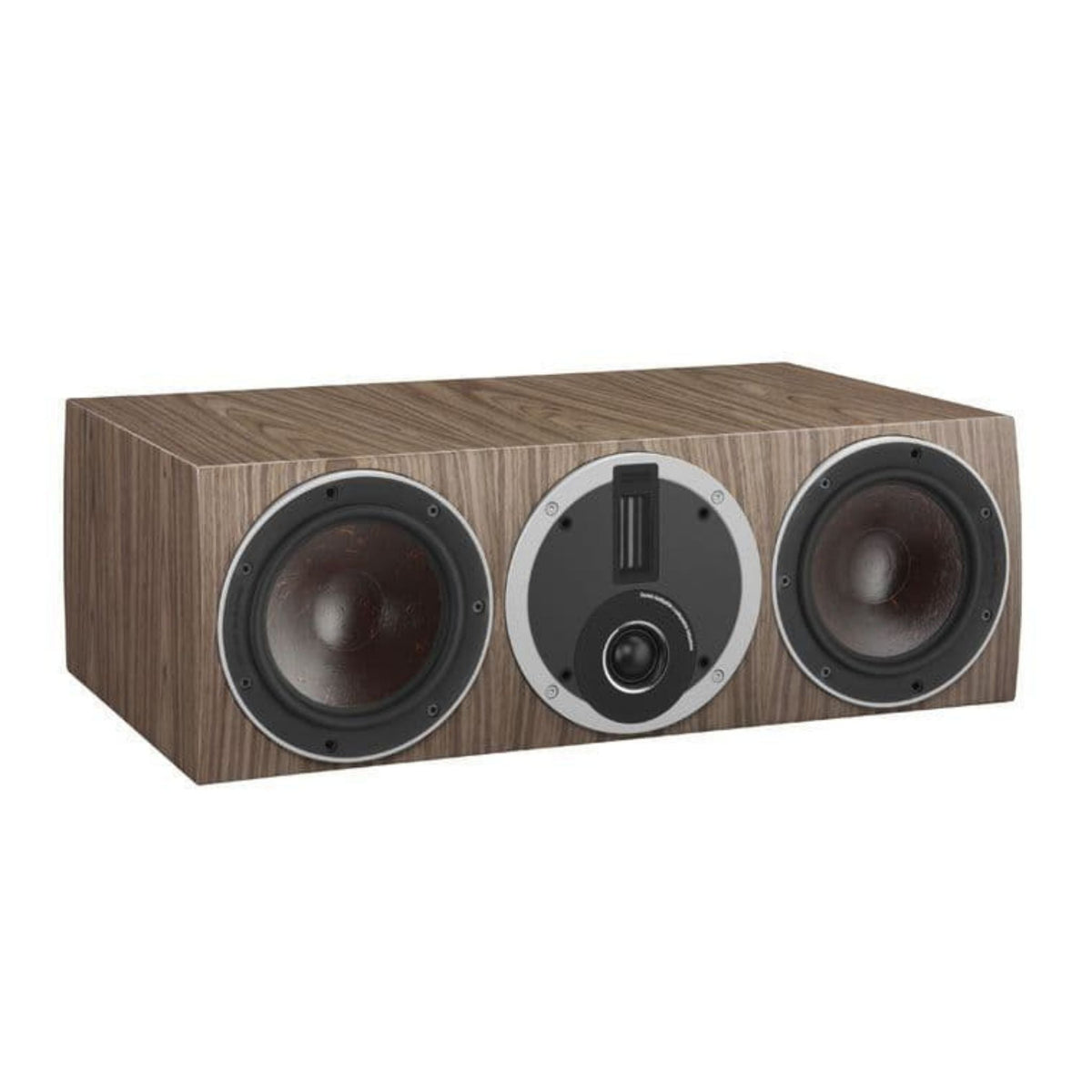

RUBICON VOKAL
The RUBICON VOKAL is the centre speaker to complete a RUBICON surround setup. With two 6½” woofers and a hybrid tweeter the RUBICON VOKAL has the size and punch to match any speaker in the RUBICON line-up. Whether you are watching a movie or listening to music, the RUBICON VOKAL will bring clarity and detail.
WOOD FIBRE CONES
Using a wood fibre cone gives the in-house build woofer a light, rigid and randomly uneven membrane. Making it easy to move ensures even piston like movements and reduces the possibility of surface resonance greatly.
CABINET CONSTRUCTION
Dividing the mid-range and bass drivers into separated chambers enables them to individually tune every driver to its specific frequency range to maximise the woofer output.
HYBRID TWEETER MODULE
The hybrid tweeter module is a DALI trademark and for the RUBICON series, it is build in Denmark. The hybrid tweeter module, combines the dome tweeter with the ribbon tweeter for an amazing rendering of the high frequencies.
SMC MAGNET SYSTEM
With a pole piece constructed entirely from SMC, surrounded by a slitted copper cap, and enclosed within a large ferrite magnet, the effect of the SMC is focused and maximised, and reduces distortion as never heard before.
PRODUCT DETAILS
RUBICON VOKAL is the ultimate centre loudspeaker . Striking an elegant balance between size and performance, the RUBICON VOKAL is powerful enough to match the RUBICON 8, and still compact enough to fit in most living rooms. The two 6½” low-loss wood fibre woofers deliver a clear and well defined mid-range together with the hybrid tweeter module. It also uses the same soft dome diaphragm and many of the same SMC technologies as used in the EPICON series. The cabinet size helps the RUBICON VOKAL reproduce even the lowest bass frequencies from the gripping action on the screen or stunning musical performances.
And like the rest of the RUBICON range, it features gold-plated bi-wiring terminals.
WOOFER
The cone used in the RUBICON VOKAL draws upon the heritage from the EPICON technologies, and has a light, rigid and randomly uneven structure. This lower the complexity of the central part of the motor, ensures even piston like movements, reduces the possibility of surface resonance greatly and creates an extremely low distortion within the RUBICON VOKAL.
The soft low-loss rubber surround is designed and bespoke specifically for the RUBICON VOKAL, and all of the components are situated in an aluminum chassis designed for maximum airflow around the cone and magnet system.
SPECIFICATIONS
Product Series |
Rubicon |
Frequency Range (+/-3 dB) [Hz] |
49 - 34.000 |
Sensitivity (2,83 V/1 m) [dB] |
89.5 |
Nominal Impedance [ohms] |
4 |
Maximum SPL [dB] |
111 |
Recommended Amplifier Power [W] |
40 - 200 |
Crossover Frequency [Hz] |
2,700 / 14,000 |
Crossover Principle |
2 + ½-way |
Hybrid tweeter module, Super high freq. driver, Quantity |
1 x 17 x 45 mm |
Hybrid tweeter module, Super high freq. driver, Diaphragm type |
Ribbon |
Hybrid tweeter module, High frequency driver, Quantity |
1 x 29 mm |
Low frequency driver, Quantity |
2 x 6½" |
Low frequency driver, Diaphragm type |
Wood Fibre Cone |
Bass Reflex Tuning Frequency [Hz] |
36.5 |
Connection Input |
Bi-Wiring Bi-Amping (INT) |
Magnetic Shielding |
No |
Recommended Placement |
Centre / Soundbar Shelf or stand |
Recommended Distance From Wall [cm] |
5 - 100 |
Dimensions With Base (HxWxD) [mm] |
197 x 581 x 400 |
Weight |
13.8kg |
