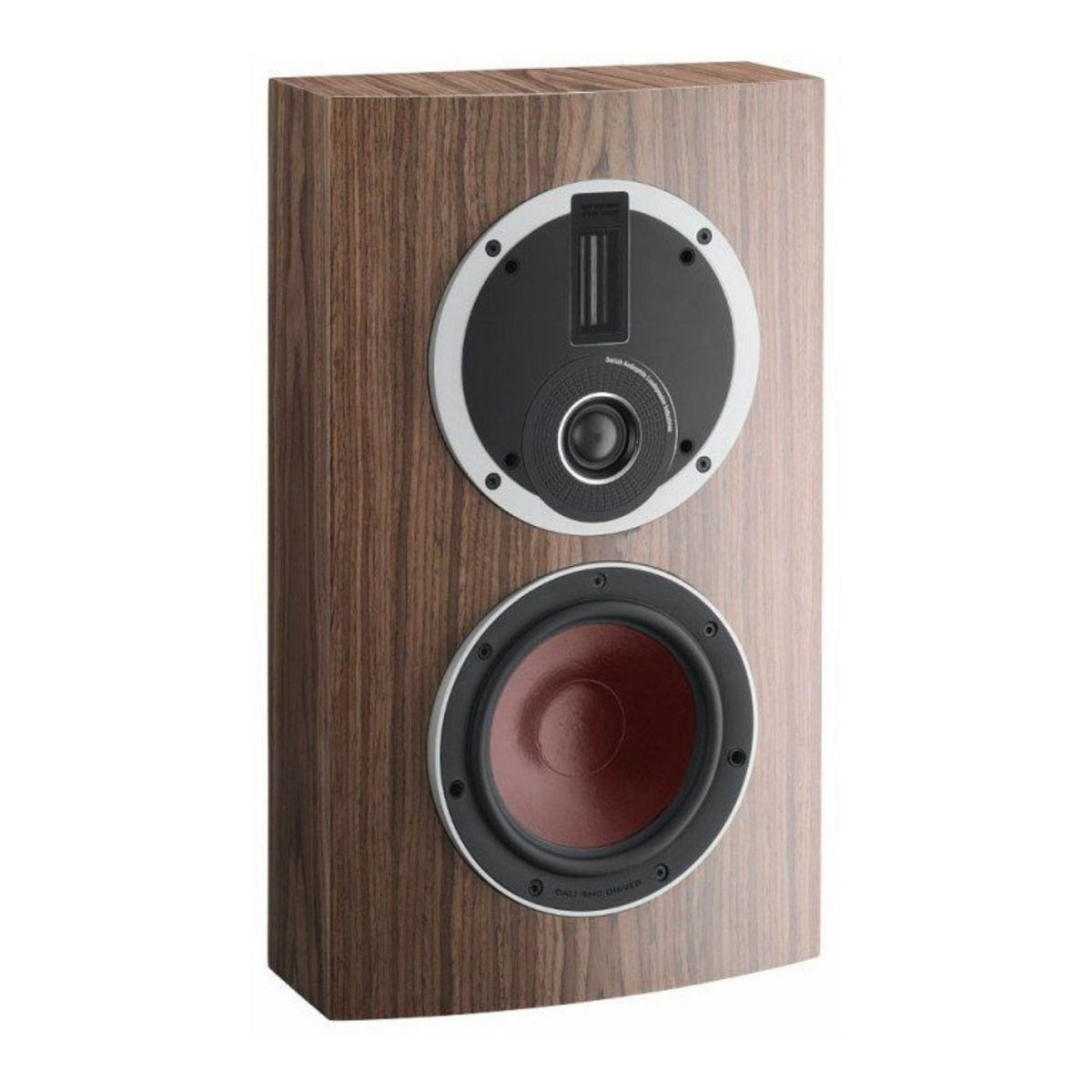

Dali Rubicon LCR - On-Wall Speaker - Piece

AED 7,235.00

(VAT Inclusive)

 RUBICON LCR The wall-mounted RUBICON LCR is simply born to stand out in both sound performance and design with the hybrid tweeter module and the wood fibre low-loss driver. The compact...

Categories: Shop Tags: All
Description

 RUBICON LCR

The wall-mounted RUBICON LCR is simply born to stand out in both sound performance and design with the hybrid tweeter module and the wood fibre low-loss driver. The compact RUBICON LCR delivers a wide dynamic range, a coherent sound with lots of details all together with a bass response that’s unrivalled in its class. The rotatable hybrid tweeter module makes it possible to use the RUBICON LCR as either the left or right channel, or as a centre speaker. The 6½ inch woofer uses the ingeniously designed bass port to reach maximum bass depth. With the RUBICON LCR, they promise you a sound performance that will dazzle you and leave you with goose bumps.

WOOD FIBRE CONES

Using a wood fibre cone gives the in-house build woofer a light, rigid and randomly uneven membrane. Making it easy to move ensures even piston like movements and reduces the possibility of surface resonance greatly.

CABINET CONSTRUCTION

Dividing the mid-range and basse drivers into separated chambers enables them to individually tune every driver to its specific frequency range to maximise the woofer output.

HYBRID TWEETER MODULE

The hybrid tweeter module is a DALI trademark and for the RUBICON series, it is build in Denmark. The hybrid tweeter module, combines the dome tweeter with the ribbon tweeter for an amazing rendering of the high frequencies.

SMC MAGNET SYSTEM

With a pole piece constructed entirely from SMC, surrounded by a slitted copper cap, and enclosed within a large ferrite magnet, the effect of the SMC is focused and maximised, and reduces distortion as never heard before.

WOOFER

The cone used in the RUBICON LCR draws upon the heritage from the EPICON technologies, and has a light, rigid and randomly uneven structure. This lower the complexity of the central part of the motor, ensures even piston like movements, reduces the possibility of surface resonance greatly and creates an extremely low distortion within the RUBICON LCR.

The soft low-loss rubber surround is designed and bespoke specifically for the RUBICON LCR, and all of the components are situated in an aluminum chassis designed for maximum airflow around the cone and magnet system.

SPECIFICATIONS

Product Series

Rubicon

Frequency Range (+/-3 dB) [Hz]

59 - 34.000

Sensitivity (2,83 V/1 m) [dB]

89

Nominal Impedance [ohms]

4

Maximum SPL [dB]

109

Recommended Amplifier Power [W]

20 - 150

Crossover Frequency [Hz]

3,100 / 14,000

Crossover Principle

2 + ½-way

Hybrid tweeter module, Super high freq. driver, Quantity

1 x 17 x 45 mm

Hybrid tweeter module, Super high freq. driver, Diaphragm type

Ribbon

Hybrid tweeter module, High frequency driver, Quantity

1 x 29 mm

Low frequency driver, Quantity

1 x 6½"

Low frequency driver, Diaphragm type

Wood Fibre Cone

Bass Reflex Tuning Frequency [Hz]

49

Connection Input

Single Wire

Magnetic Shielding

No

Recommended Placement

Centre / Soundbar

Shelf or stand

Recommended Distance From Wall [cm]

0 - 30

Dimensions With Base (HxWxD) [mm]

197 x 581 x 40468 x 278 x 146

Weight

8kg
