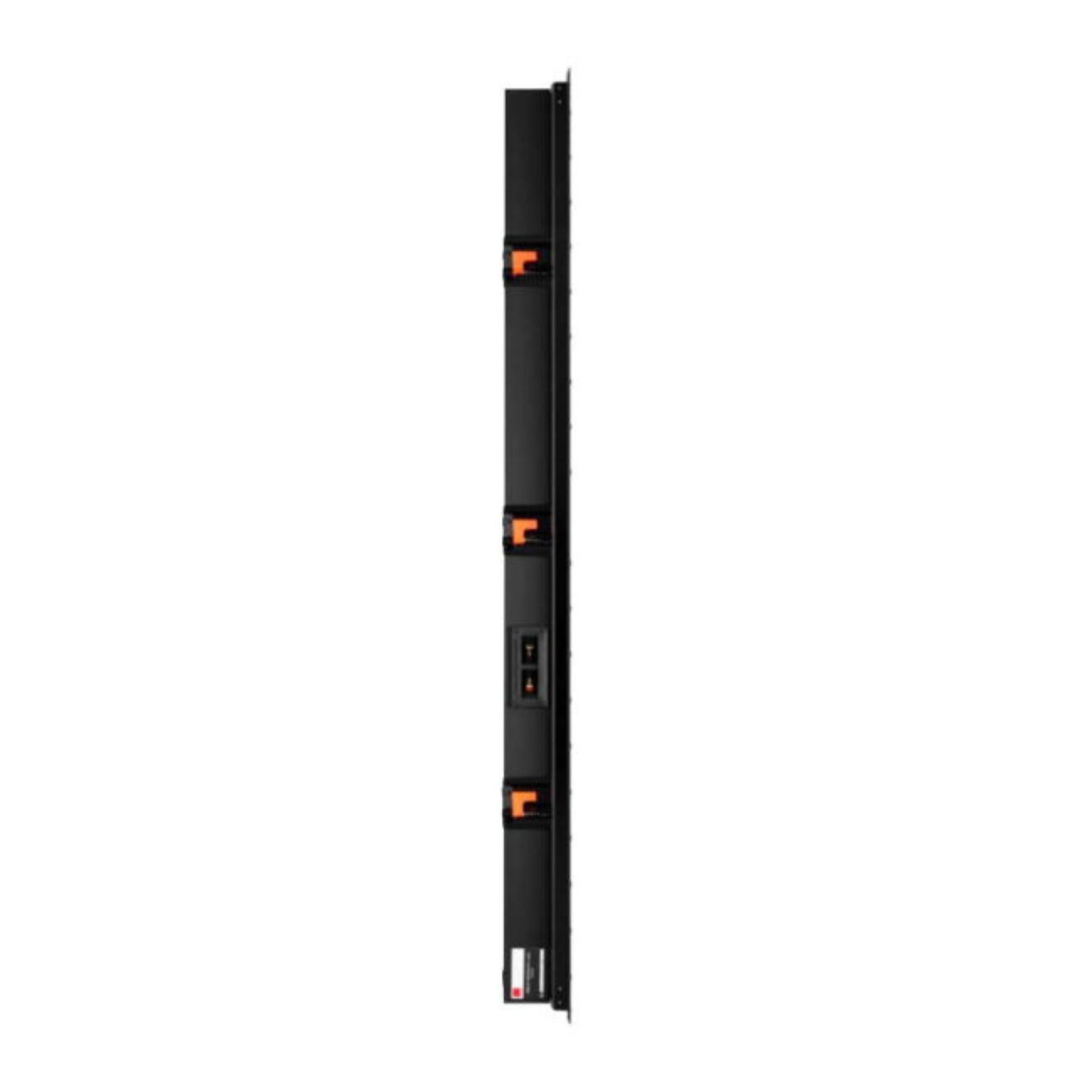

Dali Phantom S - 180 - In Wall Speaker

Description

The DALI Phantom S-180 is a full-size in-wall speaker combining an 8" wood fibre woofer with a 10" passive carbon fibre radiator (from DALI's Sub P-10 DSS subwoofer) and a rotatable hybrid tweeter module, delivering coherent, room-filling sound from a slim cabinet.

Features

• Rotatable hybrid tweeter module with 17x45mm ribbon element for detailed high frequencies
• 8" wood fibre active woofer paired with a 10" passive carbon fibre radiator for deep bass
• SMC magnet motor system minimizes coloration and distortion
• Slim 100–103mm cabinet depth fits standard wall cavities
• Inverted driver placement keeps the tweeter at ear height when mounted at TV level
• Extruded aluminum frame and magnetic front grille for elegant wall integration
• Wide dispersion design optimized for flush wall or ceiling mounting

Specifications

• Frequency range: 49Hz–25kHz (±3dB)
• Sensitivity: 89dB (2.83V/1m)
• Nominal impedance: 6Ω
• Maximum SPL: 109dB
• Recommended amplifier power: 40–200W
• Crossover frequency: 2800Hz / 15,000Hz
• Super high-frequency driver: 1x 17x45mm ribbon (hybrid tweeter module)
• High-frequency driver: 1x 28mm soft dome
• Low-frequency driver: 1x 8" wood fibre cone (active)
• Passive radiator: 1x 10" carbon fibre
• Connection input: Single wire
• Recommended placement: In-wall, center/soundbar
• Dimensions: 898 x 453 x 110mm
• Weight: 18.5kg
