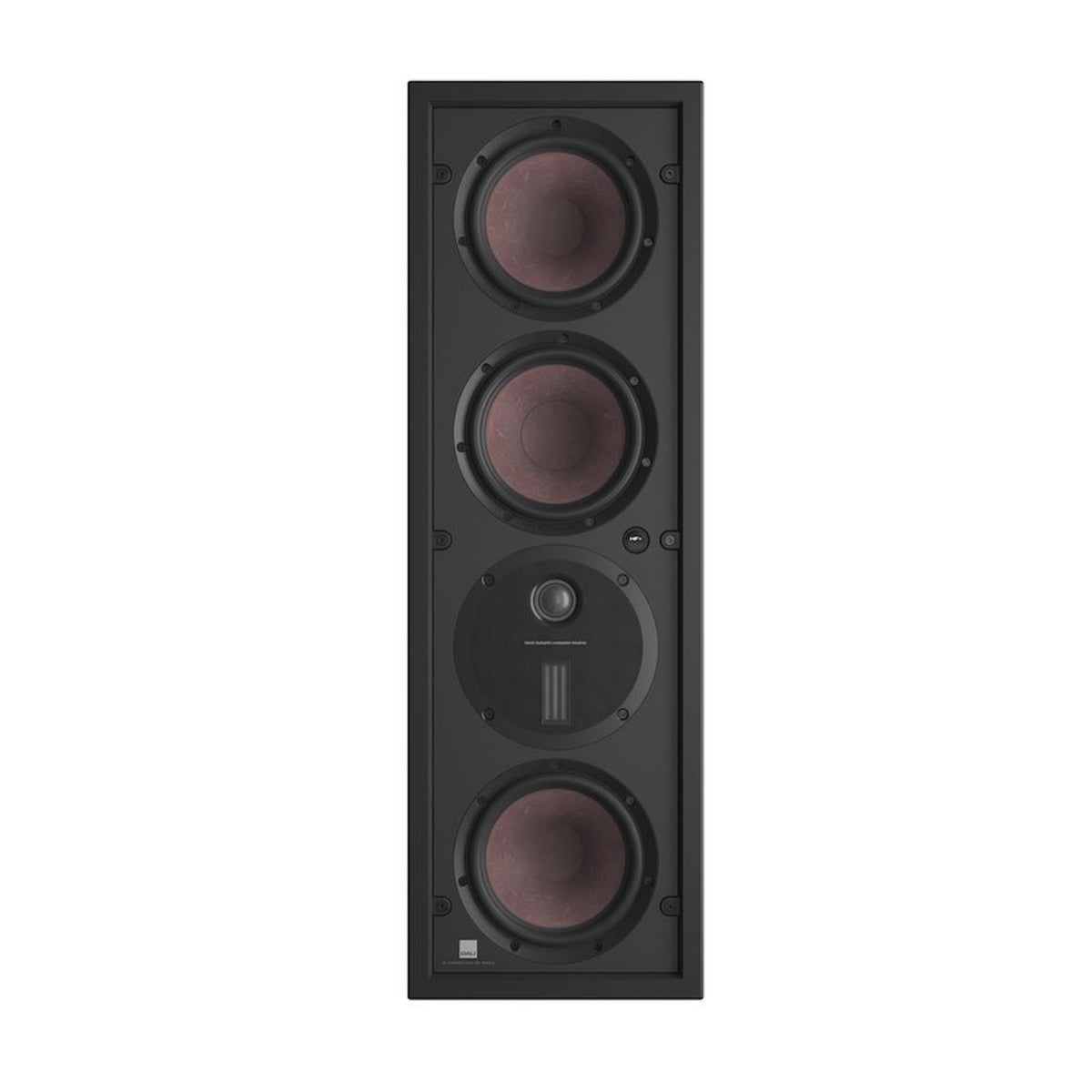

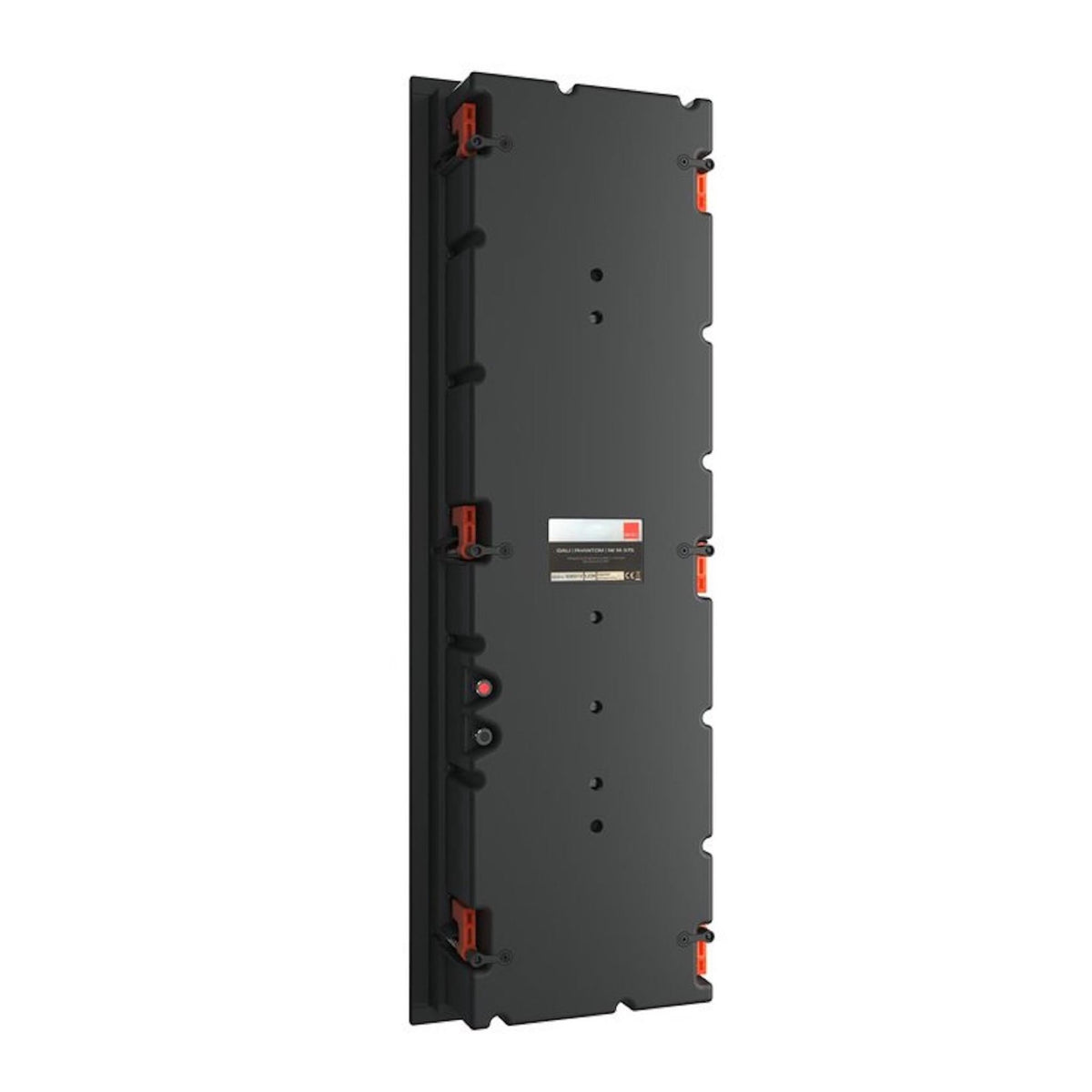

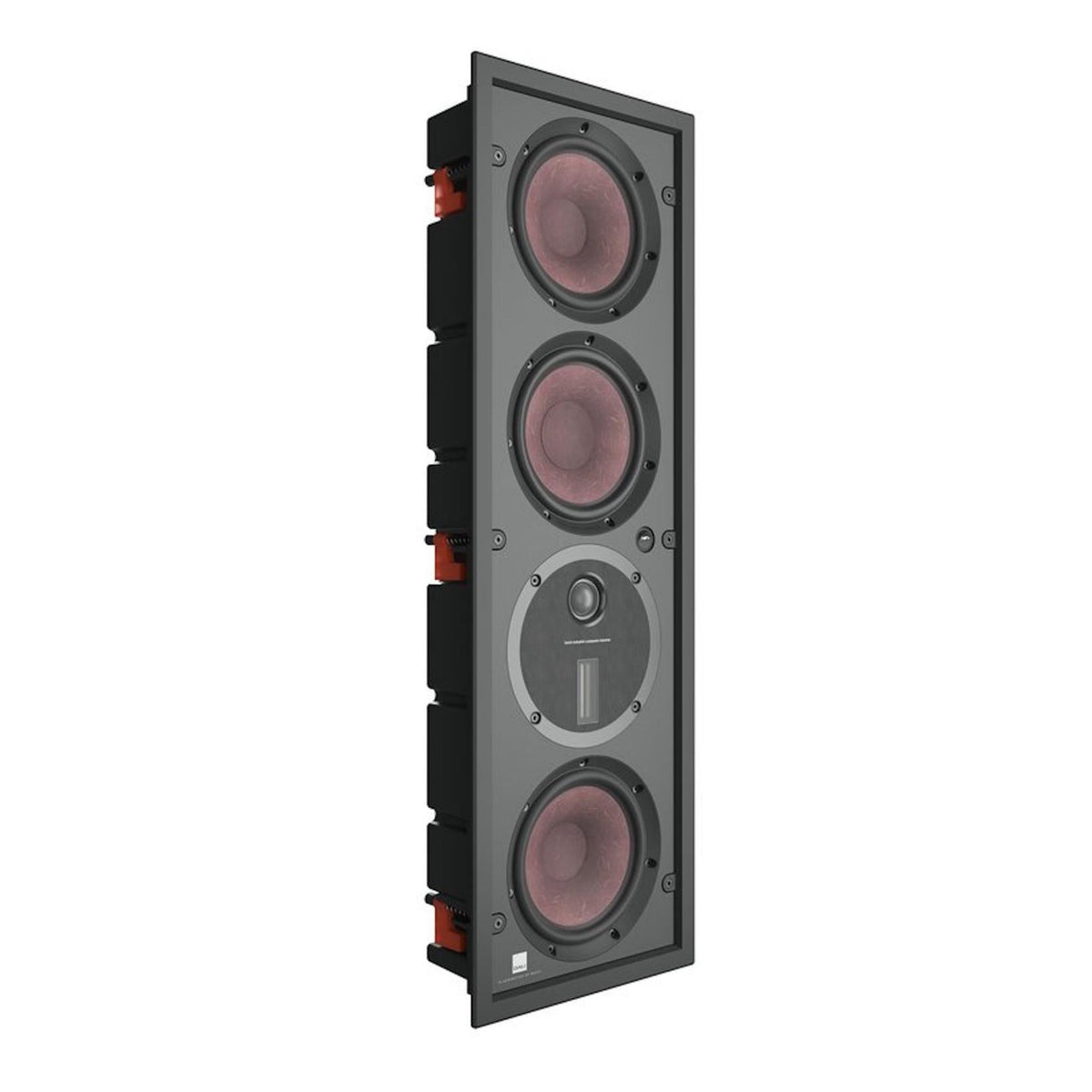

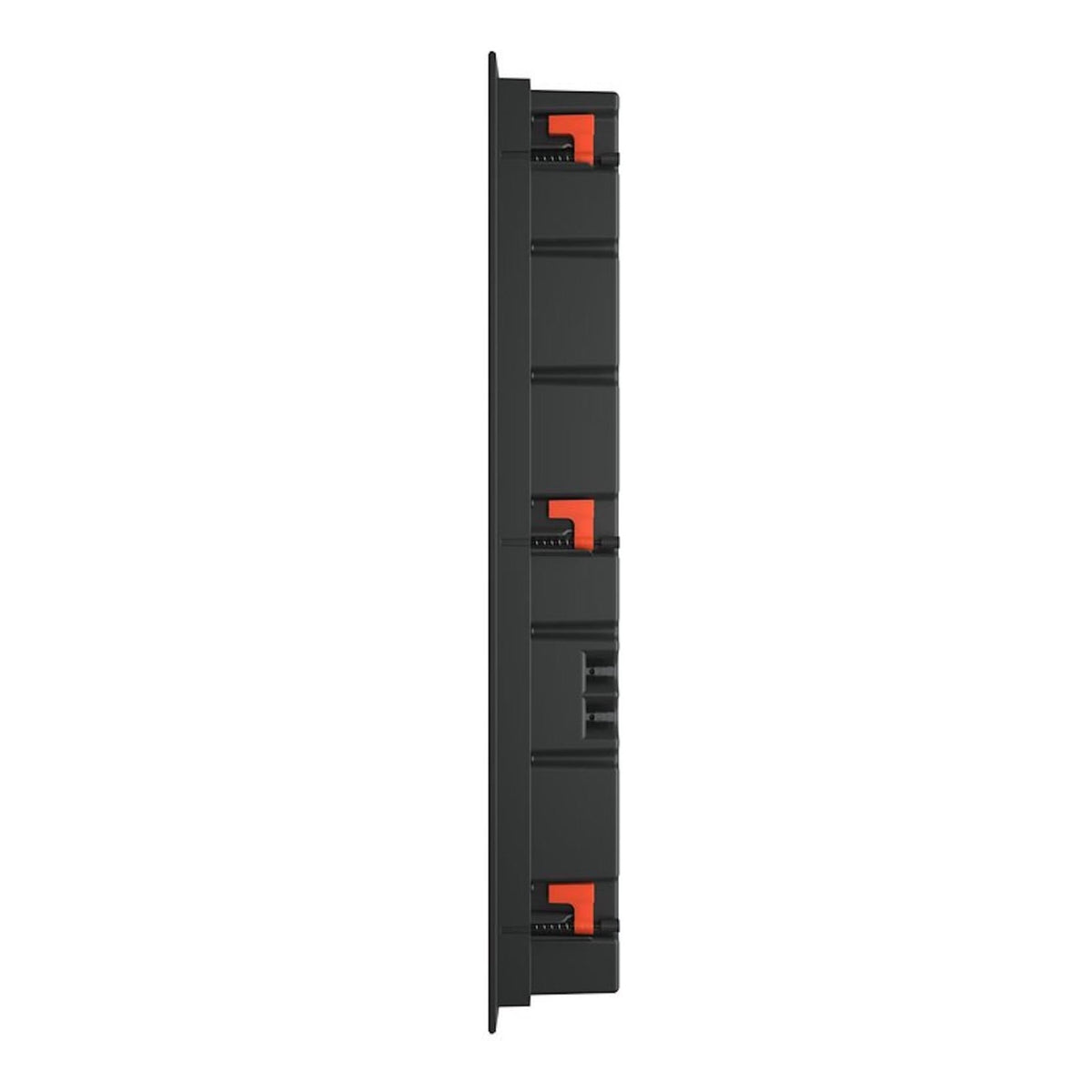

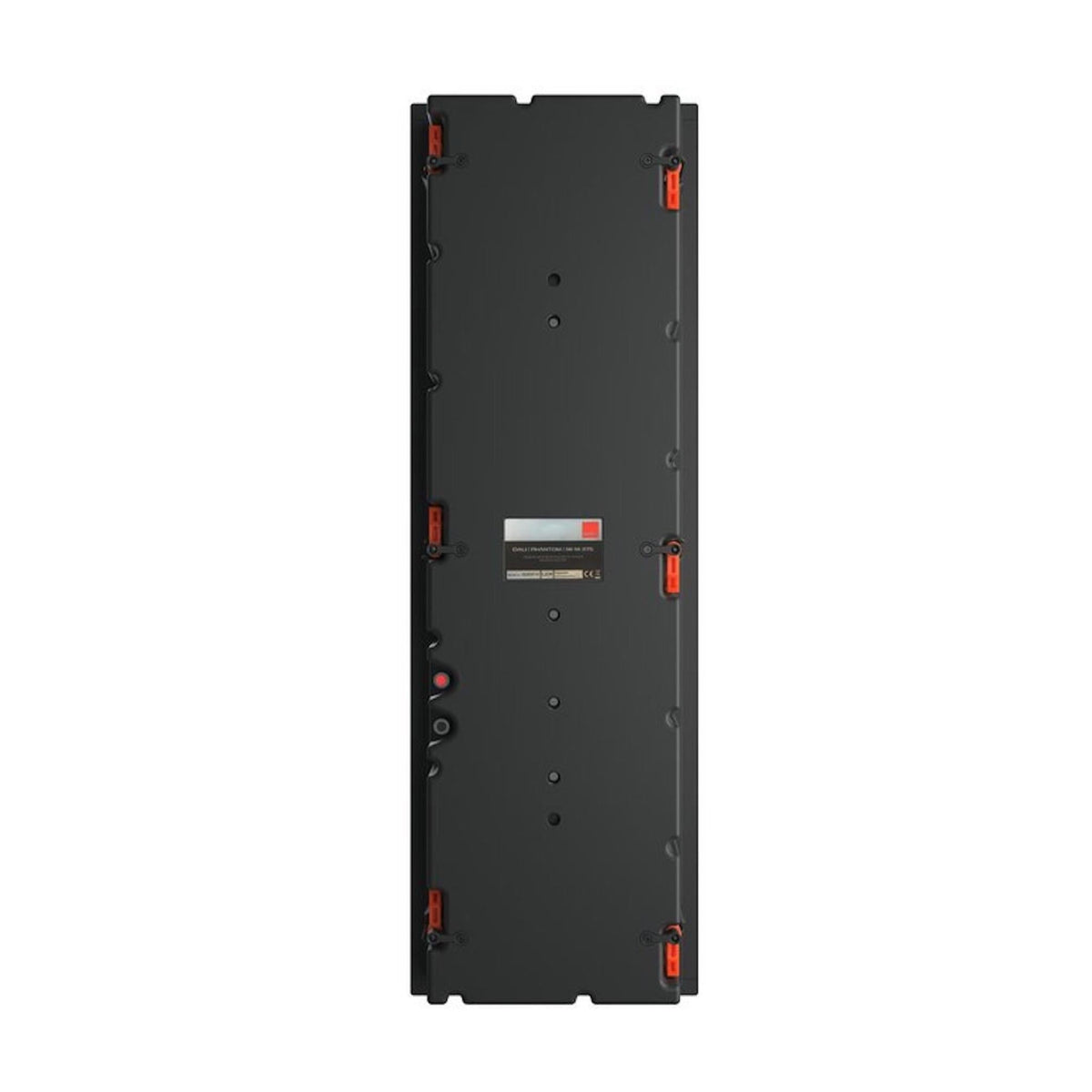

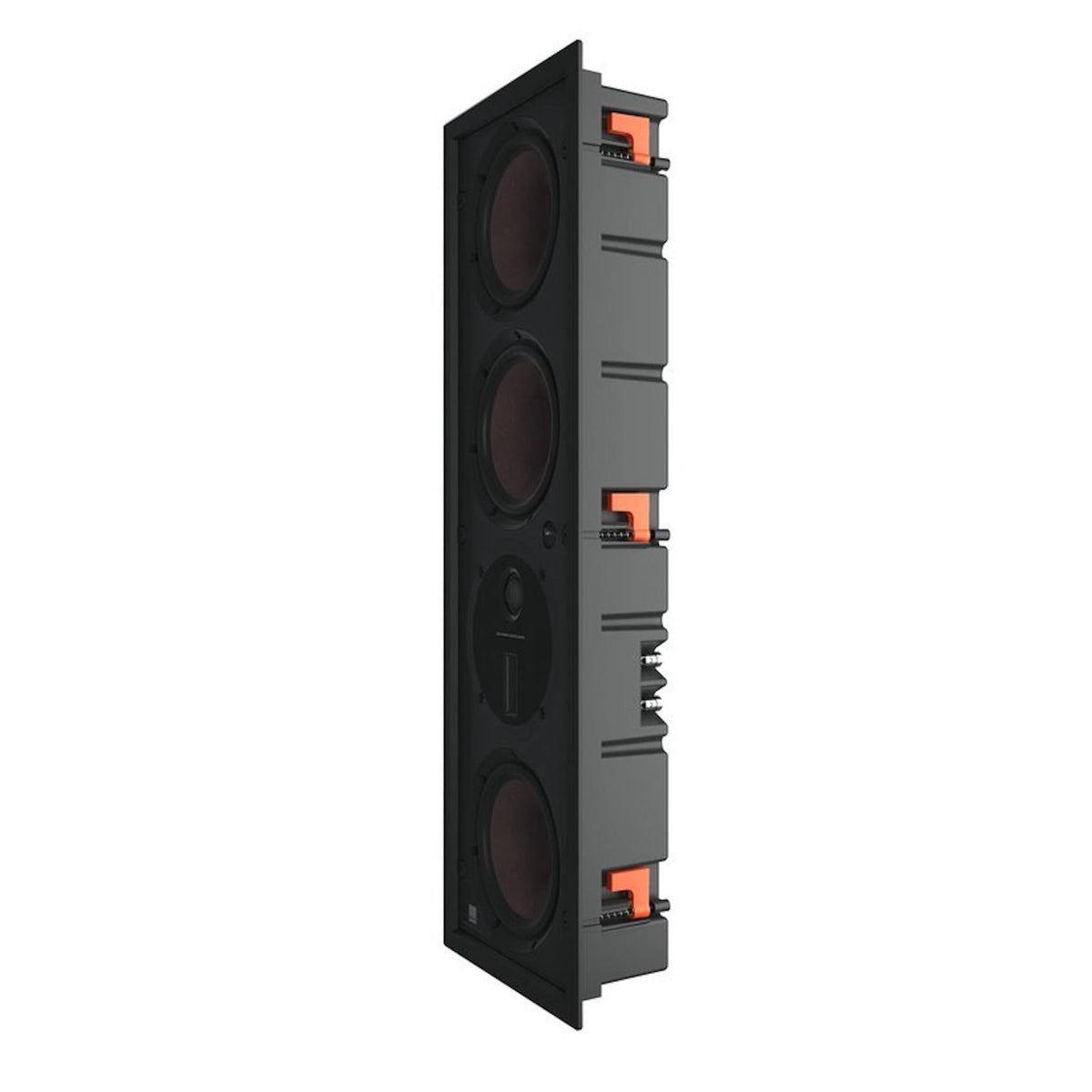

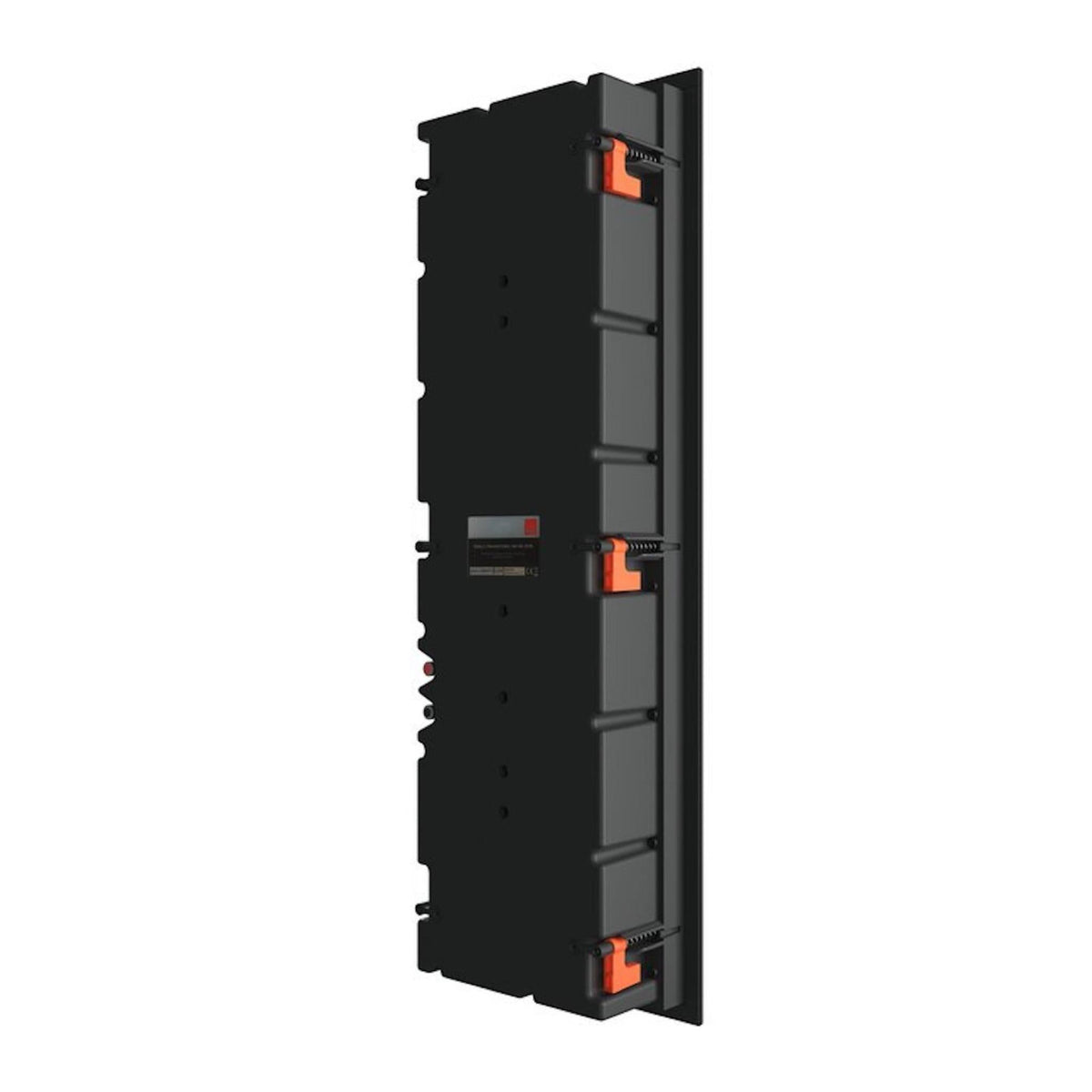

PHANTOM M-375
The slim and powerful PHANTOM M-375 speaker is developed for multi-channel in-wall installation. Featuring 3 x 7 inch woofers, it offers spacious and roomfilling DALI sound in your home cinema - without physically dominating you living room.
WIDE DISPERSION
All speakers by DALI are designed around the principle of wide dispersion. This entails an off-axis optimisation of the audio reproduction. The technology is perfect for use in install speakers, since they are always mounted flush against either a wall or ceiling.
SLIM CABINET
One of Dali's goals for the PHANTOM S and M models was to create high-end in-wall speakers with a slim profile that allowed for maximum flexibility when installed. Dali achieved this by keeping the cabinet depths at only 100-103 mm, which fits into almost any standard wall.
MAGNETIC GRILLE
The magnetic floating front grille forms the visual presence of the PHANTOM S and M speakers. The discreet, simple, but modern Nordic design is non-intrusive and at the same time pleasing to the eye.
TRADITIONAL SPEAKER TECHNOLOGIES
The high-end PHANTOM install speakers are packed with traditional speaker virtues. Not only are the wood fiber cones and ultra-lightweight soft dome tweeters mounted in a classic MDF baffle, the placement of the drivers is just similar to Dali's traditional speakers.
SPECIFICATIONS
Product Series |
Phantom |
Frequency Range (+/-3 dB) [Hz] |
57 - 25,000 |
Sensitivity (2,83 V/1 m) [dB] |
89 |
Nominal Impedance [ohms] |
6 |
Maximum SPL [dB] |
107 |
Recommended Amplifier Power [W] |
30 - 180 |
Crossover Frequency [Hz] |
2,500 / 15,000 |
Hybrid tweeter module, Super high freq. driver, Quantity |
1 x 17 x 45 mm |
Hybrid tweeter module, Super high freq. driver, Diaphragm type |
Ribbon |
Hybrid tweeter module, High frequency driver, Quantity |
1 x 28 mm |
Low frequency driver, Quantity |
1 x 7" |
Low frequency driver, Diaphragm type |
Wood Fibre Cone |
Low frequency passive driver, Quantity |
2 X 7” |
Connection Input |
Single Wire |
Magnetic Shielding |
No |
Recommended Placement |
Centre / Soundbar, In-Wall, On-Wall |
Dimensions With Base (HxWxD) [mm] |
775 x 250 x 106 |
Weight |
8.7kg |
