Dali Phantom H-80 - In Wall Speaker (Pair)

AED 4,500.00

PHANTOM H-80 The PHANTOM H-80 is the speaker you choose, when large, dynamic and well-defined sound really matters. The PHANTOM H-80 is equipped with a 8" woofer and designed for optimum...

Description

PHANTOM H-80

The PHANTOM H-80 is the speaker you choose, when large, dynamic and well-defined sound really matters. The PHANTOM H-80 is equipped with a 8" woofer and designed for optimum in-wall use, but can also be mounted in the ceiling

WIDE DISPERSION

All speakers by DALI are designed around the principle of wide dispersion. This entails an off-axis optimisation of the audio reproduction. The technology is perfect for use in install speakers, since they are always mounted flush against either a wall or ceiling.

TRADITIONAL SPEAKER TECHNOLOGIES

The high-end PHANTOM install speakers are packed with traditional speaker virtues. Not only are the wood fiber cones and ultra-lightweight soft dome tweeters mounted in a classic MDF baffle, the placement of the drivers is just similar to our traditional speakers.

EASY INSTALLATION

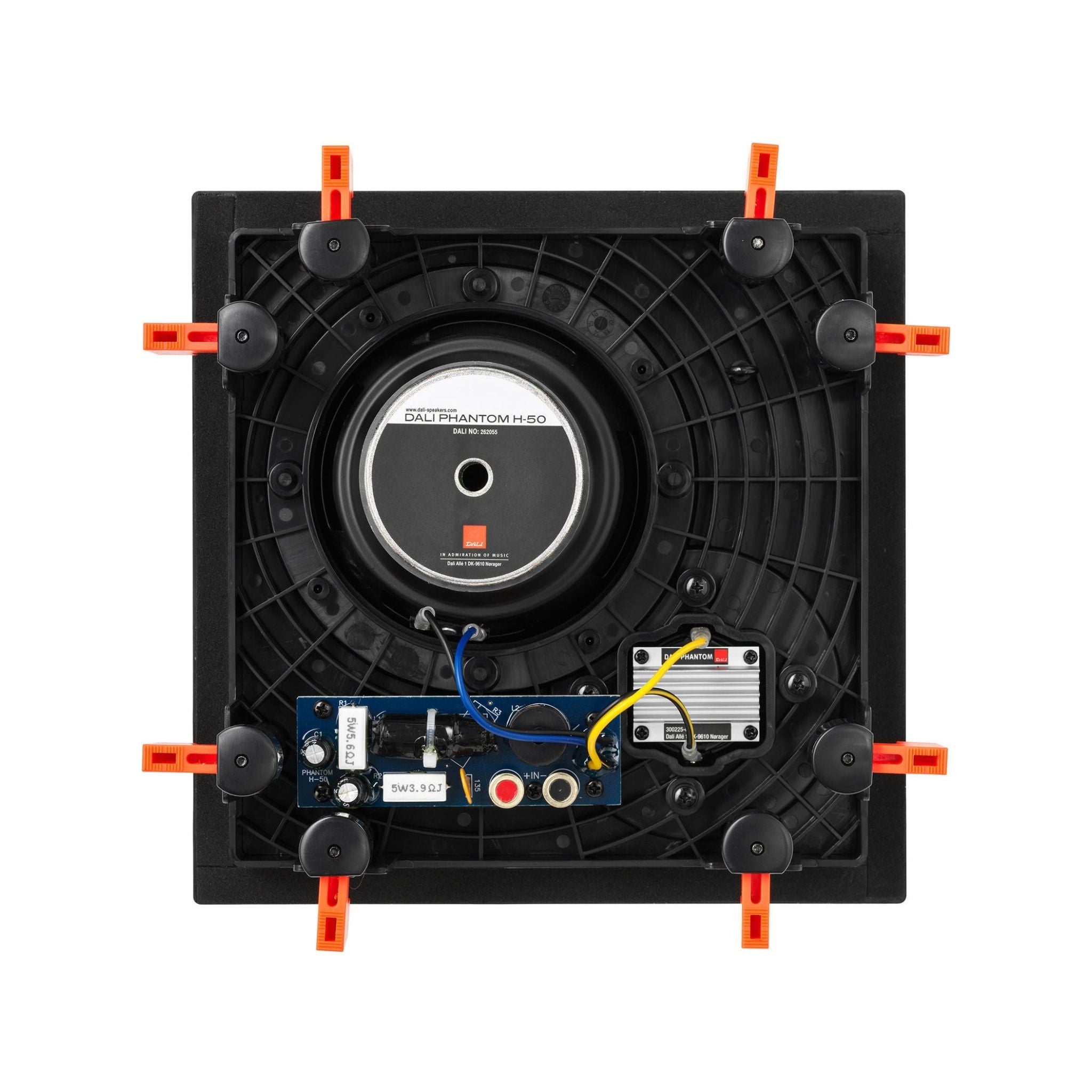

The dogleg mounting system makes the install process an easy one-step action simply by tightning the dedicated screws to swing out the dogleg brackets.

INVISIBLE DESIGN

The very thin magnetic front grilles integrates almost seamlessly into any home environment.

TWEETER

A large part of the DALI sonic definition comes from the use of a soft dome tweeter. The ferrite driven magnet motor system is able to handle more power and disperses heat generated in the voice coil rapidly, thereby reducing power compression.

The ultra light-weight weave fabric combined with the very capable magnet motor system allows the tweeter to reproduce high frequencies with higher accuracy, giving the PHANTOM H-80 an impressively detailed sound.

The positioning of the tweeter front plate near the dome has been optimised to create the optimal working conditions for the soft dome. The aim is to combine an extended frequency response with wide dispersion and low colouration, and improve the integration of both the tweeter and the mid/bass driver.

SPECIFICATIONS

Product Series

Phantom

Frequency Range (+/-3 dB) [Hz]

46 - 25,000

Sensitivity (2,83 V/1 m) [dB]

90

Nominal Impedance [ohms]

6

Maximum SPL [dB]

107

Recommended Amplifier Power [W]

30 -200

Crossover Frequency [Hz]

2,350

High frequency driver, Quantity

1 x 28 mm

High frequency driver, Diaphragm type

Soft Textile Dome

Low frequency driver, Quantity

1 x 8"

Low frequency driver, Diaphragm type

Wood Fibre Cone

Recommended Working Volume

15 - 100 L

Connection Input

Single Wire

Magnetic Shielding

No

Recommended Placement

In-Wall

In-Ceiling

Dimensions With Base (HxWxD) [mm]

335 x 335 x 106

Weight

3.30kg
