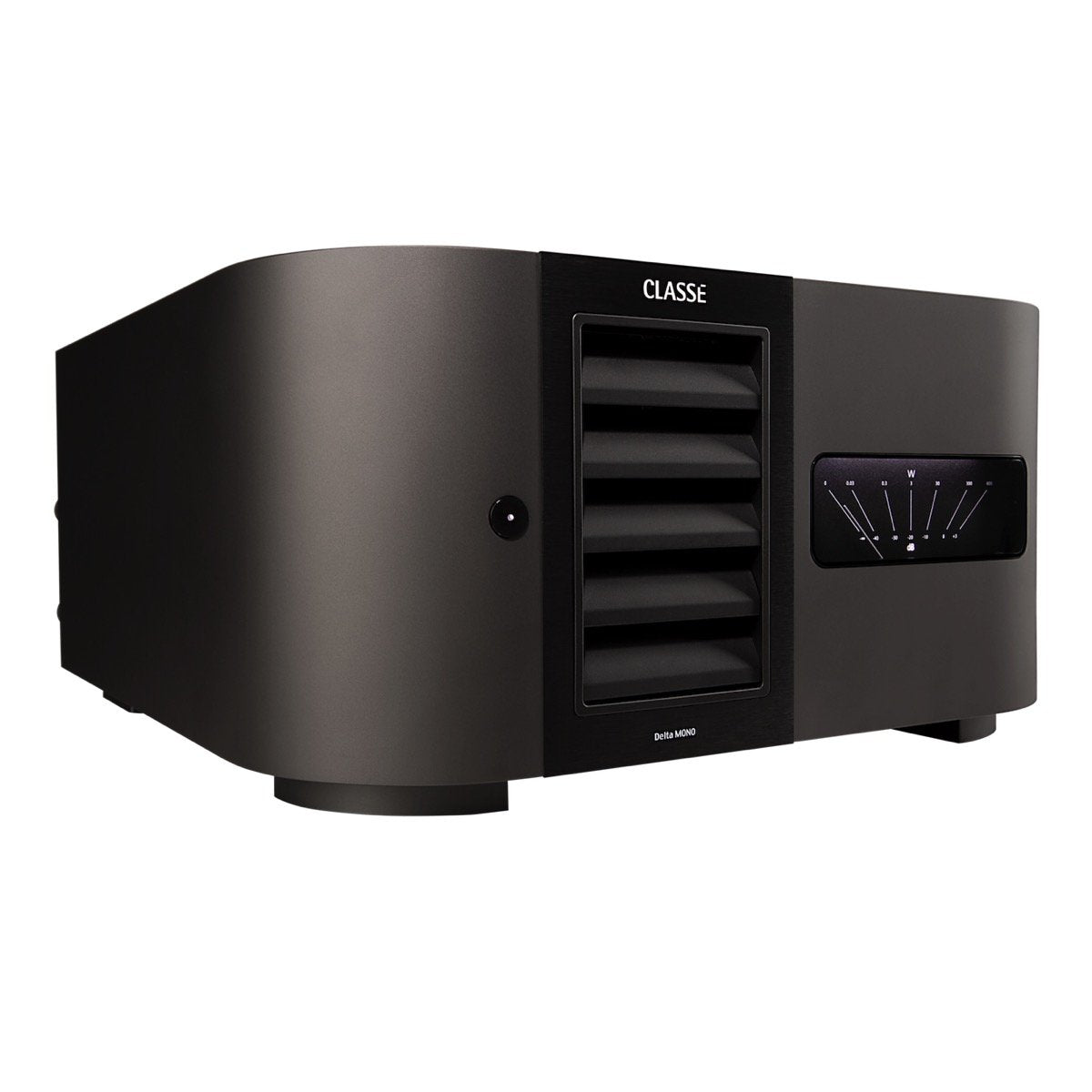

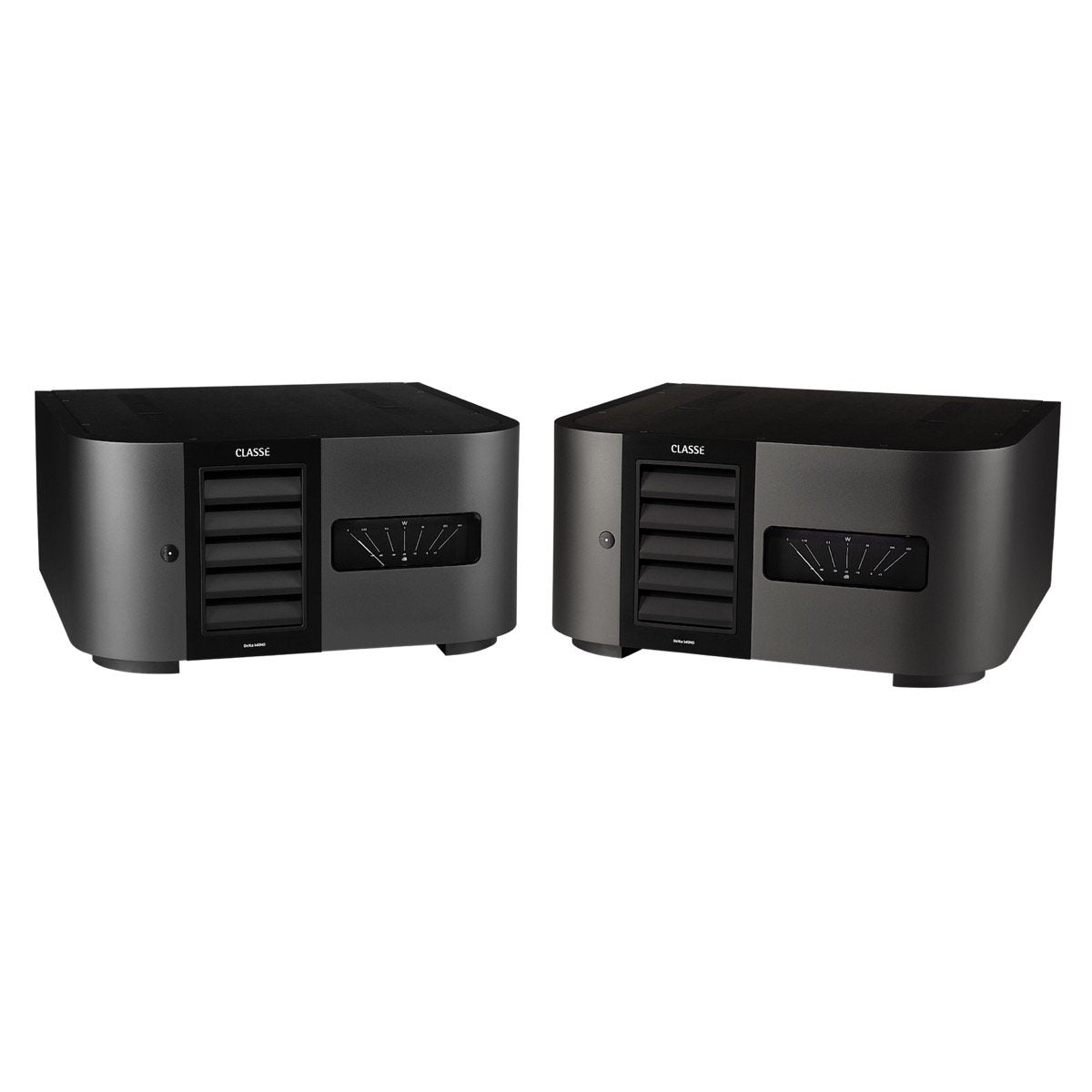

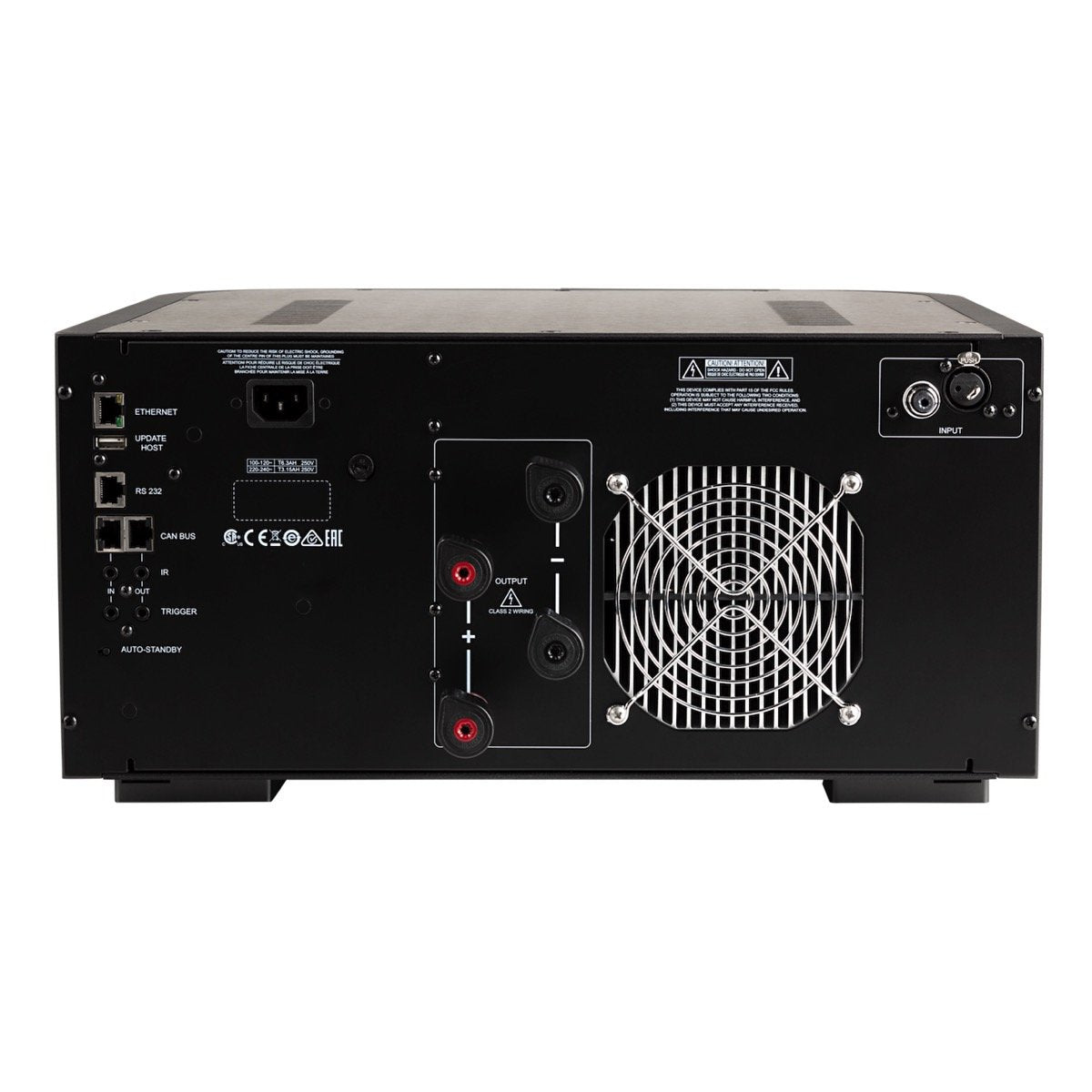

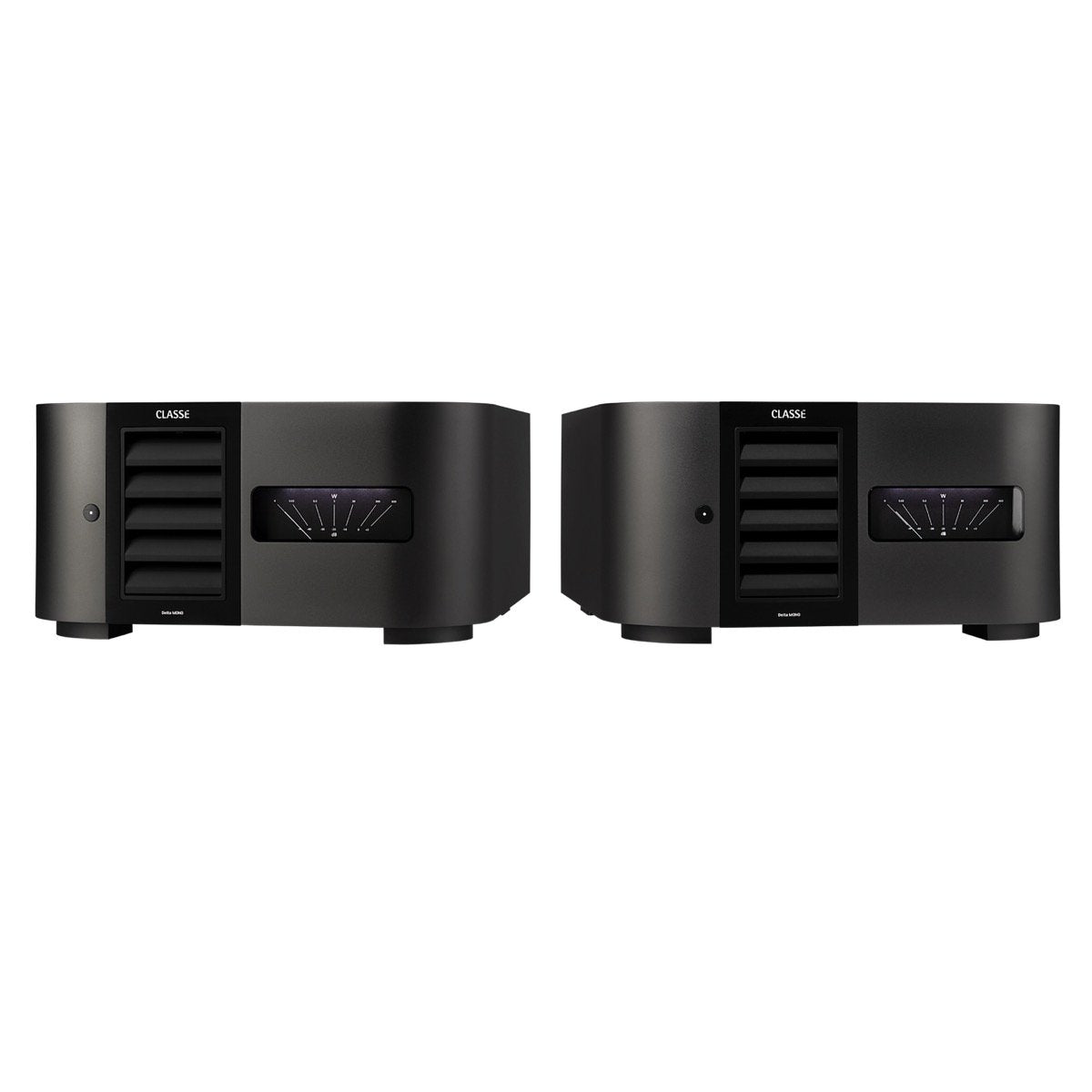

Classé Audio Delta Mono - Power Amplifier

Description

The Delta Mono is Classé's monoblock power amplifier, delivering exceptional performance and durability through hand-selected components and a fully balanced circuit design. The first 35W run in pure Class A, with over 300W per unit total (1,000W into 2Ω) and proprietary ICTunnel cooling technology that makes it uniquely stackable and rackable.

Features

• Up to 35W delivered in pure Class A operation
• 300W per unit total
• Massive, high-quality power supply with custom toroidal transformer
• Hand-laid, 6-layer circuit boards for shortened signal and power pathways with lowest noise
• Fully balanced output stage and balanced circuitry
• 22 4-pole Mundorf capacitors
• Custom-made Navcom feet to absorb vibrations
• Furutech rhodium-plated RCA and torque-guard speaker connectors
• Custom, illuminated VU meters
• Luxurious anodized aluminum body
• Proprietary ICTunnel temperature regulation technology, stackable and rackable
• Power-on to optimal temperature in minutes with active temperature sensing and regulation
• Low-noise operation suitable for studio applications

Specifications

• Continuous output power (1kHz, 0.1% THD+N): 300W/8Ω, 600W/4Ω, 1000W/2Ω (AC line held constant)
• Frequency response: 1Hz–650kHz (-3dB, 50Ω source impedance)
• Harmonic distortion (500kHz BW, 25Vrms in 4Ω or 8Ω): <0.0016% at 1kHz, <0.0018% at 10kHz, <0.0028% at 20kHz
• Harmonic distortion (90kHz BW, 25Vrms in 4Ω or 8Ω): <0.0005% at 1kHz, <0.0006% at 10kHz, <0.0015% at 20kHz
• Peak output voltage: 148Vp-p into 8Ω, 156Vp-p no load
• Input impedance: 82kΩ (1kHz, BAL/SE)
• Voltage gain: 29dB (1kHz, BAL/SE)
• Intermodulation distortion: <0.001% (SMPTE 4:1), <0.002% (CCIF)
• Signal-to-noise ratio: 117dB, 119.5dBA weighted (22kHz BW)
• Slew rate: 72V/μs
• Output impedance: 0.01Ω (100Hz), 0.011Ω (1kHz), 0.015Ω (10kHz)
• Damping factor: 700 (1kHz, ref 8Ω)
• Dimensions: 17.50in (444mm) W x 19.37in (492mm) D x 8.74in (222mm) H
• Weight: 97.7lb (44.3kg) net, 111.6lb (50.6kg) gross
