Bowers & Wilkins CCM683 - In-Ceiling Speaker - Piece

Description

The Bowers & Wilkins CCM683 is a high-performance directional in-ceiling speaker with an 8" blue Aramid Fibre bass/midrange driver and a Nautilus swirl-loaded aluminum dome tweeter, adjustable via a three-position EQ switch to improve off-axis response.

Features

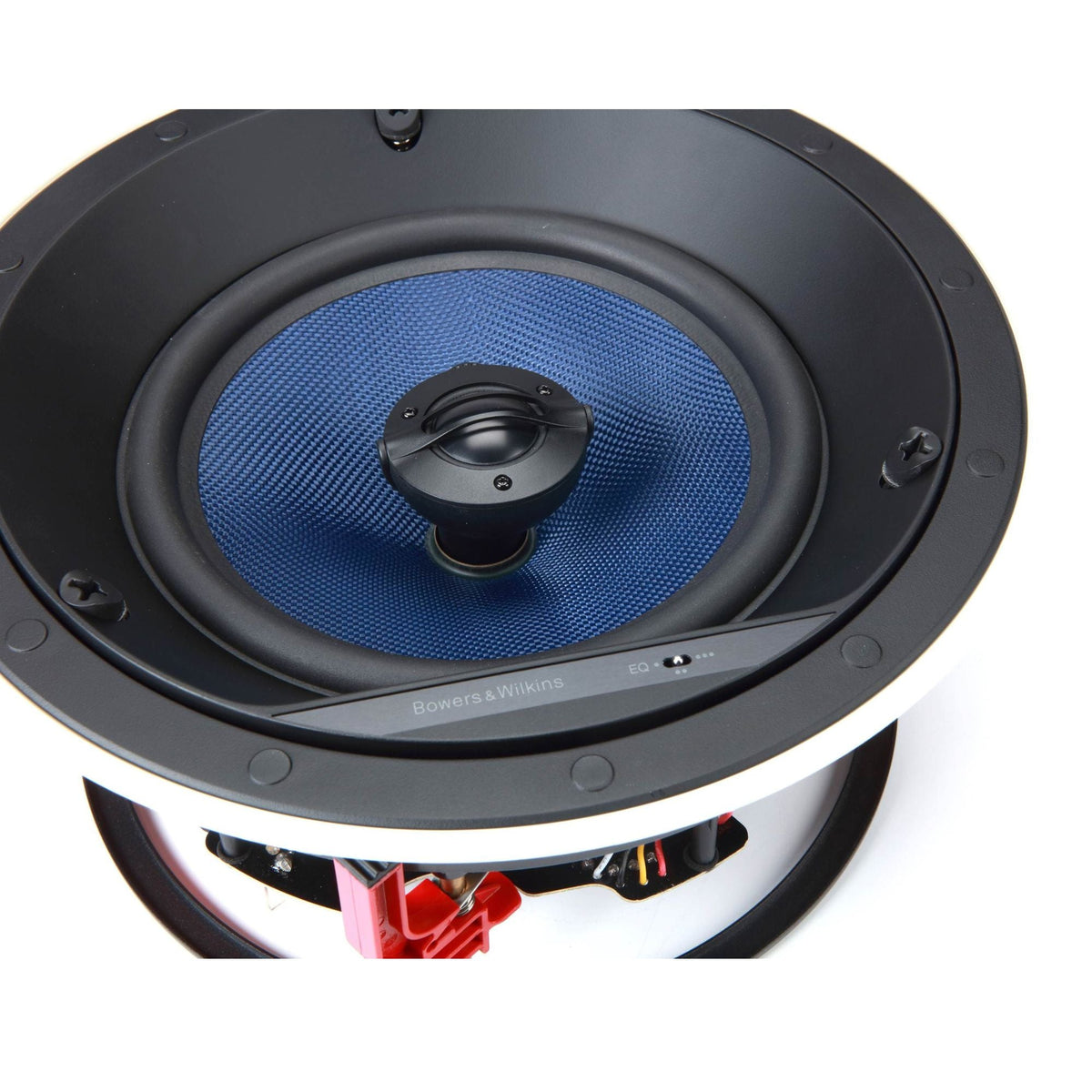

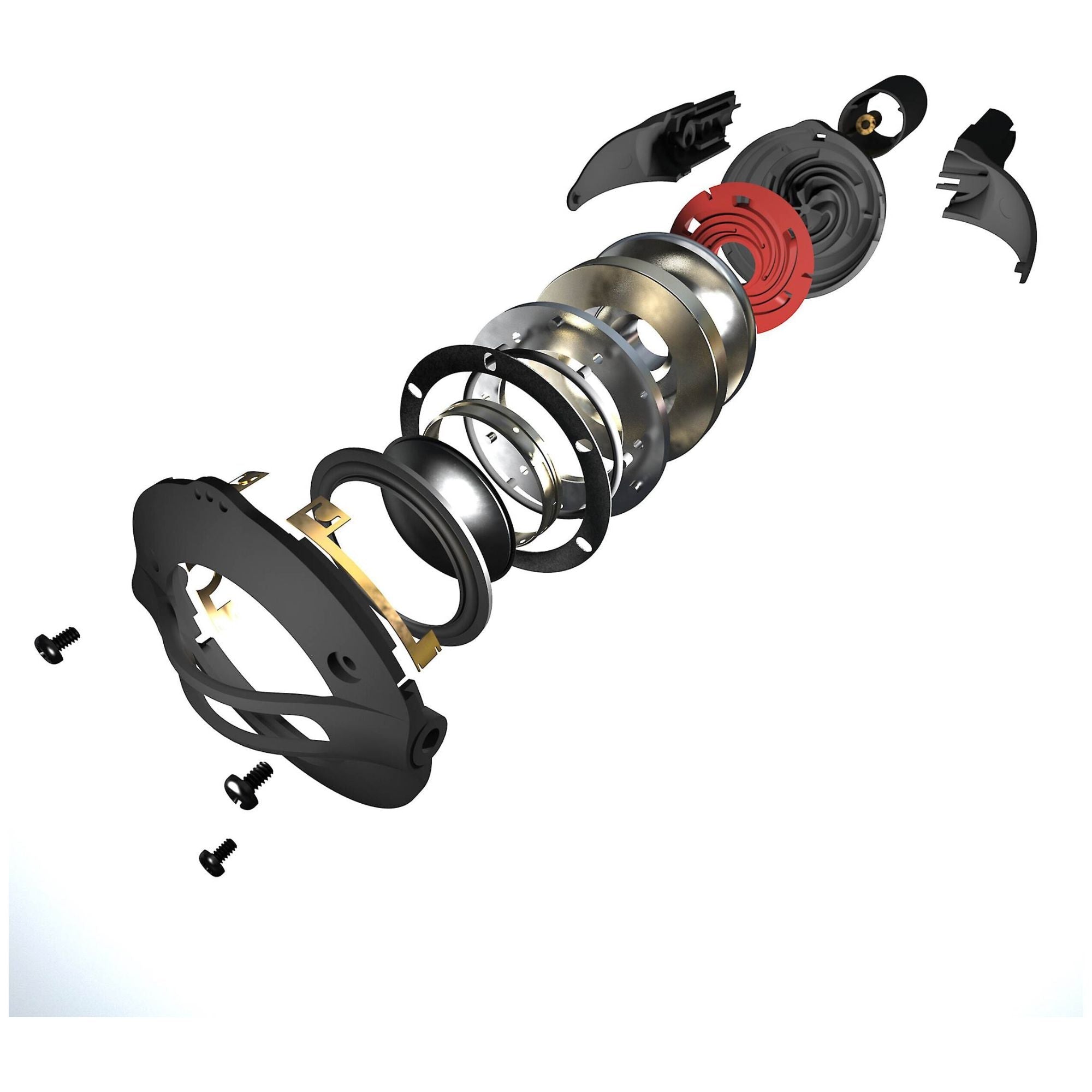

• Nautilus swirl-loaded aluminum dome tweeter for vibrant, adjustable highs
• 8" Aramid Fibre cone bass/midrange driver in a die-cast chassis
• Three-position EQ switch to improve off-axis response

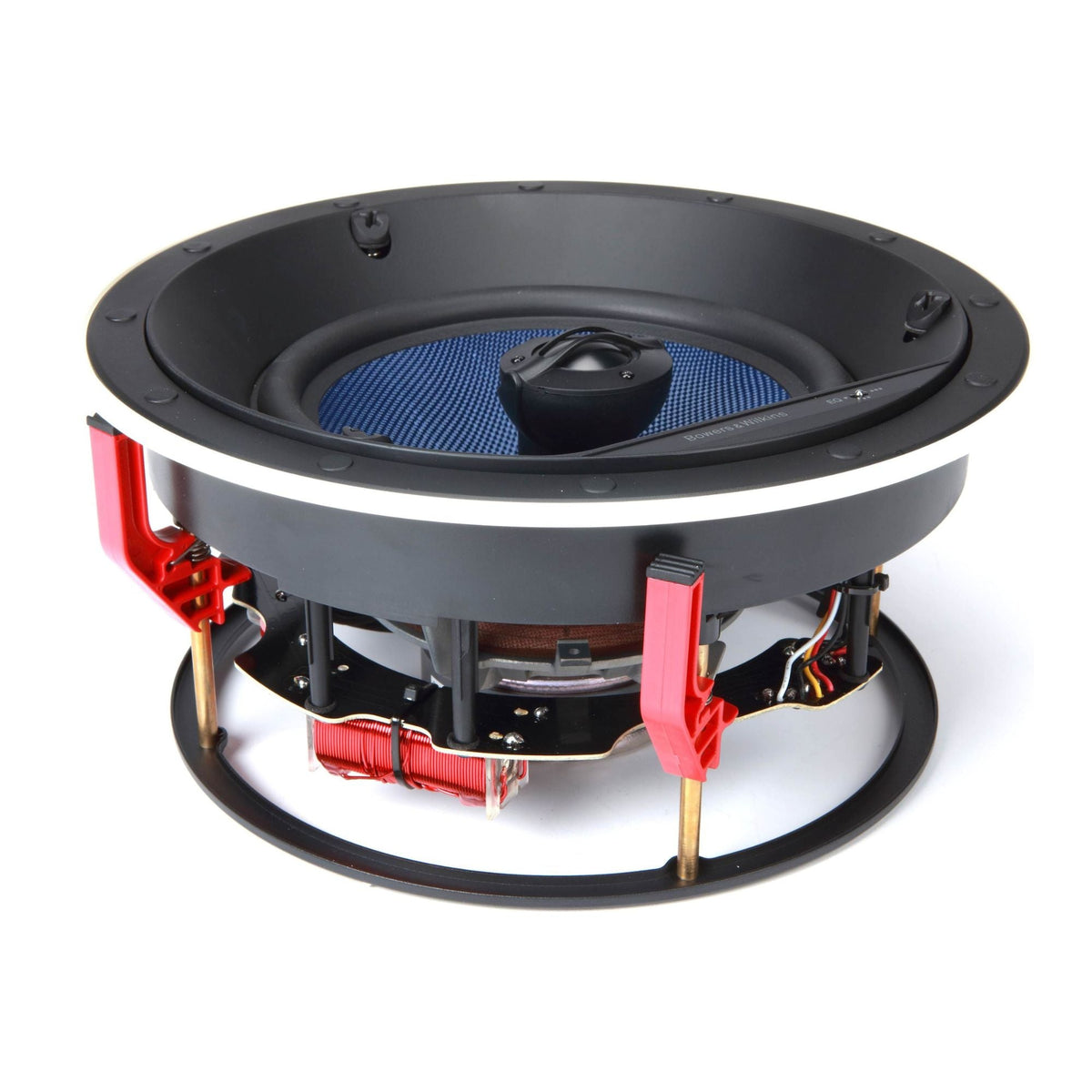

• QuickDogs fixing system for fast, secure installation
• Sold individually

Specifications

• Type: 2-way in-ceiling system
• Drive units: 1x 25mm Nautilus swirl-loaded aluminum dome tweeter, 1x 200mm blue Aramid Fibre cone bass/midrange
• Frequency response: 35Hz–50kHz
• Sensitivity: 88dB
• Peak power handling: 130W
• Impedance: 4.5–8Ω
• Connectivity: Spring clip
• Frame: 290mm diameter, 133mm depth
• Cut-out: 250mm diameter, 133mm depth
• Pre-mount kit: C8
• Back box: 6C
• Weight (shipping): 10 lb
