Features

• Input level (line in)
• Input level (speaker in)
• Low-pass filter bypass
• Bass extension
• Bass roll-off alignment
• Auto sense on / standby
• Phase switch

Description

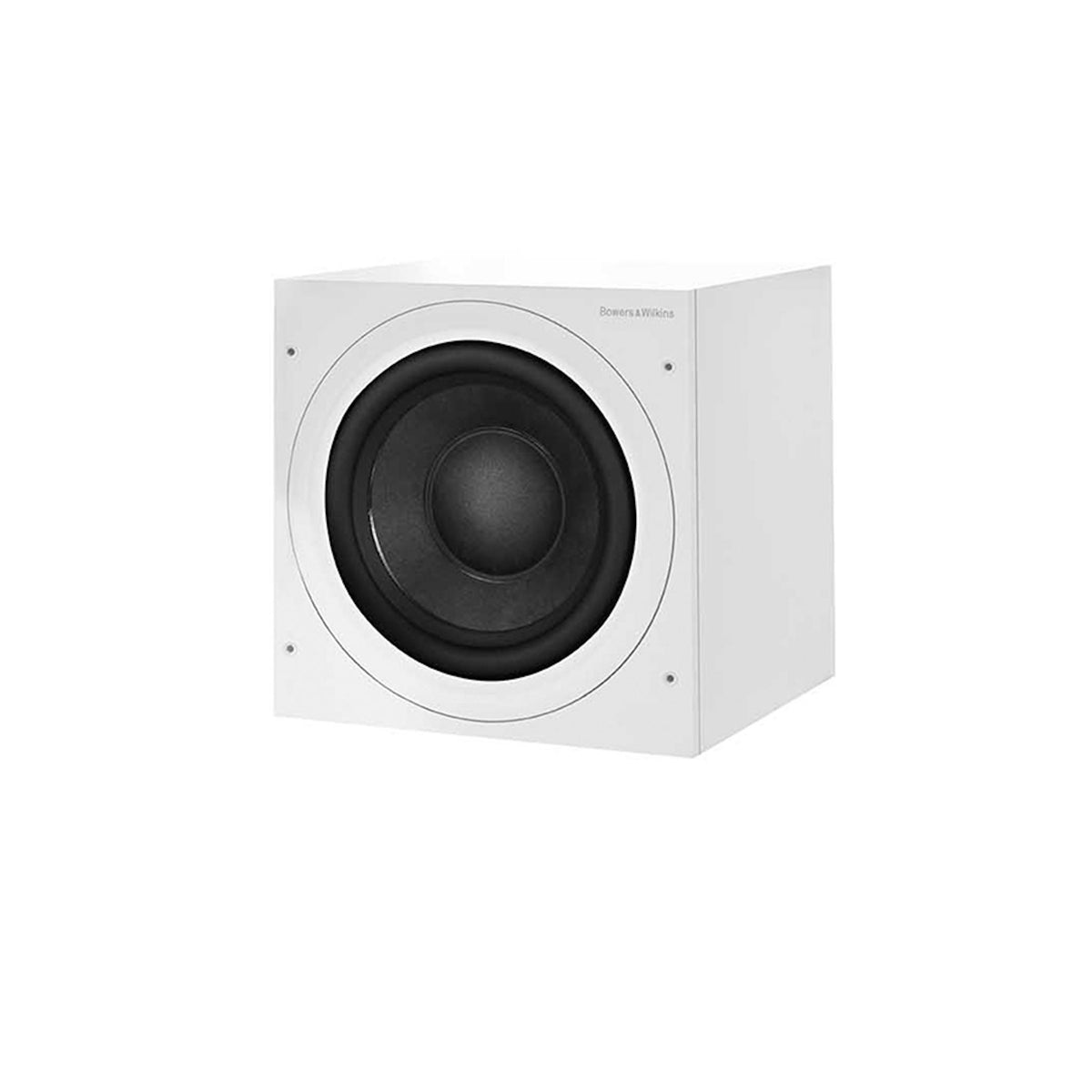

Active closed-box subwoofer system

Drive unit

ø250mm (10 in) paper / Aramid fiber cone long-throw

Frequency range

-6dB at 20Hz and 25 / 140Hz adjustable (EQ at A)

Frequency response

±3dB 27Hz – 40 / 140Hz adjustable (EQ at A)

Bass extension

• -6dB at 20Hz (position A)
• -6dB at 25Hz (position B)
• -6dB at 30Hz (position C)

Power output

200W

Rated power consumption

40W / 0.5W standby

Input impedance

33kΩ

Signal / noise

>90dB

Inputs

• Line in (RCA Phono)
• Speaker in (Binding post)
• 12v trigger (3.5mm jack)
• Low-pass filter
• Active 4th-order, variable cut-off frequency

Dimensions

• Height: 310mm (12.2 in) not including feet or spikes
• 322mm (12.7in) including feet
• 338mm (13.3in) including spikes
• Width: 310mm (12.2 in)
• Depth: 347mm (13.66in) not including grilles
• 375mm (14.8 in) including grilles and controls

Net weight

12.5kg (27.6 lb)

Cabinet finishes

• Black
• White

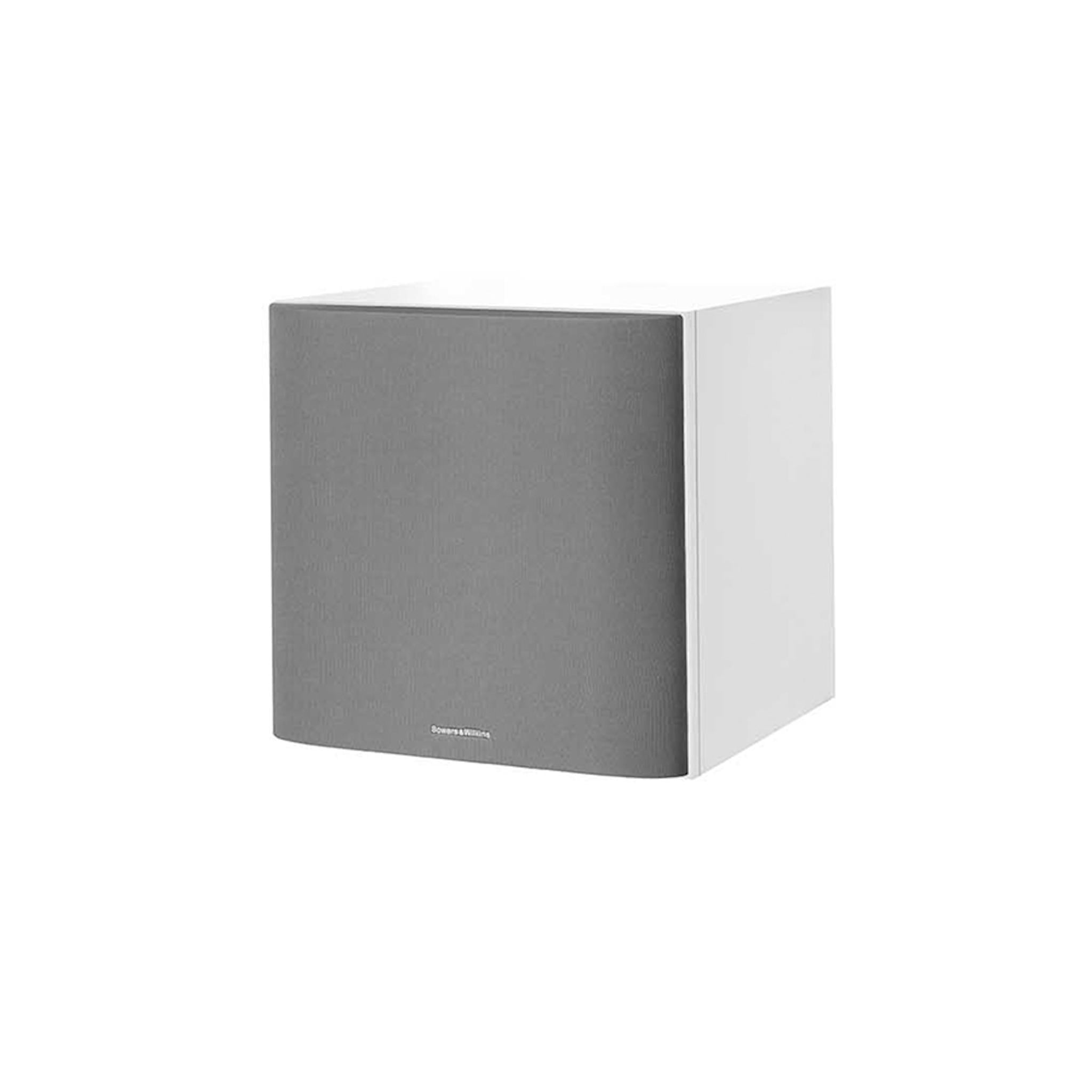

Grille finishes

• Black
• Grey
