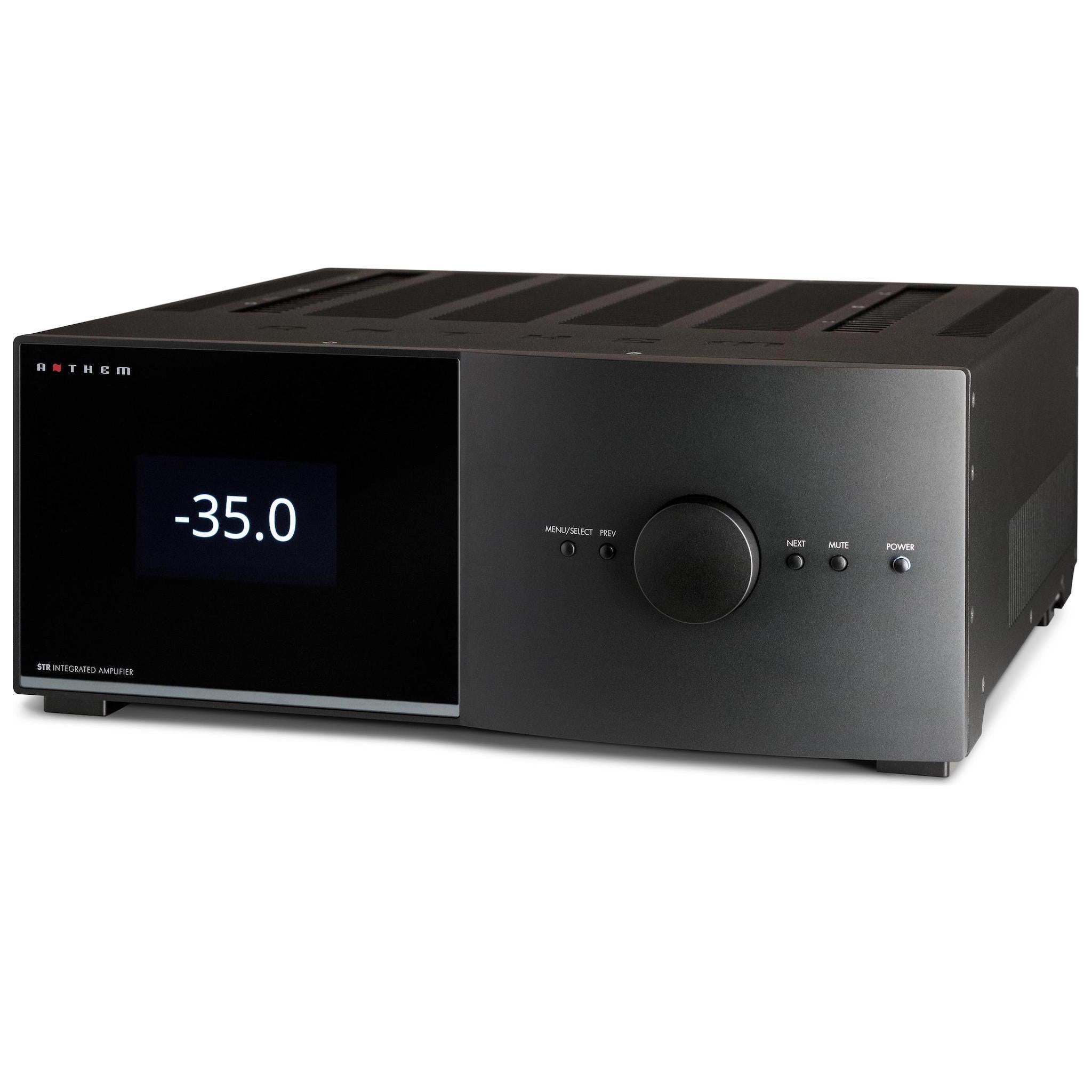

Anthem AV STR Integrated - Integrated Amplifier

Description

The STR Integrated Amplifier is Anthem's flagship two-channel component, combining a high-resolution preamp, a high-current amplifier section, and onboard Anthem Room Correction (ARC) in one Canadian-designed and crafted unit. It delivers up to 550W continuous per channel into 2 ohms, with MM/MC phono inputs, asynchronous USB audio up to 32-bit/384kHz and DSD, and flexible bass management for one or two subwoofers.

Features

• High-resolution preamplifier section
• High-current, high-output amplifier section with 8 bipolar output devices per channel, toroidal transformer power supply, and Advanced Load Monitoring (ALM)
• Anthem Room Correction (ARC) for optimized in-room response
• Bass management for two subwoofers, in mono or stereo
• Up-sampling of lower-resolution sources to 32-bit/192kHz
• S/PDIF coaxial and optical, and balanced AES/EBU digital inputs
• Asynchronous USB audio input supporting 32-bit/384kHz PCM and DSD 2.8/5.6MHz
• MM and MC phono, balanced XLR, and single-ended analog inputs
• Analog Direct mode
• Graphic front panel TFT display for setup and navigation

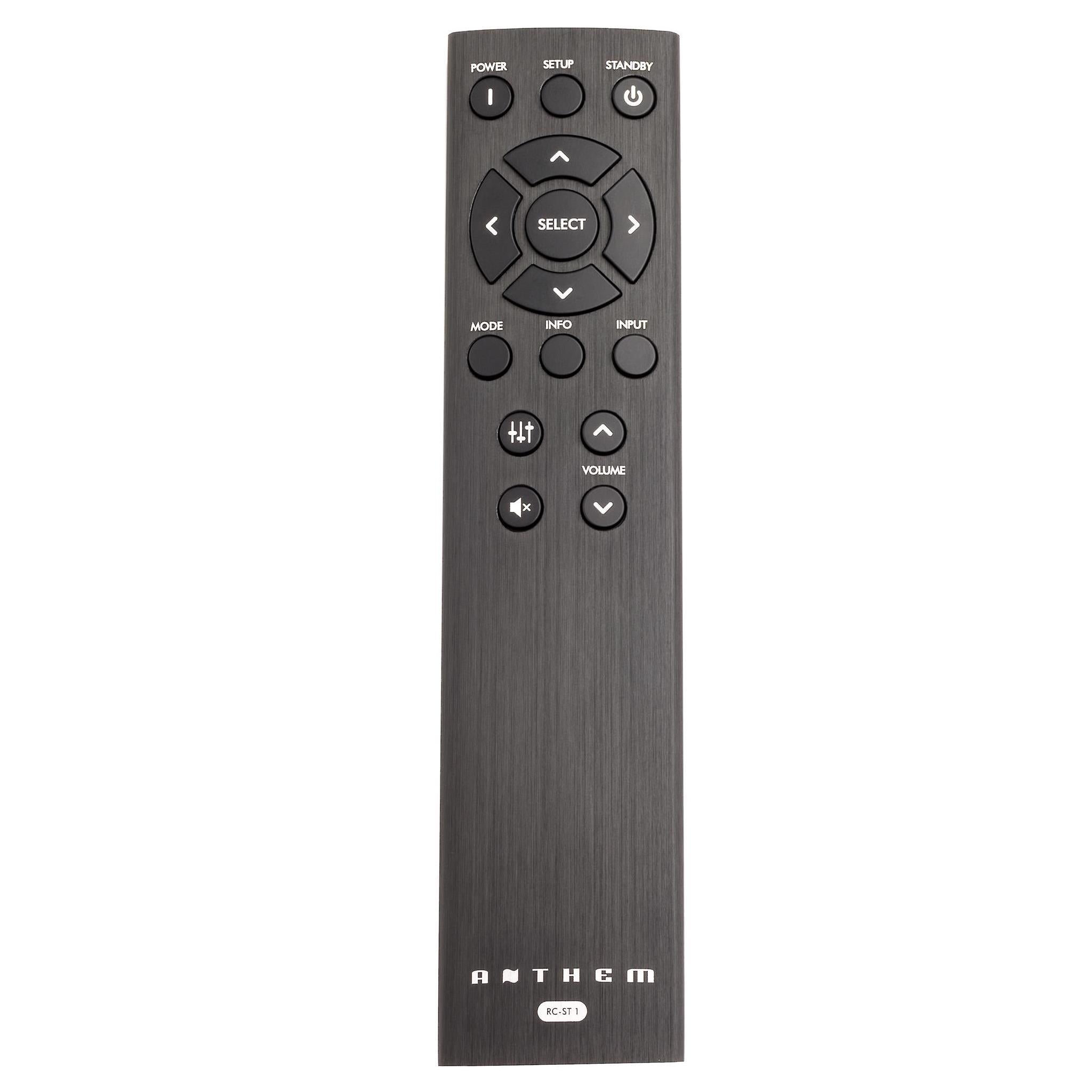

• Controllable via Ethernet, RS-232, or supplied IR remote
• Available in Silver and Black finishes
• Crafted in Canada

Specifications

• Power output: 200W @ 8Ω, 400W @ 4Ω, 550W @ 2Ω (all continuous)
• Phono input impedance: 100Ω (MC), 47kΩ (MM)
• Phono input capacitance: 270pF (MM)
• Maximum phono input: 3.6mV (MC), 37.7mV (MM) at 1kHz for <0.1% THD, 20Hz–20kHz
• Phono gain (default, user adjustable ±20dB): 55dB (MC), 35dB (MM)
• RIAA response: ±0.1dB (20Hz–20kHz)
• THD+N (1kHz, 20Hz–20kHz BW, 2Vrms output): 0.008% (MC), 0.005% (MM)
• S/N ratio (1kHz, IEC-A, 2Vrms output): 82dB (MC), 96dB (MM)
• Frequency response: digital-in 192kHz 10Hz–50kHz (+0.00/-0.50dB); 96kHz 10Hz–45kHz (+0.00/-0.50dB); 44.1kHz 10Hz–20kHz (+0.00/-0.03dB); analog-in DSP mode 10Hz–40kHz (+0.02/-0.20dB); analog-in direct mode 10Hz–80kHz (+0.00/-0.10dB)
• THD: 0.00% across digital-in 44.1kHz, analog-in DSP mode, and analog-in direct mode
• Power consumption: 0.38W standby (120V) / 0.45W (240V); 1.1W standby+network (120V) / 1.2W (240V); 40W idle; 250W typical use; 500W high output
• Dimensions: 6-3/4in (17.2cm) H x 17in (43.2cm) W x 17-1/2in (44.5cm) D (not including power cord)
• Weight: 18kg
