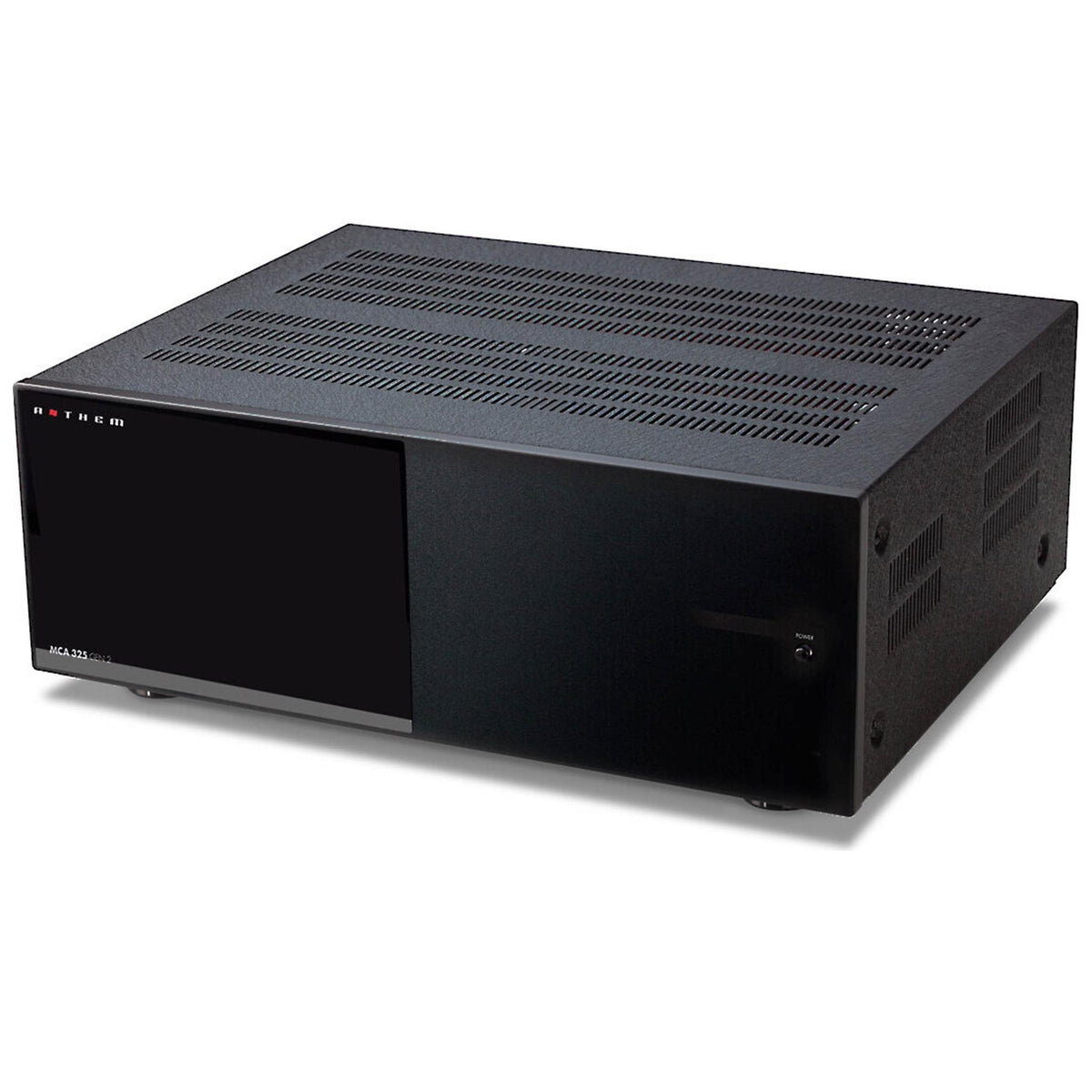

Anthem AV MCA 325 GEN 2 - Power Amplifier

Description

The MCA 325 GEN 2 is a 3-channel power amplifier, crafted in Canada to match the AVM 60 processor and MRX receivers. It's completely redesigned for lower THD and noise, delivering 225W across 3 channels with a shared dual power supply, custom low-noise toroidal transformer, and next-generation Advanced Load Monitoring (ALM) technology.

Features

• Delivers lower THD (Total Harmonic Distortion) for cleaner, purer sound and lower noise
• Completely redesigned for improved audio performance and reliability
• Higher current output for lower distortion
• Cosmetic match for AVM 60 A/V pre-amplifier/processor
• Improved Advanced Load Monitoring (ALM) system, not in the signal path, with front panel status LED
• 8 bipolar output devices per channel for less stress on each device
• Custom low-noise, high-power toroidal transformer with high rail voltages
• Shared dual power supply across all channels for instant full bursts of power without affecting channel separation
• Custom-designed, oversized audiophile binding posts
• 3 on/off modes: trigger, manual, auto sensing
• Less than 2 watts standby power consumption
• Crafted in Canada

Specifications

• Power: 225W across 3 channels
• THD: 0.00% at 1kHz, 0.02% at 20kHz
• Frequency response: ±0.1dB open circuit, 8Ω, and 4Ω; ±0.2dB at 2Ω
• Signal-to-noise ratio: 120dB (IEC-A, ref. 225W)
• Power bandwidth: 90kHz (-3dB at 200W into 8Ω)
• Slew rate: 30V/μs
• Damping factor: 300 (20Hz–1kHz)
• Channel separation: >65dB (100Hz–10kHz)
• Input impedance: 10kΩ (RCA) / 15kΩ (XLR)
• Input sensitivity: 1.5Vrms (225W into 8Ω)
• Voltage gain: 29dB
• Power consumption: 47W idle, 350W typical, 1.4W standby, 750W high output
• Inputs: Single-ended, balanced, relay trigger (3.5mm mono jack)
• Outputs: Speaker binding posts, relay trigger (3.5mm mono jack)
• Dimensions: 6-5/8in (16.9cm) H (4U with rackmount kit) x 17-1/4in (43.9cm) W x 18-1/8in (46cm) D
• Weight: 19.5kg
• Power supply: 108–132V @ 60Hz (120V version) or 198–264V @ 50Hz (220-240V version)
