SVS PB-5000 - Subwoofer

The SVS PB-5000 R|Evolution is a flagship ported subwoofer built around an all-new 15-inch high-excursion driver with dual voice coils, driven by a 2,000W continuous / 5,000+W peak dual-monoblock amplifier. A 295MHz Analog Devices DSP and the SVS Subwoofer Control app give precise tuning down to 13Hz with cinematic slam and musical detail. It's available in Piano Gloss Black or Black Ash finishes.

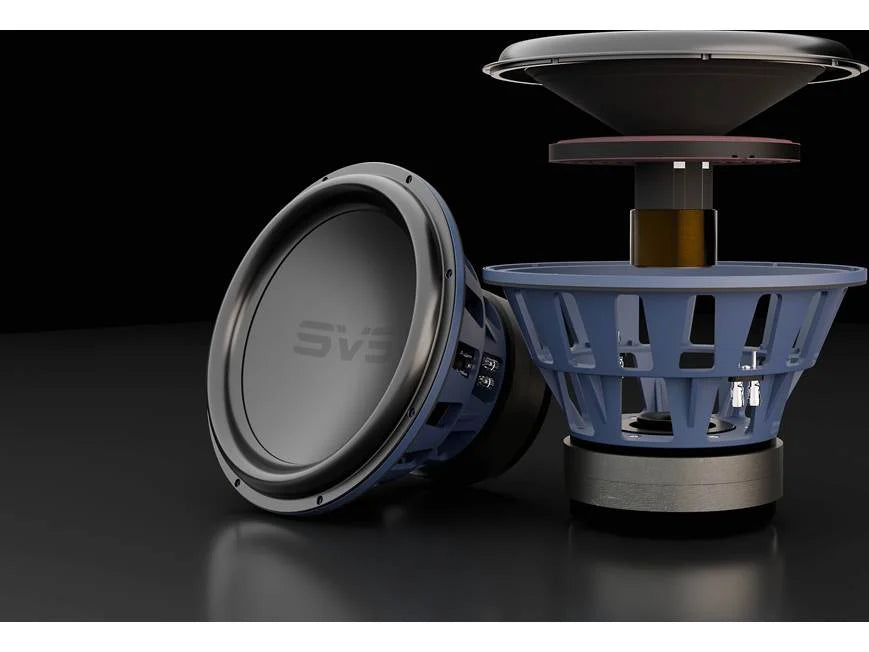

• 15-inch long-throw glass fiber composite driver with dual edge-wound voice coils for high output with pinpoint control
• Dual-mono STA-2000D amplifier design with discrete MOSFET output, rated 2,000W continuous / 5,000+W peak
• 295MHz Analog Devices DSP with 56-bit filtering for precise frequency response and system monitoring

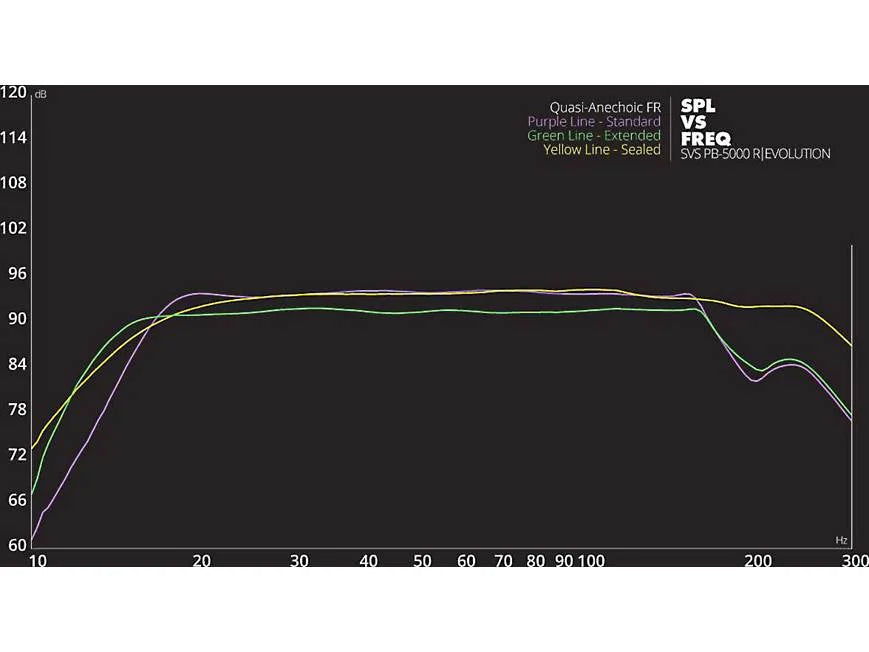

• Triple 3.5-inch high-flow ports for extension down to 13Hz
• Switch Mode Power Supply with active Power Factor Correction for consistent performance on any household circuit
• SVS Subwoofer Control app (iOS, Android, Fire OS) with volume, low-pass filter, phase, six-band PEQ, and room gain controls
• Auto EQ room correction using a smartphone mic or optional SVS Auto EQ microphone

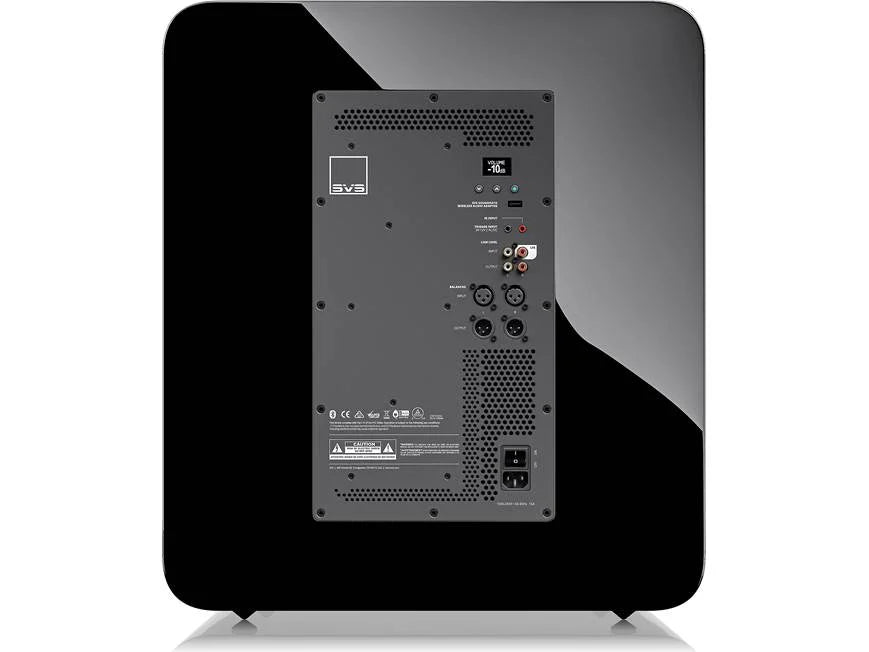

• Rear panel OLED display and control interface with Display Flip function

• Driver: 15-inch long-throw, dual voice coil, glass fiber composite cone
• Amplifier: 2,000W Continuous / 5,000+W Peak, dual-mono Class D with discrete MOSFET output
• DSP: 295MHz Analog Devices, 56-bit filtering, 120dB signal-to-noise ratio DACs
• Ports: Triple 3.5-inch high-flow ports (foam tuning plugs included)
• Inputs: Unbalanced RCA (10kΩ), Balanced XLR (14kΩ), 3.5mm trigger, 3.5mm IR
• Standby Power: 0.5W low standby consumption
• Finishes: Piano Gloss Black, Black Ash
• Dimensions (with grille): 23.4" H x 20.5" W x 28.7" D
• Weight (unboxed with grille): 153.9 lbs (69.8 kg)
• Shipped Weight: 174.3 lbs (79.1 kg)
• Included Accessories: Protective grille frame, iso-elastomer feet, 3 foam port plugs, heavy-duty 6' power cord, quick start guide
