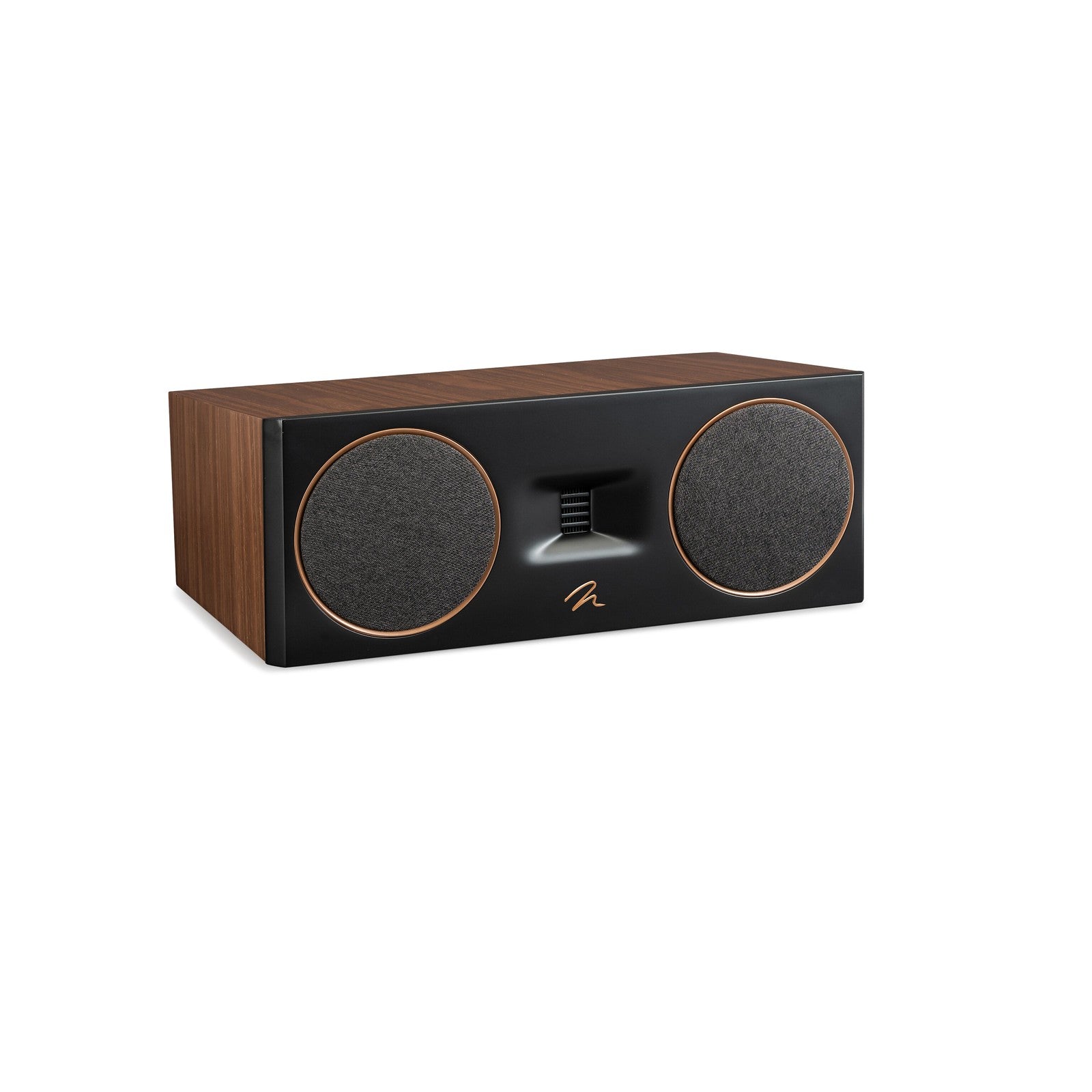

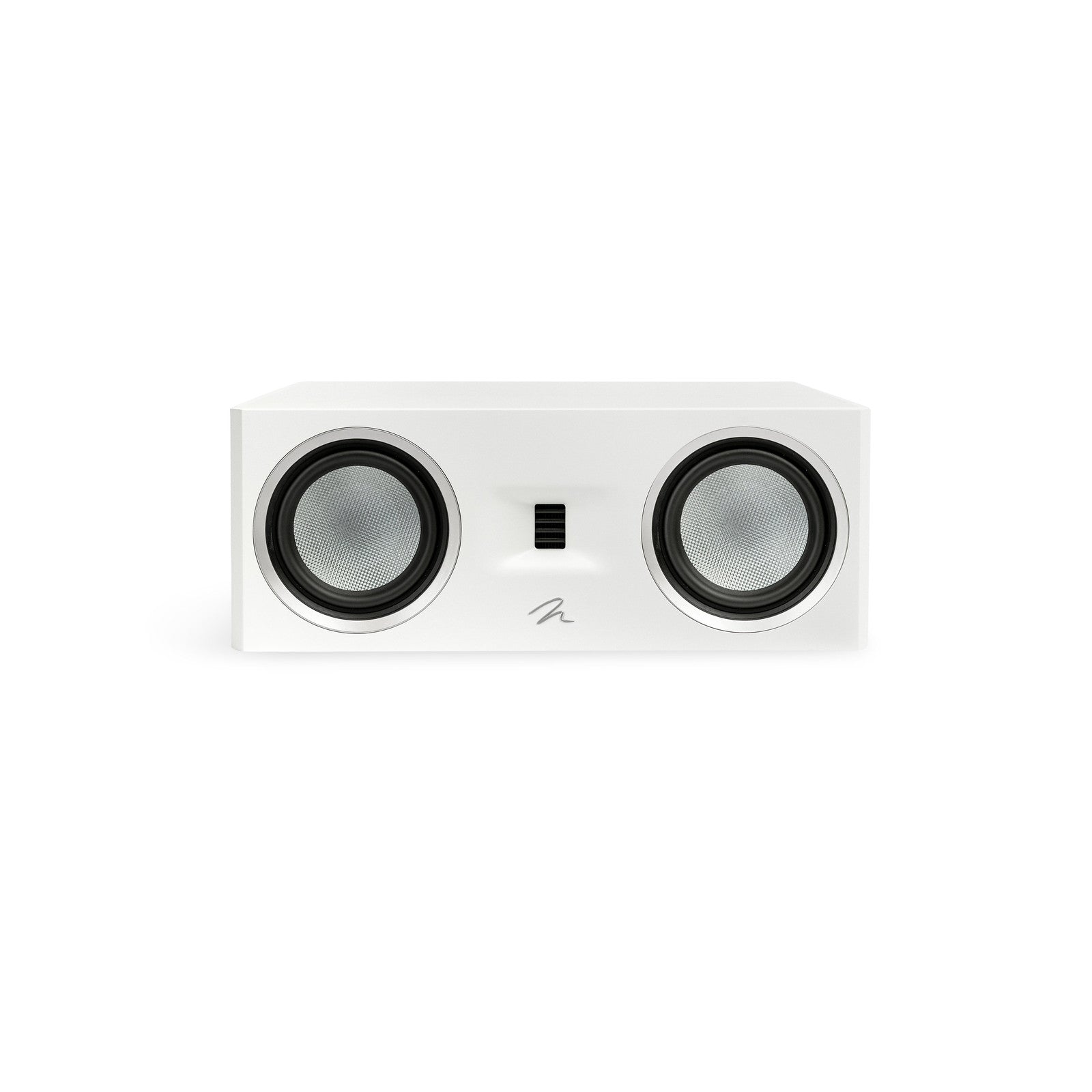

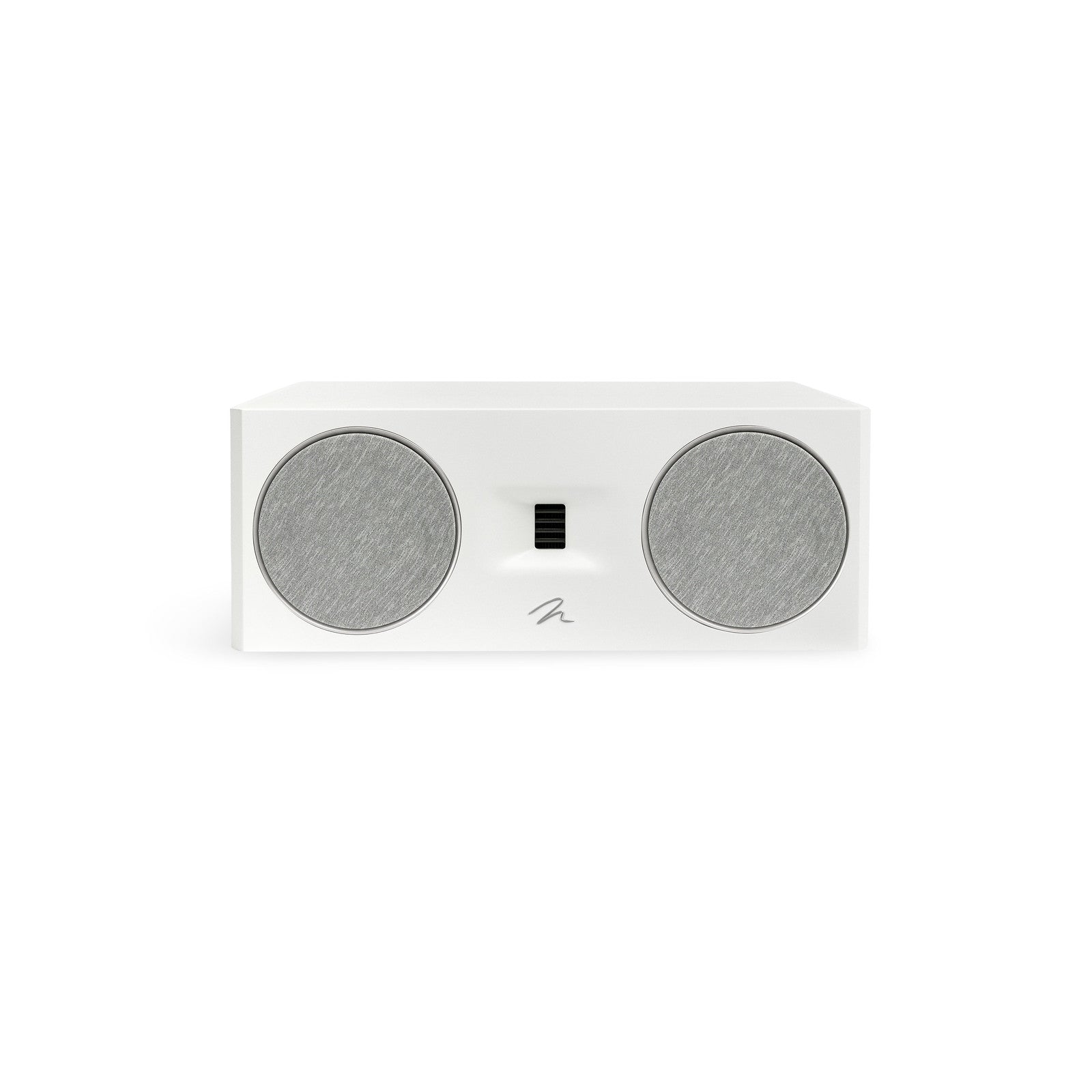

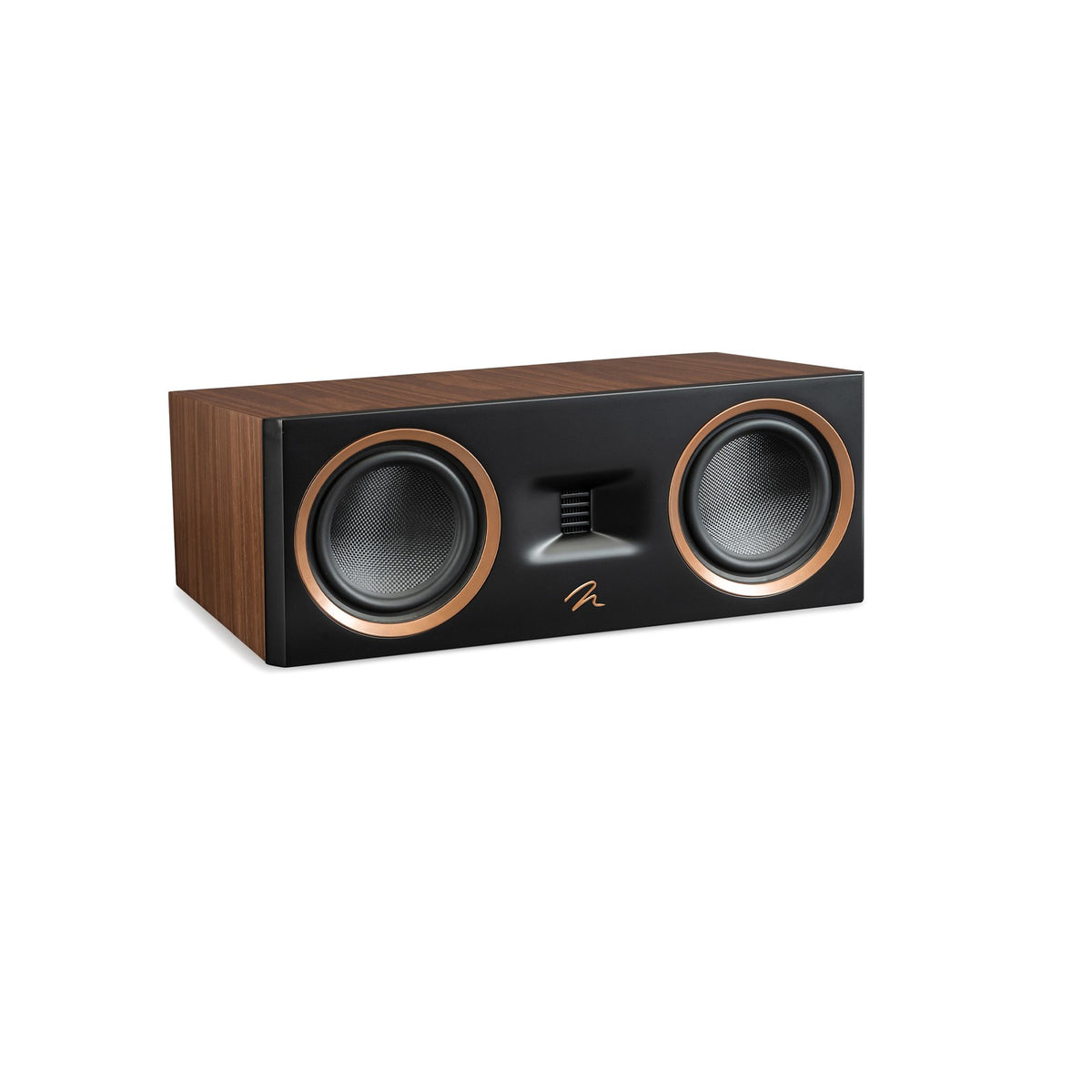

Motion C10
The ideal compact Center Channel option to deliver crystal clear dialogue perfectly complimenting your Motion® home theater system. The angled flippable cabinet design of Motion® C10 allows the option to angle the speaker upwards towards the listener when it is mounted on a lower shelf, helping to improve dialogue clarity. Performance and practicality were top concerns for Motion® C10, so its relatively compact size makes it compatible with more furniture options than larger designs.
Legendary MartinLogan Sound
MartinLogan speakers are known for their exceptional articulation, detail and realism, regardless of the listening environment. By using advanced thin-film technologies and Controlled Dispersion, MartinLogan delivers a unique and unparalleled listening experience that is not commonly found in other speakers.
Gen2 Obsidian Folded Motion Tweeter S
Our signature thin-film tweeter technology just got better. With an upgraded motor structure, the latest Gen2 FMT provides higher output and lower distortion than ever before.
Folded Motion® Waveguide
Enhances the Controlled Dispersion of the tweeter, blanketing the listening area with incredible detail and precision. Avoids performance robbing room reflections and provides a more consistent sound across a wider seating area.
Anti-Lobing Center Channel Design
Like its more premium siblings, the C100 and C10, the C1 also utilizes a 2.5-Way crossover design to eliminate lobing and preserve the tonality of the source material. This results in a significant reduction of negative effects on sound reproduction, leading to a more precise and accurate listening experience.
Flippable Center Channel Cabinet
The unique flippable design of the Motion® cabinet allows for better sound clarity and immersion when placed on a lower shelf or piece of furniture by directing the sound upwards towards the listener's ears.
SPECIFICATIONS
Dimensions (H x W x D, with feet) |
7-1/4” x 19” x 11-1/2” |
Frequency Response |
63 Hz - 25 kHz |
Tweeter Dispersion (horizontal x vertical) |
90° x 90° |
Recommended Amplifier Power |
20 - 200 watts |
Sensitivity |
93 dB |
Impedance |
4 ohms |
High Frequency Driver |
1” x 1.4” (2.6 x 3.6cm) Gen2 Obsidian Folded Motion Tweeter with 9.2 in2 (59.4 cm2) diaphragm |
Crossover Frequency |
1000 Hz, 2,000 Hz (2.5-way) |
Mid-Frequency Drivers |
2x 5.5” (14cm) Woven Fiberglass cones with cast polymer baskets. Non- resonant sealed chamber format. Unibody cone construction. Anti-lobing 2.5-way crossover design. |
Cabinet |
Rear Ported |

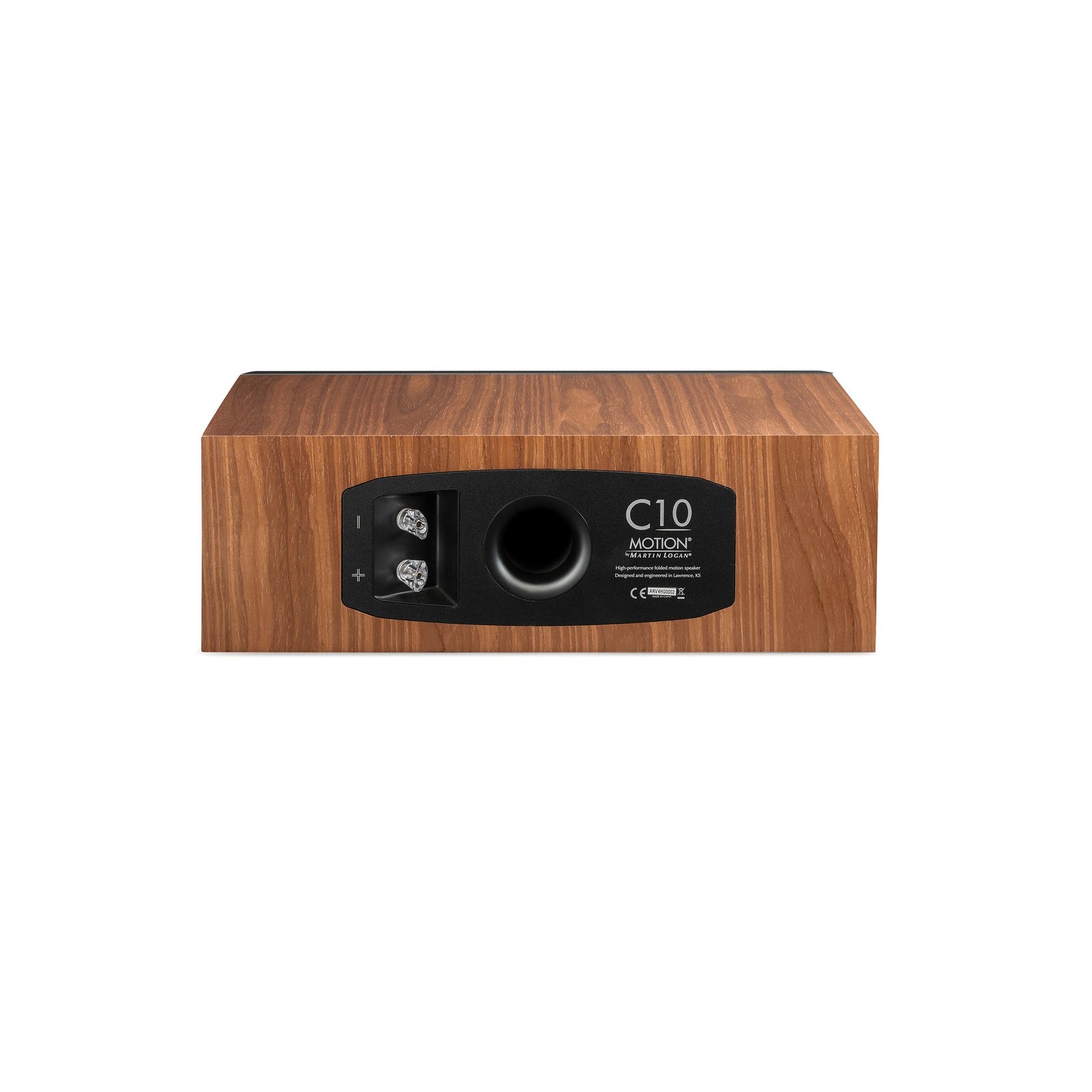

Binding Post Inputs |
Custom 5-way binding posts |
Weight |
23.5lbs / 10.7kg |
Finish |
Gloss Black, Walnut, and Satin White |
