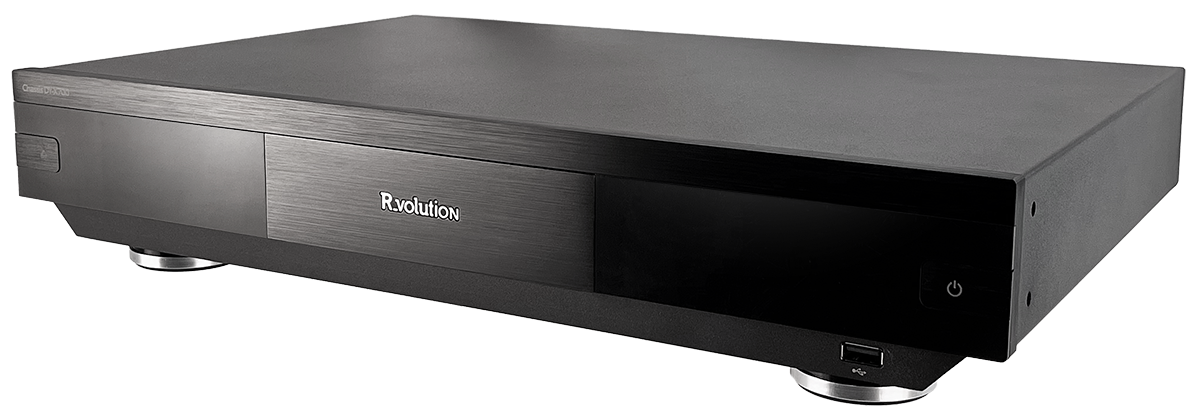

R_Volution Chassis DIY 700 + SONY UBP-X700

Description

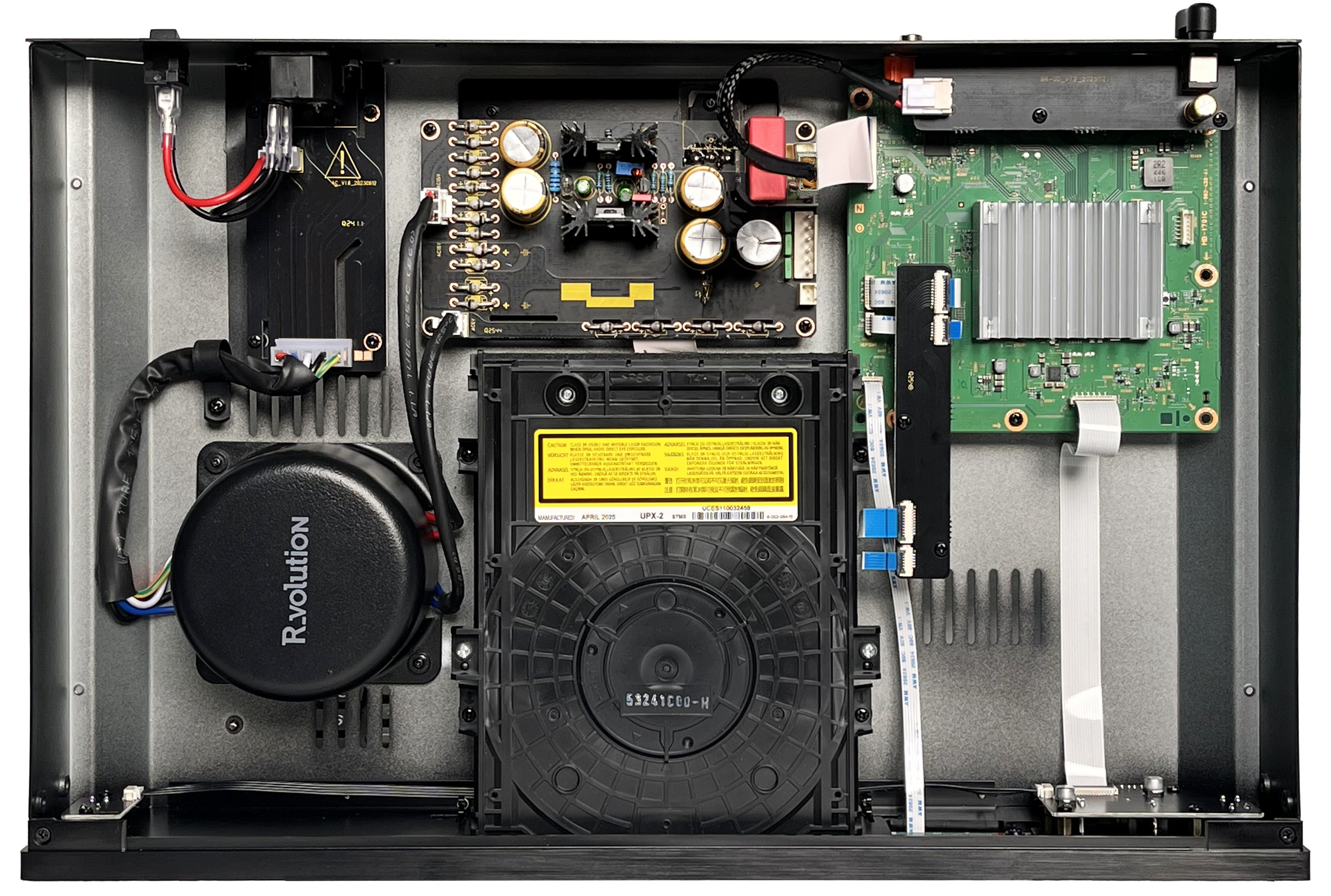

The R_Volution Chassis DIY-X700 is a linear power supply upgrade kit that transforms a Sony UBP-X700 4K Ultra HD Blu-ray player into a true high-end unit. A massive 81W oxygen-free copper toroidal transformer and audiophile-grade components deliver a noise-free signal for improved image quality, deeper blacks, and more precise digital audio.

Features

• 81W oxygen-free copper toroidal transformer with Toshiba linear voltage regulator
• Low dropout (LDO) linear voltage regulator from Lintec
• Nichicon and Nippon Chemical audio-grade capacitors, WIMA video-specific capacitors

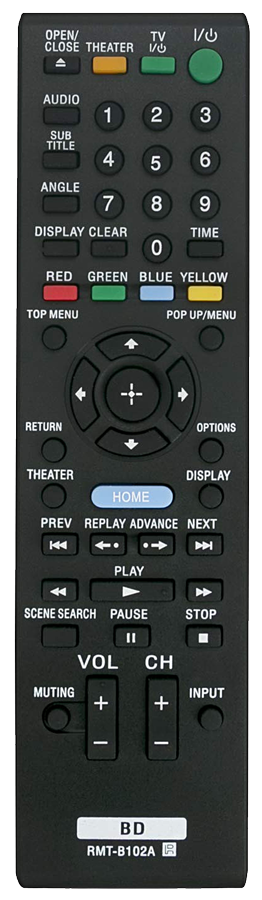

• Larger IR remote with additional control buttons, using original Sony IR codes
• Compatible with RTI, Control4, ProControl, Crestron, Savant, Philips Pronto, Elan, URC, and more
• Includes rack-mount ears and dedicated ground connector for custom installations

Specifications

• Power Supply: AC 100-240V, 50/60Hz
• Power Consumption: 30W (0.5W standby)
• Dimensions (without carton): 43.0 x 28.23 x 7.17cm
• Weight (without carton): 5kg
