Dali Sub E-9 F - Subwoofer

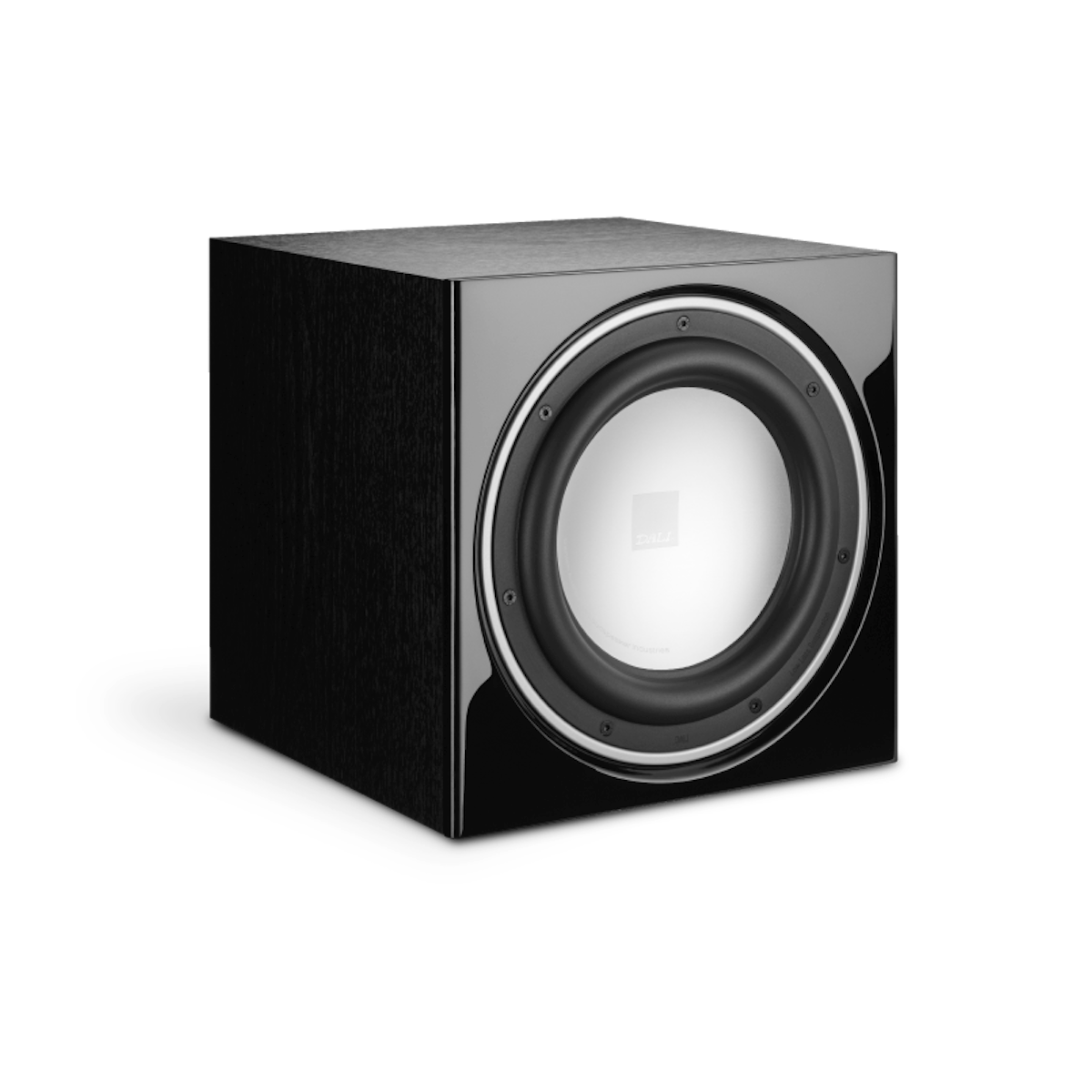

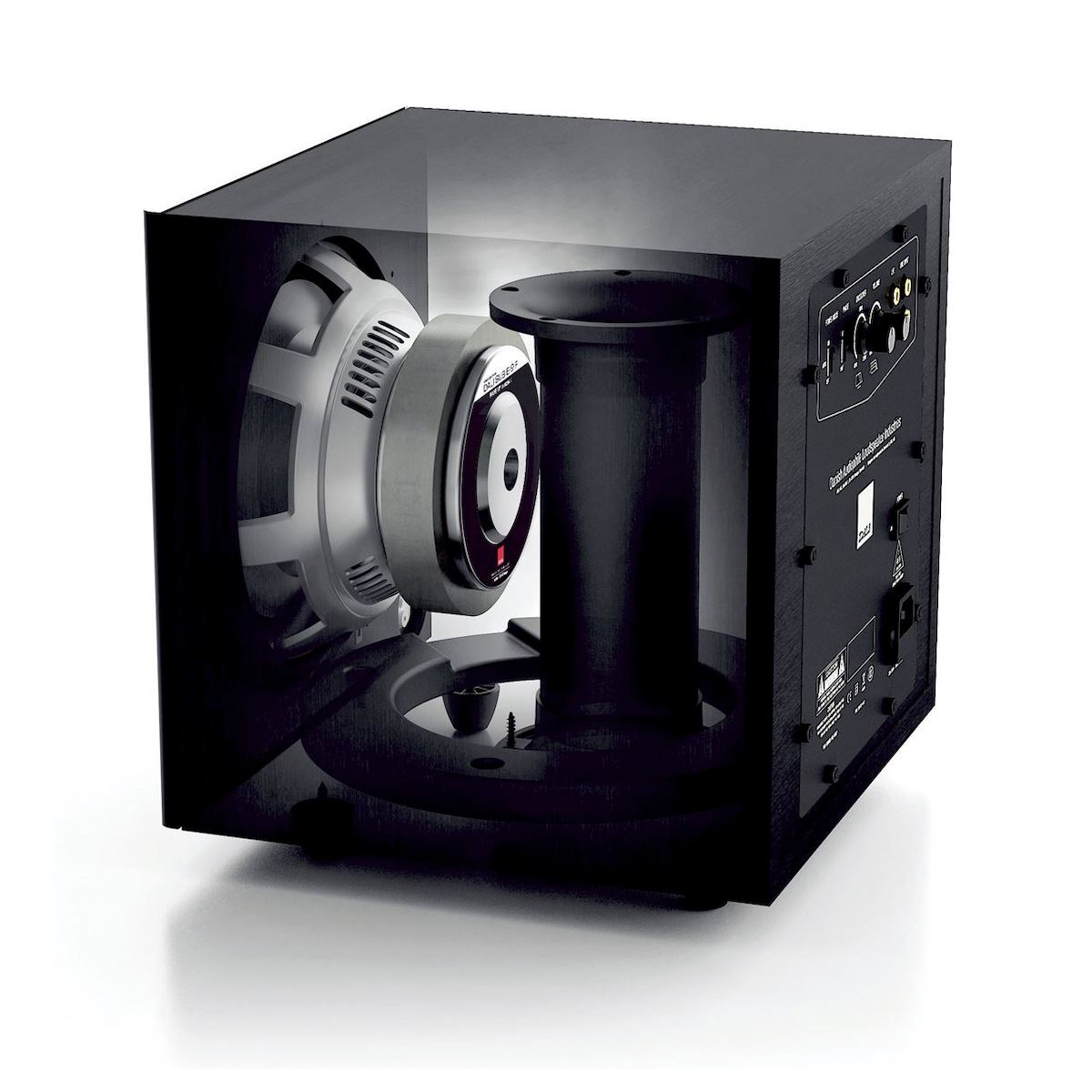

The DALI Sub E-9 F is an active subwoofer with a 9" pure aluminum cone woofer and a 170W RMS (220W peak) Class D amplifier, delivering powerful, precise bass. The cabinet is decoupled from the floor on oversized polymer spikes with a down-firing bass port for flexible positioning, including against a wall.

• 9" long-stroke aluminum cone woofer for stiff, low-distortion bass
• 170W RMS / 220W peak Class D amplifier with integrated signal limiter

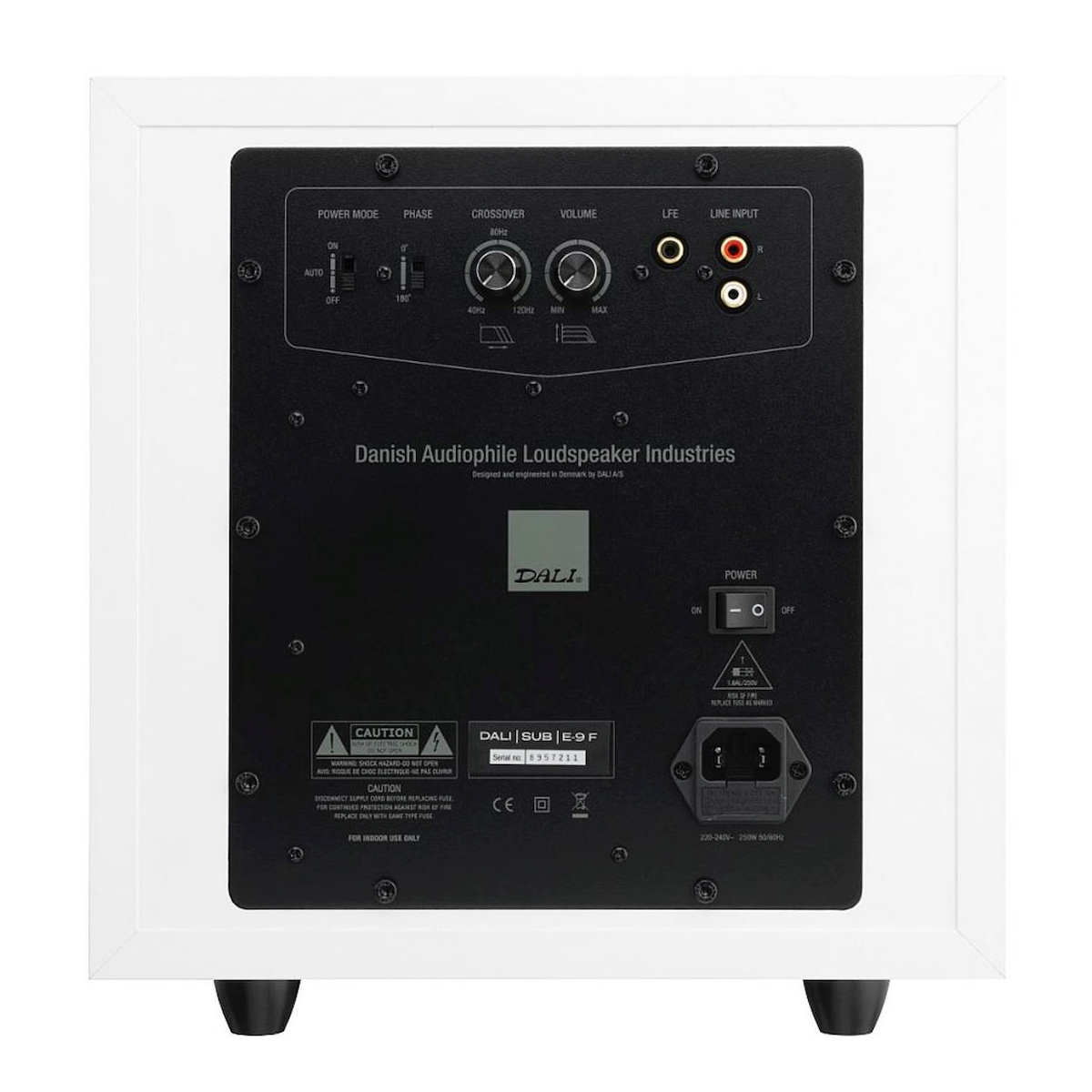

• LFE and LINE inputs for compatibility with almost any AV system
• Adjustable gain, crossover frequency, and phase controls
• Automatic power on/off via signal detection
• Down-firing bass port allows placement close to a wall
• Cabinet decoupled from floor via oversized polymer spikes to reduce turbulence

• Frequency range: 37Hz–200Hz (±3dB)
• Maximum SPL: 111dB
• Crossover frequency: 40–120Hz (adjustable)
• Driver: 1x 9" long-stroke aluminum cone
• Enclosure: Bass reflex, tuned to 39Hz
• Amplifier power: 220W peak / 170W continuous RMS
• Input impedance: 25kΩ
• Inputs: Mono (LFE), RCA, stereo (low-pass filtered)
• Magnetic shielding: No
• Recommended distance from wall: 8–30cm
• Max power consumption: 250W
• Standby power consumption: 0.4W
• Dimensions: 307 x 288 x 311mm (H x W x D)
• Weight: 11kg

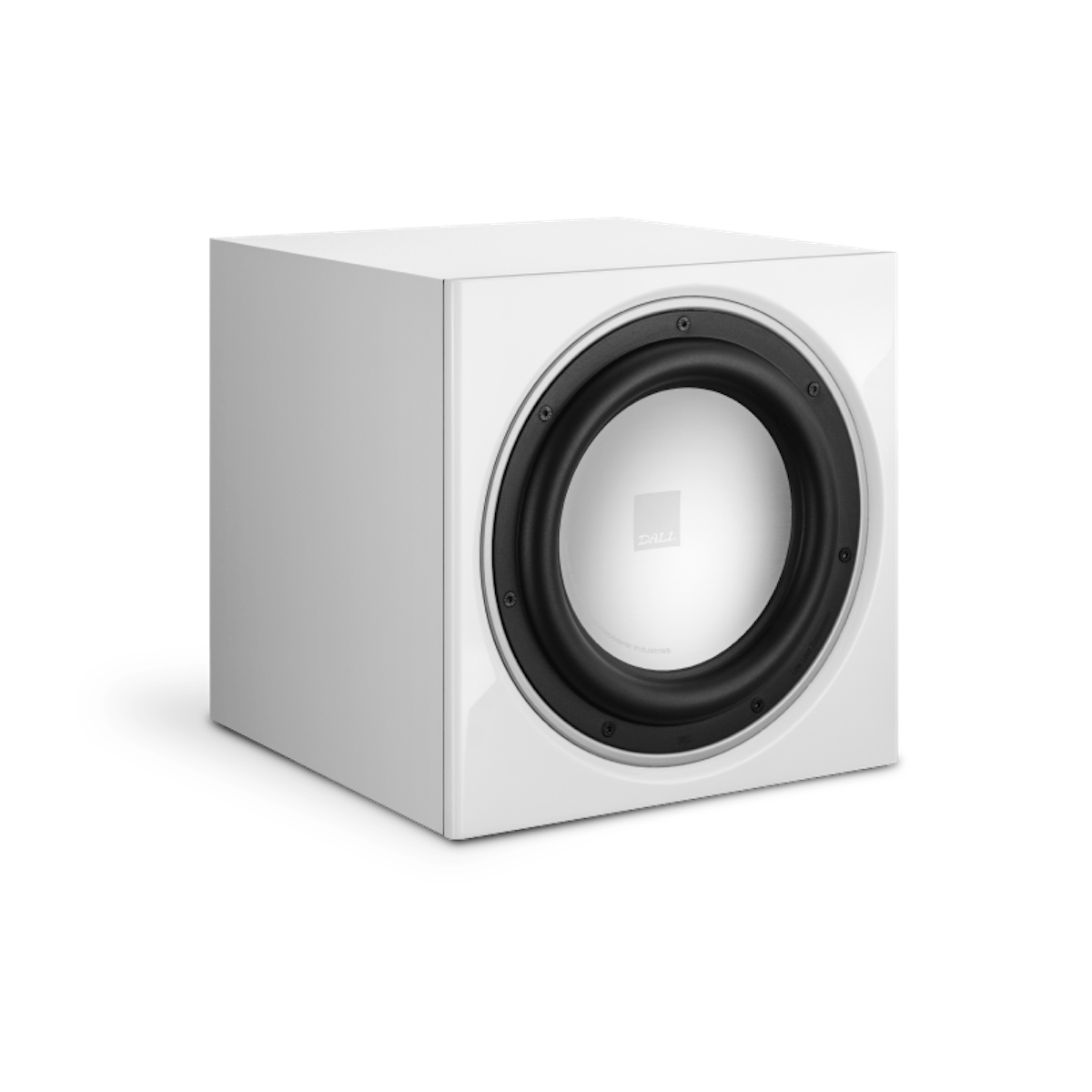

• Finishes: Black Ash, White

In the Box

• Manual
