Magnetar UDP800 - 4K UHD Dolby Vision Blu-ray Player

Description

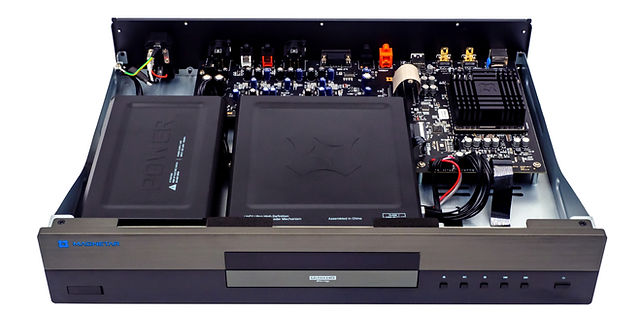

The Magnetar UDP800 is a 4K UHD Blu-ray player built around a quad-core MediaTek MT8581 chipset, supporting Dolby Vision and HDR10+ with dual independent Burr-Brown PCM1795 DACs for high-fidelity two-channel audio. Its rigid metal chassis and custom 60W low-noise transformer are built for reference-quality home cinema playback.

Features

• Quad-core MediaTek MT8581 chipset with advanced image decoding, supporting Dolby Vision, HDR10, and HDR10+
• Upscales lower-resolution sources to 4K 50/60Hz (3840x2160)
• Decodes DSD64/128, multi-channel DSD64, and 192kHz/24-bit PCM, with AIFF, ALAC, APE, FLAC, and WAV file support
• Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and DTS:X support
• Dual independent Burr-Brown PCM1795 DACs with MUSES8920 op-amps for two-channel D/A decoding
• Stereo XLR balanced and RCA unbalanced outputs, with dedicated Pure Audio mode
• Custom 60W low-noise transformer with two-stage filtering and Japanese Rubycon capacitors
• Solid metal chassis with brushed aluminum front panel, double-layer 1.6mm construction and 3mm steel base plate for vibration control
• Supports UHD-BD, BD, BD-R/RE, DVD-R/RW, DVD+R/RW, DVD-Video, DVD-Audio, SACD, CD, CD-R/RW, and USB HDDs up to 16TB, with DLNA/SMB network access

Specifications

• Disc types supported: UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE
• Analog audio outputs: Stereo XLR balanced, RCA unbalanced
• Optical/coaxial audio: Up to 2-channel/192kHz PCM, Dolby Digital, DTS
• HDMI audio: Up to 7.1-channel/192kHz PCM, up to 5.1-channel DSD, bitstream
• HDMI video: UHD 23.976/25/30/50/59.94/60Hz, 1080i/p, 720p, 576i/p, 480i/p, source direct
• Frequency range: 20Hz–20kHz (±0.05dB)
• Signal-to-noise ratio: ≥120dB
• Total harmonic distortion + noise: <0.00018%
• Output level: RCA 2.1±0.2Vrms, XLR 4.2±0.4Vrms
• Dynamic range: ≥120dB
• Channel separation: 120dB
• Power: AC 100–240V, 50/60Hz
• Power consumption: 30W (0.5W standby)
• Dimensions: 430 x 300 x 90mm
• Weight: 6.8kg
