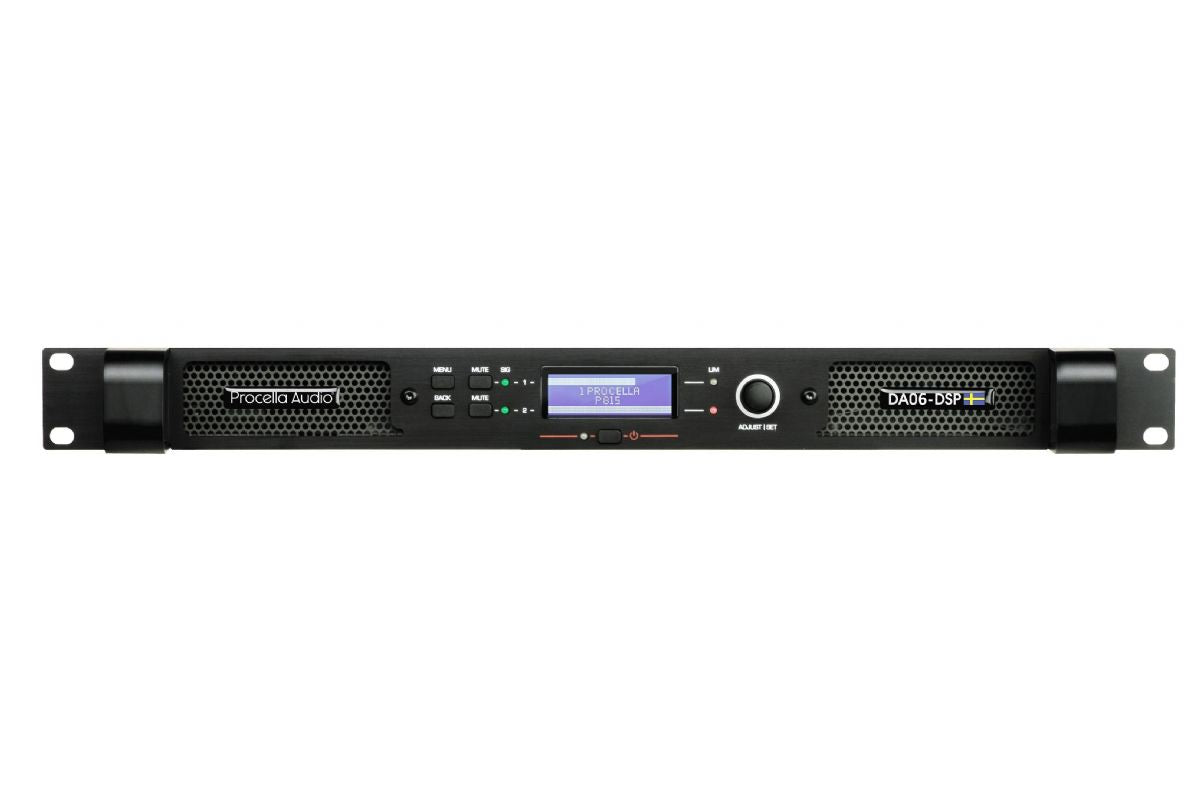

Procella DA06-DSP Amplifier, Piece

AED 10,800.00

Great speakers need a great amplifier, and that is the reason we created the DA06-DSP. It further increases the audio quality that Procella loudspeakers and subwoofers are famous for, whether you...

Categories: Procella, Shop Tags: amplifier, high end, Procella
Description

Great speakers need a great amplifier, and that is the reason we created the DA06-DSP. It further increases the audio quality that Procella loudspeakers and subwoofers are famous for, whether you are building a top class home cinemas, studio or Premier class commercial cinema. The DA06-DSP is a 2,400 Watt two-channel power amplifier that delivers 1200W x 2 into 4 ohms and 600W x 2 into 8 ohms. The amplifier’s class-D design is highly efficient, producing enormous output in a chassis that is only 1 RU high. The amplifier has onboard DSP with factory programmed presets that provide active crossovers and precise EQ for Procella’s full-range speakers and subwoofers. The factory presets cover the majority of system configurations, and for unique system requirements, custom DSP programming is available on an advance order basis. With utterly transparent sound quality and huge power reserves for tremendous dynamic range, the DA06-DSP is truly the ultimate amplifier for Procella speakers!

Specifications

GENERAL

2 channels (not bridgeable), 2400 W, Output current 20 Arms, Output voltage 100 V peak / 70 Vrms / 39.2 dBu

MAX. OUTPUT POWER

16 ohms 300 W, 2 ohms 500 W, 4 ohms 1200 W, 8 ohms 600 W

PERFORMANCE

Channel seperation @ 1 kHz > 80 dB, Frequency respons 2 Hz – 42 kHz (-3 dB), Gain (all DSP controls set to 0 dB) 33.2 dB, Signal To Noise Ratio 105 dB

MAINS POWER

connector Locking IEC inlet, nominal 100-240 VAC, operating 60-265 VAC, Standbye <7.5 W

PHYSICAL

Depth (over all) 17.0" / 431mm, Depth (Rack rail-rear panel) 14.1" / 359mm, Finish Black/Grey steel chassis, WxH 19" x 1U / 483 x 44mm / 17.2 Lbs / 7.8 Kg

CONNECTIVITY

AES input 3-pin XLR female, AES input link 3-pin XLR male, Analog input 3-pin XLR female, Analog input link 3-pin XLR male, Network RJ45 (ethernet), Output Neutrik speakON / binding posts / electronically balanced

APPROVALS

CCC, CE, FCC, PSE, RCM, UL (ANSI/UL, CAN/CSA)
