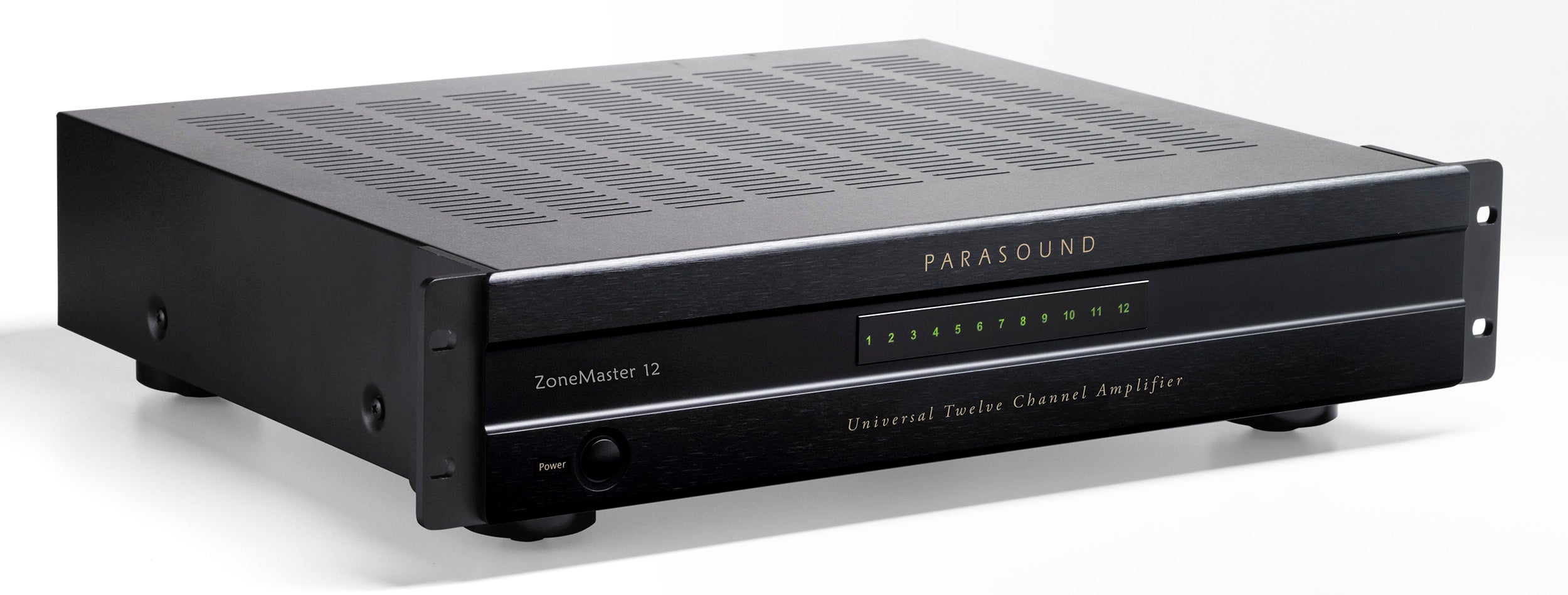

ZONEMASTER 12
Features :-
- Our new ZoneMaster models are very similar in their feature sets, differing mainly in size and number of channels. Looking for fewer channels? Try the ZoneMaster 2.
- Universal amplifier for applications from 60 to 150 watts
- Zone 1 (channel 1&2) are higher power for more demanding applications

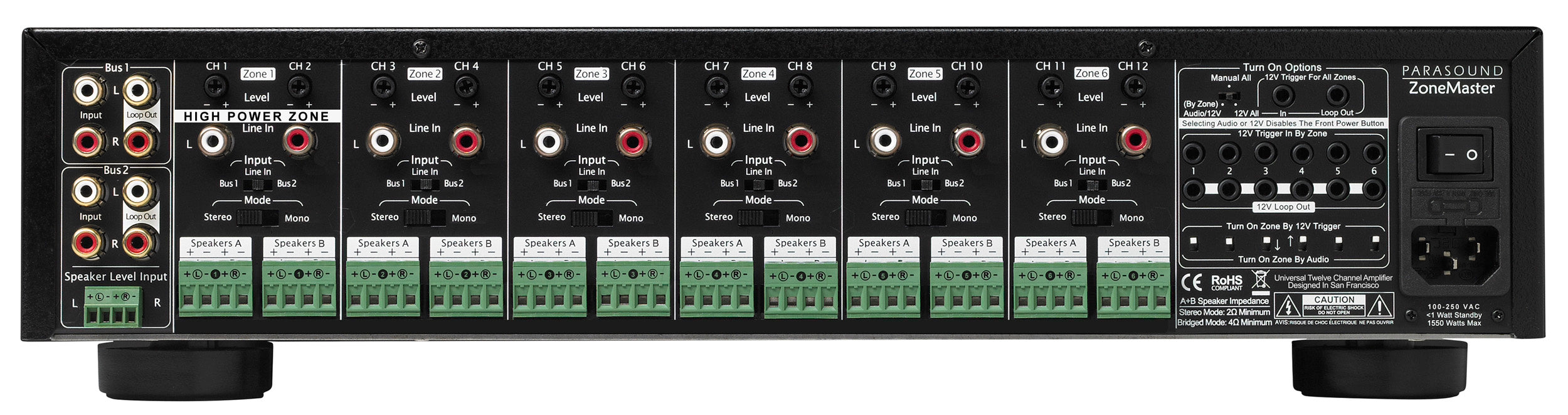

- 24 speaker connections (A and B outputs for all 12 channels)
- High current for stable operation at 2 Ohms
- Class AB input stage plus premium Class D power stage
- Independent audio sensing triggers, one for each zone
- 6 Independent 12 volt trigger inputs, one for each zone
- Looping 12 volt trigger outputs for each zone
- Master 12 volt trigger input to turn all zones on-off
- Speaker level input for expanding systems w/out pre out jacks
- Two bus inputs can be routed to any zone
- Bus loop output jacks for passing audio to another amp
- Summed Mono mode combines L and R for single speaker applications
- Separate level controls for all twelve channels
- Detachable speaker connectors accept up to 12 gauge wire

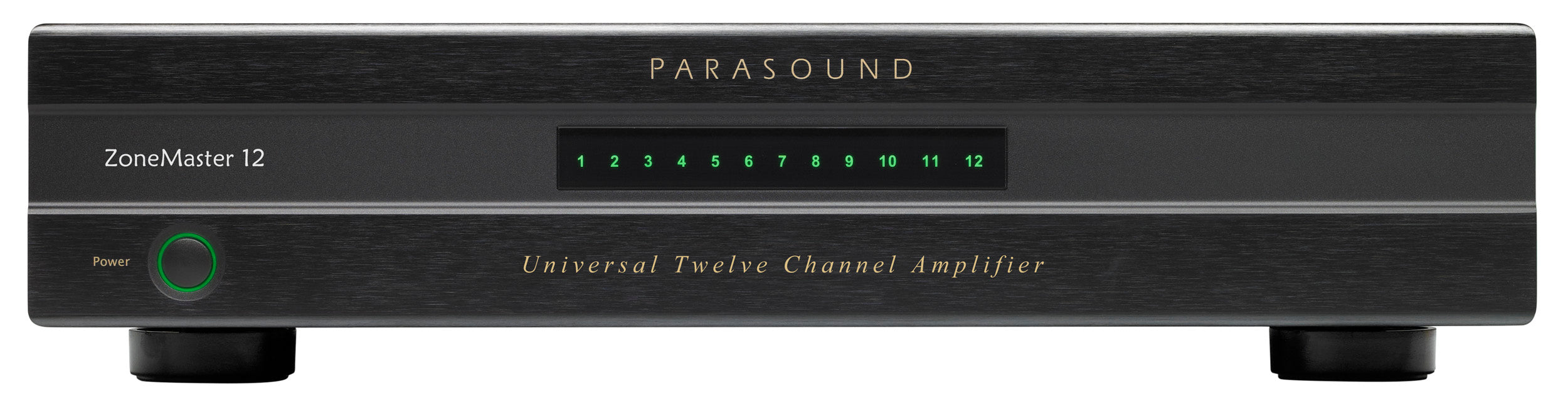

- Short circuit and overheat protection with front panel indicators
- 0.5 watt standby power consumption meets Energy Star & EU specs
- Compact 2U chassis
- 2U rack mounting hardware is included in box
