Parasound NewClassic 200 - Integrated Amplifier & DAC

AED 6,285.00

PARASOUND NEWCLASSIC 200 INTEGRATED   Features 110 Watts @ 8 or 4 Ohms Class D amplification by Pascal Burr-Brown 192kHz-24 bit DAC from the Halo P 5 USB, Optical and Coax digital...

Description

PARASOUND NEWCLASSIC 200 INTEGRATED

 Features

  • 110 Watts @ 8 or 4 Ohms
  • Class D amplification by Pascal
  • Burr-Brown 192kHz-24 bit DAC from the Halo P 5
  • USB, Optical and Coax digital audio inputs
  • 4 Analog audio inputs
  • Phono input for MM or MC cartridges
  • Pure analog signal path from input to output
  • Analog bass management w/ variable 20-140Hz high pass crossover
  • Subwoofer On/Off & level by remote control
  • 80Hz low pass subwoofer output
  • Full range mono output can be used for subwoofer or mono listening area
  • Variable and fixed stereo preamp outputs
  • Bypass input for surround sound or music streamer integration
  • Default turn on volume memory
  • Favorite volume memory with remote control button
  • Input level matching (source volume offset)
  • Bass, treble and balance adjustments by remote control

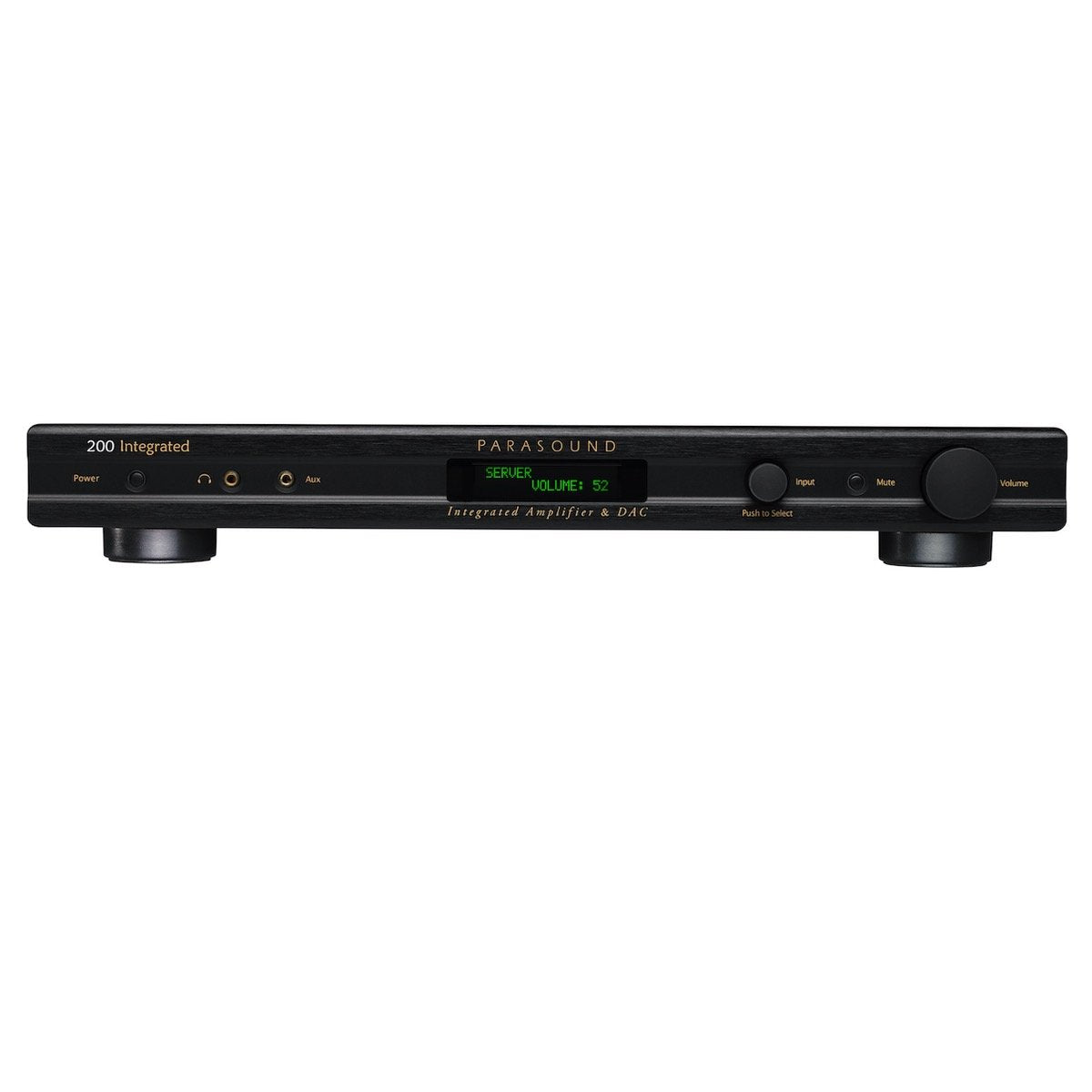

  • Front panel LCD display with dimming
  • 2-way RS232 w/ exact volume control & feedback
  • Rename inputs to match connected source
  • Front panel Aux input with12dB of additional gain
  • Dedicated headphone amplifier

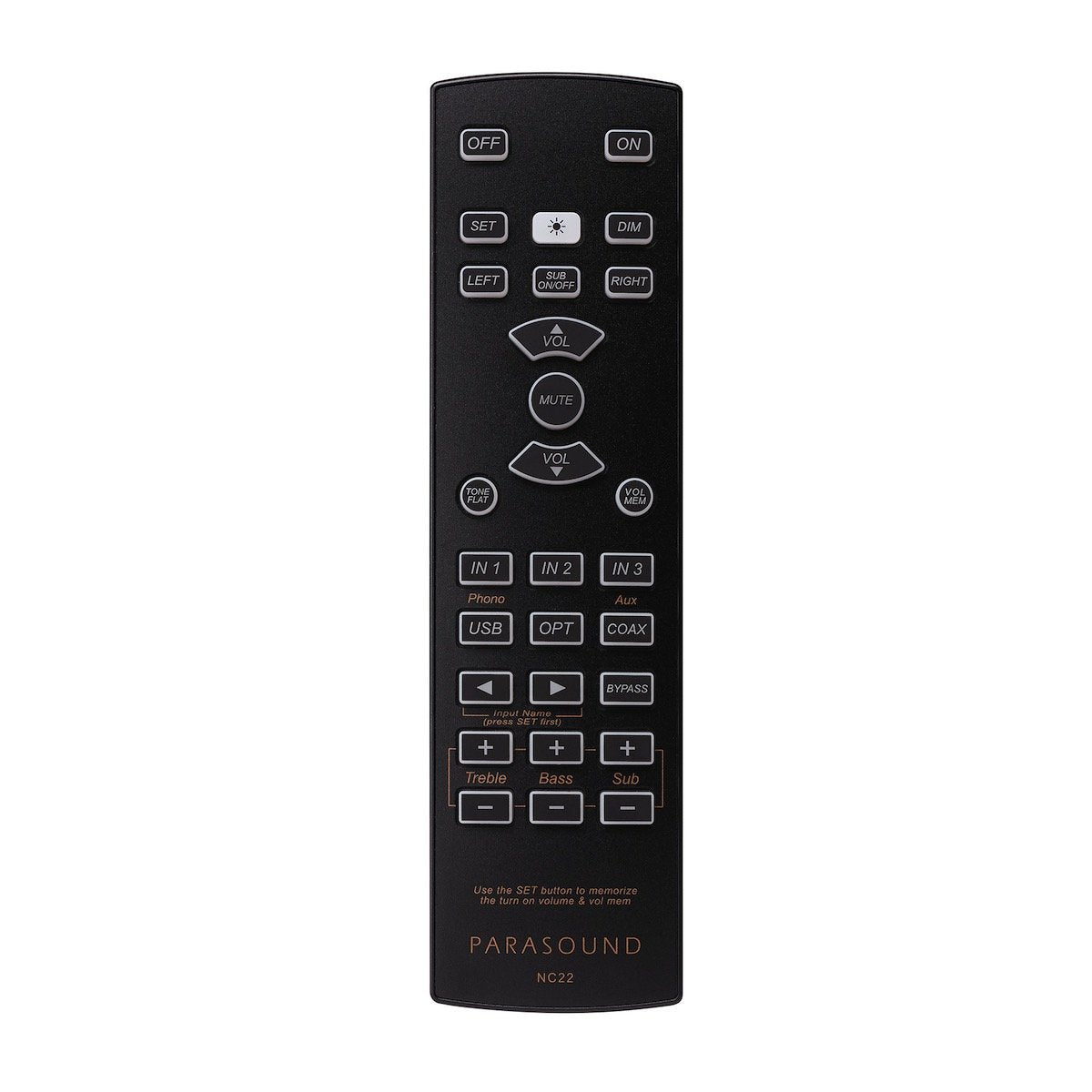

  • Back-lit remote control with discrete buttons
  • 12V trigger output
  • Rear panel IR input
  • 5w standby power consumption meets Energy Star & EU specs

SPECIFICATIONS

Power Output

Both channels driven (0.05% THD, 20 Hz - 20 kHz): 110 watts x 2 @ 4 Ω or 8 Ω (RMS)

Frequency Response

  • 20 Hz - 20 kHz, +0 / -0.05 dB
  • 10 Hz - 80 kHz, +0 / -3 dB

Total Harmonic Distortion

(20 Hz - 20 kHz): < 0.05 %, (110 watts, 8 Ω)

Interchannel Crosstalk

  • 75 dB at 20 kHz
  • 85dB at 1 kHz

Preamp Output

  • 250mv = 1V output
  • Total gain = 12 dB (volume set to 100)
  • Unity gain = Volume set to 76
  • Maximum output = 3.5V

Phono Stage Gain / Input Impedance

  • MM: 40 dB / 47 k Ω
  • MC: 50 dB / 100 Ω

Line Level Input Impedance

24k Ohms

Preamp Output Impedance

470 Ohms

S/N Ratio – Line Inputs

100 dB, input shorted, IHF A-weighted

DAC IC

Burr-Brown PCM1798

DAC Maximum Sampling Rates (PCM only)

  • USB: 96kHz - 24 bit
  • Optical: 192kHz - 24 bit
  • Coax: 192kHz - 24 bit

DC Trigger Output

12 Vdc, 50mA

AC Power Requirement

  • Standby: 0.5 watts
  • Idling: 15 watts (no music playing)
  • Typical: 50 watts (music playing)
  • Maximum: 300 watts
  • 100-250 VAC 50/60 Hz (automatic)

Dimensions

  • Width: 17.25" (438 mm)
  • Depth: 14.75" (375 mm)
  • Depth: 16.75" (425 mm) with cables connected
  • Height, with feet: 2.5" (63.5 mm)
  • Height, without feet: 1.75" (44.5 mm)
  • 1U Rack mounting requires RMK-11(sold separately)

Weight

5.2 KG
