Description

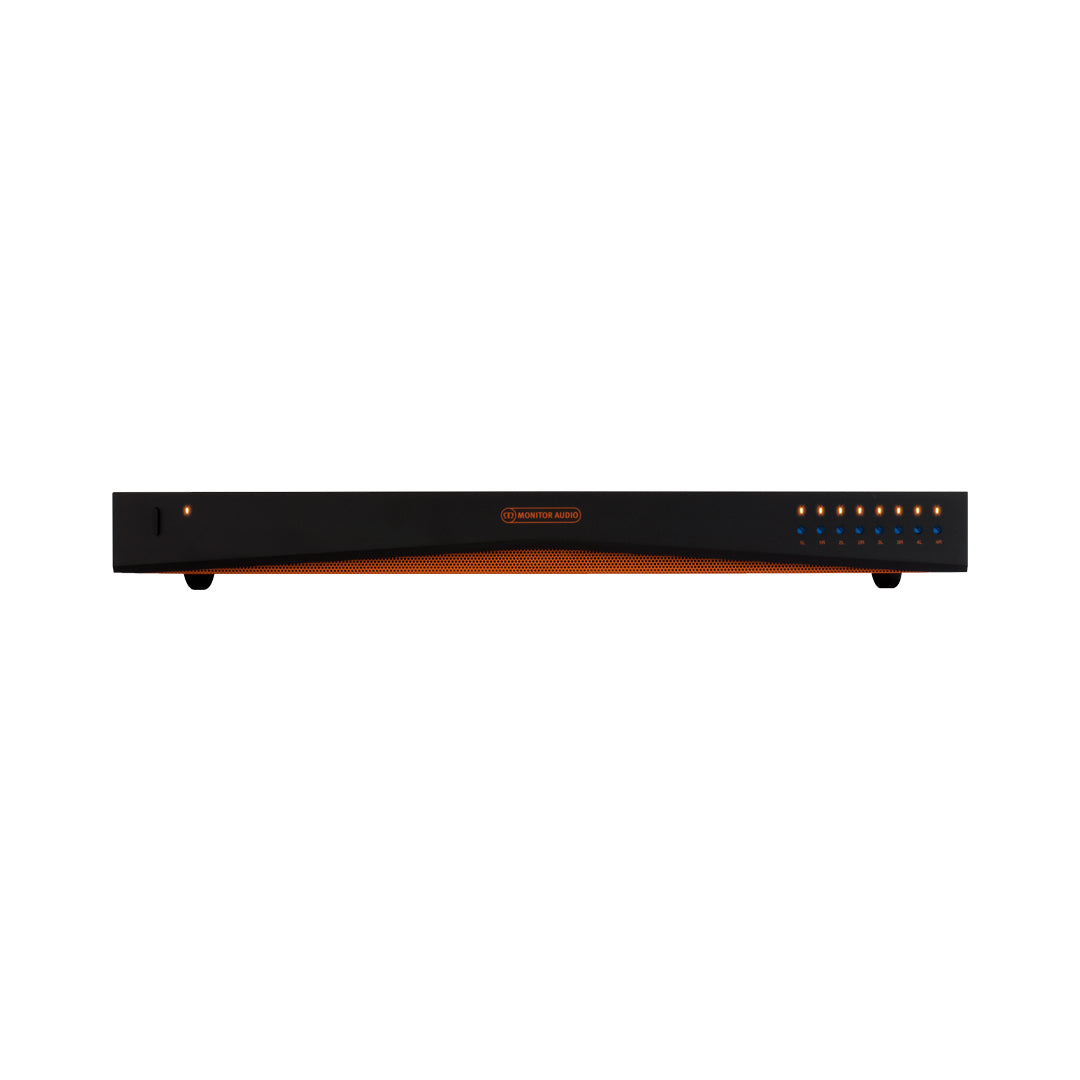

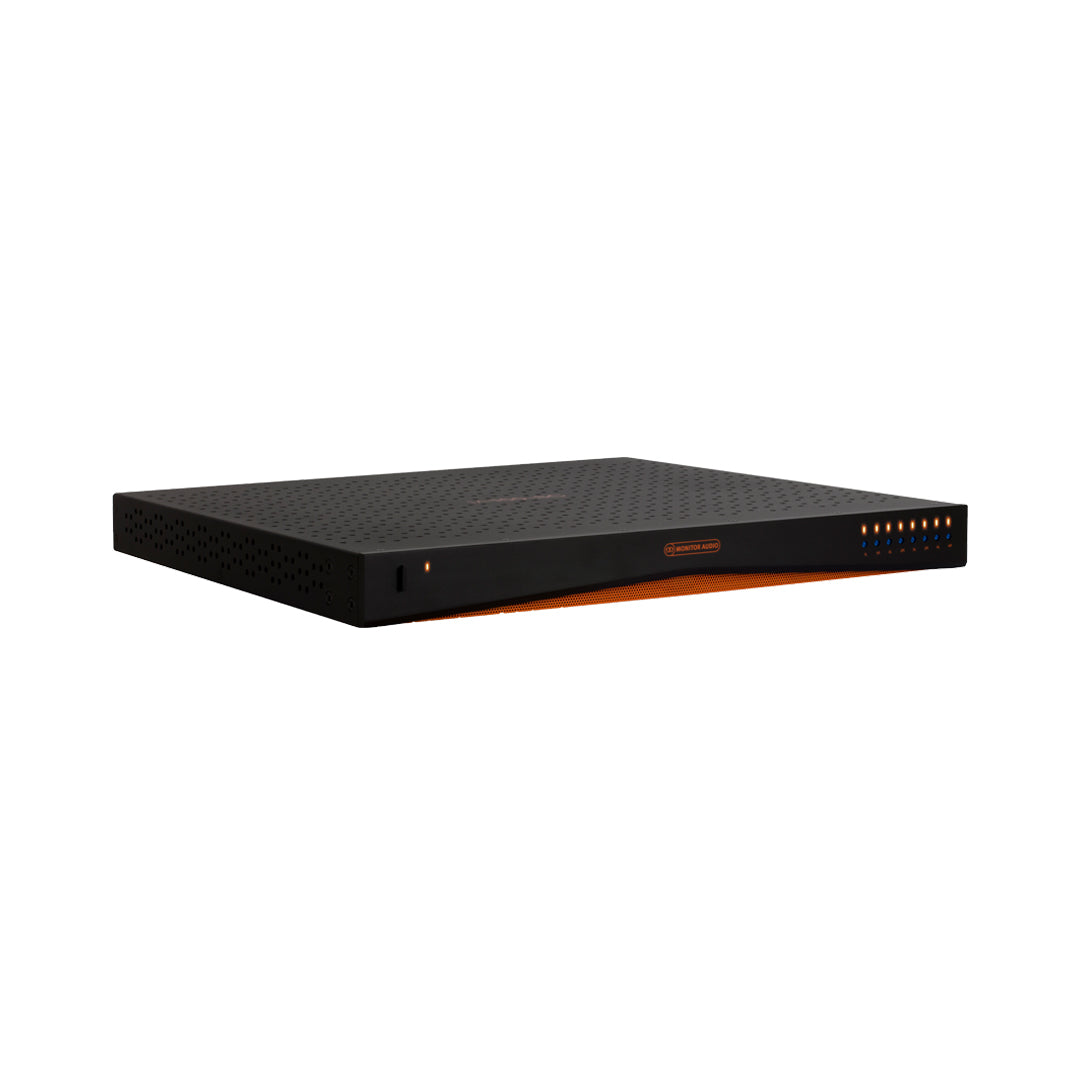

IA150-8C
The IA150-8C enables up to eight (4 stereo pairs) channels of 150 watts of power at 4 ohms. It’ll fit 1U rack height and, it employs our Connect IP interface, a web application, which can be accessed by any device connected to the internet with a browser on the same network.
The Monitor Audio Installation Amplifiers are configurable to 1, 2, 3, 4, 5, 6, or 12 channels. The IA150-8C enables up to eight (four stereo pairs) channels of 150 watts of power at four ohms. It’ll fit 1U rack height and, as a member of the Monitor Audio ‘Connect’ division, it employs our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.

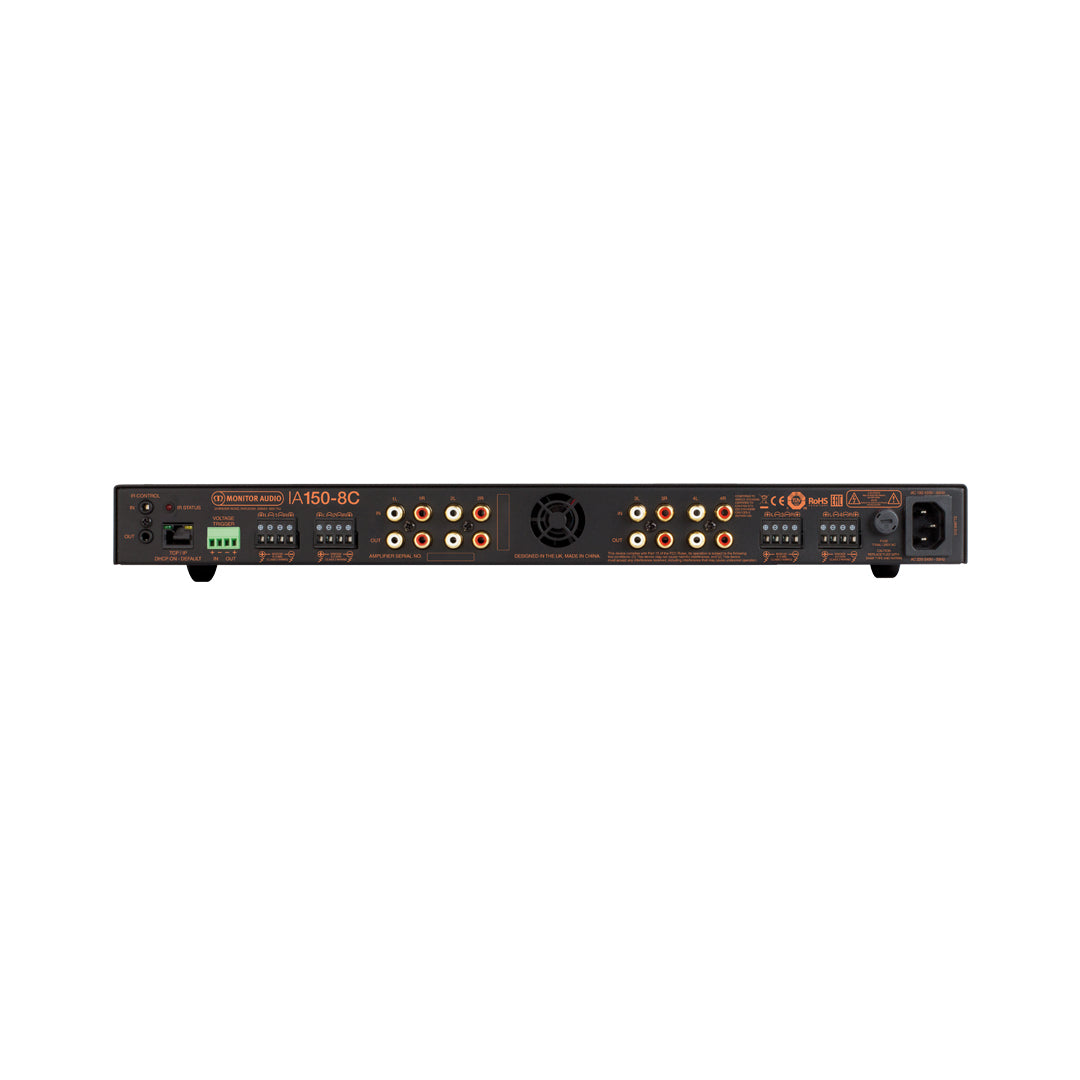

The IP control is via the RJ-45 input, controlling power On/Off, volume, muting, and input source selections. Perfectly prepared for any project, the IA150-8C’s industry standard removable block connectors accept up to 12-gauge (3.5 mm2) cable. Together with the rest of the Installation Amplifier range, the IA150-8C provides the brain as well as the brawn for the mightiest of projects.
SPECIFICATIONS
|
Connect IP Control |
Yes |
|
Channel Number |
8 (4 Stereo Pairs) |
|
Power (W / Channel) | 4 ohms |
150 W |
|
Power (W / Channel) | 8 ohms |
140 W |
|
Power (W / Channel) | Bridge (8 ohms) |
300 W (4CH) |
|
Power (W / Channel) | 70V |
N/A |
|
Input Impedance |
20 K ohms |
|
Output Impedance (Loop RCA) |
600 ohms |
|
Input Sensitivity |
100 mV / 1 W, 1140 mV – Full power |
|
Maximum Input Voltage |
2.9 V |
|
Signal to Noise (SN:R) |
-100 dB (20 Hz – 20 kHz) |
|
Frequency Response |
5 Hz – 50 kHz |
|
Total Harmonic Distortion THD + N@1 KHz |
0.03% |
|
Rack Height |
1U |
|
Dimensions (Excluding Feet (H x W x D)) |
42.4 x 438 x 427 mm (111/16 x 171/4 x 1613/16") |
|
Dimensions (Including Feet (H x W x D)) |
52.8 x 438 x 427 mm (21/16 x 171/4 x 1613/16") |
|
Width (including rack brackets) |
482 mm (19") |
|
IP Communication |
TCP/IP (RJ-45 10/100 Base T) |
|
Mains Operating Voltage |
|
|
Fuse Rating |
10 A (T10AL ~ 250VAC) |
|
Standby Power Consumption |
<0.5 W (green mode) |
|
Networked Standby Power Consumption |
<2 W |
|
Weight |
7.45 kg (16 lb 6 oz) |
